lamborghini urraco p300 timing gears parts diagram

003 - Timing Gears

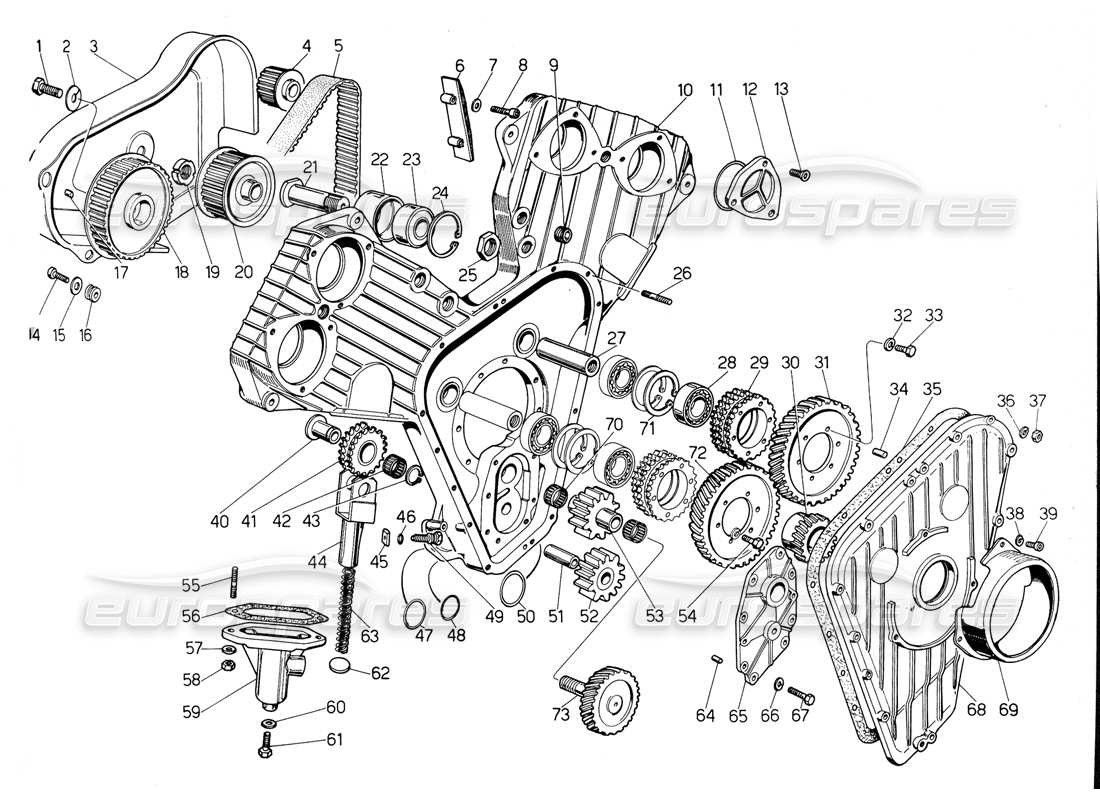

Lamborghini Urraco P300 Timing Gears Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                    #
                                                                                                                                                    Part number
                                                                                                                                                    Description
                                                                                                                                                    Price
                                                                                                                                                    # 001
                                                                                                                                                    MPN: 008101201
                                                                                                                                                    BOLT
                                                                                                                                                    from £14.98
                                                                                                                                                    from £14.98
                                                                                                                                                    # 002
                                                                                                                                                    MPN: 008411201
                                                                                                                                                    WASHER
                                                                                                                                                    from £3.70
                                                                                                                                                    from £3.70
                                                                                                                                                    # 003
                                                                                                                                                    MPN: 001210908
                                                                                                                                                    CARTER PROTEZIONE CINGHIA DENTATA
                                                                                                                                                    from £92.67
                                                                                                                                                    from £92.67
                                                                                                                                                    # 004
                                                                                                                                                    MPN: 001610673
                                                                                                                                                    WATER PUMP CONTROL GEAR
                                                                                                                                                    from £88.31
                                                                                                                                                    from £88.31
                                                                                                                                                    # 005
                                                                                                                                                    MPN: 001210882

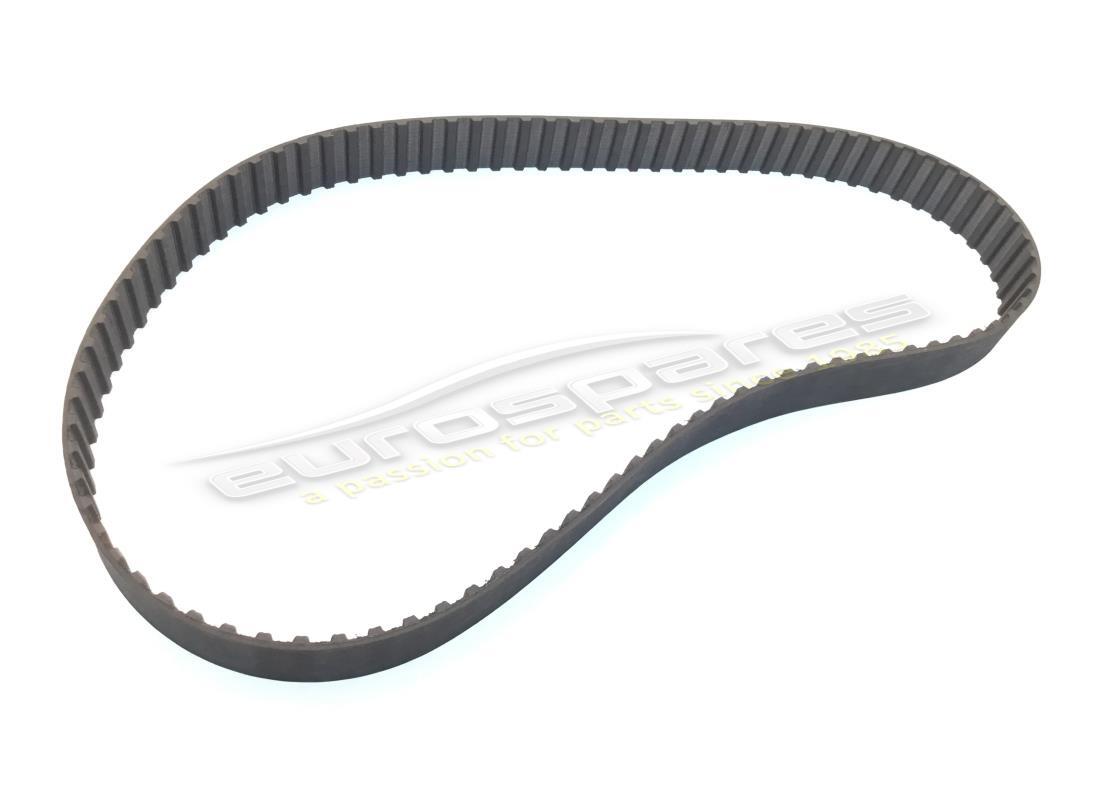

                                                                                                                                                    CINGHIA DENTATA COMANDO ORGAN! AUSILIARI
                                                                                                                                                    from £39.44
                                                                                                                                                    from £39.44
                                                                                                                                                    # 006
                                                                                                                                                    MPN: 001210870
                                                                                                                                                    TIMING CHAIN ​​SLIDE
                                                                                                                                                    from £92.66
                                                                                                                                                    from £92.66
                                                                                                                                                    # 007
                                                                                                                                                    MPN: 008410602
                                                                                                                                                    WASHER
                                                                                                                                                    from £28.28
                                                                                                                                                    from £28.28
                                                                                                                                                    # 008
                                                                                                                                                    MPN: 008700601
                                                                                                                                                    SCREW
                                                                                                                                                    from £3.65
                                                                                                                                                    from £3.65
                                                                                                                                                    # 009
                                                                                                                                                    MPN: 008932002
                                                                                                                                                    PLUG
                                                                                                                                                    from £16.80
                                                                                                                                                    from £16.80
                                                                                                                                                    # 010
                                                                                                                                                    MPN: 001210837
                                                                                                                                                    CARTER DISTRIBUZIONE
                                                                                                                                                    from £3,046.98
                                                                                                                                                    from £3,046.98
                                                                                                                                                    # 011
                                                                                                                                                    MPN: 008607102
                                                                                                                                                    SEALING RING
                                                                                                                                                    from £0.53
                                                                                                                                                    from £0.53
                                                                                                                                                    # 012
                                                                                                                                                    MPN: 001210840
                                                                                                                                                    COPERCHIETTO PER CARTER
                                                                                                                                                    from £25.62
                                                                                                                                                    from £25.62
                                                                                                                                                    # 013
                                                                                                                                                    MPN: 008700613
                                                                                                                                                    SCREW
                                                                                                                                                    from £0.50
                                                                                                                                                    from £0.50
                                                                                                                                                    # 014
                                                                                                                                                    MPN: 008700627
                                                                                                                                                    SCREW
                                                                                                                                                    Supersession
                                                                                                                                                    Supersession
                                                                                                                                                    # 015
                                                                                                                                                    MPN: 008400607
                                                                                                                                                    WASHER
                                                                                                                                                    Supersession
                                                                                                                                                    Supersession
                                                                                                                                                    # 016
                                                                                                                                                    MPN: 008610901
                                                                                                                                                    RUBBER GROMMET
                                                                                                                                                    # 017
                                                                                                                                                    MPN: 008850611
                                                                                                                                                    GRANODI RIFERIMENTO
                                                                                                                                                    from £14.35
                                                                                                                                                    from £14.35
                                                                                                                                                    # 018
                                                                                                                                                    MPN: 001210874
                                                                                                                                                    PULLEY ON THE MOTORCYCLE TRANSMISSION CAMSHAFT
                                                                                                                                                    from £197.75
                                                                                                                                                    from £197.75
                                                                                                                                                    # 019
                                                                                                                                                    MPN: 008251701
                                                                                                                                                    LOCK NUT
                                                                                                                                                    Supersession
                                                                                                                                                    Supersession
                                                                                                                                                    # 020
                                                                                                                                                    MPN: 001210878
                                                                                                                                                    PULLEY ON THE WATER PUMP CONTROL SHAFT
                                                                                                                                                    from £173.29
                                                                                                                                                    from £173.29
                                                                                                                                                    # 021
                                                                                                                                                    MPN: 001210889
                                                                                                                                                    PIVOT
                                                                                                                                                    from £43.37
                                                                                                                                                    from £43.37
                                                                                                                                                    # 022
                                                                                                                                                    MPN: 001210881
                                                                                                                                                    AUXILIARY ORGANS CONTROL GROUP
                                                                                                                                                    from £190.66
                                                                                                                                                    from £190.66
                                                                                                                                                    # 023
                                                                                                                                                    MPN: 008502501
                                                                                                                                                    BEARING
                                                                                                                                                    from £34.37
                                                                                                                                                    from £34.37
                                                                                                                                                    # 024
                                                                                                                                                    MPN: 008575201
                                                                                                                                                    SEEGER RING
                                                                                                                                                    from £0.79
                                                                                                                                                    from £0.79
                                                                                                                                                    # 025
                                                                                                                                                    MPN: 008202501
                                                                                                                                                    NUT
                                                                                                                                                    from £9.66
                                                                                                                                                    from £9.66
                                                                                                                                                    # 026
                                                                                                                                                    MPN: 008300609
                                                                                                                                                    THREADED STUD
                                                                                                                                                    from £8.84
                                                                                                                                                    from £8.84
                                                                                                                                                    # 027
                                                                                                                                                    MPN: 001210852
                                                                                                                                                    PIVOT
                                                                                                                                                    from £20.31
                                                                                                                                                    from £20.31
                                                                                                                                                    # 028
                                                                                                                                                    MPN: 008502507
                                                                                                                                                    BEARING
                                                                                                                                                    from £18.04
                                                                                                                                                    from £18.04
                                                                                                                                                    # 029
                                                                                                                                                    MPN: 001210847
                                                                                                                                                    TIMING CHAIN ​​DRIVE GEAR
                                                                                                                                                    from £211.43
                                                                                                                                                    from £211.43
                                                                                                                                                    # 030
                                                                                                                                                    MPN: 001210851
                                                                                                                                                    GEAR ON THE CRANKSHAFT
                                                                                                                                                    from £474.25
                                                                                                                                                    from £474.25
                                                                                                                                                    # 031
                                                                                                                                                    MPN: 001210850
                                                                                                                                                    GEAR FOR DISTRIBUTION CHAIN ​​DRIVE PINION
                                                                                                                                                    from £632.62
                                                                                                                                                    from £632.62
                                                                                                                                                    # 032
                                                                                                                                                    MPN: 008410602
                                                                                                                                                    WASHER
                                                                                                                                                    from £26.77
                                                                                                                                                    from £26.77
                                                                                                                                                    # 033
                                                                                                                                                    MPN: 008100622
                                                                                                                                                    BOLT
                                                                                                                                                    from £3.65
                                                                                                                                                    from £3.65
                                                                                                                                                    # 034
                                                                                                                                                    MPN: 008850806
                                                                                                                                                    LOCATING DOWEL
                                                                                                                                                    Supersession
                                                                                                                                                    Supersession
                                                                                                                                                    # 035
                                                                                                                                                    MPN: 001210839
                                                                                                                                                    GASKET
                                                                                                                                                    from £20.28
                                                                                                                                                    from £20.28
                                                                                                                                                    # 036
                                                                                                                                                    MPN: 008410602
                                                                                                                                                    WASHER
                                                                                                                                                    from £26.58
                                                                                                                                                    from £26.58
                                                                                                                                                    # 037
                                                                                                                                                    MPN: 008200604
                                                                                                                                                    NUT
                                                                                                                                                    Supersession
                                                                                                                                                    Supersession
                                                                                                                                                    # 038
                                                                                                                                                    MPN: 008410603
                                                                                                                                                    WASHER
                                                                                                                                                    Supersession
                                                                                                                                                    Supersession
                                                                                                                                                    # 039
                                                                                                                                                    MPN: 008700605
                                                                                                                                                    SCREW
                                                                                                                                                    from £0.53
                                                                                                                                                    from £0.53
                                                                                                                                                    # 040
                                                                                                                                                    MPN: 001210887
                                                                                                                                                    PIVOT
                                                                                                                                                    from £49.83
                                                                                                                                                    from £49.83
                                                                                                                                                    # 041
                                                                                                                                                    MPN: 001210876
                                                                                                                                                    TENDICATENA
                                                                                                                                                    from £114.00
                                                                                                                                                    from £114.00
                                                                                                                                                    # 042
                                                                                                                                                    MPN: 008522004
                                                                                                                                                    CUSCINETTO A RULLINI
                                                                                                                                                    # 043
                                                                                                                                                    MPN: WHT002646
                                                                                                                                                    RING
                                                                                                                                                    from £0.73
                                                                                                                                                    from £0.73
                                                                                                                                                    # 044
                                                                                                                                                    MPN: 001210888
                                                                                                                                                    SUPPORT
                                                                                                                                                    from £100.73
                                                                                                                                                    from £100.73
                                                                                                                                                    # 045
                                                                                                                                                    MPN: 001210886
                                                                                                                                                    LOCKING PLATE
                                                                                                                                                    from £16.09
                                                                                                                                                    from £16.09
                                                                                                                                                    # 046
                                                                                                                                                    MPN: 008600902
                                                                                                                                                    SEALING RING
                                                                                                                                                    from £0.53
                                                                                                                                                    from £0.53
                                                                                                                                                    # 047
                                                                                                                                                    MPN: 008602301
                                                                                                                                                    SEALING RING
                                                                                                                                                    from £1.21
                                                                                                                                                    from £1.21
                                                                                                                                                    # 048
                                                                                                                                                    MPN: 008601802
                                                                                                                                                    SEALING RING
                                                                                                                                                    from £0.54
                                                                                                                                                    from £0.54
                                                                                                                                                    # 049
                                                                                                                                                    MPN: 001210884
                                                                                                                                                    BOLT
                                                                                                                                                    from £15.80
                                                                                                                                                    from £15.80
                                                                                                                                                    # 050
                                                                                                                                                    MPN: 008603101
                                                                                                                                                    SEALING RING
                                                                                                                                                    from £2.22
                                                                                                                                                    from £2.22
                                                                                                                                                    # 051
                                                                                                                                                    MPN: 001210883
                                                                                                                                                    PIVOT
                                                                                                                                                    from £14.01
                                                                                                                                                    from £14.01
                                                                                                                                                    # 052
                                                                                                                                                    MPN: 001210873
                                                                                                                                                    INGRANAGGIO CONDOTTO POMPA OLIO
                                                                                                                                                    from £154.63
                                                                                                                                                    from £154.63
                                                                                                                                                    # 053
                                                                                                                                                    MPN: 001210872
                                                                                                                                                    INGRANAGGIO CONDUTTORE POMPA OLIO
                                                                                                                                                    from £159.20
                                                                                                                                                    from £159.20
                                                                                                                                                    # 054
                                                                                                                                                    MPN: 008100640
                                                                                                                                                    BOLT
                                                                                                                                                    from £8.17
                                                                                                                                                    from £8.17
                                                                                                                                                    # 055
                                                                                                                                                    MPN: 008300822
                                                                                                                                                    THREADED STUD
                                                                                                                                                    Supersession
                                                                                                                                                    Supersession
                                                                                                                                                    # 056
                                                                                                                                                    MPN: 001210877
                                                                                                                                                    GASKET
                                                                                                                                                    from £2.16
                                                                                                                                                    from £2.16
                                                                                                                                                    # 057
                                                                                                                                                    MPN: WHT001514
                                                                                                                                                    WASHER
                                                                                                                                                    from £15.09
                                                                                                                                                    from £15.09
                                                                                                                                                    This part replaces part number 008410805
                                                                                                                                                    # 058
                                                                                                                                                    MPN: 008200806
                                                                                                                                                    NUT
                                                                                                                                                    Supersession
                                                                                                                                                    Supersession
                                                                                                                                                    # 059
                                                                                                                                                    MPN: 001210879
                                                                                                                                                    CHAIN ​​TENSIONER SUPPORT CASTING
                                                                                                                                                    from £134.73
                                                                                                                                                    from £134.73
                                                                                                                                                    # 060
                                                                                                                                                    MPN: 008400802
                                                                                                                                                    WASHER
                                                                                                                                                    from £1.00
                                                                                                                                                    from £1.00
                                                                                                                                                    # 061
                                                                                                                                                    MPN: 008700821
                                                                                                                                                    BOLT
                                                                                                                                                    from £12.82
                                                                                                                                                    from £12.82
                                                                                                                                                    # 062
                                                                                                                                                    MPN: 001210880
                                                                                                                                                    PLATE
                                                                                                                                                    from £5.27
                                                                                                                                                    from £5.27
                                                                                                                                                    # 063
                                                                                                                                                    MPN: 001210896
                                                                                                                                                    SPRING
                                                                                                                                                    from £18.62
                                                                                                                                                    from £18.62
                                                                                                                                                    # 064
                                                                                                                                                    MPN: 008850605
                                                                                                                                                    GRANODI RIFERIMENTO
                                                                                                                                                    # 065
                                                                                                                                                    MPN: 001210885
                                                                                                                                                    COVER
                                                                                                                                                    from £109.86
                                                                                                                                                    from £109.86
                                                                                                                                                    # 066
                                                                                                                                                    MPN: 008410602
                                                                                                                                                    WASHER
                                                                                                                                                    from £27.52
                                                                                                                                                    from £27.52
                                                                                                                                                    # 067
                                                                                                                                                    MPN: 008100621
                                                                                                                                                    BOLT
                                                                                                                                                    from £1.11
                                                                                                                                                    from £1.11
                                                                                                                                                    # 068
                                                                                                                                                    MPN: 001210838
                                                                                                                                                    COVER
                                                                                                                                                    from £916.17
                                                                                                                                                    from £916.17
                                                                                                                                                    # 069
                                                                                                                                                    MPN: 001210947
                                                                                                                                                    DAMPER FLYWHEEL PROTECTION
                                                                                                                                                    from £33.64
                                                                                                                                                    from £33.64
                                                                                                                                                    # 070
                                                                                                                                                    MPN: 008522003
                                                                                                                                                    CUSCINETTO A RULLINI
                                                                                                                                                    from £6.43
                                                                                                                                                    from £6.43
                                                                                                                                                    # 071
                                                                                                                                                    MPN: 008575001
                                                                                                                                                    RING
                                                                                                                                                    from £0.55
                                                                                                                                                    from £0.55
                                                                                                                                                    # 072
                                                                                                                                                    MPN: 001210848
                                                                                                                                                    GEAR FOR DISTRIBUTION CHAIN ​​DRIVE PINION
                                                                                                                                                    from £632.62
                                                                                                                                                    from £632.62
                                                                                                                                                    # 073
                                                                                                                                                    MPN: 001210849
                                                                                                                                                    INGRANAGGIO COMANDO POMPA OLIO
                                                                                                                                                    from £527.32
                                                                                                                                                    from £527.32
