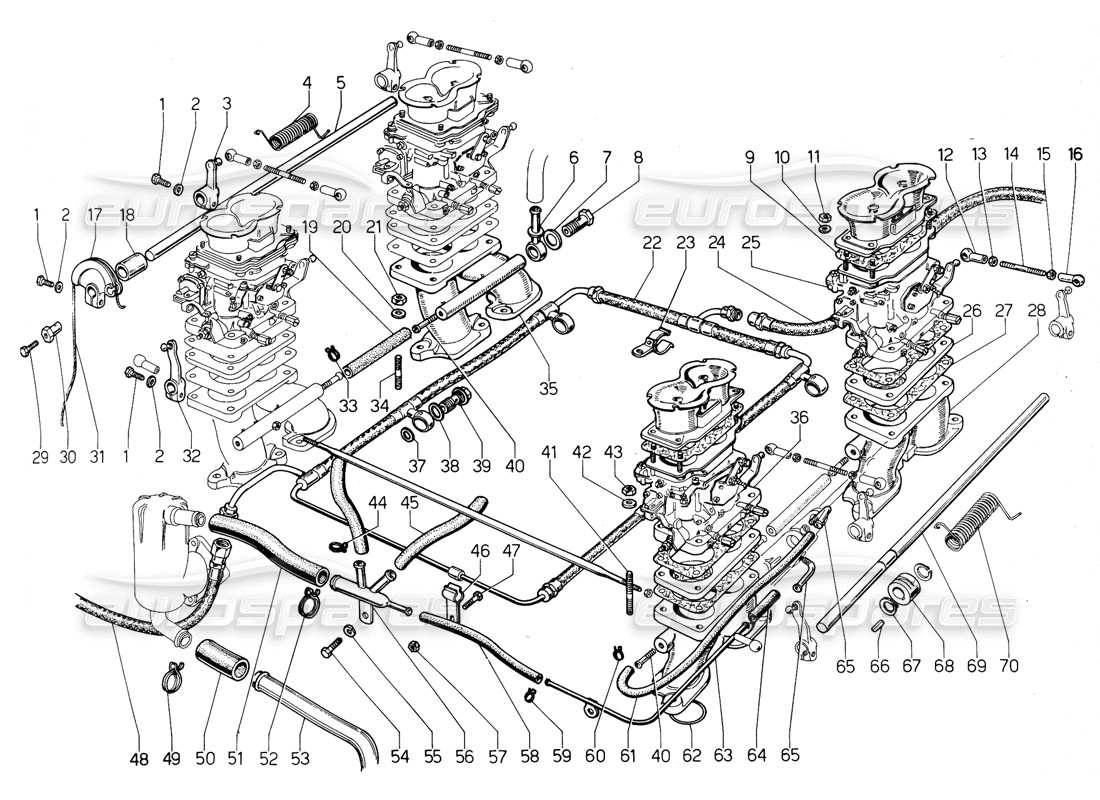

Lamborghini Urraco P300 Fuel System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                            #
                                                                                                                                            Part number
                                                                                                                                            Description
                                                                                                                                            Price
                                                                                                                                            # 001
                                                                                                                                            MPN: 008100618
                                                                                                                                            BOLT
                                                                                                                                            Supersession
                                                                                                                                            Supersession
                                                                                                                                            # 002
                                                                                                                                            MPN: 008410603
                                                                                                                                            WASHER
                                                                                                                                            Supersession
                                                                                                                                            Supersession
                                                                                                                                            # 003
                                                                                                                                            MPN: 001310963
                                                                                                                                            LEVER
                                                                                                                                            from £32.17
                                                                                                                                            from £32.17
                                                                                                                                            # 004
                                                                                                                                            MPN: 001310961
                                                                                                                                            SPRING
                                                                                                                                            from £50.59
                                                                                                                                            from £50.59
                                                                                                                                            # 005
                                                                                                                                            MPN: 001310955
                                                                                                                                            LEFT ROW CARBURETTOR CONTROL SHAFT
                                                                                                                                            from £7.63
                                                                                                                                            from £7.63
                                                                                                                                            # 006
                                                                                                                                            MPN: 001311534
                                                                                                                                            UNION
                                                                                                                                            from £17.04
                                                                                                                                            from £17.04
                                                                                                                                            # 007
                                                                                                                                            MPN: 008401008
                                                                                                                                            WASHER
                                                                                                                                            Supersession
                                                                                                                                            Supersession
                                                                                                                                            # 008
                                                                                                                                            MPN: 001311533
                                                                                                                                            BOLT
                                                                                                                                            from £11.90
                                                                                                                                            from £11.90
                                                                                                                                            # 009
                                                                                                                                            MPN: 001310960
                                                                                                                                            GASKET
                                                                                                                                            from £3.82
                                                                                                                                            from £3.82
                                                                                                                                            # 010
                                                                                                                                            MPN: 008410503
                                                                                                                                            WASHER
                                                                                                                                            Supersession
                                                                                                                                            Supersession
                                                                                                                                            # 011
                                                                                                                                            MPN: 008200501
                                                                                                                                            NUT
                                                                                                                                            Supersession
                                                                                                                                            Supersession
                                                                                                                                            # 012
                                                                                                                                            MPN: 001300804
                                                                                                                                            BODY FOR CARBURETTOR CONTROL LEVER HEADS
                                                                                                                                            from £7.38
                                                                                                                                            from £7.38
                                                                                                                                            # 013
                                                                                                                                            MPN: 008200501
                                                                                                                                            NUT
                                                                                                                                            Supersession
                                                                                                                                            Supersession
                                                                                                                                            # 014
                                                                                                                                            MPN: 001310956
                                                                                                                                            TIE ROD
                                                                                                                                            from £9.95
                                                                                                                                            from £9.95
                                                                                                                                            # 015
                                                                                                                                            MPN: N10690001
                                                                                                                                            NUT LH THREAD
                                                                                                                                            from £318.19
                                                                                                                                            from £318.19
                                                                                                                                            # 016
                                                                                                                                            MPN: 001308539
                                                                                                                                            CORPO PER TESTINE LEVE COMANDO CARBURATORI (FILETTO SINISTRO)
                                                                                                                                            # 017
                                                                                                                                            MPN: 001310948
                                                                                                                                            CARBURETTOR ROD CONTROL PULLEY
                                                                                                                                            from £56.55
                                                                                                                                            from £56.55
                                                                                                                                            # 018
                                                                                                                                            MPN: 001310950
                                                                                                                                            DISTANZIALE PER CARRUCOLA
                                                                                                                                            from £2.29
                                                                                                                                            from £2.29
                                                                                                                                            # 019
                                                                                                                                            MPN: 001310944
                                                                                                                                            PIPE / TUBE / HOSE
                                                                                                                                            from £3.24
                                                                                                                                            from £3.24
                                                                                                                                            # 020
                                                                                                                                            MPN: WHT001514
                                                                                                                                            WASHER
                                                                                                                                            from £15.09
                                                                                                                                            from £15.09
                                                                                                                                            This part replaces part number 008410805
                                                                                                                                            # 021
                                                                                                                                            MPN: 008200806
                                                                                                                                            NUT
                                                                                                                                            Supersession
                                                                                                                                            Supersession
                                                                                                                                            # 022
                                                                                                                                            MPN: 001310927
                                                                                                                                            FUEL PIPES ASSEMBLY ON CARBURETORS
                                                                                                                                            from £203.56
                                                                                                                                            from £203.56
                                                                                                                                            # 023
                                                                                                                                            MPN: 001311609
                                                                                                                                            JUBILEE CLIP
                                                                                                                                            from £14.01
                                                                                                                                            from £14.01
                                                                                                                                            # 024
                                                                                                                                            MPN: 006211103
                                                                                                                                            PIPE / TUBE / HOSE
                                                                                                                                            from £22.72
                                                                                                                                            from £22.72
                                                                                                                                            # 025
                                                                                                                                            MPN: 001310714
                                                                                                                                            DISTRIBUTION SIDE CARBURETTOR
                                                                                                                                            # 026
                                                                                                                                            MPN: 001310958
                                                                                                                                            THICKNESS BETWEEN CARBURETTOR AND MANIFOLD
                                                                                                                                            from £24.71
                                                                                                                                            from £24.71
                                                                                                                                            # 027
                                                                                                                                            MPN: 001310957
                                                                                                                                            GASKET OR SEAL
                                                                                                                                            from £3.63
                                                                                                                                            from £3.63
                                                                                                                                            # 028
                                                                                                                                            MPN: 001310805
                                                                                                                                            COLLETTORE DI ASPIRAZIONE
                                                                                                                                            from £218.89
                                                                                                                                            from £218.89
                                                                                                                                            # 029
                                                                                                                                            MPN: N01020717
                                                                                                                                            BOLT
                                                                                                                                            from £0.47
                                                                                                                                            from £0.47
                                                                                                                                            This part replaces part number 008100504
                                                                                                                                            # 030
                                                                                                                                            MPN: 001310949
                                                                                                                                            CARBURETTOR CONTROL CABLE ADJUSTING CYLINDER
                                                                                                                                            from £23.43
                                                                                                                                            from £23.43
                                                                                                                                            # 032
                                                                                                                                            MPN: 001311580
                                                                                                                                            LEVER
                                                                                                                                            from £208.10
                                                                                                                                            from £208.10
                                                                                                                                            # 033
                                                                                                                                            MPN: 008830128
                                                                                                                                            JUBILEE CLIP
                                                                                                                                            Supersession
                                                                                                                                            Supersession
                                                                                                                                            # 034
                                                                                                                                            MPN: 008300820
                                                                                                                                            THREADED STUD
                                                                                                                                            from £1.43
                                                                                                                                            from £1.43
                                                                                                                                            # 035
                                                                                                                                            MPN: 001310844
                                                                                                                                            COLLETTORE DI ASPIRAZIONE
                                                                                                                                            from £378.08
                                                                                                                                            from £378.08
                                                                                                                                            # 036
                                                                                                                                            MPN: 001310715
                                                                                                                                            REAR CARBURETTOR
                                                                                                                                            # 040
                                                                                                                                            MPN: 001111782
                                                                                                                                            PIPE FOR INTAKE MANIFOLD CONNECTION
                                                                                                                                            from £40.91
                                                                                                                                            from £40.91
                                                                                                                                            # 041
                                                                                                                                            MPN: 008300820
                                                                                                                                            THREADED STUD
                                                                                                                                            from £1.43
                                                                                                                                            from £1.43
                                                                                                                                            # 042
                                                                                                                                            MPN: WHT001514
                                                                                                                                            WASHER
                                                                                                                                            from £15.09
                                                                                                                                            from £15.09
                                                                                                                                            This part replaces part number 008410805
                                                                                                                                            # 043
                                                                                                                                            MPN: 008200811
                                                                                                                                            NUT
                                                                                                                                            from £3.65
                                                                                                                                            from £3.65
                                                                                                                                            # 044
                                                                                                                                            MPN: 008830123
                                                                                                                                            JUBILEE CLIP
                                                                                                                                            from £3.70
                                                                                                                                            from £3.70
                                                                                                                                            # 045
                                                                                                                                            MPN: 001310938
                                                                                                                                            HOSE FROM 4 WAY TO THE AIR FILTER
                                                                                                                                            # 046
                                                                                                                                            MPN: 001311140
                                                                                                                                            JUBILEE CLIP
                                                                                                                                            from £6.47
                                                                                                                                            from £6.47
                                                                                                                                            # 047
                                                                                                                                            MPN: 008100809
                                                                                                                                            BOLT
                                                                                                                                            from £0.54
                                                                                                                                            from £0.54
                                                                                                                                            # 048
                                                                                                                                            MPN: 006210976
                                                                                                                                            PIPE / TUBE / HOSE
                                                                                                                                            from £42.95
                                                                                                                                            from £42.95
                                                                                                                                            # 049
                                                                                                                                            MPN: 008830125
                                                                                                                                            JUBILEE CLIP
                                                                                                                                            from £3.70
                                                                                                                                            from £3.70
                                                                                                                                            # 050
                                                                                                                                            MPN: 001312208
                                                                                                                                            SLEEVE
                                                                                                                                            # 051
                                                                                                                                            MPN: 001310966
                                                                                                                                            HOSE FROM THE OIL VENT BODY TO 4 WAY
                                                                                                                                            from £9.63
                                                                                                                                            from £9.63
                                                                                                                                            # 052
                                                                                                                                            MPN: 008830124
                                                                                                                                            JUBILEE CLIP
                                                                                                                                            from £0.71
                                                                                                                                            from £0.71
                                                                                                                                            # 053
                                                                                                                                            MPN: 001311837
                                                                                                                                            OIL DRAIN PIPE TO THE CRANKCASE
                                                                                                                                            from £26.74
                                                                                                                                            from £26.74
                                                                                                                                            # 054
                                                                                                                                            MPN: 008100622
                                                                                                                                            BOLT
                                                                                                                                            from £3.65
                                                                                                                                            from £3.65
                                                                                                                                            # 055
                                                                                                                                            MPN: 008410602
                                                                                                                                            WASHER
                                                                                                                                            from £28.85
                                                                                                                                            from £28.85
                                                                                                                                            # 056
                                                                                                                                            MPN: 001310925
                                                                                                                                            UNION
                                                                                                                                            from £35.90
                                                                                                                                            from £35.90
                                                                                                                                            # 057
                                                                                                                                            MPN: 008200809
                                                                                                                                            NUT
                                                                                                                                            Supersession
                                                                                                                                            Supersession
                                                                                                                                            # 058
                                                                                                                                            MPN: 001311836
                                                                                                                                            PIPE / TUBE / HOSE
                                                                                                                                            from £21.80
                                                                                                                                            from £21.80
                                                                                                                                            # 059
                                                                                                                                            MPN: 008830122
                                                                                                                                            JUBILEE CLIP
                                                                                                                                            from £0.53
                                                                                                                                            from £0.53
                                                                                                                                            # 060
                                                                                                                                            MPN: 008830128
                                                                                                                                            JUBILEE CLIP
                                                                                                                                            Supersession
                                                                                                                                            Supersession
                                                                                                                                            # 061
                                                                                                                                            MPN: 001310940
                                                                                                                                            PIPE / TUBE / HOSE
                                                                                                                                            from £12.74
                                                                                                                                            from £12.74
                                                                                                                                            # 062
                                                                                                                                            MPN: 008604401
                                                                                                                                            RING
                                                                                                                                            from £0.51
                                                                                                                                            from £0.51
                                                                                                                                            # 063
                                                                                                                                            MPN: 001310926
                                                                                                                                            CENTRAL OIL VAPOR RECIRCULATION PIPE
                                                                                                                                            from £12.74
                                                                                                                                            from £12.74
                                                                                                                                            # 064
                                                                                                                                            MPN: 001310939
                                                                                                                                            PIPE / TUBE / HOSE
                                                                                                                                            # 065
                                                                                                                                            MPN: 001111781
                                                                                                                                            UNION
                                                                                                                                            from £10.43
                                                                                                                                            from £10.43
                                                                                                                                            # 066
                                                                                                                                            MPN: 008860401
                                                                                                                                            Key
                                                                                                                                            from £17.77
                                                                                                                                            from £17.77
                                                                                                                                            # 067
                                                                                                                                            MPN: 008581101
                                                                                                                                            SEEGER RING
                                                                                                                                            from £3.65
                                                                                                                                            from £3.65
                                                                                                                                            # 068
                                                                                                                                            MPN: 001310941
                                                                                                                                            OIL VAPOR RECIRCULATION VALVE
                                                                                                                                            from £29.36
                                                                                                                                            from £29.36
                                                                                                                                            # 069
                                                                                                                                            MPN: 001310962
                                                                                                                                            RIGHT ROW CARBURETTOR CONTROL SHAFT
                                                                                                                                            from £17.04
                                                                                                                                            from £17.04
                                                                                                                                            # 070
                                                                                                                                            MPN: 001310964
                                                                                                                                            SPRING
                                                                                                                                            from £6.67
                                                                                                                                            from £6.67
