lamborghini urraco p300 gear shift lever parts diagram

014 - Gear shift lever

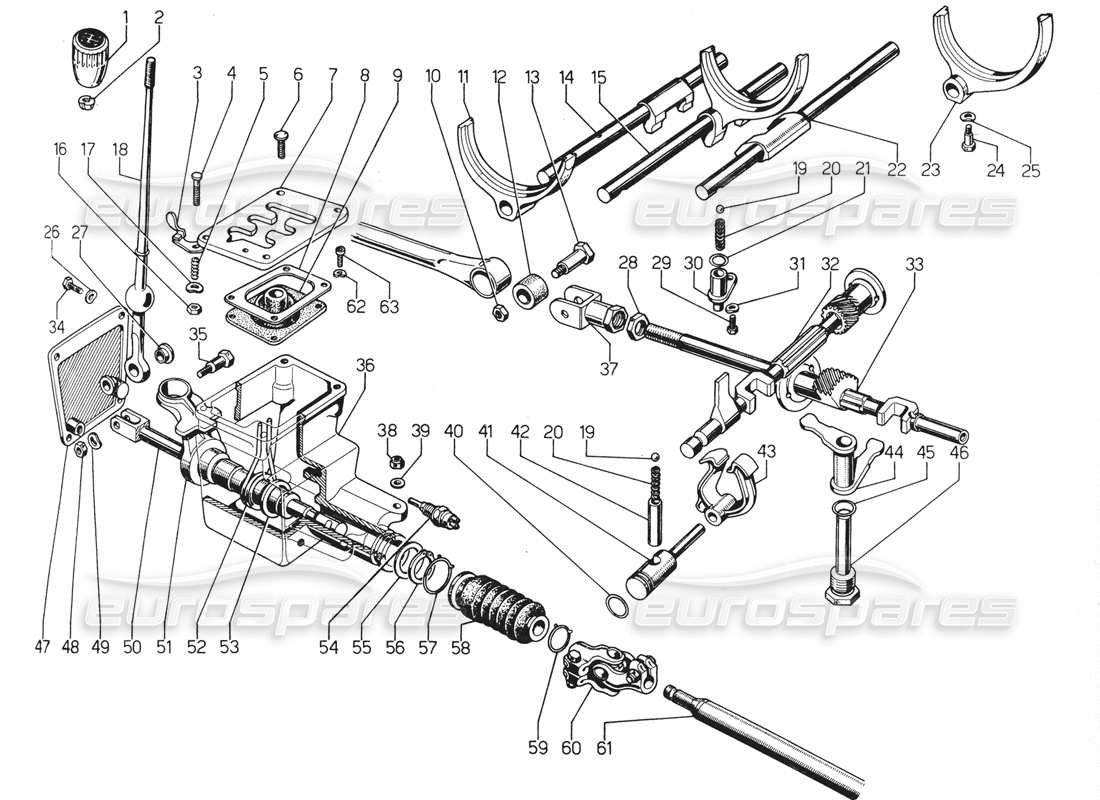

Lamborghini Urraco P300 Gear Shift Lever Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                #
                                                                                                                                Part number
                                                                                                                                Description
                                                                                                                                Key
                                                                                                                                Price
                                                                                                                                # 001
                                                                                                                                MPN: 002410733
                                                                                                                                KNOB COMPLETE
                                                                                                                                from £35.28
                                                                                                                                from £35.28
                                                                                                                                GEAR LEVER KNOB ASSEMBLY Genuine Lamborghini - New (to order)
                                                                                                                                # 002
                                                                                                                                MPN: 002410653
                                                                                                                                RING NUT
                                                                                                                                from £27.28
                                                                                                                                from £27.28
                                                                                                                                GEAR LEVER KNOB RINGNUT Genuine Lamborghini - New (to order)
                                                                                                                                # 003
                                                                                                                                MPN: 002410634
                                                                                                                                FERMO PER LEVA IN RM
                                                                                                                                from £53.31
                                                                                                                                from £53.31
                                                                                                                                REVERSE LEVER STOP Genuine Lamborghini - New (to order)
                                                                                                                                # 004
                                                                                                                                MPN: 008700615
                                                                                                                                SCREW
                                                                                                                                from £3.70
                                                                                                                                from £3.70
                                                                                                                                SCREW D.6X1X30 Genuine Lamborghini - New (to order)
                                                                                                                                # 005
                                                                                                                                MPN: 002403369
                                                                                                                                SPRING
                                                                                                                                from £20.81
                                                                                                                                from £20.81
                                                                                                                                REVERSE LEVER LOCK SPRING Genuine Lamborghini - New (to order)
                                                                                                                                # 006
                                                                                                                                MPN: 008700616
                                                                                                                                SCREW
                                                                                                                                from £12.06
                                                                                                                                from £12.06
                                                                                                                                CHROME-PLATED SCREW 6X1X22 Genuine Lamborghini - New (to order)
                                                                                                                                # 007
                                                                                                                                MPN: 002410736
                                                                                                                                SELETTORE
                                                                                                                                from £106.55
                                                                                                                                from £106.55
                                                                                                                                GEAR SELECTOR / SLICK SHIFT GATE Genuine Lamborghini - New (to order)
                                                                                                                                # 008
                                                                                                                                MPN: 002410735
                                                                                                                                PLATE
                                                                                                                                from £24.71
                                                                                                                                from £24.71
                                                                                                                                GEARBOX CAP PLATE Genuine Lamborghini - New (to order)
                                                                                                                                # 009
                                                                                                                                MPN: 002410734
                                                                                                                                GEAR GEAR LEVER BOOT
                                                                                                                                from £19.98
                                                                                                                                from £19.98
                                                                                                                                GEAR LEVER BOOT Genuine Lamborghini - New (to order)
                                                                                                                                # 010
                                                                                                                                MPN: 008200809
                                                                                                                                NUT
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                Genuine Lamborghini (no longer available to order)
                                                                                                                                # 011
                                                                                                                                MPN: 002407756
                                                                                                                                FORK 4ª AND 5ª SPEED
                                                                                                                                from £294.34
                                                                                                                                from £294.34
                                                                                                                                4TH/5TH SPEED ENGAGING FORK Genuine Lamborghini - New (to order)
                                                                                                                                # 012
                                                                                                                                MPN: 008921406
                                                                                                                                SILENTBLOC
                                                                                                                                from £221.37
                                                                                                                                from £221.37
                                                                                                                                This part replaces part number 008821466
                                                                                                                                SILBLOC RIV.88110441G Genuine Lamborghini - New (to order)
                                                                                                                                # 013
                                                                                                                                MPN: 008101414
                                                                                                                                BOLT
                                                                                                                                from £22.14
                                                                                                                                from £22.14
                                                                                                                                SPECIAL SCREW Genuine Lamborghini - New (to order)
                                                                                                                                # 014
                                                                                                                                MPN: 002406736
                                                                                                                                ASTA INNESTO 4A E 5A VELOCKTA
                                                                                                                                from £201.48
                                                                                                                                from £201.48
                                                                                                                                4TH/5TH SPEED GEAR ENGAGEMENT LEVER Genuine Lamborghini - New (to order)
                                                                                                                                # 015
                                                                                                                                MPN: 002408651
                                                                                                                                ROD AND FORK ENGAGEMENT 2A AND 3A SPEED
                                                                                                                                from £397.97
                                                                                                                                from £397.97
                                                                                                                                2ND-3RD GEAR FORK CONTROL ROD Genuine Lamborghini - New (to order)
                                                                                                                                # 016
                                                                                                                                MPN: 008200606
                                                                                                                                NUT
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                Genuine Lamborghini (no longer available to order)
                                                                                                                                # 017
                                                                                                                                MPN: 008410602
                                                                                                                                WASHER
                                                                                                                                from £28.66
                                                                                                                                from £28.66
                                                                                                                                WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
                                                                                                                                # 018
                                                                                                                                MPN: 002410737
                                                                                                                                LEVER
                                                                                                                                from £71.89
                                                                                                                                from £71.89
                                                                                                                                GEAR LEVER Genuine Lamborghini - New (to order)
                                                                                                                                # 019
                                                                                                                                MPN: 008910701
                                                                                                                                SFERA
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                Genuine Lamborghini (no longer available to order)
                                                                                                                                # 020
                                                                                                                                MPN: 086311249
                                                                                                                                SPRING
                                                                                                                                from £3.07
                                                                                                                                from £3.07
                                                                                                                                This part replaces part number 002402242 - and 1 more. Click to view details
                                                                                                                                ROD SNAP SPRING Genuine Lamborghini - New In stock
                                                                                                                                # 021
                                                                                                                                MPN: 008601201
                                                                                                                                SEALING RING
                                                                                                                                from £0.53
                                                                                                                                from £0.53
                                                                                                                                RING 13 MM OR Genuine Lamborghini - New In stock
                                                                                                                                # 022
                                                                                                                                MPN: 002406753
                                                                                                                                ASTA INNESTO 1A VELOCITA E RM
                                                                                                                                Lamborghini PART 002406753 Genuine Lamborghini - New (to order)
                                                                                                                                # 023
                                                                                                                                MPN: 002407755
                                                                                                                                FORK 1ST SPEED AND REVERSE
                                                                                                                                from £294.34
                                                                                                                                from £294.34
                                                                                                                                1ST SPEED/REVERSE ENGAGING FOR K Genuine Lamborghini - New (to order)
                                                                                                                                # 024
                                                                                                                                MPN: 008100628
                                                                                                                                BOLT
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                Genuine Lamborghini (no longer available to order)
                                                                                                                                # 025
                                                                                                                                MPN: 008410603
                                                                                                                                WASHER
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                Genuine Lamborghini (no longer available to order)
                                                                                                                                # 026
                                                                                                                                MPN: 008410602
                                                                                                                                WASHER
                                                                                                                                from £27.52
                                                                                                                                from £27.52
                                                                                                                                WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
                                                                                                                                # 027
                                                                                                                                MPN: 002403702
                                                                                                                                BOCCALO
                                                                                                                                from £41.09
                                                                                                                                from £41.09
                                                                                                                                GEAR LEVER GUIDE BUSHING Genuine Lamborghini - New In stock
                                                                                                                                # 028
                                                                                                                                MPN: 008201607
                                                                                                                                NUT
                                                                                                                                from £1.08
                                                                                                                                from £1.08
                                                                                                                                M16X1.5 UNI 5589/5S NUT Genuine Lamborghini - New (to order)
                                                                                                                                # 029
                                                                                                                                MPN: 008100617
                                                                                                                                BOLT
                                                                                                                                from £3.65
                                                                                                                                from £3.65
                                                                                                                                SCREW M6X18 UNI 57395S Genuine Lamborghini - New (to order)
                                                                                                                                # 030
                                                                                                                                MPN: 002406807
                                                                                                                                CENTERING DOWEL
                                                                                                                                from £67.91
                                                                                                                                from £67.91
                                                                                                                                ROD BALL SLEEVE Genuine Lamborghini - New (to order)
                                                                                                                                # 031
                                                                                                                                MPN: 008410603
                                                                                                                                WASHER
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                Genuine Lamborghini (no longer available to order)
                                                                                                                                # 032
                                                                                                                                MPN: 002406697
                                                                                                                                ASTA SELEZOINE E INNESTO MARCE
                                                                                                                                from £167.07
                                                                                                                                from £167.07
                                                                                                                                GEAR SELECTOR LEVER Genuine Lamborghini - New (to order)
                                                                                                                                # 033
                                                                                                                                MPN: 002406632
                                                                                                                                ASTA POSTERIORE COMANDO CAMBIO
                                                                                                                                from £222.21
                                                                                                                                from £222.21
                                                                                                                                REAR GEAR ROD Genuine Lamborghini - New (to order)
                                                                                                                                # 034
                                                                                                                                MPN: 008100630
                                                                                                                                BOLT
                                                                                                                                from £0.54
                                                                                                                                from £0.54
                                                                                                                                SCREW M6X14 UNI 5739/8G/Z Genuine Lamborghini - New (to order)
                                                                                                                                # 035
                                                                                                                                MPN: 002402934
                                                                                                                                SCREW
                                                                                                                                from £18.17
                                                                                                                                from £18.17
                                                                                                                                GEAR LEVER SCREW Genuine Lamborghini - New (to order)
                                                                                                                                # 036
                                                                                                                                MPN: 002407511
                                                                                                                                GEARBOX BODY
                                                                                                                                from £184.89
                                                                                                                                from £184.89
                                                                                                                                GEARBOX Genuine Lamborghini - New (to order)
                                                                                                                                GEARBOX Genuine Lamborghini - Used In stock
                                                                                                                                Complete
                                                                                                                                # 037
                                                                                                                                MPN: 002411318
                                                                                                                                FORK
                                                                                                                                from £34.34
                                                                                                                                from £34.34
                                                                                                                                GEAR ROD FORK Genuine Lamborghini - New (to order)
                                                                                                                                # 038
                                                                                                                                MPN: 008200606
                                                                                                                                NUT
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                Genuine Lamborghini (no longer available to order)
                                                                                                                                # 039
                                                                                                                                MPN: 008400606
                                                                                                                                WASHER
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                Genuine Lamborghini (no longer available to order)
                                                                                                                                # 040
                                                                                                                                MPN: 008601501
                                                                                                                                SEALING RING
                                                                                                                                from £3.65
                                                                                                                                from £3.65
                                                                                                                                RING 16 MM OR Genuine Lamborghini - New (to order)
                                                                                                                                # 041
                                                                                                                                MPN: 002406699
                                                                                                                                PIVOT
                                                                                                                                from £17.46
                                                                                                                                from £17.46
                                                                                                                                ROD FORK PIN Genuine Lamborghini - New (to order)
                                                                                                                                # 042
                                                                                                                                MPN: 002407482
                                                                                                                                CENTERING DOWEL
                                                                                                                                from £23.30
                                                                                                                                from £23.30
                                                                                                                                URRACO GEAR SELECTION SLEEVE Genuine Lamborghini - New (to order)
                                                                                                                                # 043
                                                                                                                                MPN: 002406722
                                                                                                                                FORK
                                                                                                                                from £56.39
                                                                                                                                from £56.39
                                                                                                                                ROD STOP FORK Genuine Lamborghini - New (to order)
                                                                                                                                # 044
                                                                                                                                MPN: 002406659
                                                                                                                                LEVER
                                                                                                                                from £132.67
                                                                                                                                from £132.67
                                                                                                                                GEAR ENGAGING LEVER Genuine Lamborghini - New (to order)
                                                                                                                                # 045
                                                                                                                                MPN: 008602002
                                                                                                                                SEALING RING
                                                                                                                                from £14.31
                                                                                                                                from £14.31
                                                                                                                                RING 21 MM OR Genuine Lamborghini - New In stock
                                                                                                                                # 046
                                                                                                                                MPN: 002406667
                                                                                                                                PIVOT
                                                                                                                                from £86.65
                                                                                                                                from £86.65
                                                                                                                                ROD LEVER PIN Genuine Lamborghini - New (to order)
                                                                                                                                # 047
                                                                                                                                MPN: 002407501
                                                                                                                                COVER
                                                                                                                                from £16.25
                                                                                                                                from £16.25
                                                                                                                                GEARBOX COVER Genuine Lamborghini - New (to order)
                                                                                                                                # 048
                                                                                                                                MPN: 008200806
                                                                                                                                NUT
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                Genuine Lamborghini (no longer available to order)
                                                                                                                                # 049
                                                                                                                                MPN: 008410806
                                                                                                                                WASHER
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                Genuine Lamborghini (no longer available to order)
                                                                                                                                # 050
                                                                                                                                MPN: 002407485
                                                                                                                                PIVOT
                                                                                                                                from £50.33
                                                                                                                                from £50.33
                                                                                                                                GEARBOX CENTRAL PIN Genuine Lamborghini - New (to order)
                                                                                                                                # 051
                                                                                                                                MPN: 002407512
                                                                                                                                SUPPORT
                                                                                                                                from £79.60
                                                                                                                                from £79.60
                                                                                                                                GEAR LEVER BRACKET Genuine Lamborghini - New (to order)
                                                                                                                                # 052
                                                                                                                                MPN: 002407497
                                                                                                                                SPRING
                                                                                                                                from £14.77
                                                                                                                                from £14.77
                                                                                                                                GEAR LEVER RETURN SPRING Genuine Lamborghini - New In stock
                                                                                                                                # 053
                                                                                                                                MPN: 008402601
                                                                                                                                WASHER
                                                                                                                                from £14.98
                                                                                                                                from £14.98
                                                                                                                                FLAT WASHER D.26X3.3X40 3 TH. Genuine Lamborghini - New (to order)
                                                                                                                                # 054
                                                                                                                                MPN: 002408637
                                                                                                                                REVERSE SWITCH
                                                                                                                                from £73.80
                                                                                                                                from £73.80
                                                                                                                                SWITCH Genuine Lamborghini - New (to order)
                                                                                                                                # 055
                                                                                                                                MPN: 008402602
                                                                                                                                WASHER
                                                                                                                                from £6.97
                                                                                                                                from £6.97
                                                                                                                                WASHER 26X35X2-2.1-2.2-2.3 Genuine Lamborghini - New (to order)
                                                                                                                                # 056
                                                                                                                                MPN: 008582601
                                                                                                                                RING
                                                                                                                                from £3.65
                                                                                                                                from £3.65
                                                                                                                                O-RING E 26 UNI 7435-75 Genuine Lamborghini - New (to order)
                                                                                                                                # 057
                                                                                                                                MPN: 002408227
                                                                                                                                JUBILEE CLIP
                                                                                                                                from £3.36
                                                                                                                                from £3.36
                                                                                                                                GEARBOX BELLOW CLAMP Genuine Lamborghini - New (to order)
                                                                                                                                # 058
                                                                                                                                MPN: 002406614
                                                                                                                                SOFFIETTO
                                                                                                                                from £33.86
                                                                                                                                from £33.86
                                                                                                                                GEAR LEVER BELLOWS Genuine Lamborghini - New (to order)
                                                                                                                                # 059
                                                                                                                                MPN: 002408226
                                                                                                                                JUBILEE CLIP
                                                                                                                                from £3.36
                                                                                                                                from £3.36
                                                                                                                                GEARBOX BELLOW CLAMP Genuine Lamborghini - New (to order)
                                                                                                                                # 061
                                                                                                                                MPN: 002111315
                                                                                                                                ASTA COMANDO CAMBIO
                                                                                                                                ASTA COMANDO CAMBIO Genuine Lamborghini - New (to order)
                                                                                                                                # 062
                                                                                                                                MPN: 008410503
                                                                                                                                WASHER
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                Genuine Lamborghini (no longer available to order)
                                                                                                                                # 063
                                                                                                                                MPN: 008700504
                                                                                                                                SCREW
                                                                                                                                from £0.53
                                                                                                                                from £0.53
                                                                                                                                SCREW M5X12 UNI 59318G Genuine Lamborghini - New (to order)
