018 - Front Brakes

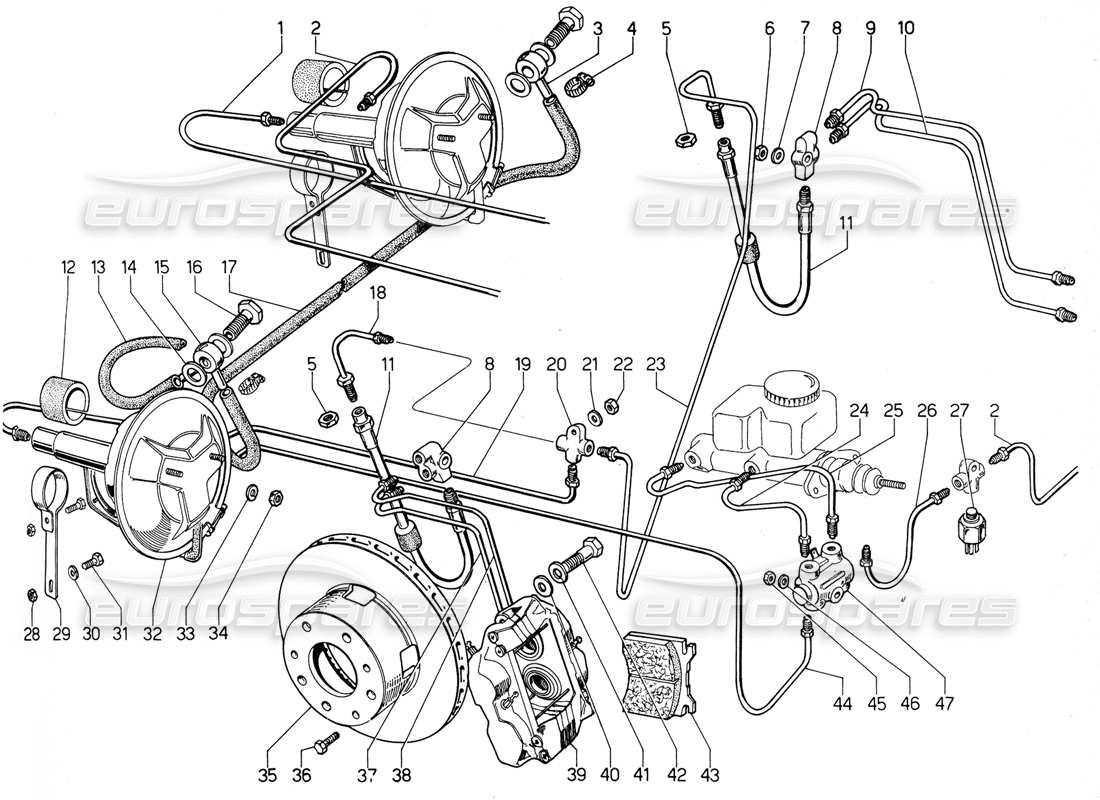

Lamborghini Urraco P300 Front Brakes Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 003211424
Hose from right brake booster to pressure regulator
# 002
MPN: 003211427
Hose from right brake booster to 3 way
# 003
MPN: 003204607
UNION
from £64.35
from £64.35
# 004
MPN: 008830205
JUBILEE CLIP
from £4.27
from £4.27
# 005
MPN: 008201004
NUT
from £0.58
from £0.58
# 006
MPN: 008200606
NUT
Supersession
Supersession
# 007
MPN: 008400606
WASHER
Supersession
Supersession
# 008
MPN: 003108672
UNION 3-WAY
from £36.67
from £36.67
# 009
MPN: 003108674
HOSE FROM RIGHT CALIPER TO 3 WAY
from £12.74
from £12.74
# 010
MPN: 003108673
HOSE FROM RIGHT CALIPER TO 3 WAY
from £39.06
from £39.06
# 011
MPN: 003208683
FLEXIBLE PIPE
from £31.20
from £31.20
# 012
MPN: 001708593
RUBBER PIECE
from £15.35
from £15.35
# 013
MPN: 003211466
Hose from brake booster to rear 3 way
# 014
MPN: 003101513
WASHER
from £0.97
from £0.97
# 015
MPN: 003204975
UNION
from £32.21
from £32.21
# 016
MPN: 003201511
BOLT
from £28.98
from £28.98
# 017
MPN: 003211465
tubo collegemento to servofreni
# 018
MPN: 003111431
TUBO DAL 3 VIE AL FLESSIBILE SINISTRO
from £11.53
from £11.53
# 019
MPN: 003111433
HOSE FROM 3 WAY TO THE LEFT BRAKE SERVO
# 020
MPN: 003208682
UNION 3-WAY
from £34.66
from £34.66
# 021
MPN: 008400606
WASHER
Supersession
Supersession
# 022
MPN: 008200606
NUT
Supersession
Supersession
# 023
MPN: 003111432
TUBO DAL 3 VIE AL FLESSIBILE DESTRO
from £11.53
from £11.53
# 024
MPN: 003211425
HOSE FROM PUMP TO SAFETY DEVICES
from £39.06
from £39.06
# 025
MPN: 003111430
HOSE FROM PUMP TO SAFETY DEVICE
from £10.87
from £10.87
# 026
MPN: 003211426
PIPE FROM SAFETY DEVICES TO 3 WAY
from £39.06
from £39.06
# 027
MPN: 003208693
CONTATTO GER STOP
from £85.39
from £85.39
# 028
MPN: 008200606
NUT
Supersession
Supersession
# 029
MPN: 003111405
BRAKE SERVO FIXING CLAMP
from £11.90
from £11.90
# 030
MPN: 008400606
WASHER
Supersession
Supersession
# 031
MPN: 008100604
BOLT
from £1.58
from £1.58
# 032
MPN: 003110013
Brake Servo
from £722.84
from £722.84
# 033
MPN: 008410806
WASHER
Supersession
Supersession
# 034
MPN: 008200813
NUT
from £1.58
from £1.58
# 035
MPN: 003106919
FRONT BRAKE DISC
from £985.69
from £985.69
# 036
MPN: N01029315
BOLT
from £0.82
from £0.82
# 037
MPN: 003108675
PIPE FROM LEFT CALIPER TO 3 WAY
from £39.06
from £39.06
# 038
MPN: 003108676
PIPE FROM LEFT CALIPER TO 3 WAY
from £12.74
from £12.74
# 039
MPN: 003112007
RIGHT FRONT BRAKE CALIPER
(exchange required)
from £1,185.64
from £1,185.64
# 039
MPN: 003112008
LEFT FRONT BRAKE CALIPER
(exchange required)
from £889.23
from £889.23
# 040
MPN: 008401305
WASHER
from £0.54
from £0.54
# 041
MPN: 008411303
WASHER
from £1.80
from £1.80
# 042
MPN: 008101223
BOLT
from £8.17
from £8.17
# 043
MPN: 003111053

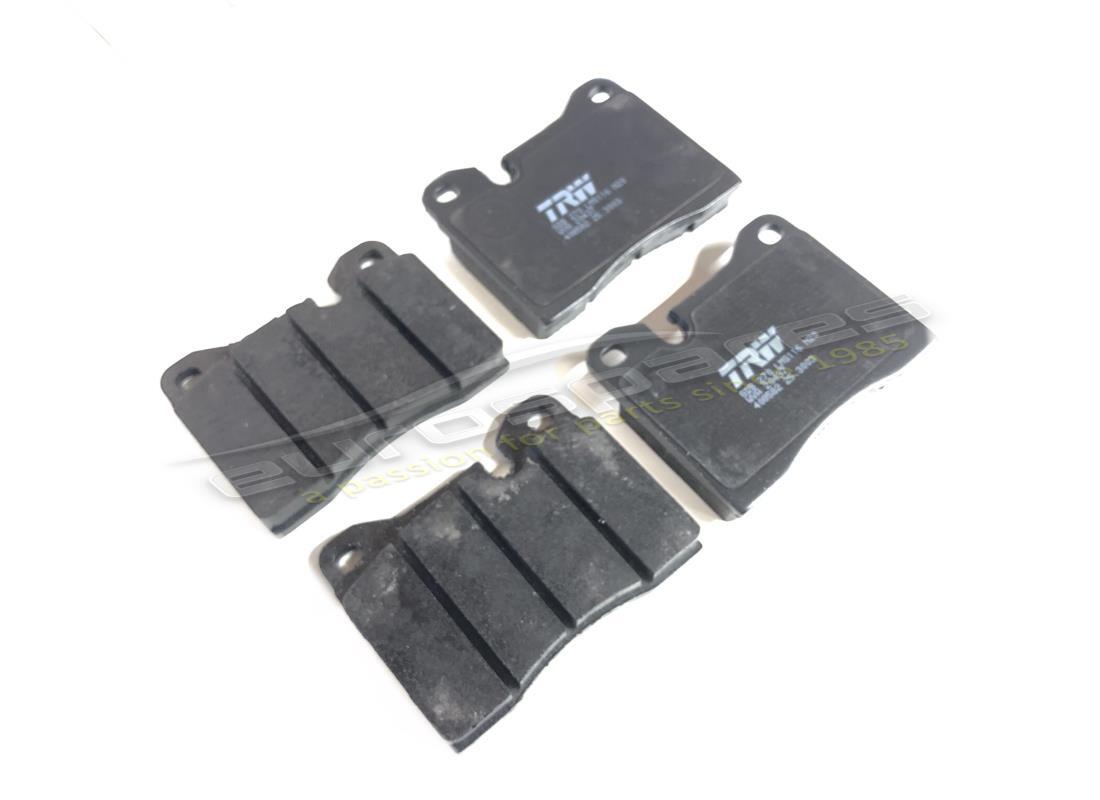

FRONT BRAKE PADS SET
from £83.95
from £83.95
This part replaces part number 003107427
# 044
MPN: 003111429
HOSE FROM DTS SAFETY DEVICE TO LEFT BRAKE SERVO
# 045
MPN: 008200606
NUT
Supersession
Supersession
# 046
MPN: 008400606
WASHER
Supersession
Supersession
# 047
MPN: 003111243
DISPOSITIVO DI SICUREZZA
from £131.87
from £131.87
