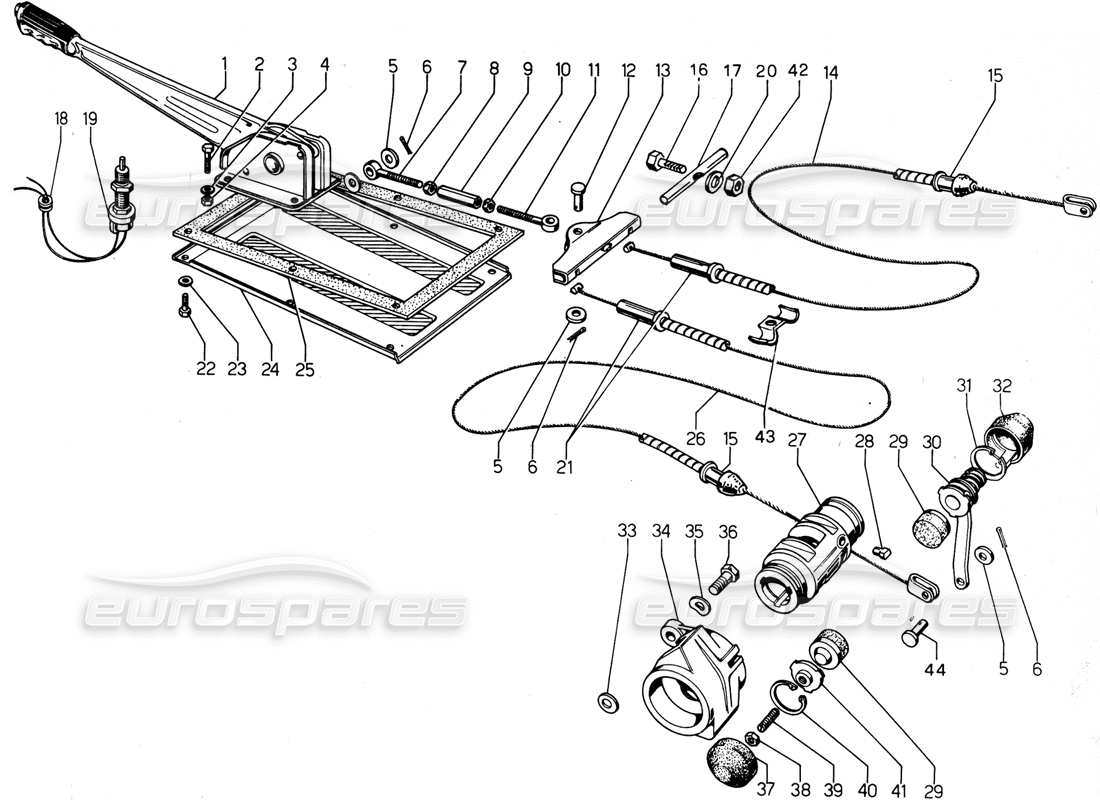

020 - Hand brake
Lamborghini Urraco P300 Hand Brake Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 003309377
LEVER
# 002
MPN: 008100618
BOLT
Supersession
Supersession
# 003
MPN: 008410603
WASHER
Supersession
Supersession
# 004
MPN: 008200604
NUT
Supersession
Supersession
# 005
MPN: 008400806
WASHER
from £0.52
from £0.52
# 006
MPN: 008820201
COPPIGILA
from £4.11
from £4.11
# 007
MPN: 003309378
TIE ROD
from £15.80
from £15.80
# 008
MPN: 008200607
NUT
from £8.05
from £8.05
# 009
MPN: 413609206
ADJUSTING SLEEVE
(Valid for RH D. version – April 1994) REGISTRO
from £39.87
from £39.87
# 010
MPN: 008200604
NUT
Supersession
Supersession
# 011
MPN: 003309379
TIE ROD
from £15.80
from £15.80
# 012
MPN: 410609789
PIVOT
from £18.55
from £18.55
This part replaces part number 003301307 which we have in stock
# 013
MPN: 003309423
BRACKET / SUPPORT
from £14.22
from £14.22
# 014
MPN: 003309382
RIGHT CALIPER CONTROL CABLE
from £182.02
from £182.02
# 015
MPN: 003309381
SHEATH STOPPING BUSH
from £159.52
from £159.52
# 016
MPN: 008100505
BOLT
from £0.54
from £0.54
# 017
MPN: 003309426
BAR FOR STOPPING HAND BRAKE CABLES
from £6.81
from £6.81
# 018
MPN: 008610601
RUBBER GROMMET
from £3.16
from £3.16
# 019
MPN: 003308994
INTERRUTTORE
from £23.30
from £23.30
# 020
MPN: 008410502
WASHER
Supersession
Supersession
# 021
MPN: 003309380
SHEATH STOPPING BUSH
from £95.55
from £95.55
# 022
MPN: 008100625
BOLT
from £83.46
from £83.46
# 023
MPN: 008410603
WASHER
Supersession
Supersession
# 024
MPN: 003309392
COVER
from £17.04
from £17.04
# 025
MPN: 003309391
GASKET
# 026
MPN: 003309383
LEFT CALIPER CONTROL CABLE
from £182.02
from £182.02
# 027
MPN: 003309364
INTERNAL BODY FOR HAND BRAKE CALIPER (RIGHT)
from £196.09
from £196.09
# 027
MPN: 003309365
INTERNAL BODY FOR HAND BRAKE CALIPER (SN)
from £755.71
from £755.71
# 028
MPN: 003309361
PIVOT
from £17.04
from £17.04
# 029
MPN: 003309363
PASTIGLIA
Supersession
Supersession
# 030
MPN: 003309384
GRUPPO CON LEVA (SINISTRO)
from £63.27
from £63.27
# 030
MPN: 003309385
GRUPPO CON LEVA (DESTRO)
from £63.27
from £63.27
# 031
MPN: 008573601
SEEGER RING
from £0.53
from £0.53
# 032
MPN: 003309387
GOMMINO DI PROTEZIONE
from £27.49
from £27.49
# 033
MPN: 008401305
WASHER
from £0.54
from £0.54
# 034
MPN: 003309334
PINZA FRENO A MANO
from £150.07
from £150.07
# 035
MPN: 008411302
WASHER
Supersession
Supersession
# 036
MPN: 008101225
BOLT
from £11.69
from £11.69
# 037
MPN: 003309388
GOMMINO DI PROTEZIONE
from £34.95
from £34.95
# 038
MPN: 008200811
NUT
from £3.65
from £3.65
# 039
MPN: 008700814
SCREW
from £4.73
from £4.73
# 040
MPN: 008573601
SEEGER RING
from £0.53
from £0.53
# 041
MPN: 003309362
SUPPORT
# 042
MPN: N0211963
NUT
from £0.53
from £0.53
# 043
MPN: 003309652
JUBILEE CLIP
from £6.81
from £6.81
# 044
MPN: 003309478
PIVOT
from £11.90
from £11.90
