029 - Air Conditioning

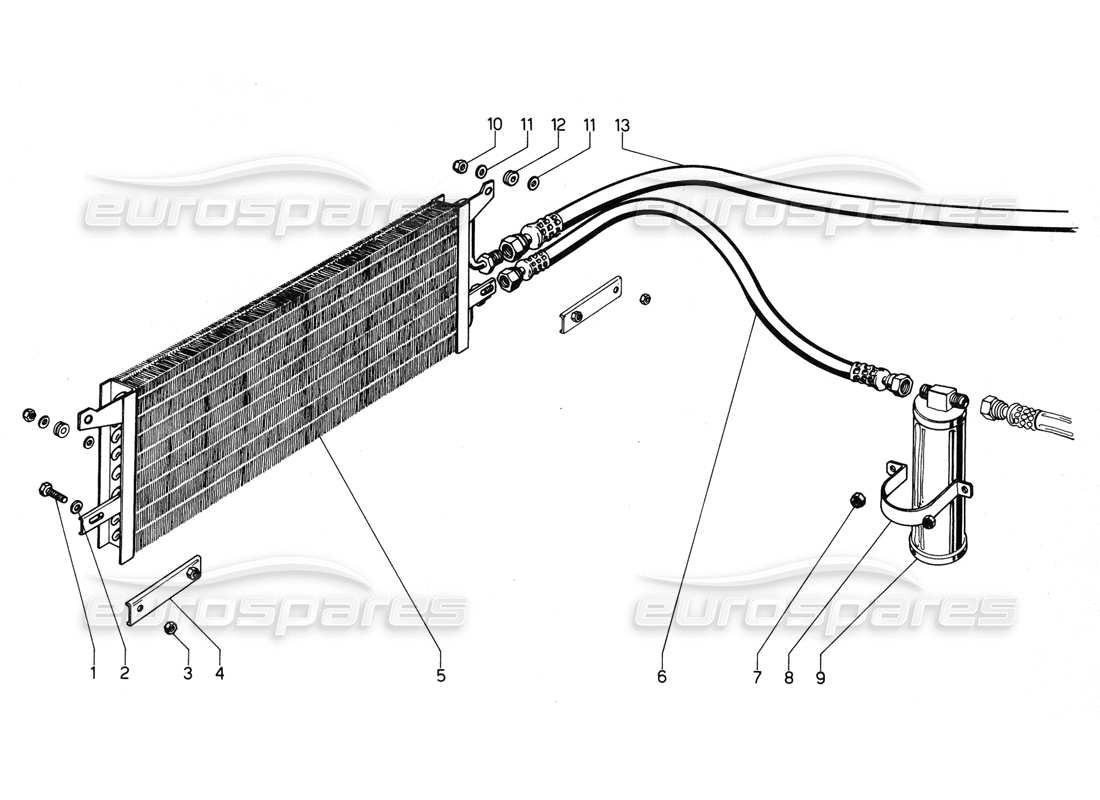

Lamborghini Urraco P300 Air Conditioning Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: N01029315
BOLT
from £0.84
from £0.84
# 002
MPN: 008400801
WASHER
Supersession
Supersession
# 003
MPN: 008200806
NUT
Supersession
Supersession
# 004
MPN: 004508811
BRACKET / SUPPORT
from £7.01
from £7.01
# 005
MPN: 004508810
CONDENSOR
from £623.42
from £623.42
# 006
MPN: 004509498
PIPE FROM CONDENSER TO FILTER
from £98.25
from £98.25
# 007
MPN: 008200606
NUT
Supersession
Supersession
# 008
MPN: 004508813
FASCETTA F ISSAGGIO FILTRO
from £8.58
from £8.58
# 009
MPN: 004505322/a
DRYER BOTTLE
use : 004535411 - 004537126 - 004537127
# 010
MPN: 008200606
NUT
Supersession
Supersession
# 011
MPN: 008400607
WASHER
Supersession
Supersession
# 012
MPN: 008610601
RUBBER GROMMET
from £3.16
from £3.16
# 013
MPN: 004509501
PIPE FROM CONDENSER TO COMPRESSOR
