030 - Air Conditioning

Lamborghini Urraco P300 Air Conditioning Parts Diagram

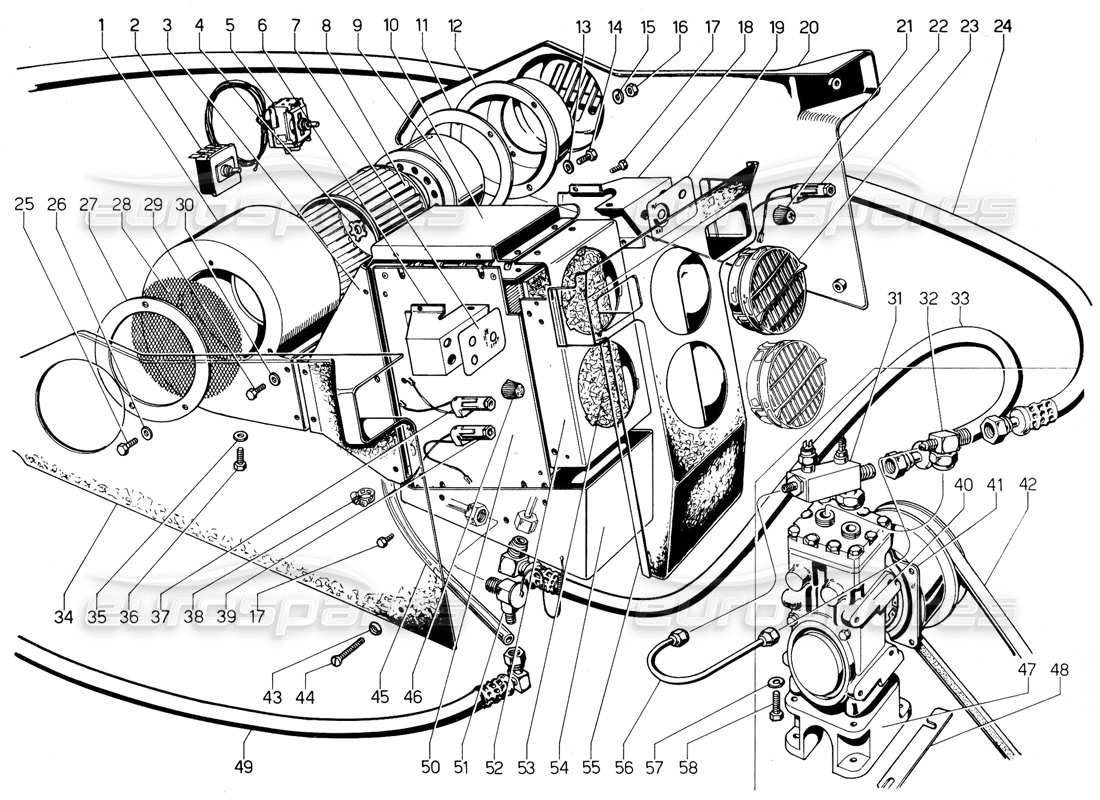

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                      #
                                                                                                                      Part number
                                                                                                                      Description
                                                                                                                      Price
                                                                                                                      # 002
                                                                                                                      MPN: 004510450
                                                                                                                      COMMUTATORE SELETTORE
                                                                                                                      from £58.14
                                                                                                                      from £58.14
                                                                                                                      # 003
                                                                                                                      MPN: 004508818
                                                                                                                      CONVOGLIATORE ARIA
                                                                                                                      from £34.66
                                                                                                                      from £34.66
                                                                                                                      # 004
                                                                                                                      MPN: 008411203
                                                                                                                      WASHER
                                                                                                                      # 005
                                                                                                                      MPN: 004505249
                                                                                                                      TERMOSTATO
                                                                                                                      from £149.25
                                                                                                                      from £149.25
                                                                                                                      # 006
                                                                                                                      MPN: 004510444
                                                                                                                      CONTENITORE COMMUFATORE SELETTORE
                                                                                                                      from £40.34
                                                                                                                      from £40.34
                                                                                                                      # 007
                                                                                                                      MPN: 004510448
                                                                                                                      PLATE FOR KNOB AND INDICATOR
                                                                                                                      from £9.25
                                                                                                                      from £9.25
                                                                                                                      # 008
                                                                                                                      MPN: 004708840
                                                                                                                      VENTOLA
                                                                                                                      from £159.96
                                                                                                                      from £159.96
                                                                                                                      # 009
                                                                                                                      MPN: 004708839
                                                                                                                      FAN CONTROL MOTOR
                                                                                                                      from £396.33
                                                                                                                      from £396.33
                                                                                                                      # 010
                                                                                                                      MPN: 004508820
                                                                                                                      COVER
                                                                                                                      from £79.81
                                                                                                                      from £79.81
                                                                                                                      # 011
                                                                                                                      MPN: 001708842
                                                                                                                      GASKET
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 013
                                                                                                                      MPN: 008410502
                                                                                                                      WASHER
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 014
                                                                                                                      MPN: N01020717
                                                                                                                      BOLT
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 008100504
                                                                                                                      # 015
                                                                                                                      MPN: 008410502
                                                                                                                      WASHER
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 016
                                                                                                                      MPN: 008200501
                                                                                                                      NUT
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 017
                                                                                                                      MPN: 008700414
                                                                                                                      SCREW
                                                                                                                      from £1.55
                                                                                                                      from £1.55
                                                                                                                      # 018
                                                                                                                      MPN: 004508822
                                                                                                                      THERMOSTAT CONTAINER
                                                                                                                      # 019
                                                                                                                      MPN: 004510445
                                                                                                                      PLATE FOR KNOB AND INDICATOR
                                                                                                                      from £9.25
                                                                                                                      from £9.25
                                                                                                                      # 020
                                                                                                                      MPN: 004508829
                                                                                                                      COVER
                                                                                                                      from £117.32
                                                                                                                      from £117.32
                                                                                                                      # 021
                                                                                                                      MPN: 004506916
                                                                                                                      POMELLO COMANDO TERMOSTATO
                                                                                                                      from £295.71
                                                                                                                      from £295.71
                                                                                                                      # 023
                                                                                                                      MPN: 004708760
                                                                                                                      DIFFUSER
                                                                                                                      from £115.50
                                                                                                                      from £115.50
                                                                                                                      # 024
                                                                                                                      MPN: 004509501
                                                                                                                      PIPE FROM CONDENSER TO COMPRESSOR
                                                                                                                      # 025
                                                                                                                      MPN: N01020717
                                                                                                                      BOLT
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 008100504
                                                                                                                      # 026
                                                                                                                      MPN: 008410502
                                                                                                                      WASHER
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 027
                                                                                                                      MPN: 004508826
                                                                                                                      RING
                                                                                                                      from £17.04
                                                                                                                      from £17.04
                                                                                                                      # 028
                                                                                                                      MPN: 004508825
                                                                                                                      PROTECTION NETWORK
                                                                                                                      from £14.77
                                                                                                                      from £14.77
                                                                                                                      # 029
                                                                                                                      MPN: N01020717
                                                                                                                      BOLT
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 008100504
                                                                                                                      # 030
                                                                                                                      MPN: 008410502
                                                                                                                      WASHER
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 031
                                                                                                                      MPN: 004510015
                                                                                                                      VALVOLA ISOBARICA
                                                                                                                      from £125.00
                                                                                                                      from £125.00
                                                                                                                      # 033
                                                                                                                      MPN: 004509500
                                                                                                                      PIPE FROM COMPRESSOR TO EVAPORATOR
                                                                                                                      # 034
                                                                                                                      MPN: 004508828
                                                                                                                      ^COPERCHIO (ATERAFE SMISTRO
                                                                                                                      from £104.89
                                                                                                                      from £104.89
                                                                                                                      # 035
                                                                                                                      MPN: 008400607
                                                                                                                      WASHER
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 036
                                                                                                                      MPN: 008100622
                                                                                                                      BOLT
                                                                                                                      from £3.65
                                                                                                                      from £3.65
                                                                                                                      # 037
                                                                                                                      MPN: 006011490
                                                                                                                      Spia motorino ventola
                                                                                                                      from £25.81
                                                                                                                      from £25.81
                                                                                                                      # 038
                                                                                                                      MPN: 008830901
                                                                                                                      JUBILEE CLIP
                                                                                                                      from £6.11
                                                                                                                      from £6.11
                                                                                                                      # 039
                                                                                                                      MPN: 006011489
                                                                                                                      Spia luci quadro
                                                                                                                      from £19.07
                                                                                                                      from £19.07
                                                                                                                      # 040
                                                                                                                      MPN: 004504548
                                                                                                                      COMPRESSORE
                                                                                                                      from £624.75
                                                                                                                      from £624.75
                                                                                                                      # 041
                                                                                                                      MPN: 004511254
                                                                                                                      GIUNTO ELETTROMAQNETICO COMPLETE
                                                                                                                      from £489.18
                                                                                                                      from £489.18
                                                                                                                      # 042
                                                                                                                      MPN: 004511027
                                                                                                                      CINQHIA
                                                                                                                      from £42.66
                                                                                                                      from £42.66
                                                                                                                      # 043
                                                                                                                      MPN: 008400504
                                                                                                                      WASHER
                                                                                                                      # 045
                                                                                                                      MPN: 004509386
                                                                                                                      TUBO SCARICA CONDENSA
                                                                                                                      # 046
                                                                                                                      MPN: 004506917
                                                                                                                      POMELLO PER SELEZIONE VELOCITA VENTOLA
                                                                                                                      from £153.48
                                                                                                                      from £153.48
                                                                                                                      # 047
                                                                                                                      MPN: 004511028
                                                                                                                      SUPPORT
                                                                                                                      from £201.06
                                                                                                                      from £201.06
                                                                                                                      # 048
                                                                                                                      MPN: 004506114
                                                                                                                      LAMIERA DIJ^PE^ORE
                                                                                                                      from £6.81
                                                                                                                      from £6.81
                                                                                                                      # 049
                                                                                                                      MPN: 004509499
                                                                                                                      PIPE FROM THE EXPANSION VALVE TO THE FILTER
                                                                                                                      from £133.16
                                                                                                                      from £133.16
                                                                                                                      # 050
                                                                                                                      MPN: 004508816
                                                                                                                      PACCO RADIAN TJEIDOJTORE
                                                                                                                      from £455.18
                                                                                                                      from £455.18
                                                                                                                      # 051
                                                                                                                      MPN: 004506860
                                                                                                                      VALVOLA DI ESJDANSIONE
                                                                                                                      from £59.40
                                                                                                                      from £59.40
                                                                                                                      # 052
                                                                                                                      MPN: 004508821
                                                                                                                      SUPPORT
                                                                                                                      from £40.34
                                                                                                                      from £40.34
                                                                                                                      # 053
                                                                                                                      MPN: 004508824
                                                                                                                      FELTRO
                                                                                                                      # 054
                                                                                                                      MPN: 004508819
                                                                                                                      CONTENITORE CONDENSA
                                                                                                                      from £134.46
                                                                                                                      from £134.46
                                                                                                                      # 055
                                                                                                                      MPN: 004508827
                                                                                                                      COVER
                                                                                                                      from £94.40
                                                                                                                      from £94.40
                                                                                                                      # 056
                                                                                                                      MPN: 004509159
                                                                                                                      HOSE FROM THE ISOBARIC VALVE TO THE FITTING
                                                                                                                      from £14.51
                                                                                                                      from £14.51
                                                                                                                      # 057
                                                                                                                      MPN: WHT000768
                                                                                                                      WASHER
                                                                                                                      from £1.21
                                                                                                                      from £1.21
                                                                                                                      This part replaces part number 008410806 - and 1 more. Click to view details
                                                                                                                      # 058
                                                                                                                      MPN: 008100902
                                                                                                                      BOLT
                                                                                                                      from £4.73
                                                                                                                      from £4.73
                                                                                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
