lamborghini urus (2022) mounting for bodywork parts diagram

800.01.00 - MOUNTING FOR BODYWORK

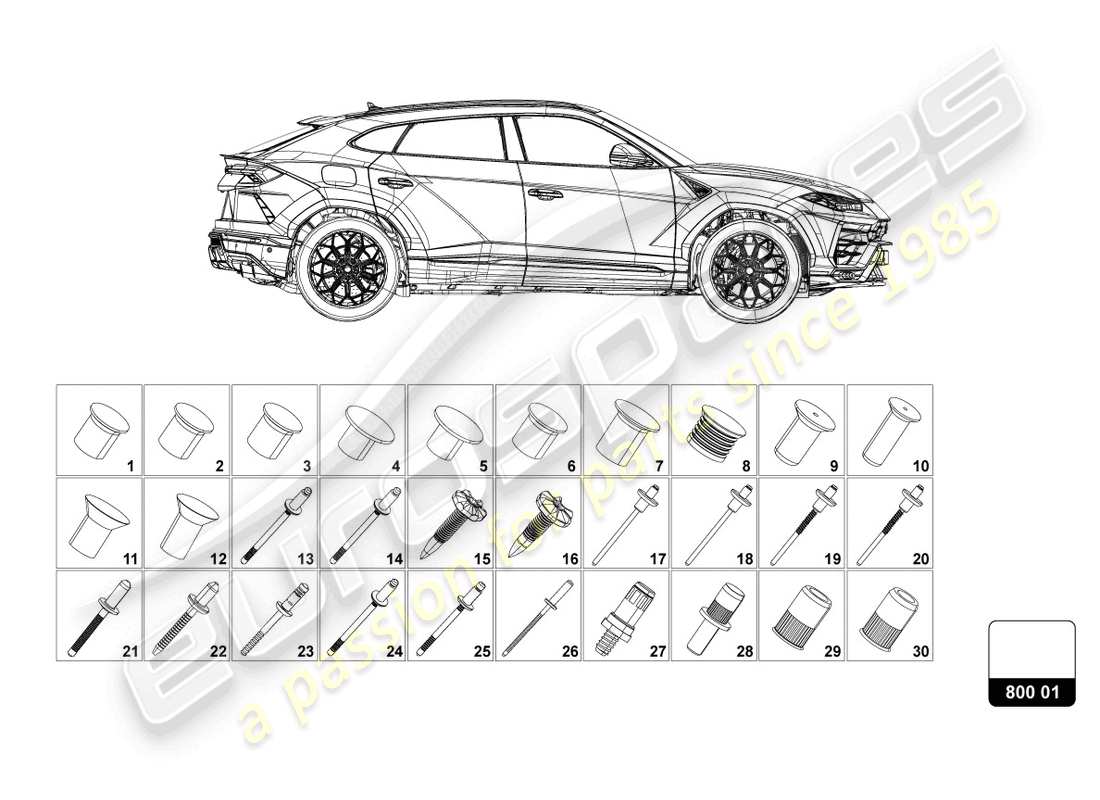

Lamborghini Urus (2022) MOUNTING FOR BODYWORK Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 4D0803217N
      POP RIVET 'ORDER QTY.50'
      3,35X5,0 4D0 803 217 N
      from £0.54
      from £0.54
      RIVET Genuine Lamborghini - New In stock
      # 002
      MPN: 4D0803217Q
      POP RIVET
      3,35X4,0 4D0 803 217 Q
      from £0.54
      from £0.54
      RIVET 3,3X4 Genuine Lamborghini - New In stock
      # 003
      MPN: N91229502
      POP RIVET
      4,3X5
      from £0.54
      from £0.54
      PUNCH RIVET A4.3X5 Genuine Lamborghini - New (to order)
      # 004
      MPN: 4D0803217L
      POP RIVET 'ORDER QTY.50'
      5,3X5,0 4D0 803 217 Q
      from £0.54
      from £0.54
      RIVET 5.3X5 Genuine Lamborghini - New (to order)
      # 005
      MPN: 4D0803217M
      POP RIVET 'ORDER QTY.50'
      5,3X6,5 4D0 803 217 M
      from £0.54
      from £0.54
      RIVET 3,3X4 Genuine Lamborghini - New (to order)
      # 006
      MPN: N90926102
      POP RIVET 'ORDER QTY.50'
      5,3X6 N 909 261 02
      from £0.54
      from £0.54
      PUNCH RIVET A5.4X6 Genuine Lamborghini - New (to order)
      # 007
      MPN: N91136501
      POP RIVET 'ORDER QTY.50'
      5,3X7,5 N 911 365 01
      from £0.54
      from £0.54
      PUNCH RIVET A5.4X7.5 Genuine Lamborghini - New (to order)
      # 008
      MPN: N91134802
      POP RIVET 'ORDER QTY.50'
      5X4,2
      from £7.87
      from £7.87
      POP RIVET 'ORDER QTY.50' Genuine Lamborghini - New (to order)
      # 009
      MPN: N10323901
      COUNTERSUNK RIVET 'ORDER QTY.100'
      4X8 N 103 239 01
      from £0.76
      from £0.76
      POP RIVET Genuine Lamborghini - New (to order)
      # 010
      MPN: N10324001
      COUNTERSUNK RIVET 'ORDER QTY.100'
      4X12 N 103 240 01
      from £1.69
      from £1.69
      POP RIVET Genuine Lamborghini - New (to order)
      # 011
      MPN: N10744001
      COUNTERSUNK RIVET 'ORDER QTY.100'
      6X10 FOLGT
      from £3.60
      from £3.60
      RIVET NOYE Genuine Lamborghini - New (to order)
      # 012
      MPN: N10744101
      COUNTERSUNK RIVET 'ORDER QTY.100'
      6X12 FOLGT
      from £3.60
      from £3.60
      RIVET NOYE Genuine Lamborghini - New (to order)
      # 013
      MPN: 4E0809864A
      POP RIVET
      from £5.95
      from £5.95
      POP-RIVET Genuine Lamborghini - New (to order)
      # 014
      MPN: 8Z0809864
      POP RIVET 'ORDER QTY.100'
      4,8X9MM
      from £5.95
      from £5.95
      POP-RIVET Genuine Lamborghini - New (to order)
      # 015
      MPN: WHT007093
      FLOW DRILL SCREW
      M5X25
      from £1.03
      from £1.03
      HEXAGON HEAD BOLT M5GFX25 Genuine Lamborghini - New (to order)
      # 016
      MPN: WHT006547
      FLOW DRILL SCREW
      M5X20
      from £0.76
      from £0.76
      HEXAGON HEAD BOLT M5GFX20 Genuine Lamborghini - New (to order)
      # 017
      MPN: N90716303
      POP-RIVET WITH SEALING WASHER
      A4.8X6.5X14.3
      from £7.62
      from £7.62
      BLIND RIVET A4.8X6.5 Genuine Lamborghini - New (to order)
      # 018
      MPN: N90716203
      POP-RIVET WITH SEALING WASHER
      4,8X6,5
      from £9.89
      from £9.89
      POP-RIVET WITH SEALING WASHER Genuine Lamborghini - New (to order)
      # 019
      MPN: N90716103
      POP-RIVET WITH SEALING WASHER
      4,8X6,5
      from £11.06
      from £11.06
      POP-RIVET WITH SEALING WASHER Genuine Lamborghini - New (to order)
      # 020
      MPN: N90716002
      POP-RIVET WITH SEALING WASHER
      4,8X6,5
      from £9.89
      from £9.89
      POP-RIVET WITH SEALING WASHER Genuine Lamborghini - New (to order)
      # 021
      MPN: N90469202
      POP RIVET
      6,4X14
      from £2.94
      from £2.94
      POP-RIVET Genuine Lamborghini - New (to order)
      # 022
      MPN: WHT005697
      POP RIVET
      6,4X10
      from £2.68
      from £2.68
      POP-RIVET Genuine Lamborghini - New (to order)
      # 023
      MPN: N91152701
      POP RIVET
      6,4X16,5X13
      from £1.22
      from £1.22
      BLIND RIVET Genuine Lamborghini - New (to order)
      # 024
      MPN: N90692402
      POP RIVET
      4,8X10 N906924
      from £1.22
      from £1.22
      BLIND RIVET 4.8X11.3 Genuine Lamborghini - New In stock
      # 025
      MPN: N90534403
      POP RIVET
      4,8X9
      from £0.67
      from £0.67
      BLIND RIVET Genuine Lamborghini - New (to order)
      # 026
      MPN: 4S0843658
      POP RIVET
      from £3.02
      from £3.02
      MOUNTING CLIP 4,8X13,Y-4,5-7,0 Genuine Lamborghini - New (to order)
      # 027
      MPN: WHT009012A
      BLIND RIVET STUD
      CT6X9.5
      from £3.10
      from £3.10
      rivetted bolt Genuine Lamborghini - New (to order)
      # 028
      MPN: N91001101
      BLIND RIVET STUD
      5X12/0,5-3 N910011
      from £2.94
      from £2.94
      BLIND RIVET SCREW Genuine Lamborghini - New (to order)
      # 029
      MPN: N91037701
      RIVETTED CAP NUT
      M10/0,7-3,5
      from £1.03
      from £1.03
      RIVETTED CAP NUT Genuine Lamborghini - New (to order)
      # 030
      MPN: N90856802
      RIVETTED CAP NUT
      M8/1-4
      from £2.51
      from £2.51
      Screw nut Genuine Lamborghini - New (to order)
