lamborghini urus performante (2023) charge air cooler right parts diagram

145.04.00 - CHARGE AIR COOLER RIGHT

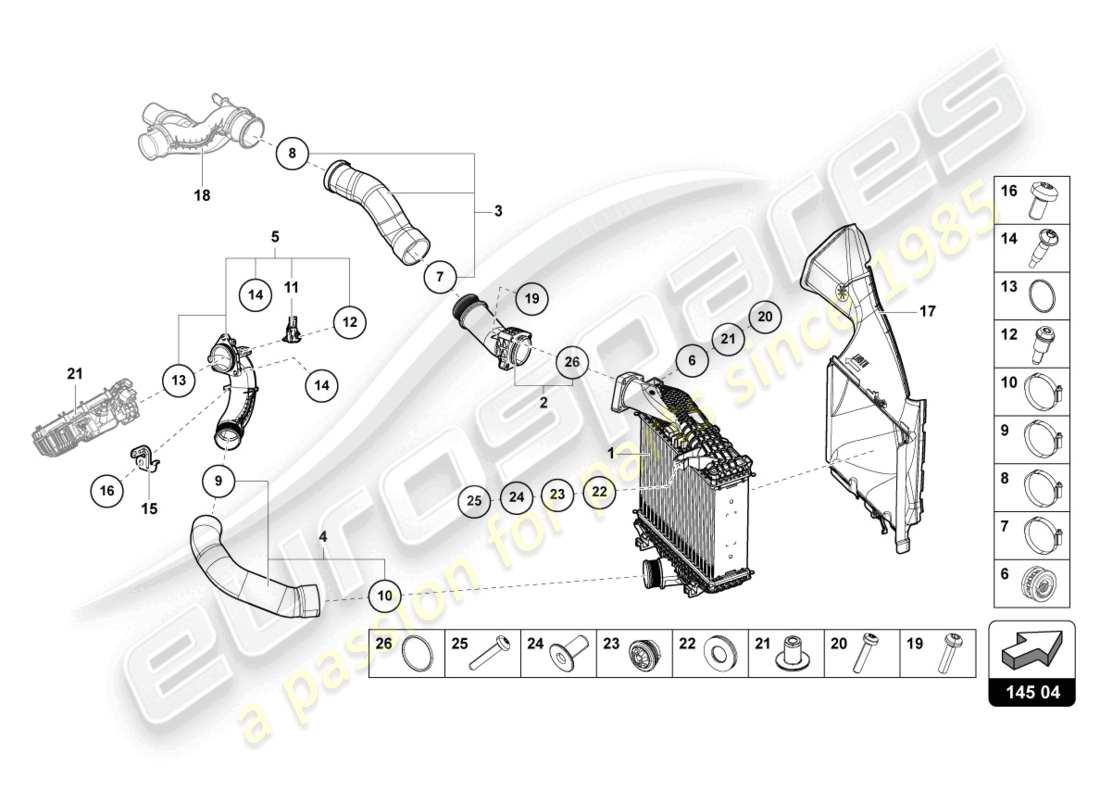

Lamborghini Urus Performante (2023) CHARGE AIR COOLER RIGHT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 4M0145804BT
CHARGE AIR COOLER
SIDE, RIGHT (UK, USA spec vehicles)
from £431.14
from £431.14
This part replaces part number 4M0145804AK
CHARGE AIR COOLER Genuine Lamborghini - New In stock
# 002
MPN: 4M0145956G
PRESSURE HOSE
RIGHT UPPER (UK, USA spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 003
MPN: 4M0145980C
PRESSURE HOSE
RIGHT UPPER (UK, USA spec vehicles)
from £41.10
from £41.10
PRESSURE HOSE Genuine Lamborghini - New In stock
PRESSURE HOSE Genuine Lamborghini - Used In stock
# 004
MPN: 4M0145738AE
PRESSURE HOSE
RIGHT LOWER (UK, USA spec vehicles)
from £25.39
from £25.39
PRESSURE HOSE Genuine Lamborghini - New (to order)
PRESSURE HOSE Genuine Lamborghini - Used In stock
# 005
-
CHARGE AIR TUBE
RIGHT LOWER (UK, USA spec vehicles)
# 005
MPN: 0P2145682L
CHARGE AIR TUBE
RIGHT LOWER (UK, USA spec vehicles)
from £30.25
from £30.25
This part replaces part number 0P2145682J - and 1 more. Click to view details
CHARGE AIR PIPE Genuine Lamborghini - New (to order)
CHARGE AIR PIPE Genuine Lamborghini - Used In stock
# 006
MPN: 4N0145824A
GROMMET
(UK, USA spec vehicles)
from £1.84
from £1.84
GROMMET Genuine Lamborghini - New In stock
# 007
MPN: N10734901
HOSE CLAMP
45-65X12 (UK, USA spec vehicles)
from £9.70
from £9.70
HOSE CLAMP Genuine Lamborghini - New (to order)
HOSE CLAMP Genuine Porsche Part - New (to order)
# 008
MPN: N10619901
HOSE CLAMP
55-75X12 (UK, USA spec vehicles)
from £6.73
from £6.73
HOSE CLAMP Genuine Lamborghini - New (to order)
HOSE CLAMP Genuine Porsche Part - New (to order)
# 009
MPN: N10518901
HOSE CLAMP
50-70X12 (UK, USA spec vehicles)
from £6.90
from £6.90
HOSE CLAMP Genuine Lamborghini - New (to order)
HOSE CLAMP Genuine Porsche Part - New (to order)
# 010
MPN: N10619801
HOSE CLAMP
45-65X12 (UK, USA spec vehicles)
from £6.90
from £6.90
HOSE CLAMP Genuine Lamborghini - New (to order)
HOSE CLAMP Genuine Porsche Part - New (to order)
# 011
-
PRESSURE SENSOR
(UK, USA spec vehicles)
# 011
MPN: 06E906051AC
PRESSURE SENSOR
(UK, USA spec vehicles)
from £76.49
from £76.49
PRESSURE SENSOR Genuine Lamborghini - New (to order)
# 012
MPN: N10473402
ROUND HD. SCREW
M6X20 (UK, USA spec vehicles)
from £0.67
from £0.67
SCREW Genuine Lamborghini - New In stock
ROUND HD. SCREW Genuine Porsche Part - New In stock
# 013
MPN: N91019101
O-RING
50X3 (UK, USA spec vehicles)
from £4.35
from £4.35
O-RING Genuine Lamborghini - New (to order)
O-RING Genuine Porsche Part - New (to order)
# 014
-
Retaining Clip
(UK, USA spec vehicles)
# 014
MPN: 0P2145453A
Retaining Clip
(UK, USA spec vehicles)
from £1.84
from £1.84
FASTENER Genuine Lamborghini - New (to order)
# 015
-
BRACKET
(UK, USA spec vehicles)
# 015
MPN: 0P2109242
BRACKET
(UK, USA spec vehicles)
from £2.76
from £2.76
BRACKET SAUGROHR Genuine Lamborghini - New (to order)
# 016
MPN: N10335206
HEXAGON SOCKET FLAT HEAD BOLT
M6X12 (UK, USA spec vehicles)
from £0.78
from £0.78
HEXALOBULAR SOCKETM6X12 Genuine Lamborghini - New In stock
HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
# 019
MPN: N91071702
HEXAGON SOCKET FLAT HEAD BOLT
M6X25 (UK, USA spec vehicles)
from £0.51
from £0.51
SCREW Genuine Lamborghini - New In stock
HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
# 020
MPN: N10156205
OVAL HEXAGON SOCKET HEAD BOLT
M6X30 (UK, USA spec vehicles)
from £1.00
from £1.00
OVAL HEXAGON SOCKET HEAD BOLT Genuine Lamborghini - New In stock
OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
# 021
MPN: 4H0145219
BUSH
(UK, USA spec vehicles)
from £5.03
from £5.03
SLEEVE Genuine Lamborghini - New (to order)
# 022
MPN: 4M0145175B
ADAPTER
(UK, USA spec vehicles)
from £0.67
from £0.67
ADAPTER Genuine Lamborghini - New In stock
# 023
MPN: 4G0129669C
GROMMET
(UK, USA spec vehicles)
from £3.86
from £3.86
GROMMET DRUCKROHR Genuine Lamborghini - New In stock
# 024
MPN: 4G0129734
BUSH
(UK, USA spec vehicles)
from £1.43
from £1.43
SPACER DRUCKROHR Genuine Lamborghini - New In stock
# 025
MPN: N91097201
ROUND HD. SCREW
M6X35 (UK, USA spec vehicles)
from £1.06
from £1.06
HEXALOBULAR SOCKETM6X35 Genuine Lamborghini - New In stock
ROUND HD. SCREW Genuine Porsche Part - New (to order)
# 026
-
O-RING
52,8X4,1 (UK, USA spec vehicles)
# 026
MPN: 057145417D
O-RING
52,8X4,1 (UK, USA spec vehicles)
from £3.94
from £3.94
SEAL Genuine Lamborghini - New (to order)
# 027
MPN: 4ML853653
RADIATOR GRILLE
FROM VIN LA LA18258 (UK, USA spec vehicles)
from £42.33
from £42.33
RADIATOR GRILLE Genuine Lamborghini - New (to order)
