lamborghini urus performante (2024) vacuum system parts diagram

133.09.00 - VACUUM SYSTEM

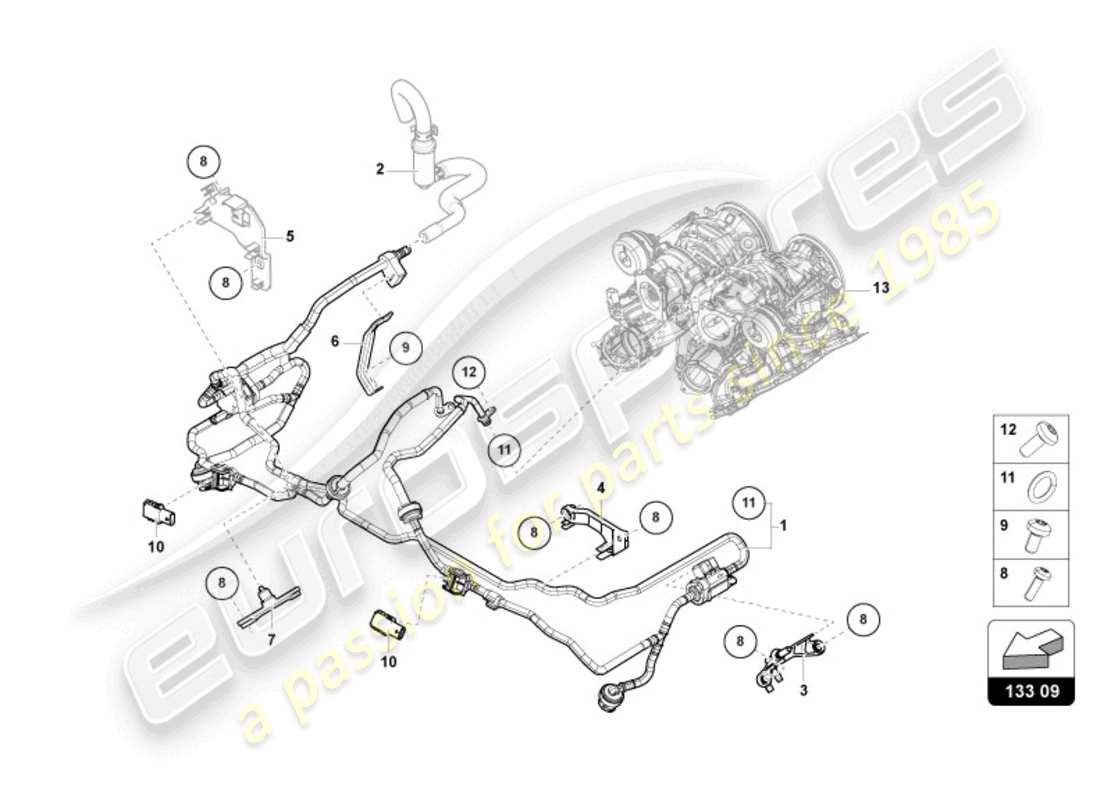

Lamborghini Urus Performante (2024) VACUUM SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 0P2133352H
      CONNECTING TUBE WITH AKF VALVE
      from £129.70
      from £129.70
      CONNECTING TUBE WITH AKF VALVE Genuine Lamborghini - New (to order)
      # 002
      -
      breather line
      # 003
      MPN: 0P2133167C
      BRACKET FOR AKF VALVE
      SIDE, LEFT
      from £8.91
      from £8.91
      BRACKET FOR AKF VALVE Genuine Lamborghini - New (to order)
      # 004
      MPN: 0P2133193B
      BRACKET
      LEFT FRONT
      from £7.70
      from £7.70
      BRACKET Genuine Lamborghini - New (to order)
      # 005
      -
      BRACKET
      # 006
      MPN: 0P2133239
      BRACKET
      CENTER, RIGHT
      from £5.19
      from £5.19
      BRACKET Genuine Lamborghini - New In stock
      # 007
      MPN: 0P2133519A
      BRACKET FOR AKF VALVE
      SIDE, RIGHT
      from £6.45
      from £6.45
      BRACKET FOR AKF VALVE Genuine Lamborghini - New (to order)
      # 008
      MPN: N10124306
      HEXAGON SOCKET FLAT HEAD BOLT
      M6X20
      from £0.89
      from £0.89
      HEXALOBULAR SOCKET M6 X 20 Genuine Lamborghini - New In stock
      Oval hexagon socket head bolt (N 10124306) Genuine Porsche Part - New In stock
      # 008
      MPN: N10124308
      OVAL HEXAGON SOCKET HEAD BOLT
      M6X20
      from £1.16
      from £1.16
      This part replaces part number N10124303
      HEXALOBULAR SOCKETM6X20 Genuine Lamborghini - New In stock
      # 009
      MPN: N10335206
      HEXAGON SOCKET FLAT HEAD BOLT
      M6X12
      from £0.80
      from £0.80
      HEXALOBULAR SOCKETM6X12 Genuine Lamborghini - New In stock
      Hexagon socket flat (N 10335206) Genuine Porsche Part - New (to order)
      # 010
      MPN: 06H906052B
      PRESSURE SENSOR
      from £23.86
      from £23.86
      SENSORE DI PRESS Genuine Lamborghini - New (to order)
      PRESSURE SENSOR (06H906052B) Genuine Porsche Part - New (to order)
      # 011
      MPN: WHT007923
      O-RING
      7,65X1,78
      from £2.42
      from £2.42
      O-RING 7,65X1,78 Genuine Lamborghini - New (to order)
      # 012
      MPN: N91126601
      OVAL HEXAGON SOCKET HEAD BOLT
      M6X16
      from £0.55
      from £0.55
      HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
      Oval hexagon socket head bolt (N 91126601) Genuine Porsche Part - New (to order)
      # 013
      -
      EXHAUST GAS TURBOCHARGER
