lamborghini urus s (2023) intake manifold parts diagram

133.03.00 - INTAKE MANIFOLD

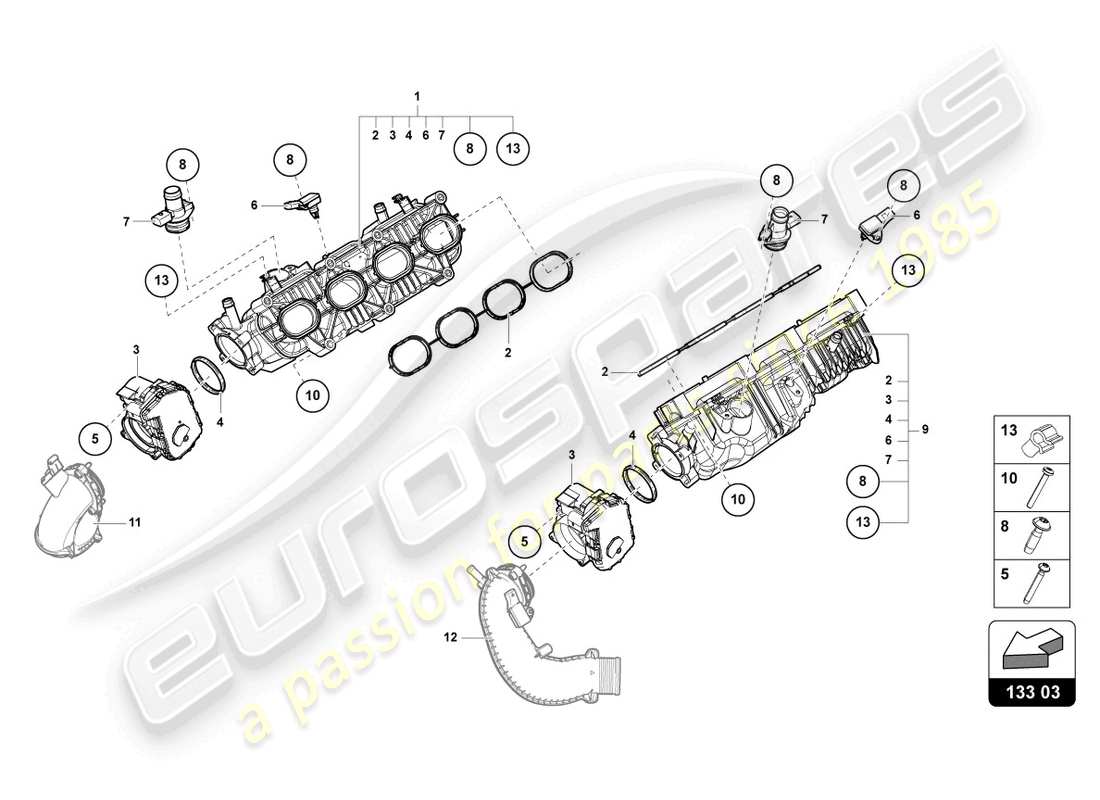

Lamborghini Urus S (2023) INTAKE MANIFOLD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 0P2129712M
INTAKE MANIFOLD
CYLINDERS 1-4 (UK, USA spec vehicles)
from £330.30
from £330.30
intake pipe Genuine Lamborghini - New (to order)
# 002
MPN: 0P2129049
SEAL
(UK, USA spec vehicles)
from £10.38
from £10.38
GASKET Genuine Lamborghini - New (to order)
# 003
MPN: 0P2133062B
THROTTLE VALVE
(UK, USA spec vehicles)
from £204.49
from £204.49
THROTTLE VALVE Genuine Lamborghini - New (to order)
THROTTLE VALVE Genuine Lamborghini - Used In stock
# 004
MPN: 0P2133073
SEAL
(UK, USA spec vehicles)
from £6.91
from £6.91
GASKET Genuine Lamborghini - New (to order)
# 005
MPN: N10626101
HEXAGON SOCKET FLAT HEAD BOLT
6X45 (UK, USA spec vehicles)
from £0.80
from £0.80
HEXAGON SOCKET FLAT Genuine Lamborghini - New In stock
Hexagon socket flat (N 10626101) Genuine Porsche Part - New (to order)
# 006
MPN: 06E906051AC
PRESSURE SENSOR
(UK, USA spec vehicles)
from £71.60
from £71.60
PRESSURE SENSOR Genuine Lamborghini - New (to order)
# 007
MPN: 0P2103202E
PIPE UNION W/ HEATING ELEMENT
(UK, USA spec vehicles)
from £31.82
from £31.82
ADAPTER WITH HEATER ELEMENT Genuine Lamborghini - New (to order)
ADAPTER WITH HEATER ELEMENT Genuine Lamborghini - Used In stock
# 008
MPN: N10473402
ROUND HD. SCREW
M6X20 (UK, USA spec vehicles)
from £0.71
from £0.71
SCREW Genuine Lamborghini - New In stock
round hd. screw (N 10473402) Genuine Porsche Part - New (to order)
# 009
MPN: 0P2129711N
INTAKE MANIFOLD
CYLINDER 5-8 (UK, USA spec vehicles)
from £330.30
from £330.30
This part replaces part number 0P2129711E
intake pipe Genuine Lamborghini - New (to order)
# 010
MPN: N10405702
HEXAGON SOCKET HEAD BOLT
M6X45 (UK, USA spec vehicles)
from £1.60
from £1.60
HEXALOBULAR SOCKET M6X45 Genuine Lamborghini - New In stock
hexagonal socket head (N 10405702) Genuine Porsche Part - New (to order)
# 013
MPN: 0P2129667
CLIP
(UK, USA spec vehicles)
from £1.21
from £1.21
CLIP Genuine Lamborghini - New (to order)
