038 - FUEL TANK

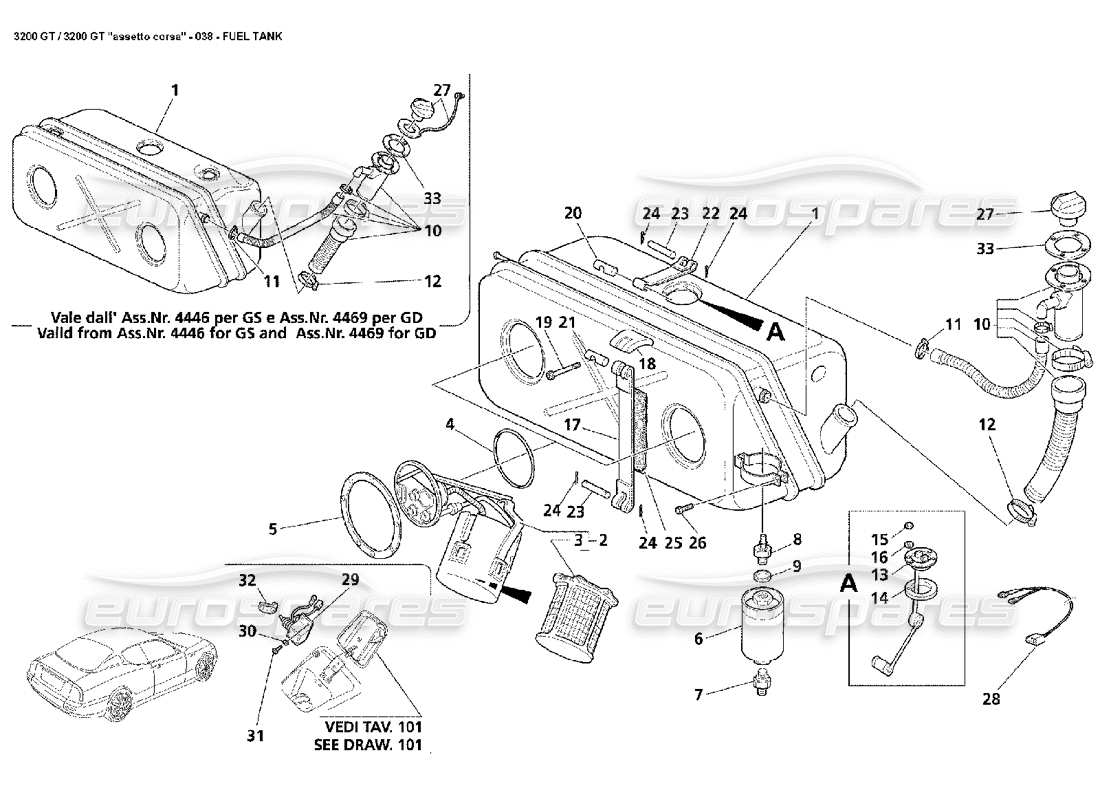

Maserati 3200 GT/GTA/Assetto Corsa Fuel Tank Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 389200103

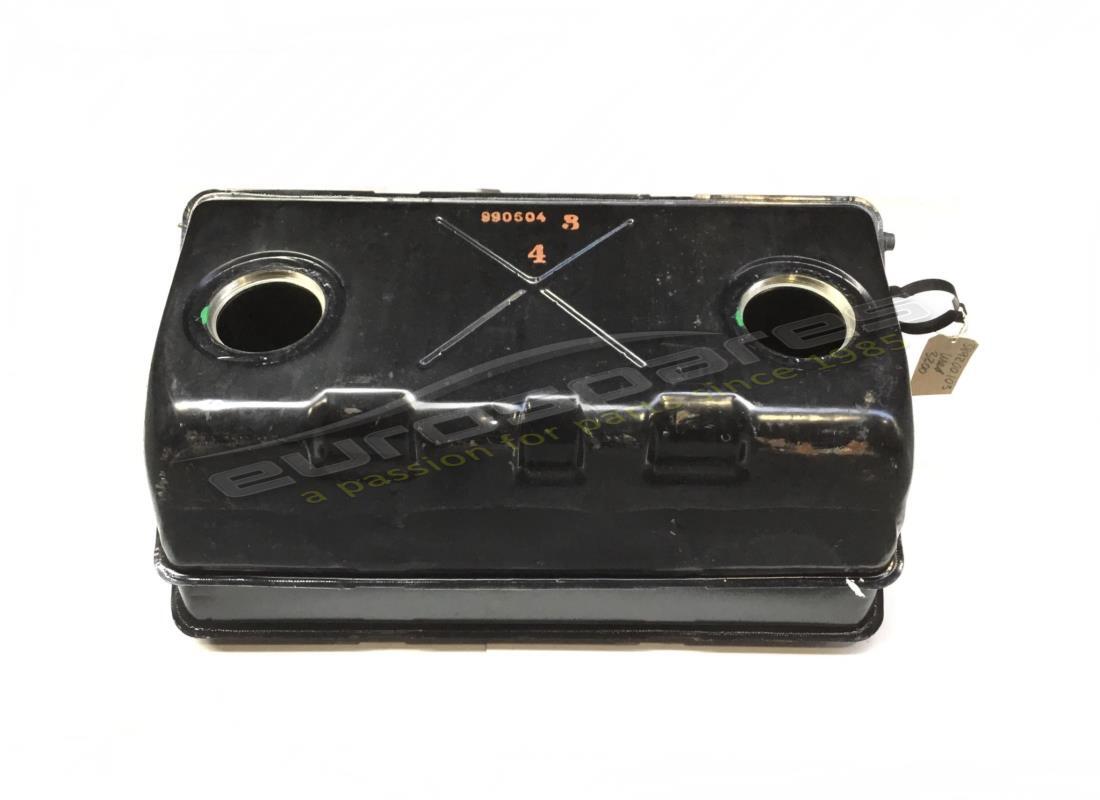

FUEL TANK
from £967.40
from £967.40
# 001
MPN: 389201103
FUEL TANK
from £889.89
from £889.89
# 002
MPN: 383700003

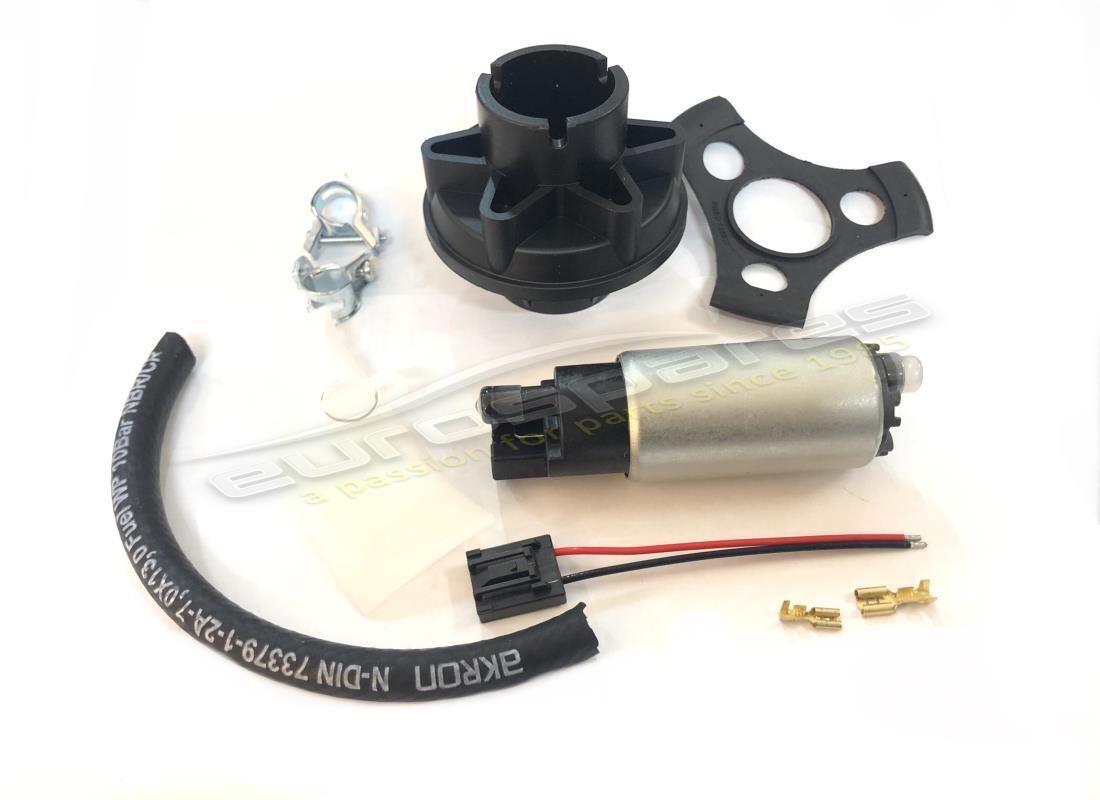

IN-TANK FUEL PUMP
from £414.75
from £414.75
# 003
MPN: 393750312
FILTER
from £4.09
from £4.09
# 004
MPN: 383700309
GASKET
from £8.89
from £8.89
# 005
MPN: 389200446
RING NUT
from £25.56
from £25.56
# 006
MPN: 389200141

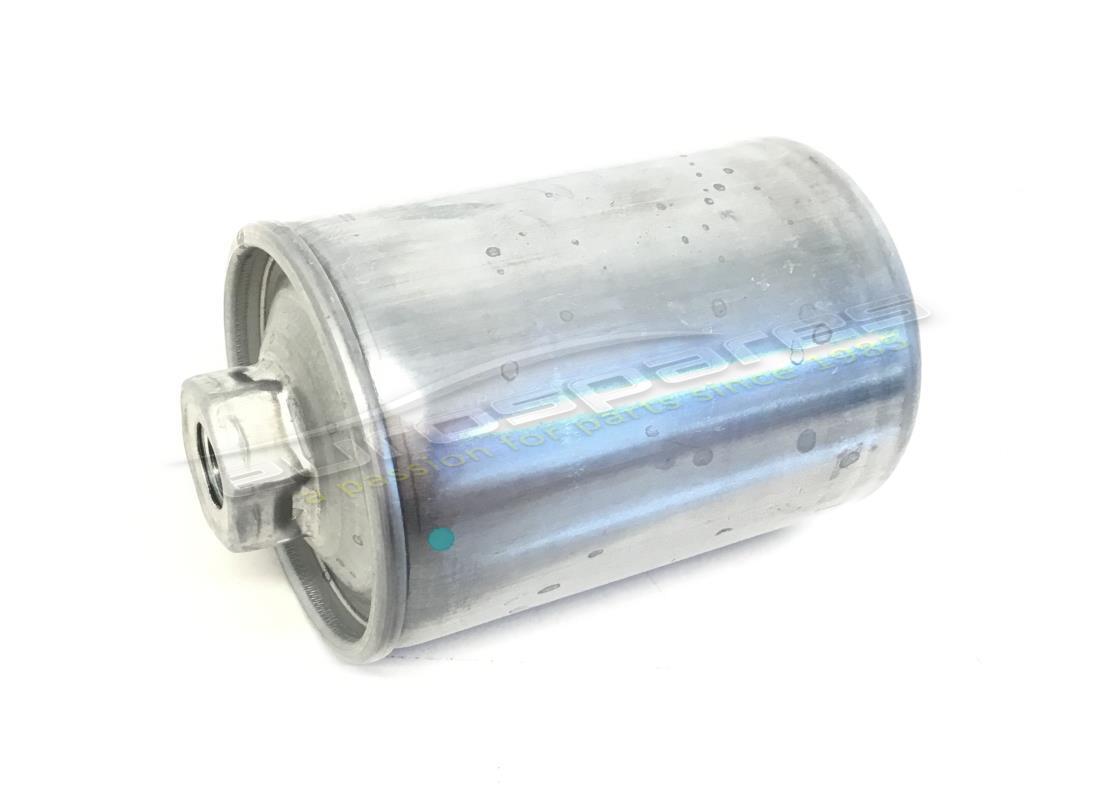

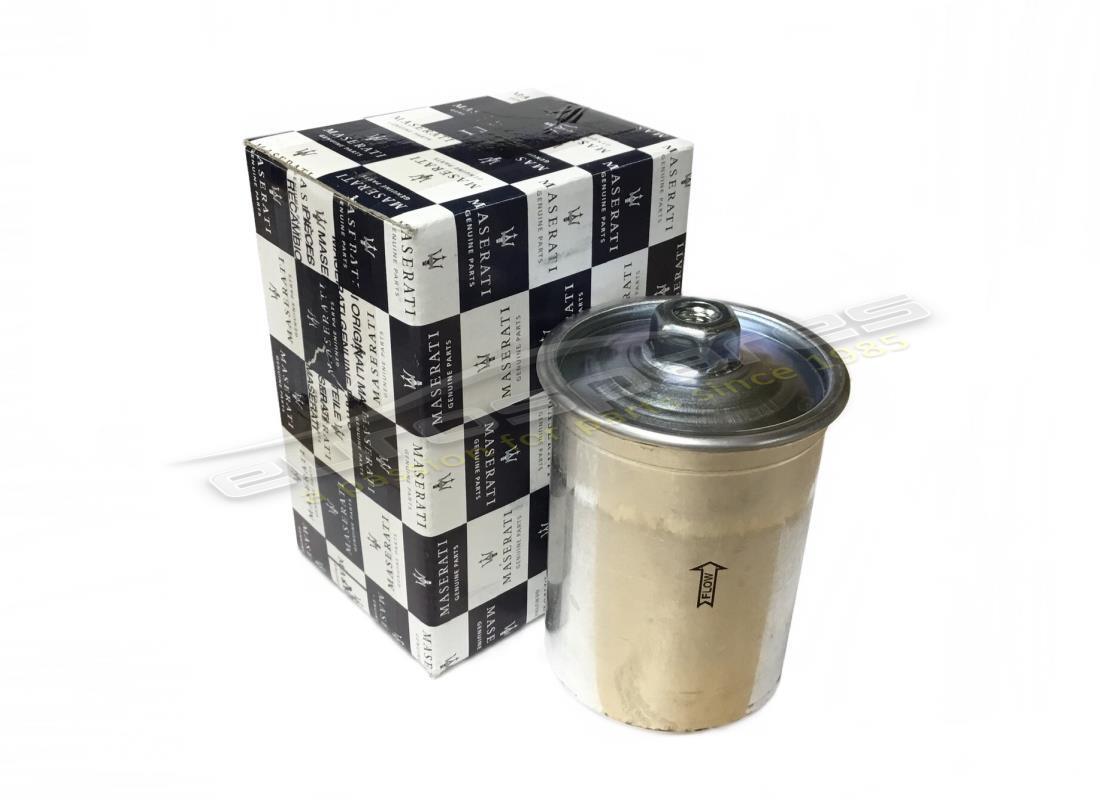

FUEL FILTER
from £19.60
from £19.60
# 007
MPN: 389200433
UNION
-Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 - Valid for GD froml Ass. Nr.4469 not for Ass. Nr.4451 and 4454
from £41.64
from £41.64
# 008
MPN: 389200432
UNION
from £8.60
from £8.60
# 009
MPN: 10280060
GASKET
from £0.47
from £0.47
# 010
MPN: 183430/A
FUEL INTAKE TUBE
Not for USA and CDN
# 010
MPN: 389201009
FUEL INTAKE TUBE
from £430.12
from £430.12
This part replaces part number 389200010
# 010
MPN: 389220009/A
FUEL INTAKE TUBE
Valid for GOL (cars with leaded fuel)
# 010
MPN: 389240009
FUEL INTAKE TUBE
from £111.23
from £111.23
# 011
MPN: 374091380
CLAMP
from £1.59
from £1.59
This part replaces part number 374090380
# 012
MPN: 13000790
CLAMP
from £0.47
from £0.47
This part replaces part number 312420106
# 013
MPN: 373630111
FUEL LEVEL INDICATOR CONTROL
-Not for BRA - Not for GOL - Valid for GS till Ass. Nr.4445 and for Ass. Nr.4491,4499 and 4500 - Valid for GD till Ass. Nr.4468 and for Ass. Nr.4451 and 4454
from £67.84
from £67.84
# 014
MPN: 33331300
GASKET
-Only for BRA-
from £1.98
from £1.98
# 015
MPN: 12574011
NYLON STOP NUT
-Only for GOL-
from £0.47
from £0.47
# 016
MPN: 14497701
BLANK WASHER
-Not for BRA - Not for GOL - Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 - Valid for GD from Ass. Nr.4469 not for Ass. Nr.4451 and 4454
from £0.47
from £0.47
# 017
MPN: 389200106
STRIP
from £7.67
from £7.67
# 018
MPN: 319220337
BLOCK
from £1.98
from £1.98
# 019
MPN: 670000414
SCREW
from £0.74
from £0.74
# 020
MPN: 670000413
ROUND BAR
from £1.31
from £1.31
# 021
MPN: 670000412
ROUND BAR
from £1.31
from £1.31
# 022
MPN: 389200384
STRIP
from £5.67
from £5.67
# 023
MPN: 389200520
PIN
from £3.40
from £3.40
# 024
MPN: 58841309
SAFETY CLIP
from £1.88
from £1.88
This part replaces part number 670000498 - and 2 more. Click to view details
# 025
MPN: 379200398
FELT PAD
from £2.38
from £2.38
This part replaces part number 319220398
# 026
MPN: 14305321
SCREW
Supersession
Supersession
# 027
MPN: 190154
FUEL TANK CAP
from £175.09
from £175.09
This part replaces part number 186866 which we have in stock
# 027
MPN: 389201007
FUEL TANK CAP
from £28.15
from £28.15
# 027
MPN: 389220007
FUEL TANK CAP
from £6.98
from £6.98
# 027
MPN: 389240007
FUEL TANK CAP
from £25.84
from £25.84
# 028
MPN: 383000160
harness
from £4.83
from £4.83
# 029
MPN: 383300195
FUEL FLAP ACTUATOR
from £71.03
from £71.03
# 030
MPN: 135600050
LOCK WASHER
-Not for BRA - Not for GOL - Valid for GS till Ass. Nr.4445 and for Ass. Nr.4491,4499 and 4500 - Valid for GD till Ass. Nr.4468 and for Ass. Nr.4451 and 4454
from £0.79
from £0.79
# 031
MPN: 10977624
SCREW
-Only for GOL-
from £0.47
from £0.47
# 032
MPN: 388100355
RUBBER FOR ACTUATOR
-Only for BRA-
from £6.98
from £6.98
# 033
MPN: 980139787
SPONGE
-Not for BRA - Not for GOL - Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 - Valid for GD froml Ass. Nr.4469 not for Ass. Nr.4451 and 4454
from £1.11
from £1.11
