064 - Handbrake Control

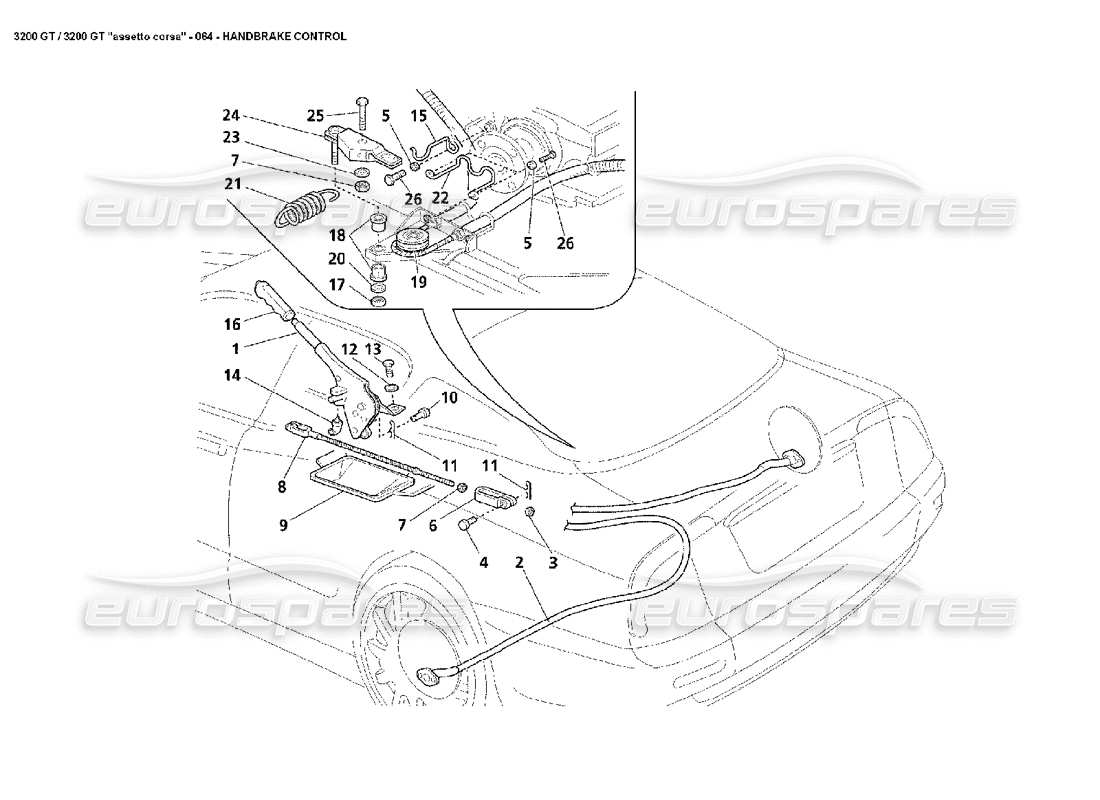

Maserati 3200 GT/GTA/Assetto Corsa Handbrake Control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 388001103

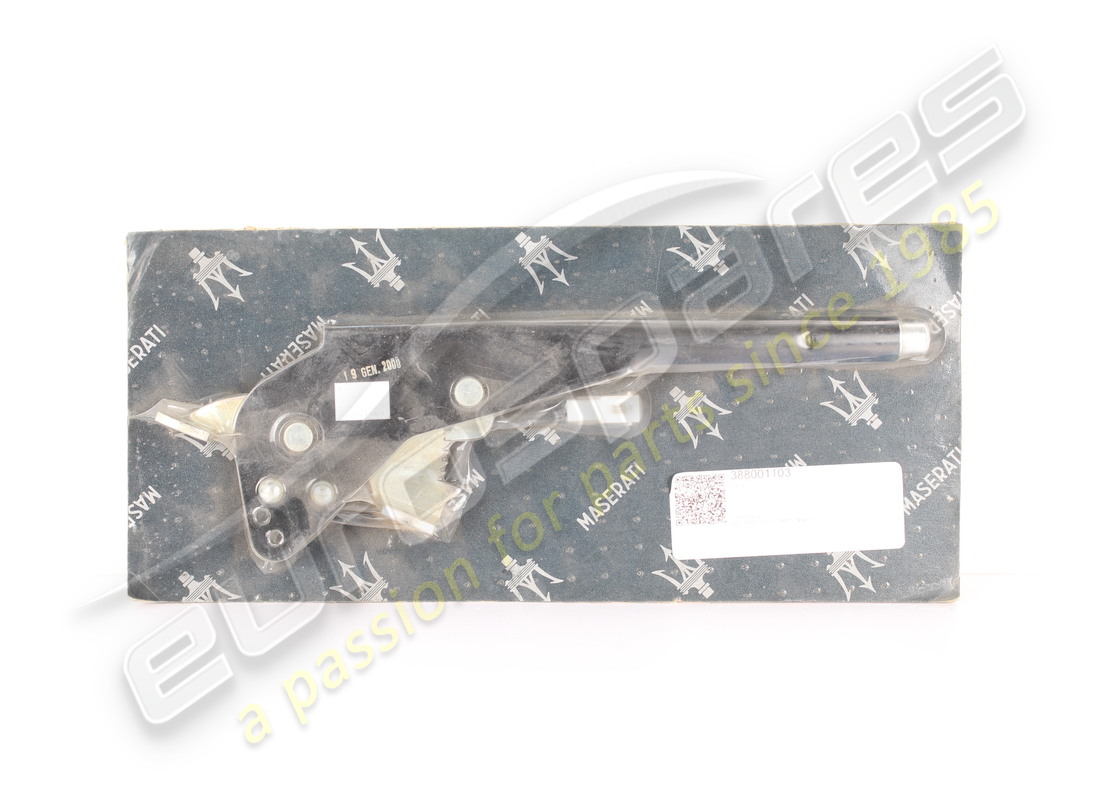

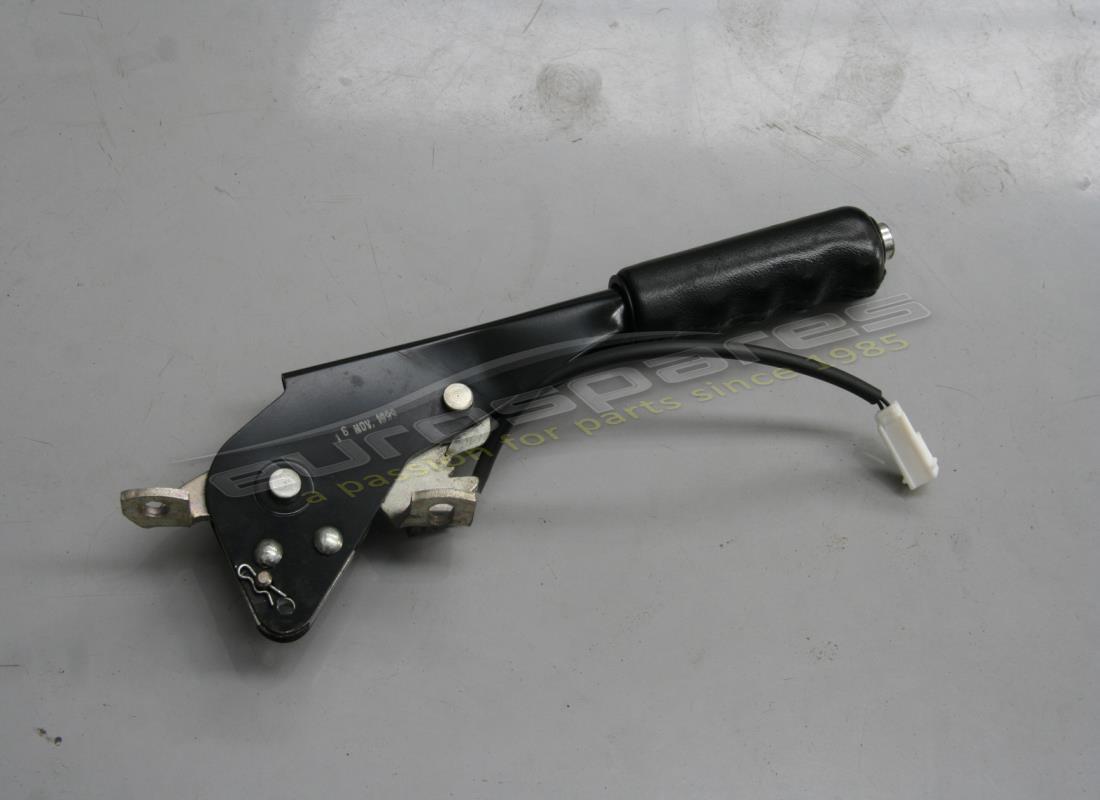

PARKING BRAKE LEVER ASSY
from £295.00
from £295.00
# 002
MPN: 388000117
SHEATH WITH PARKING BRAKE CABLE ASSY
from £64.31
from £64.31
# 003
MPN: 388000324
HAND BRAKE ADJUSTING PAWL
from £11.84
from £11.84
# 004
MPN: 318020327
PIN FOR BRAKE LEVER TIE-ROD
from £4.72
from £4.72
# 005
MPN: 10519421
BLANK WASHER
Supersession
Supersession
# 006
MPN: 388001375
HAND BRAKE CALIPER.
from £5.61
from £5.61
# 007
MPN: 15896211
NUT
Supersession
Supersession
# 008
MPN: 388000119
PARKING BRAKE CONTROL FRONT CABLE ASSY
-For cars till Ass. Nr. 4146 replace also the spring cod. 388001325 - See bulletin R00043-
from £53.96
from £53.96
# 009
MPN: 318020355
PARKING BRAKE CABLE DUST SEAL RUBBER
from £6.64
from £6.64
# 010
MPN: 318020327
PIN FOR BRAKE LEVER TIE-ROD
from £4.72
from £4.72
# 011
MPN: 58841309
SAFETY CLIP
from £2.02
from £2.02
This part replaces part number 670000498 - and 2 more. Click to view details
# 012
MPN: 10571779
WASHER
from £0.47
from £0.47
# 013
MPN: 14306221
SCREW
from £1.48
from £1.48
# 014
MPN: 383300157
EASY-ENTRY MICROSWITCH
from £25.64
from £25.64
This part replaces part number 980000944
# 015
MPN: 388000321
PARKING BRAKE SHEATH RETAINING HOOK
from £1.44
from £1.44
# 016
MPN: 398050110
HAND BRAKE KNOB IN LEATHER
-Standard black-
Supersession
Supersession
# 016
MPN: 980001012
HAND BRAKE KNOB IN LEATHER
-Optional - Coloured leather - In the order, specify car number-
from £31.99
from £31.99
# 017
MPN: 14058511
NUT
from £0.47
from £0.47
# 018
MPN: 388000373
FLANGED BUSH
from £4.32
from £4.32
# 019
MPN: 388001374
PULLEY WITH SELF-LUBRICATING BEARING
from £8.48
from £8.48
# 020
MPN: 12647121
WASHER
from £0.47
from £0.47
# 021
MPN: 388000325
RETURN SPRING
-Valid till Ass. Nr. 4146-
from £2.26
from £2.26
# 021
MPN: 388001325
RETURN SPRING
-Valid from Ass. Nr. 4147-
from £1.82
from £1.82
# 022
MPN: 388001370
HAND BRAKE SHEATH POS.SPRING
from £2.44
from £2.44
# 023
MPN: 12646621
WASHER
from £0.47
from £0.47
# 024
MPN: 388005127
PARKING BRAKE TRANSM.LEVER ASSY
from £20.25
from £20.25
# 025
MPN: 10902621
SCREW
Supersession
Supersession
# 026
MPN: 10902121
SCREW
from £0.71
from £0.71
