004 - Transmission 4 Speeds

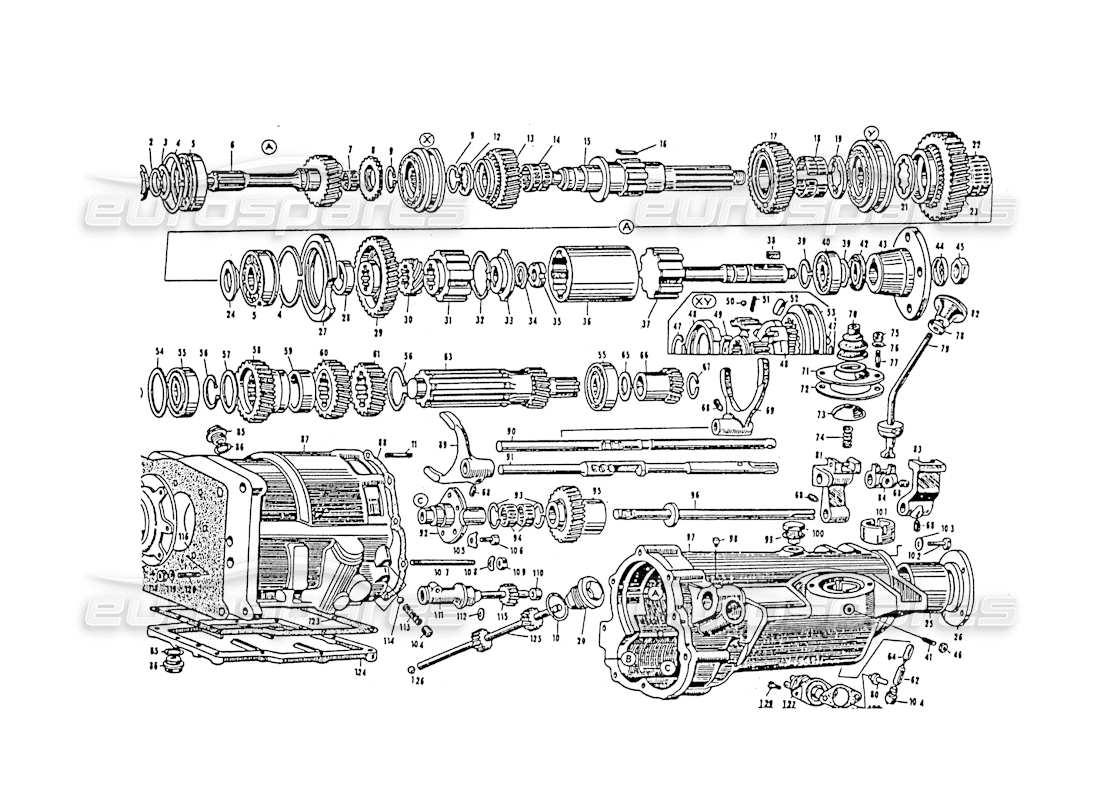

Maserati 3500 GT Transmission 4 Speeds Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
ZF B1 Vfg
SEAL
#
002
MPN:
ZF Din 471 Verst
SEEGER RING
#
003
MPN:
ZF 1010 302 003 (5)
SPACER DISC FOR BEARING ON CONTINUOUS SOCKET SHAFT
#
004
MPN:
ZF 1010 301 005 (5)
SPACER DISC FOR BEARING ON CONTINUOUS SOCKET SHAFT AND FOR BEARING ON SECONDARY SHAFT
#
005
MPN:
ZF 6307 NC 3
BALL BEARING Ø 35X80X21 FOR CONTINUOUS OUTPUT SHAFT AND SECONDARY SHAFT
#
006
MPN:
ZF 1010 301 005 (5)
CONTINUOUS SOCKET SHAFT WITH R. 33/38 (Z=33)
#
006
MPN:
ZF 1010 302 015 (2)
CONTINUOUS SOCKET SHAFT WITH R. 31/40 (Z=31)
#
007
MPN:
ZF KS 20
ROLLER CAGE Ø 20X26X17 FOR CONTINUOUS SOCKET SHAFT
#
008
MPN:
ZF 1010 302 016 (4)
INNESTO IV' VELOCITA SU ALBERO PRESA CONTINUA
#
009
MPN:
ZF 1010 304 003 (5)
RING
#
010
MPN:
ZF A30x36 DIN 7603
GASKET OR SEAL
#
011
MPN:
M8x75 DIN 939
STUD
#
012
MPN:
ZF 1010 304 009 (5)
DISTANZIALE SU ALBERO SECONDARIO PER III' VELOCITA
#
013
MPN:
ZF 1010 204 016 (6)
INGRANAGGIO SECONDARIO III' VELOCITA CON R. 38/34 (Z=38)
#
013
MPN:
ZF 1010 304 012 (4)
INGRANAGGIO SECONDARIO III' VELOCITA CON R. 37/35 (Z=37)
#
014
MPN:
ZF 1010 304 010 (5)
GABBIA DI RULLINI SU ALBERO SECONDARIO PER INGRAGGIO III' VELOCITA
#
015
MPN:
ZF 1010 304 001 (2)
ALBERO SECONDARIO
#
016
MPN:
ZF 1010 304 020 (5)
LINGUETTA TENUTA DISTANZIALL FRA INNESTI II' E I' VELOCITA
#
017
MPN:
ZF 1010 304 016 (4)
INGRAGGIO SECONDARIO II' VELOCITA (Z=45)
#
018
MPN:
ZF 1010 304 018 (5)
ROLLER CAGE IN TWO MATA
#
019
MPN:
ZF 1010 304 019 (4)
DISTANZIALE PER INNESTO II' VELOCITA
#
020
MPN:
ZF 1010 308 037 (4)
CAP ON THE BOX FOR THE SPEEDO CONTROL SHAFT
#
021
MPN:
ZF 1010 304 025 (5)
DISTANZIALE PER INNESTO I' VELOCITA
#
022
MPN:
ZF 1010 304 026 (5)
ROLLER CAGE
#
023
MPN:
ZF 1010 304 027 (5)
INGRAGGIA SECONDARIO I' VELOCITA (Z=42) (CON INNESTO)
#
024
MPN:
ZF 1010 304 028 (5)
ROLLER CAGE SEAL SPACER BETWEEN CLUTCH AND BEARING
#
025
MPN:
ZF 1010 308 071 (4)
BUSH FOR SLIDING SHAFT
#
026
MPN:
ZF 1010 308 072 (4)
COVER ON THE TRANSMISSION SIDE GEARBOX
#
027
MPN:
ZF 1010 308 025 (4)
CENTERING DISC
#
028
MPN:
ZF 1010 304 053 (5)
SPACER BETWEEN BEARING AND REVERSE GEAR
#
029
MPN:
ZF 1010 304 060 (3)
INGRANAGGIO RETROMARCIA (Z=37)
#
030
MPN:
ZF 1010 304 061 (4)
SCREW
#
031
MPN:
ZF 1010 304 077 (4)
FIXED SLEEVE ON SECONDARY SHAFT
#
032
MPN:
ZF DIN 472
RING
#
033
MPN:
ZF 1010 304 976 (5)
SLEEVE SEALING DISC FIXED TO THE SECONDARY SHAFT
#
034
MPN:
ZF 1010 304 079 (5)
WASHER
#
035
MPN:
ZF M20x1,5x12 65
RING M20X1,5 FIXING THE SLEEVE TO THE DISC
#
036
MPN:
ZF 1010 304 075 (4)
SLEEVE CONNECTING THE SECONDARY SHAFT TO THE SHAFT WITH SLIDING SLEEVE
#
037
MPN:
ZF 1010 308 073 (3)
SHAFT WITH SLIDING SLEEVE FOR CONNECTION OF THE SECONDARY SHAFT TO THE DRIVE SHAFT
#
038
MPN:
ZF 1010 308 086 (5)
TANG FOR SAYING
#
039
MPN:
ZF 30x2 DIN 471 Verst.
RING
#
040
MPN:
ZF 1010 308 086 (5)
BEARING Ø 30X62X16 ON SHAFT WITH SLIDING SLEEVE
#
041
MPN:
ZF M6x12 DIN 914
LOCKING DOWN FOR GEAR GEAR LEVER SEAT
#
042
MPN:
ZF 32x52x12 81v Fg
SEALING RING
#
043
MPN:
ZF 1010 308 130
FORK
#
044
MPN:
ZF 1010 308 104
RING
#
045
MPN:
ZF 1010 308 006
NUT
#
046
MPN:
DN 32484
NUT
#
047
MPN:
ZF 1010 302 003 (5)
SEALING RING
#
047
MPN:
ZF 1010 304 022 (5)
SEALING RING
#
048
MPN:
ZF 1010 304 004 (4)
RING
#
048
MPN:
ZF 1010 304 023 (4)
RING
#
049
MPN:
ZF 1010 304 021 (3)
MOZZA DEL MANICOTTO D'INNESTO II' E I' VELOCITA
#
049
MPN:
ZF 1010 304 078 (3)
MOZZA DEL MANICOTTO D'INNESTO IV' E III' VELOCITA
#
050
MPN:
ZF 5,5DIN5401GUTE 111
SIERA PER SINCRONIZZATORA IV', III' E II', I' VELOCITA
#
051
MPN:
ZF 1010 304 083 (4)
SPRING
#
052
MPN:
ZF 1010 304 005 (4)
MOTTALINO D'ARRESTO PER SINCRONIZZATORA IV', III' E II', I' VELOCITA
#
053
MPN:
ZF 1010 304 008 (3)
MANICOTTO D'INNESTO PER SINCRONIZZATORA IV' E III' VELOCITA
#
053
MPN:
ZF 1010 304 024 (3)
MANICOTTO D'INNESTO PER SINCRONIZZATORA II' E I' VELOCITA
#
054
MPN:
ZF 1010 303 029 (3)
RING
#
055
MPN:
ZF 3030 S
CUSCINETTO Ø 25X62X17 PER ALBERO INTERMEDIO
#
056
MPN:
40x2,5DIN471 Verst.
RING
#
057
MPN:
ZF 1010 303 002 (5)
RING
#
058
MPN:
ZF 1010 303 028 (3)
INGRANAGGIO PRIMARIO IV' VELOCITA CON R=31/40 (Z=40)
#
058
MPN:
ZF 1010 303 031 (6)
INGRANAGGIO PRIMARIO IV' VELOCITA CON R=33/38 (Z=38)
#
059
MPN:
ZF 1010 303 004 (3)
DISTANZIALE SU ALBERO INTERMEDIO PER IV' E III' VELOCITA
#
060
MPN:
ZF 1010 303 007 (4)
INGRANAGGIO PRIMARIO III' VELOCITA CON R=37/35 (Z=35)
#
060
MPN:
ZF 1010 303 032 (6)
INGRANAGGIO PRIMARIO III' VELOCITA CON R=38/34 (Z=34)
#
061
MPN:
ZF 1010 303 008 (4)
INGRANAGGIO PRIMARIO II' VELOCITA (Z=28)
#
062
MPN:
ZF 1010 303 016 (4)
SAFETY ANCHOR FOR GEARBOX CONTROL RODS
#
063
MPN:
ZF 1010 303 042 (3)
ALBERO INTERMEDIO CON PIGNONE I' VELOCITA (Z=16)
#
064
MPN:
ZF 1010 309 015 (4)
SAFETY ANCHOR FOR GEARBOX CONTROL RODS
#
065
MPN:
ZF 1010 303 043 (4)
RING
#
066
MPN:
ZF 1010 303 020 (4)
REVERSE GEAR (Z=15) ON INTERMEDIATE SHAFT
#
067
MPN:
ZF Din 471 Verst
RING
#
068
MPN:
ZF 1010 306 005 (5)
GRANO FISSAGGIO FORCELLA COMANDO I' E II' VELOCITA ALL'ASTA
#
069
MPN:
ZF 1010 306 056 (3)
SELECTOR FORK I' AND II' SPEED
#
070
MPN:
ZF 1010 309 024 (4)
PARAPOLVERE LEVA COMANO CAMBIO
#
071
MPN:
ZF 1010 309 020 (4)
FLANGIA TENUTA PARAPOLVERE LEVA COMADO CAMBIO
#
072
MPN:
ZF 1010 309 021 (4)
GASKET OR SEAL
#
073
MPN:
ZF 1010 309 022 (4)
CALOTTA SFERICE TENUTA MOLLA LEVA COMADO CAMBIO
#
074
MPN:
ZF 1010 309 023 (4)
SPRING
#
075
MPN:
ZF AM 8x12 DIN 835
NUT
#
076
MPN:
ZF B8 DIN 127
WASHER
#
077
MPN:
ZF M8 DIN 70615
STUD
#
078
MPN:
ZF 1207 307 005 (5)
GEAR GEAR LEVER KNOB FIXING RING
#
079
MPN:
ZF 1010 309 035
LEVER
#
080
MPN:
ZF 1010 308 084 (5)
GRAIN FOR ELECTRIC REVERSE CONTACT
#
081
MPN:
ZF 1010 309 014 (2)
PAWL FOR REVERSE CONTROL ROD
#
082
MPN:
ZF C ZF 27
Pomello per leva comando cambio
#
083
MPN:
ZF 1010 309 013 (3)
NOTTOLIINO PER ASTA COMANDO III' E IV' VELOCITA
#
084
MPN:
ZF 1010 309 012 (4)
NOTTOLIINO PER ASTA COMANDO I' E II' VELOCITA
#
085
MPN:
ZF C18x24 DIN 7603
GASKET OR SEAL
#
086
MPN:
ZF AM18x1,5 DIN 7604
TAPPO LIVELLO OLIO
#
087
MPN:
ZF 1010 101 002 (0)
SCATOLA CAMBIO
#
088
MPN:
ZF 1010 308 003 (3)
GVARNISH FOR TRANSMISSION SIDE GEARBOX
#
089
MPN:
ZF 1010 306 004 (3)
SELECTOR FORK III' AND IV' SPEED
#
090
MPN:
ZF 1010 306 042 (3)
ASTA PER COMANDO I' E II' VELOCITA
#
091
MPN:
ZF 1010 306 043 (3)
ASTA PER COMANDO III' E IV' VELOCITA
#
092
MPN:
ZF 1010 305 008 (3)
BUSH
#
093
MPN:
ZF 1010 305 011 (5)
ROLLER CAGE STOPPING RINGS ON REVERSE GEAR
#
094
MPN:
ZF K25/13
ROLLER CAGE ON REVERSE GEAR
#
095
MPN:
ZF 1010 305 012 (4)
INGRANAGGLO RETROMARCIA (SU ALBERINO RETROMARCIA) (Z=24)
#
096
MPN:
ZF 1010 306 052 (2)
ALBERINO RETROMARCIA
#
097
MPN:
ZF 1010 308 076 (0)
COVER
#
098
MPN:
ZF MBx12 DIN 417.55
GRANO FISSEGGIO RACCORDO PRESA GUEINA CONTACHILOMETRI
#
099
MPN:
ZF C18x24 DIN 7603
GASKET OR SEAL
#
100
MPN:
ZF 1010 308 010 (5)
BREATHER CAP ON GEARBOX COVER
#
101
MPN:
ZF 1010 309 019 (4)
SPHERICAL SEAT FOR GEAR GEAR LEVER ON GEARBOX COVER
#
102
MPN:
ZF M6x15 DIN 93I.8G
BOLT
#
103
MPN:
ZF B6 DIN 137
WASHER
#
104
MPN:
ZF 1010 306 020 (5)
SEALING CAP FOR SAFETY INSERTS FOR GEARBOX CONTROL RODS
#
105
MPN:
ZF 1010 305 009 (5)
SUPPORT
#
106
MPN:
ZF M8x20DIN70614.8G
NUT
#
107
MPN:
ZF M8x55 DIN 939
STUD
#
108
MPN:
ZF B8 DIN 137
WASHER
#
109
MPN:
ZF M8 DIN 70615
NUT
#
110
MPN:
ZF 1010 308 019 (5)
DISLANZIALE SU ALBERINI CONDOTTO COMANDO CONTACHILOMETRI
#
111
MPN:
ZF 1010 308 064 (4)
UNION
#
112
MPN:
ZF 1010 308 018 (5)
RUBBER FOR SPEEDO CONTROL SHAFT
#
113
MPN:
ZF 1010 306 021 (4)
SPRING
#
114
MPN:
ZF 8 DIN 5401
BALL FOR SAID SPRING
#
115
MPN:
ZF 1010 308 007 (5)
SHAFT WITH GEAR DRIVEN ODOMETER CONTROL
#
116
MPN:
ZF 1010 301 008 (3)
GASKET OR SEAL
#
117
MPN:
ZF 1010 301 010 (3)
HUB FOR CLUTCH SIDE SLIDING SLEEVE
#
118
MPN:
ZF M6 DIN 934-5S
NUT
#
119
MPN:
ZF A6 DIN 127
WASHER
#
120
MPN:
ZF M6x16 DIN 939.8G
STUD
#
121
MPN:
ZF AB - DIN . 137
WASHER
#
122
MPN:
ZF M8x20 DIN 931.8G
BOLT
#
123
MPN:
ZF 1010 301 002 (3)
GASKET OR SEAL
#
124
MPN:
ZF 1010 301 007 (1)
COVER
#
125
MPN:
ZF 1010 208 013 (4)
SHAFT WITH DRIVING GEAR FOR ODOMETER CONTROL
#
126
MPN:
ZF 10 DIN 5401 Gute IV
SFERA PER RASAMENTO DETTO ALBERINO
#
127
MPN:
ZF AK 270 R
INTERRUTORE STOP PER RETROMARCIA
#
128
MPN:
ZF 1203 307 016 (5)
Guernizlone per detto
#
129
MPN:
ZF AM 4x6 DIN 84.5
VLTE FISSAGGIO INTERRUTIORE STOP ALLA SCATOLA CAMBIO
