005 - Suction tube and Exhaust Manifold

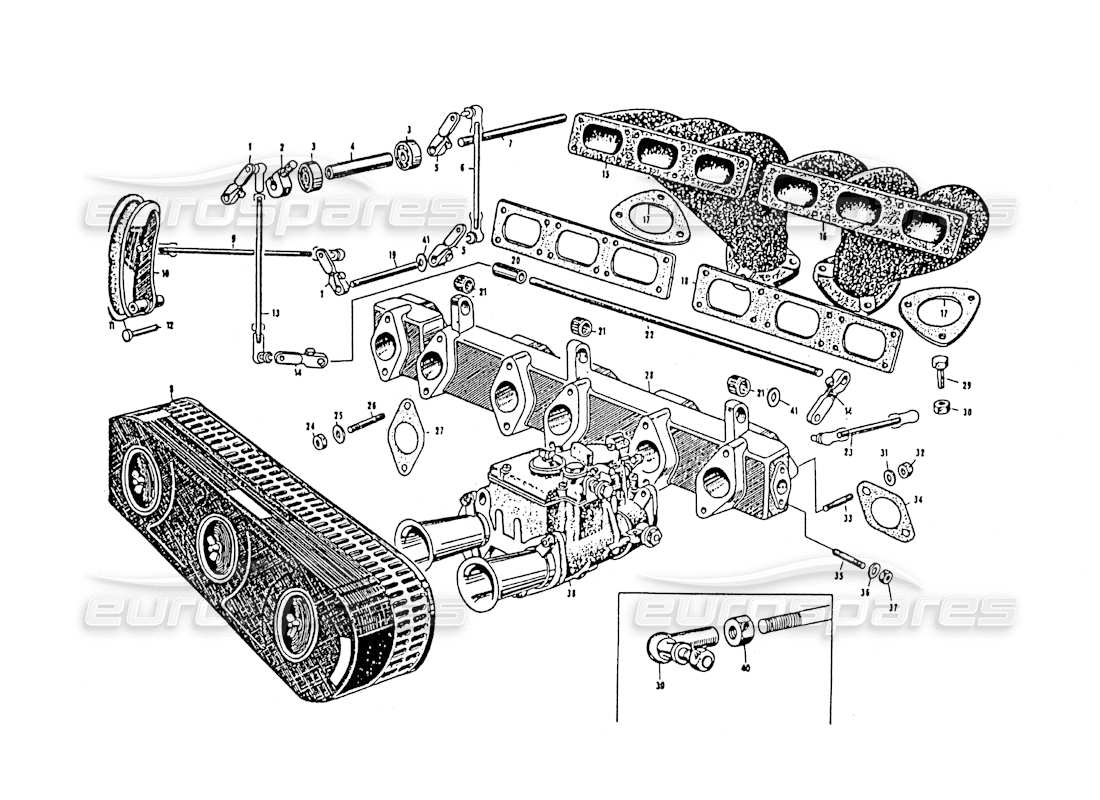

Maserati 3500 GT Suction tube and Exhaust Manifold Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
6067/38040
ACCELERATOR CONTROL LEVER
#
002
MPN:
6066/41247
LEVER
#
003
MPN:
CSC/46518
BEARING Ø 12X32X10 WATERPROOF FOR ROD SUPPORT ON THE BASE
#
004
MPN:
6069/49817
Spacer on the shaft on the base for the accelerator leg
#
005
MPN:
6063/47167
LEVETTA SULL'ALBERINO DI RINVIO COM CARBURATORE SUL BASAMENTO
#
006
MPN:
6088/49872
TIE ROD
#
007
MPN:
6024/47413
Alberino di rinvio sul basamento per comando carburattori
#
008
MPN:
6005/46994
Fispa type Relax air filter assembly
#
009
MPN:
6092/49871
TIE ROD
#
010
MPN:
6041/50564
Accelerator Pedal
from
£204.75
from
£204.75
#
011
MPN:
6043/47149
CALOTTA COPRIPEDALE ACCELERATORE
#
012
MPN:
6020/47144
PIVOT
#
013
MPN:
6086/50190
TIE ROD
#
014
MPN:
6064/49745
LEVETTA SULL'ALBERINO PORTALEVA COMANDO ACCELERATORE
#
015
MPN:
5806/46961
COLLETORE DI SCARICO POSTERIORE
#
016
MPN:
5802/46960
COLLETORE DI SCARICO ANTERIORE
#
017
MPN:
5822/44756
GASKET OR SEAL
#
018
MPN:
5814/48029
GASKET OR SEAL
#
019
MPN:
6029/47162
ACCELERATOR CONTROL LEVER SHAFT ON THE FRAME
#
020
MPN:
6068/48184
Shaft spacer on manifold
#
021
MPN:
GRL/47155
BUSH
#
022
MPN:
6022/48183
ROD ON THE MANIFOLD FOR CARBURETTOR CONTROL LEVERS
#
023
MPN:
6080/48185
TIE ROD
#
024
MPN:
DNT/47064
NUT
#
025
MPN:
RAT/45680
WASHER
#
026
MPN:
PN/45720
THREADED STUD
#
027
MPN:
5524/48379
GUARNITURA PER COLLETTORE D'ESPIR E CARBURATORI
#
028
MPN:
5520/48051
Collettore d'aspizaione
from
£3,273.92
from
£3,273.92
#
029
MPN:
BNT 47017
BOLT
#
030
MPN:
DN 48101
NUT
#
031
MPN:
RAT/45680
WASHER
#
032
MPN:
DNT/47064
NUT
#
033
MPN:
PN/45832
THREADED STUD
#
034
MPN:
5525/48061
Gasket between intake manifold and cylinder head
#
035
MPN:
PN/32415
THREADED STUD
#
036
MPN:
RAT/43678
WASHER
#
037
MPN:
DNT 47046
NUT
This part replaces part number 47046
#
038
MPN:
6004/48113
CARBURATORE WEBER 42 DCOE 8
#
039
MPN:
6090/50184
COMPLETE CORNER JOINT
#
040
MPN:
DNT 47046
NUT
This part replaces part number 47046
#
041
MPN:
RN43043
WASHER
