006 - Carburator

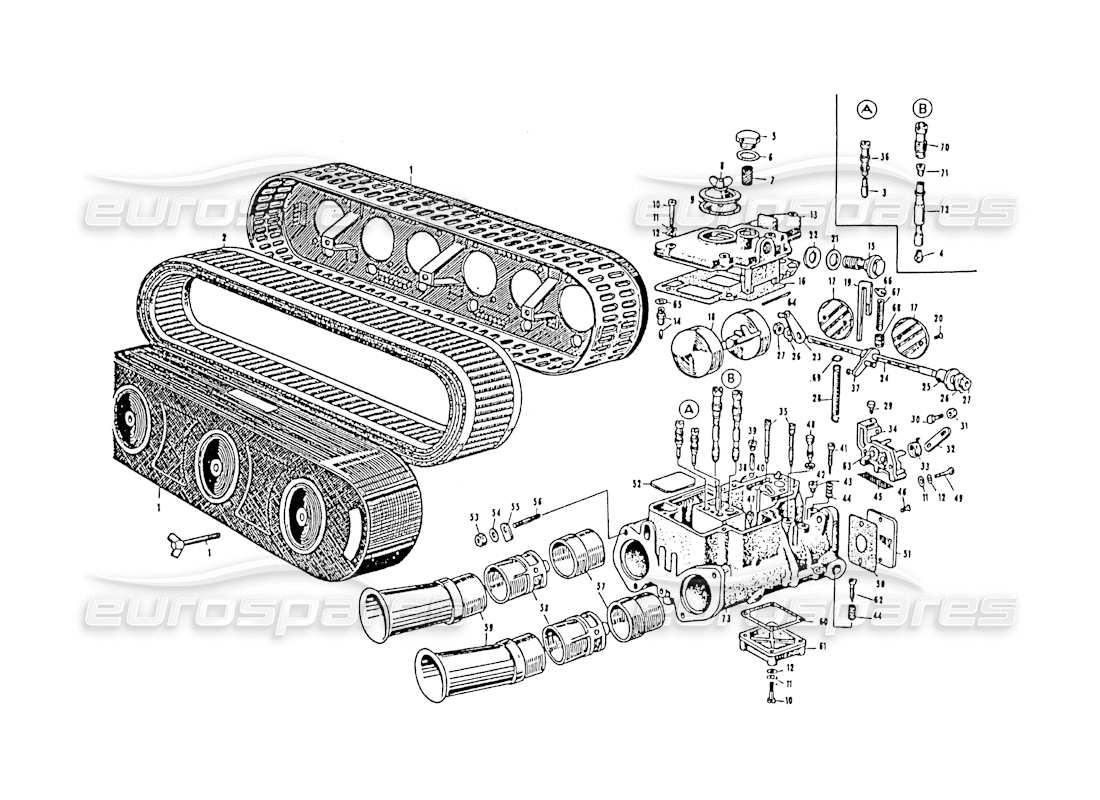

Maserati 3500 GT Carburator Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                  #
                                                                                                                                  Part number
                                                                                                                                  Description
                                                                                                                                  Key
                                                                                                                                  Price
                                                                                                                                  # 000
                                                                                                                                  MPN: 1224/9808

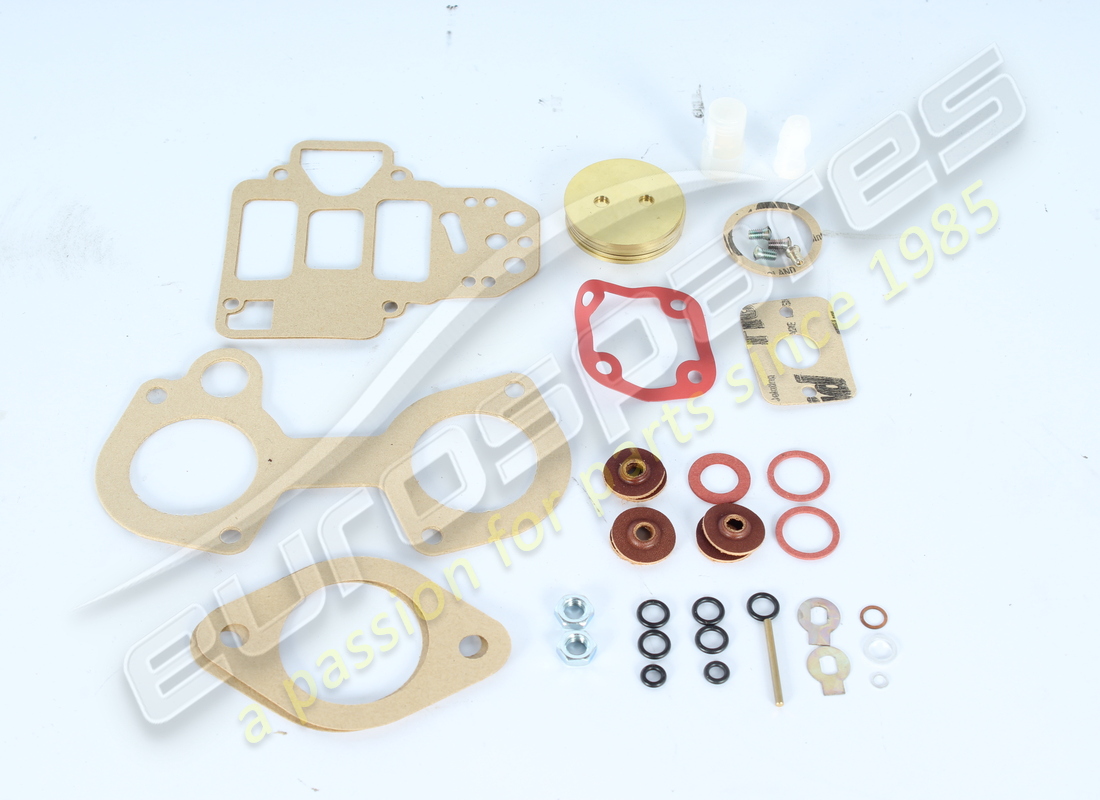

                                                                                                                                  CARBURETTOR REPAIR KIT
                                                                                                                                  (42 DCOE)
                                                                                                                                  from £472.50
                                                                                                                                  from £472.50
                                                                                                                                  CARBURETTOR REPAIR KIT Genuine Maserati Part - New In stock
                                                                                                                                  42 DCOE
                                                                                                                                  # 001
                                                                                                                                  MPN: 6005/46995
                                                                                                                                  COMPLETE AIR FILTER BOX
                                                                                                                                  COMPLETE AIR FILTER BOX Genuine Maserati Part - New (to order)
                                                                                                                                  # 002
                                                                                                                                  MPN: 6005/49906

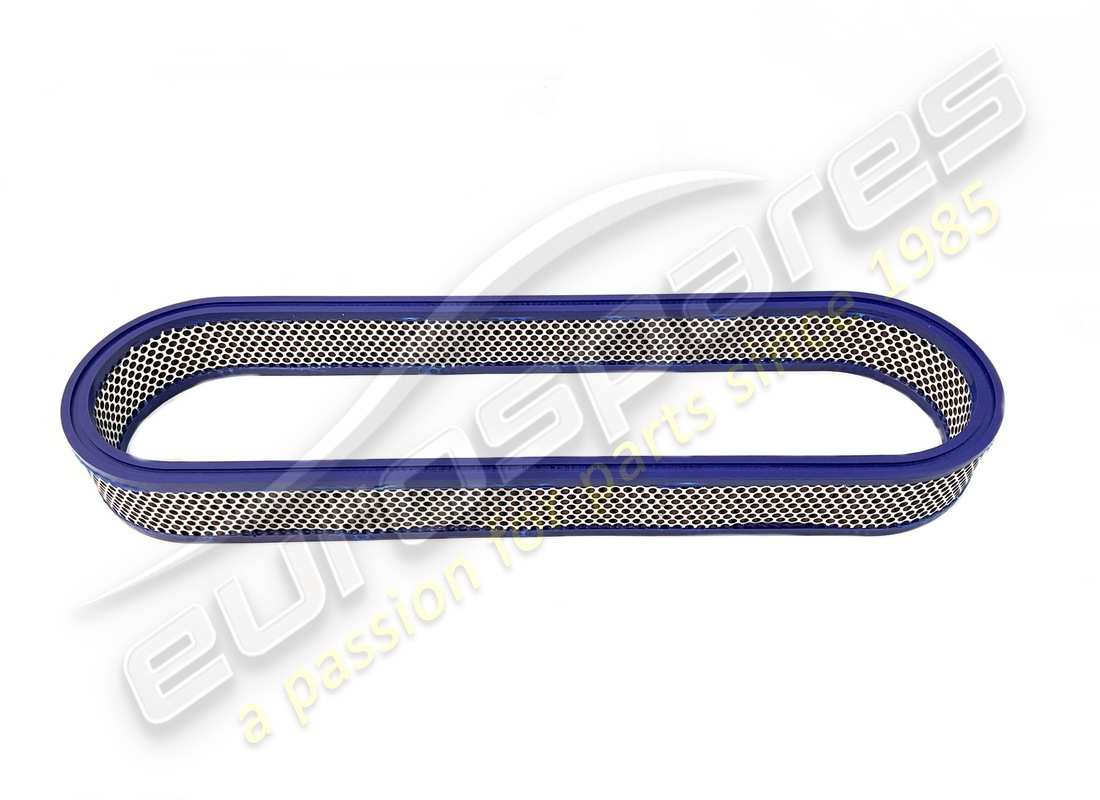

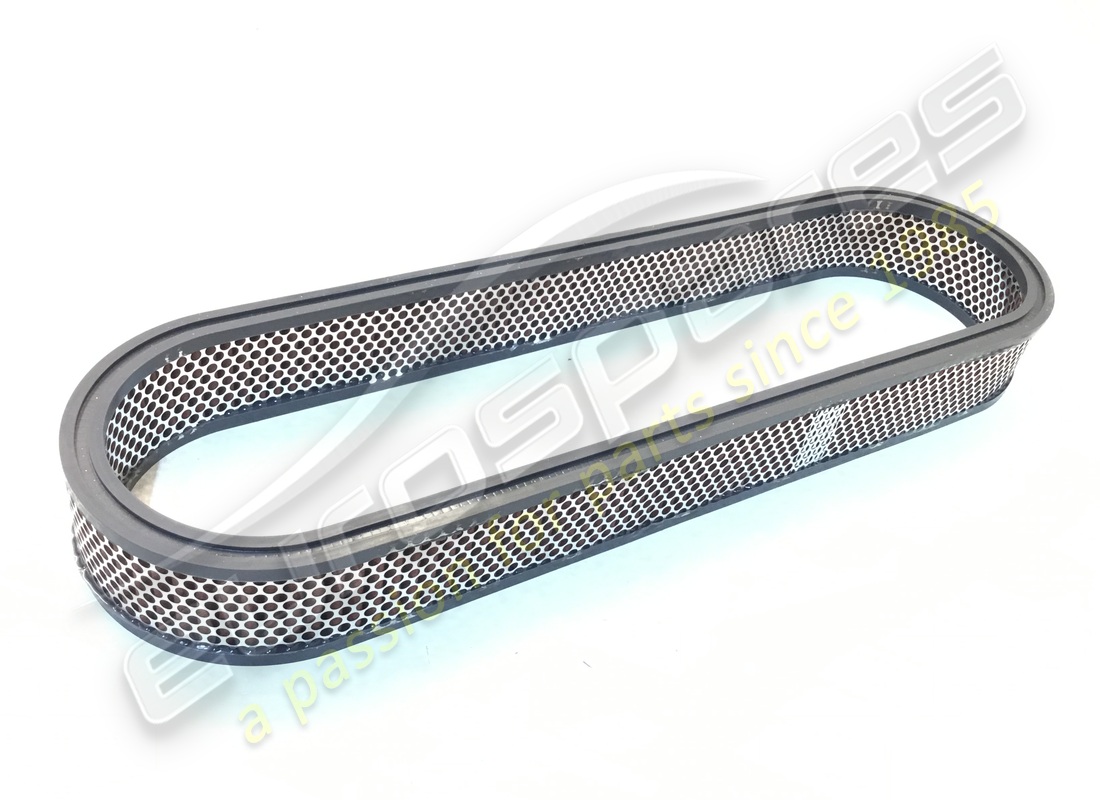

                                                                                                                                  AIR FILTER
                                                                                                                                  from £93.90
                                                                                                                                  from £93.90
                                                                                                                                  AIR FILTER Genuine Maserati Part - New In stock
                                                                                                                                  AIR FILTER Eurospares Approved Part - New In stock
                                                                                                                                  # 003
                                                                                                                                  MPN: Weber 974
                                                                                                                                  JET FROM IDLE
                                                                                                                                  For 1 details, indicate the calibration in the request
                                                                                                                                  JET FROM IDLE Genuine Maserati Part - New (to order)
                                                                                                                                  # 004
                                                                                                                                  MPN: Weber TS 195
                                                                                                                                  Jet from maximum
                                                                                                                                  For 1 details, indicate the calibration in the request
                                                                                                                                  Jet from maximum Genuine Maserati Part - New (to order)
                                                                                                                                  # 005
                                                                                                                                  MPN: Weber 4063
                                                                                                                                  TAPPO PER ISPAZIONE FILTRO
                                                                                                                                  TAPPO PER ISPAZIONE FILTRO Genuine Maserati Part - New (to order)
                                                                                                                                  # 006
                                                                                                                                  MPN: Weber 4083
                                                                                                                                  GUERNIZIONE PER TAPPO ISP. FILTRO
                                                                                                                                  GUERNIZIONE PER TAPPO ISP. FILTRO Genuine Maserati Part - New (to order)
                                                                                                                                  # 007
                                                                                                                                  MPN: Weber 4064
                                                                                                                                  RASICALLA FILTRANTE
                                                                                                                                  RASICALLA FILTRANTE Genuine Maserati Part - New (to order)
                                                                                                                                  # 008
                                                                                                                                  MPN: Weber 4929/a
                                                                                                                                  COPERCHIETTO ISPEZIONE PORTAGETTI COMPLETO
                                                                                                                                  COPERCHIETTO ISPEZIONE PORTAGETTI COMPLETO Genuine Maserati Part - New (to order)
                                                                                                                                  # 009
                                                                                                                                  MPN: Weber 2808
                                                                                                                                  GUERNIZIONE PER COPERCHIETTO ISPEZIONE PORTAGETTI
                                                                                                                                  GUERNIZIONE PER COPERCHIETTO ISPEZIONE PORTAGETTI Genuine Maserati Part - New (to order)
                                                                                                                                  # 010
                                                                                                                                  MPN: Weber 665
                                                                                                                                  SCREW
                                                                                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                                                                                  # 011
                                                                                                                                  MPN: Weber 1356
                                                                                                                                  WASHER
                                                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                                                  # 012
                                                                                                                                  MPN: Weber 1356
                                                                                                                                  WASHER
                                                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                                                  # 013
                                                                                                                                  MPN: Weber 4736/a
                                                                                                                                  COPERCHIETTO CARBURATORE COMPLETO
                                                                                                                                  COPERCHIETTO CARBURATORE COMPLETO Genuine Maserati Part - New (to order)
                                                                                                                                  # 014
                                                                                                                                  MPN: Weber 1660 a/m
                                                                                                                                  COMPLETE NEEDLE VALVES
                                                                                                                                  For 1 details, indicate the calibration in the request
                                                                                                                                  COMPLETE NEEDLE VALVES Genuine Maserati Part - New (to order)
                                                                                                                                  # 015
                                                                                                                                  MPN: Weber 1688
                                                                                                                                  SPHERICAL FITTING HOLDER CAP FOR FUEL HOSE
                                                                                                                                  SPHERICAL FITTING HOLDER CAP FOR FUEL HOSE Genuine Maserati Part - New (to order)
                                                                                                                                  # 016
                                                                                                                                  MPN: Weber 4611
                                                                                                                                  GUERNIZIONE PER COPERCHIO CARBURATORE
                                                                                                                                  GUERNIZIONE PER COPERCHIO CARBURATORE Genuine Maserati Part - New (to order)
                                                                                                                                  # 017
                                                                                                                                  MPN: Weber 4712
                                                                                                                                  VALVOLA A FARFALLA
                                                                                                                                  VALVOLA A FARFALLA Genuine Maserati Part - New (to order)
                                                                                                                                  # 018
                                                                                                                                  MPN: Weber 4626/a
                                                                                                                                  GALLEGGIANTE COMPLETO
                                                                                                                                  GALLEGGIANTE COMPLETO Genuine Maserati Part - New (to order)
                                                                                                                                  # 019
                                                                                                                                  MPN: Weber 4731
                                                                                                                                  ASTA COMANDO STANTUFFO POMPA
                                                                                                                                  ASTA COMANDO STANTUFFO POMPA Genuine Maserati Part - New (to order)
                                                                                                                                  # 020
                                                                                                                                  MPN: Weber 3718
                                                                                                                                  SCREW
                                                                                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                                                                                  # 021
                                                                                                                                  MPN: Weber 4083
                                                                                                                                  GUERNIZIONE PER RACCORDO SFERICO
                                                                                                                                  GUERNIZIONE PER TAPPO ISP. FILTRO Genuine Maserati Part - New (to order)
                                                                                                                                  # 022
                                                                                                                                  MPN: Weber TS 610
                                                                                                                                  GUERNIZIONE PER RACCARDO SFERICO LATO COPERCHIO
                                                                                                                                  GUERNIZIONE PER RACCARDO SFERICO LATO COPERCHIO Genuine Maserati Part - New (to order)
                                                                                                                                  # 023
                                                                                                                                  MPN: Weber 4738/a
                                                                                                                                  LEVER
                                                                                                                                  LEVER Genuine Maserati Part - New (to order)
                                                                                                                                  # 024
                                                                                                                                  MPN: Weber 4625
                                                                                                                                  BUTTERFLY VALVE HOLDER SHAFT
                                                                                                                                  BUTTERFLY VALVE HOLDER SHAFT Genuine Maserati Part - New (to order)
                                                                                                                                  # 025
                                                                                                                                  MPN: Weber 2699
                                                                                                                                  RING
                                                                                                                                  RING Genuine Maserati Part - New (to order)
                                                                                                                                  # 026
                                                                                                                                  MPN: Weber 4612
                                                                                                                                  WASHER
                                                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                                                  # 027
                                                                                                                                  MPN: Weber 2706
                                                                                                                                  NUT
                                                                                                                                  NUT Genuine Maserati Part - New (to order)
                                                                                                                                  # 028
                                                                                                                                  MPN: Weber 3563
                                                                                                                                  SPRING
                                                                                                                                  SPRING Genuine Maserati Part - New (to order)
                                                                                                                                  # 029
                                                                                                                                  MPN: Weber 3311
                                                                                                                                  SCREW
                                                                                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                                                                                  # 030
                                                                                                                                  MPN: Weber 4102
                                                                                                                                  SCREW
                                                                                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                                                                                  # 031
                                                                                                                                  MPN: Weber 4103
                                                                                                                                  NUT
                                                                                                                                  NUT Genuine Maserati Part - New (to order)
                                                                                                                                  # 032
                                                                                                                                  MPN: Weber 4101
                                                                                                                                  LEVER
                                                                                                                                  LEVER Genuine Maserati Part - New (to order)
                                                                                                                                  # 033
                                                                                                                                  MPN: Weber 4368
                                                                                                                                  SPRING
                                                                                                                                  SPRING Genuine Maserati Part - New (to order)
                                                                                                                                  # 034
                                                                                                                                  MPN: Weber 4855/a
                                                                                                                                  COVER
                                                                                                                                  COVER Genuine Maserati Part - New (to order)
                                                                                                                                  # 035
                                                                                                                                  MPN: Weber 3492
                                                                                                                                  GETTO AVVIAMENTO
                                                                                                                                  For 1 details, indicate the calibration in the request
                                                                                                                                  GETTO AVVIAMENTO Genuine Maserati Part - New (to order)
                                                                                                                                  # 036
                                                                                                                                  MPN: Weber 1590
                                                                                                                                  PORTAGETTO DAL MINIMO
                                                                                                                                  PORTAGETTO DAL MINIMO Genuine Maserati Part - New (to order)
                                                                                                                                  # 037
                                                                                                                                  MPN: Weber 4640/a
                                                                                                                                  LEVER
                                                                                                                                  LEVER Genuine Maserati Part - New (to order)
                                                                                                                                  # 038
                                                                                                                                  MPN: Weber TS 1033
                                                                                                                                  PREMISFERA PER VALVOLA MANDATA POMPA ALIA VELOCITA
                                                                                                                                  PREMISFERA PER VALVOLA MANDATA POMPA ALIA VELOCITA Genuine Maserati Part - New (to order)
                                                                                                                                  # 039
                                                                                                                                  MPN: Weber 321
                                                                                                                                  SCREW
                                                                                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                                                                                  # 040
                                                                                                                                  MPN: Weber 756
                                                                                                                                  BALL FOR HIGH SPEED PUMP DELIVERY VALVES
                                                                                                                                  BALL FOR HIGH SPEED PUMP DELIVERY VALVES Genuine Maserati Part - New (to order)
                                                                                                                                  # 041
                                                                                                                                  MPN: Weber 864
                                                                                                                                  SCREW
                                                                                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                                                                                  # 042
                                                                                                                                  MPN: Weber ST 469
                                                                                                                                  GUERNIZIONE PER GETTO POMPA
                                                                                                                                  GUERNIZIONE PER GETTO POMPA Genuine Maserati Part - New (to order)
                                                                                                                                  # 043
                                                                                                                                  MPN: Weber TS 623
                                                                                                                                  SCREW
                                                                                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                                                                                  # 044
                                                                                                                                  MPN: Weber 38
                                                                                                                                  SPRING
                                                                                                                                  SPRING Genuine Maserati Part - New (to order)
                                                                                                                                  # 045
                                                                                                                                  MPN: Weber 4647
                                                                                                                                  RATICALLA FILTRANTE ARIA AVVIAMENTO
                                                                                                                                  RATICALLA FILTRANTE ARIA AVVIAMENTO Genuine Maserati Part - New (to order)
                                                                                                                                  # 046
                                                                                                                                  MPN: Weber 18
                                                                                                                                  SCREW
                                                                                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                                                                                  # 047
                                                                                                                                  MPN: Weber 2948/a
                                                                                                                                  PUMP SUCTION AND EXHAUST VALVES
                                                                                                                                  For 1 details, indicate the calibration in the request
                                                                                                                                  PUMP SUCTION AND EXHAUST VALVES Genuine Maserati Part - New (to order)
                                                                                                                                  # 048
                                                                                                                                  MPN: Weber 2153/a
                                                                                                                                  PUMP JETTING COMPLETE
                                                                                                                                  PUMP JETTING COMPLETE Genuine Maserati Part - New (to order)
                                                                                                                                  # 049
                                                                                                                                  MPN: Weber 1153
                                                                                                                                  SCREW
                                                                                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                                                                                  # 050
                                                                                                                                  MPN: Weber 4615
                                                                                                                                  GASKET FOR PUMP CONTROL LEVER HOUSING COVER
                                                                                                                                  GASKET FOR PUMP CONTROL LEVER HOUSING COVER Genuine Maserati Part - New (to order)
                                                                                                                                  # 051
                                                                                                                                  MPN: Weber 4614
                                                                                                                                  COPERCHIETTO CHIUTURA VANO ALLOGGIAMENTO LEVA COMANDO POMPA
                                                                                                                                  COPERCHIETTO CHIUTURA VANO ALLOGGIAMENTO LEVA COMANDO POMPA Genuine Maserati Part - New (to order)
                                                                                                                                  # 052
                                                                                                                                  MPN: Weber 4610
                                                                                                                                  PLATE
                                                                                                                                  PLATE Genuine Maserati Part - New (to order)
                                                                                                                                  # 053
                                                                                                                                  MPN: Weber A 458
                                                                                                                                  NUT
                                                                                                                                  NUT Genuine Maserati Part - New (to order)
                                                                                                                                  # 054
                                                                                                                                  MPN: Weber N 74
                                                                                                                                  WASHER
                                                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                                                  # 055
                                                                                                                                  MPN: Weber 4730
                                                                                                                                  PLATE
                                                                                                                                  PLATE Genuine Maserati Part - New (to order)
                                                                                                                                  # 056
                                                                                                                                  MPN: Weber A 188
                                                                                                                                  STUD
                                                                                                                                  STUD Genuine Maserati Part - New (to order)
                                                                                                                                  # 057
                                                                                                                                  MPN: Weber 4777/a
                                                                                                                                  CANO DIFFUSORE
                                                                                                                                  For 1 details, indicate the calibration in the request
                                                                                                                                  CANO DIFFUSORE Genuine Maserati Part - New (to order)
                                                                                                                                  # 058
                                                                                                                                  MPN: Weber 4733/a
                                                                                                                                  CENTRATORE DI MISCALA
                                                                                                                                  For 1 details, indicate the calibration in the request
                                                                                                                                  CENTRATORE DI MISCALA Genuine Maserati Part - New (to order)
                                                                                                                                  # 059
                                                                                                                                  MPN: Weber 4572/a
                                                                                                                                  PRESA D'ARIA
                                                                                                                                  PRESA D'ARIA Genuine Maserati Part - New (to order)
                                                                                                                                  # 060
                                                                                                                                  MPN: Weber 4617
                                                                                                                                  GUERNIZIONE PER COPERCHIETTO FONDO VASCHETTA
                                                                                                                                  GUERNIZIONE PER COPERCHIETTO FONDO VASCHETTA Genuine Maserati Part - New (to order)
                                                                                                                                  # 061
                                                                                                                                  MPN: Weber 4616
                                                                                                                                  COPERCHIETTO ISPEZIONE FONDO VASCHETTA
                                                                                                                                  COPERCHIETTO ISPEZIONE FONDO VASCHETTA Genuine Maserati Part - New (to order)
                                                                                                                                  # 062
                                                                                                                                  MPN: Weber 970
                                                                                                                                  SCREW
                                                                                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                                                                                  # 063
                                                                                                                                  MPN: Weber 4650/s
                                                                                                                                  SHAFT COMPLETE WITH TOOTHED SECTOR FOR STARTING VALVE CONTROL
                                                                                                                                  SHAFT COMPLETE WITH TOOTHED SECTOR FOR STARTING VALVE CONTROL Genuine Maserati Part - New (to order)
                                                                                                                                  # 064
                                                                                                                                  MPN: Weber 1829
                                                                                                                                  PIVOT FASTENING
                                                                                                                                  PIVOT FASTENING Genuine Maserati Part - New (to order)
                                                                                                                                  # 065
                                                                                                                                  MPN: Weber 1975
                                                                                                                                  GUERNIZIONE PER VALVOLE A SPILLO
                                                                                                                                  GUERNIZIONE PER VALVOLE A SPILLO Genuine Maserati Part - New (to order)
                                                                                                                                  # 066
                                                                                                                                  MPN: Weber 3576
                                                                                                                                  PLATE
                                                                                                                                  PLATE Genuine Maserati Part - New (to order)
                                                                                                                                  # 067
                                                                                                                                  MPN: Weber 3563
                                                                                                                                  SPRING
                                                                                                                                  SPRING Genuine Maserati Part - New (to order)
                                                                                                                                  # 068
                                                                                                                                  MPN: Weber 3560/a
                                                                                                                                  COMPLETE PUMP PISTON
                                                                                                                                  COMPLETE PUMP PISTON Genuine Maserati Part - New (to order)
                                                                                                                                  # 069
                                                                                                                                  MPN: Weber 4636
                                                                                                                                  PUMP LEVER RETURN SPRING ANCHOR PLATE
                                                                                                                                  PUMP LEVER RETURN SPRING ANCHOR PLATE Genuine Maserati Part - New (to order)
                                                                                                                                  # 070
                                                                                                                                  MPN: Weber TS 868
                                                                                                                                  PUMP LEVER EMULSION TUBE HOLDER
                                                                                                                                  PUMP LEVER EMULSION TUBE HOLDER Genuine Maserati Part - New (to order)
                                                                                                                                  # 071
                                                                                                                                  MPN: Weber 969
                                                                                                                                  GETTO ARIA DI FRENO
                                                                                                                                  For 1 details, indicate the calibration in the request
                                                                                                                                  GETTO ARIA DI FRENO Genuine Maserati Part - New (to order)
                                                                                                                                  # 072
                                                                                                                                  MPN: Weber TS 671
                                                                                                                                  EMULSION TUBE
                                                                                                                                  For 1 details, indicate the calibration in the request
                                                                                                                                  EMULSION TUBE Genuine Maserati Part - New (to order)
                                                                                                                                  # 073
                                                                                                                                  MPN: 42DCOE6
                                                                                                                                  Carburator
                                                                                                                                  Carburator Genuine Maserati Part - New (to order)
