007 - Engine Lubrification

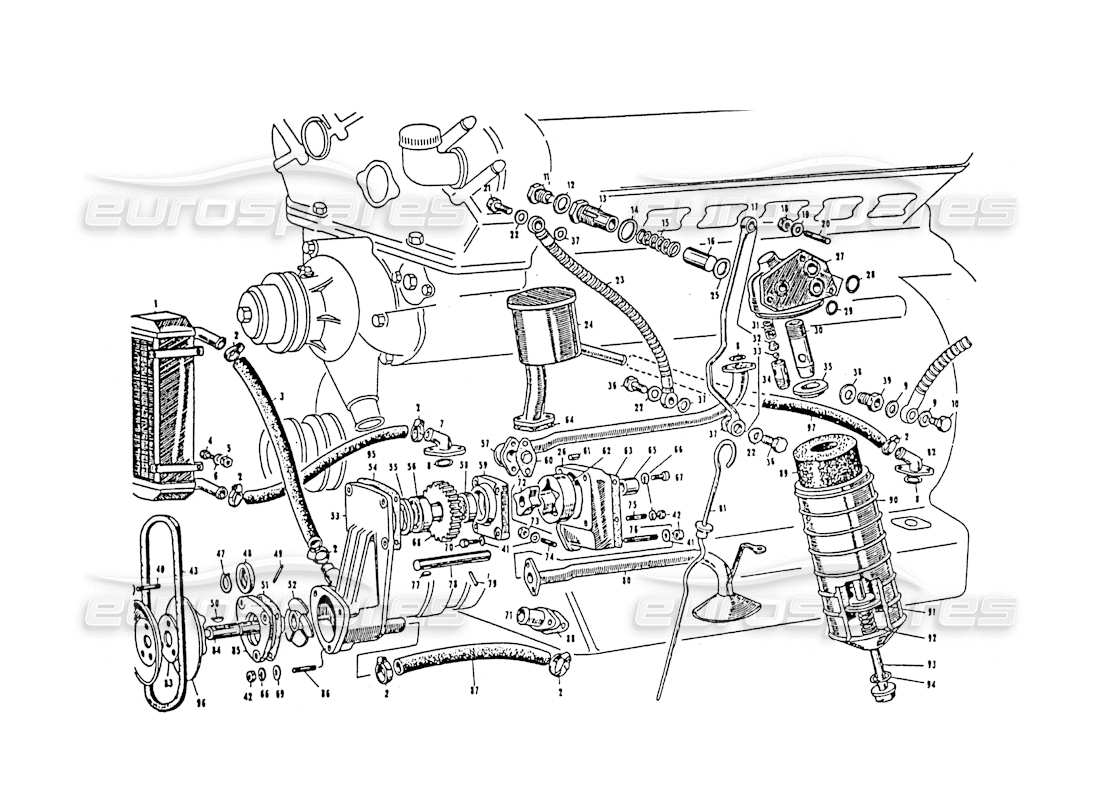

Maserati 3500 GT Engine Lubrification Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 16230/50181
RADIATORE OLIO
# 002
MPN: FRN37827
FASCATTA 22 + 38 FISSAGGIO Tubi OLIO
# 003
MPN: MN/49981
SLEEVE 22X30X550 CONNECTION OF OIL PUMP TO RADIATOR
# 004
MPN: DNT/47017
BOLT
# 005
MPN: DNT. 47031
NUT 8X1.25X8
# 006
MPN: RSN 3 2 6 3 5
WASHER
# 007
MPN: 4057/49979
PIPE ON THE CUP GETTING OIL TO THE RADIATOR
# 008
MPN: GOM/49975
RUBBER 22X28X3 FOR OIL PIPES FLANGE ON THE CUP
# 009
MPN: GN/34782
GASKET OR SEAL
# 010
MPN: VRN/49822
SCREW
# 011
MPN: 4134/49983
BOLT
# 012
MPN: GN45892
GASKET OR SEAL
# 013
MPN: 4132/49508
BUSH FOR OIL PRESSURE ADJUSTMENT VALVE
# 014
MPN: GN/49982
GASKET OR SEAL
# 015
MPN: 4124/49507
SPRING
# 016
MPN: 4122/49509
VALVOLINA REGOLAZIONE PRESSIONE OLIO
# 017
MPN: 4352/47170
OIL DELIVERY PIPE FROM THE CRANKCASE TO THE EXHAUST SIDE HEAD
# 018
MPN: DN 431 18
NUT 8X1.25X8
# 019
MPN: RAT/45680
WASHER
# 020
MPN: PN/44982
THREADED STUD
# 021
MPN: VRN/48053
SCREW
# 022
MPN: GN 47207
Guarnitura Ø 12,5X18X1 per VRN mandata olio al basamento a testa lato VRN
This part replaces part number 47207
# 023
MPN: 4352/48062
OIL DELIVERY TUBE FROM THE CRANKCASE TO THE HEAD ON THE SUCTION SIDE
# 024
MPN: 4322/48718
SOFFIANTA
# 025
MPN: 4033/49510
WASHER
# 026
MPN: 4002/49940
CORPO POMPA OLIO EATON
# 027
MPN: 4080/49444
CORPO FILTRO OLIO
# 028
MPN: GOM42693
Rubber Ø 28X34X3 on the oil filter body
from £6.08
from £6.08
# 029
MPN: GOM/49975
Rubber Ø 28x22x3 on the oil filter body
# 030
MPN: 4216/48313
CUT FOR OIL FILTER BODY
# 031
MPN: 4124/42671
SPRING
# 032
MPN: 4206/42910
GUIDA SFERA VALVOLINA SUL FILTRO
# 033
MPN: SFN/42391
BALL FOR OIL FILTER BODY VALVE BUSH
# 034
MPN: 1210/42909
BUSSALINA PER VALVOLINA SUL CORPO FILTRO OLIO
# 035
MPN: 4202/48312
WASHER
# 036
MPN: VRN/48033
SCREW
# 037
MPN: GN49570
Crankset Ø 12,5X18X3 for VRN oil delivery from the crankcase to the head side of the crankcase and heads
# 038
MPN: GN 47207
CRANKSET Ø 12,5X18X1 FOR BASE CAP
This part replaces part number 47207
# 039
MPN: TN 40217
CAP 12X1,5X20 CH. 16 ON THE BASE FOR OIL CONNECTION TO THE PRESSURE GAUGE
# 040
MPN: PN 49773
THREADED STUD
# 041
MPN: RSN/32690
WASHER
# 042
MPN: DN/47047
NUT
# 043
MPN: CTR/49852
BELT TO CONTROL THE OIL PUMP TO THE RADIATOR
# 044
MPN: DST/45671
NUT
# 045
MPN: RNT 47087
WASHER
# 046
MPN: 4091/49855
SEMIPULEGGIA ESTERNA
Supersession
Supersession
# 047
MPN: ART/49850
RING
# 048
MPN: ANT/49849
Angus Ø 14X30X7 sul coperchio tenuta girante pompa olio radiatore
# 049
MPN: SN/32531
PIN
# 050
MPN: LN40155
NORMAL KEY 3X5 IN THE OIL PUMP SHAFT TO THE RADIATOR
# 051
MPN: 4099/50249
GASKET OR SEAL
# 052
MPN: 4096/49843
IMPELLER FOR OIL PUMP TO THE RADIATOR
# 053
MPN: MA049845
OIL PUMP ASSY
# 054
MPN: 1543/50248
GASKET OR SEAL
# 055
MPN: 1544/49984
SPACER ON THE FRONT COVER ON THE CUP
# 056
MPN: CSC/49953
BEARING ON THE FRONT ENGINE COVER ON THE CUP
# 057
MPN: 4034/49966
OIL DELIVERY HOSE FROM PUMP TO OIL FILTER
# 058
MPN: CSC43806
CUSCINETTO 20X42X12 SUL COPERCHIO POMPA EATON
from £58.26
from £58.26
# 059
MPN: 4012/49945
COVER
# 060
MPN: GN/49967
GASKET OR SEAL
# 061
MPN: GRN/49954
GRAIN 3/16 X 14 ON THE EATON OIL PUMP BODY
# 062
MPN: 4024/49943
EXTERNAL OIL PUMP ROTOR
# 063
MPN: 4066/49665
GASKET OR SEAL
# 064
MPN: GN/49967
GASKET OR SEAL
# 065
MPN: 4006/49948
BUSH
# 066
MPN: RSN/32690
WASHER
# 068
MPN: 4102/49590
INGRENAGGIO COMANDO POMPA OLIO
# 069
MPN: RAT/45679
WASHER
# 070
MPN: BNT 49955
BOLT
# 071
MPN: 4098/50892
FLANGE ON THE OIL SOCKET CUP FOR RADIATOR OIL PUMP
# 072
MPN: 4022/49944
INTERNAL OIL PUMP ROTOR
# 073
MPN: DN/47047
NUT
# 074
MPN: PN/50242
THREADED STUD
# 075
MPN: PN/49949
THREADED STUD
# 076
MPN: PN/49950
THREADED STUD
# 077
MPN: LN/49656
Tabs 3X6 on the oil pump control gear
# 078
MPN: 4100/49942
SHAFT FOR INTERNAL ROTOR OF EATON PUMP
# 079
MPN: SN/49941
PIN
# 080
MPN: 4300/49963
HOSE WITH FITER FOR OIL SUCTION FROM THE SUMP
# 081
MPN: 4274/48039
OIL LEVEL DIPSTICK IN THE SUMP
# 082
MPN: 4342/49830
PIPE ON THE CUP FOR OIL RECOVERY FROM THE BLOWER
# 083
MPN: 4092/49856
RING
# 084
MPN: 4094/49854
SHAFT FOR OIL PUMP IMPELLER TO RADIATOR
# 085
MPN: 4097/49844
OIL PUMP IMPELLER RETAINING COVER TO THE RADIATOR
# 086
MPN: PN48700
THREADED STUD
# 087
MPN: MN/49981
SLEEVE 22X30X350 CONNECTION OF THE OIL DELIVERY PUMP TO THE RADIATOR
# 088
MPN: GN/47751
GASKET OR SEAL
# 089
MPN: 4212/42874

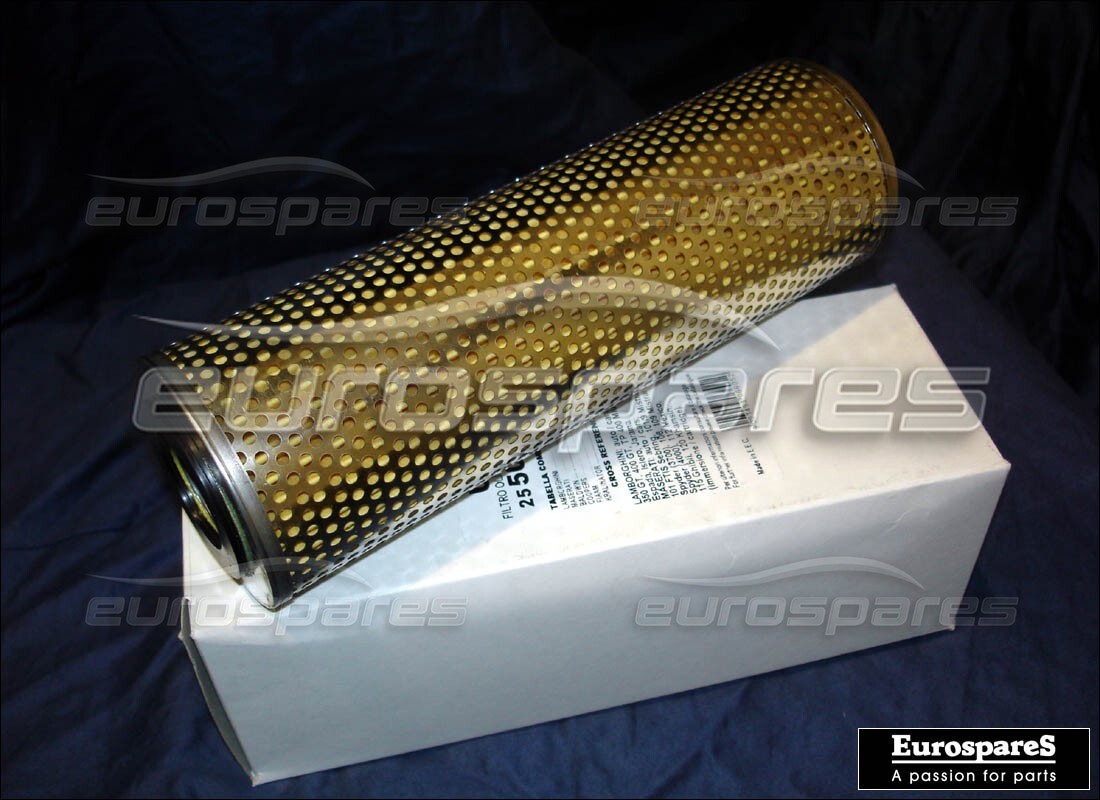

OIL FILTER
from £29.52
from £29.52
# 090
MPN: 4042/50943
CORPO FILTRO OLIO
# 091
MPN: 4204/48947
WASHER
# 092
MPN: 4214/37815
SPRING
# 093
MPN: 4208/50430
TIE ROD
# 094
MPN: GOM/49975
RUBBER 22X28X3 ON THE OIL FILTER BODY
# 095
MPN: MN/49980
NORMAL SLEEVE 19X27X57 CONNECTION OF RADIATOR TO SUMP
# 096
MPN: 4090/49853
Semipuleggia sull'albero girante pompa olio at radiatore
# 097
MPN: GOM45453
GOMMINO Ø 78X85X3,5 TENUTA CORPO FIITRO OLIO
