013 - Front suspension and steering

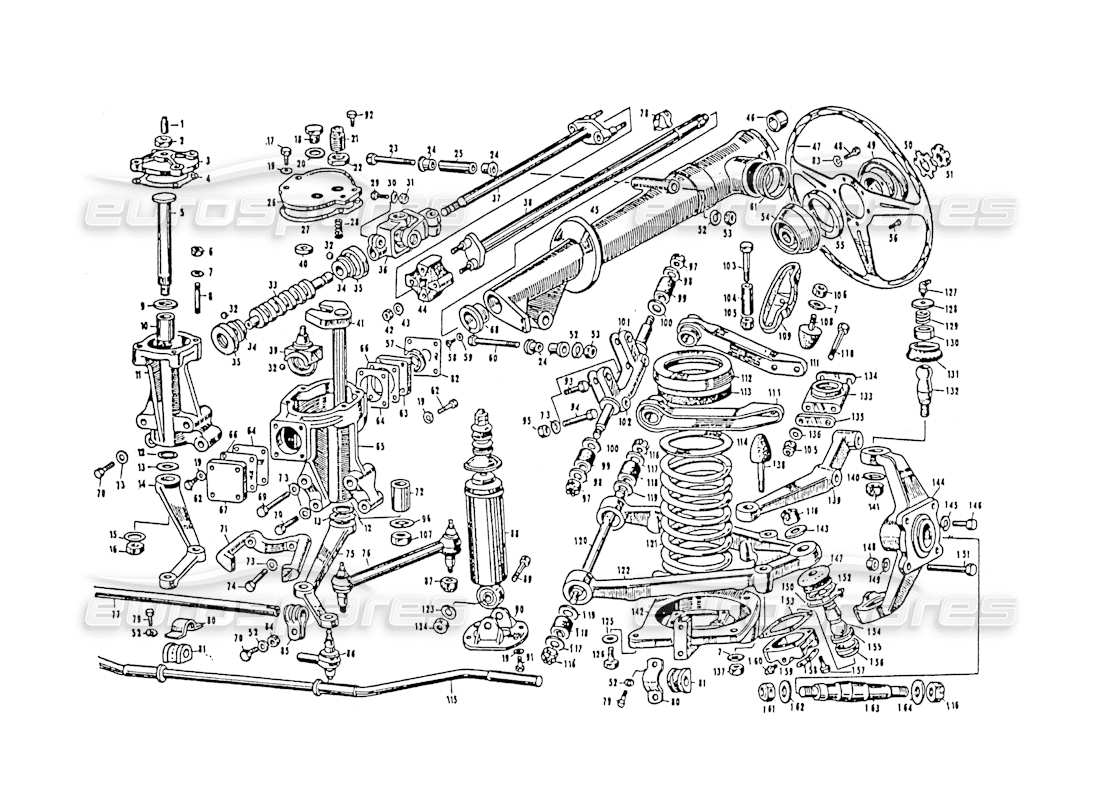

Maserati 3500 GT Front suspension and steering Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 13600/47081/A
COMPLETE STEERING BOX
WITH LiNKAGES
from £6,521.73
from £6,521.73
# 000
MPN: CH3500GT
Front Chassis & Suspension Kit
# 001
MPN: 1418748097
SCREW
# 002
MPN: DN/43588
NUT
# 003
MPN: 14131 48091
COVER
# 004
MPN: 14133/48098
Gasket for box cover for transmission lever
# 005
MPN: 14129/48092
Idler lever holder shaft
# 006
MPN: DNT/47064
NUT
# 007
MPN: RAT/45680
WASHER
# 008
MPN: PN/45832
THREADED STUD
# 009
MPN: 14185/48094
WASHER
# 010
MPN: 1418348093
BUSH
# 011
MPN: 14127/46429
Box for return lever
# 012
MPN: GOM/48096
SEALING RING
# 013
MPN: 14189/48099
SEALING RING
# 014
MPN: 14130 46420
LEVER
# 016
MPN: DN/47199
NUT
# 017
MPN: BN 59130
MULLONEBULLONE FISSAGGIO COPERCHIO ALLA SCATOLAGUIDA
# 018
MPN: 101/9 - GS 59144
OIL INTRODUCTION CAP INTO THE STEERING BOX
# 019
MPN: RSN 3 2 6 3 5
WASHER
# 020
MPN: GN 47207
GUERNIZIONE PER TAPPO INTRODUZIONE OLIO
This part replaces part number 47207
# 022
MPN: DN/59131
NUT
# 023
MPN: BNT/48975
BOLT
# 024
MPN: 13541/48876
RUBBER BUSH ON THE STEERING COLUMN SUPPORT
# 025
MPN: 13545/48878
RUBBER SPACER ON THE COLUMN SUPPORT
# 026
MPN: 101/9-GS-59146
COVER
# 027
MPN: 101/9-GS-59147
GASKET OR SEAL
# 028
MPN: 101/9-GS-59136
SPRING
# 029
MPN: BNT/47014
BOLT
# 030
MPN: RAT/45680
WASHER
# 031
MPN: DST/48101
NUT
# 032
MPN: SFN36593
BALLS FOR STEERING BOX
# 033
MPN: 101/9-GS 63877
SCREW
# 034
MPN: 101/9 - GS 59133
WASHER
# 035
MPN: 101/9 GS-59132
Ball register cap on the worm screw
# 036
MPN: 13652 47083
JOINT FOR GUIDE COLUMN
# 037
MPN: 13540/48118
GUIDE COLUMN BETWEEN THE JOINTS (COMPLETE)
# 038
MPN: 13524/48115
STEERING COLUMN WITH INTERMEDIATE JOINT (COMPLETE)
# 039
MPN: 101/9 GS-59138
Worm nut for guide box
# 040
MPN: 101/9GS59135
WASHER
# 041
MPN: 101/9 GS-59137
Steering gear lever shaft
# 042
MPN: DN 48038
NUT
# 043
MPN: RAT/47078
WASHER
# 044
MPN: 13531 48119
ELASTIC JOINT FOR STEERING SYSTEM
# 045
MPN: 13533/48789
SUPPORT
# 045
MPN: 13533/52213
SUPPORT
# 046
MPN: 13536/48790
BEARING FOR STEERING COLUMN
# 047
MPN: 13514/47115
DRIVER'S STEERING WHEEL
# 048
MPN: BNT/4702I
BOLT
# 049
MPN: 13516/51001
COVER
# 050
MPN: RLN/45829
WASHER
# 051
MPN: GHN/47052
RING 22X0,75X7 TO SEAL THE STEERING WHEEL TO THE STEERING COLUMN
# 052
MPN: RSN/33112
WASHER
from £1.74
from £1.74
# 053
MPN: DNT/47053
NUT
# 054
MPN: 13526/47314
FLANGE ATTACHING THE WHEEL TO THE COLUMN
# 055
MPN: 13549/49289
DISTANZIALE PER FLANGIA ATTACCO VOLENTE (DI DIVERSI SPESSORI 10-20-30 MM.)
# 056
MPN: VN/44690
SCREW
# 057
MPN: ANT/57431
SEALING RING
# 059
MPN: RN33895
WASHER
# 060
MPN: BNT/47484
BOLT
# 061
MPN: 13543/48877
REDUCTION OF THE LIGHT CONTROL DOOR ON THE STEERING COLUMN SUPPORT
# 062
MPN: BN 59130
BOLT
# 063
MPN: 101/9 - GS 59140
COVER
# 064
MPN: 101/9GS59148
SLIM FLANGE FOR SIDE COVERS OF THE STEERING BOX
from £9.56
from £9.56
# 065
MPN: 101/9GS59142
SCATOLA GUIDA
# 065
MPN: 13600/47081
COMPLETE DRIVE BOX
# 066
MPN: 101 /9 GS 59141
GASKET
from £5.22
from £5.22
# 067
MPN: 101/9GS59149
COVER
# 068
MPN: 13548/48920
REAR GUIDE COLUMN BEARING
# 070
MPN: BNT47090
BOLT
# 071
MPN: 1404047483
LIMITATORE STERZETA
# 072
MPN: 101/9 GS-59139
BUSH
# 073
MPN: RN45681
WASHER
# 074
MPN: BNT/47484
BOLT
# 075
MPN: 14134/46419
LEVER
# 076
MPN: MC48701
TIE ROD
# 077
MPN: MC48701
TIE ROD
# 078
MPN: 17312/47424
CAMS FOR AUTOMATIC INTERMITTENT RETURN ON THE COLUMN
# 079
MPN: BN47333
BOLT
# 080
MPN: 12572/44117
SUPPORT
# 081
MPN: 12574 44118
TOSSELLO ELESTICO PER SUPPORTO SOSTEGNO BARRA STABILIZZATRICE ANTERIORE E POSTERIORE
from £122.72
from £122.72
# 082
MPN: 1362851000
FLANGIO TENUTA ANGUS SUL COPERCHIO SCATOLA GUIDA LATO GIUNTO
# 083
MPN: RNS/32690
WASHER
# 085
MPN: 101/9 GC 59151
CLAMP ON THE CENTRAL STEERING CONTROL ROD
from £65.22
from £65.22
# 086
MPN: 101/9 GC 59153
CASING WITH S. THREAD.
from £146.08
from £146.08
# 086
MPN: 101/9-GC-59150
Housing with D thread.
from £146.08
from £146.08
# 087
MPN: DCNT50998
NUT
# 088
MPN: 0052077
AMMORTIZZATORE ANTERIORE
# 089
MPN: BN/48704
BOLT
# 090
MPN: 12047/48131
Attachment for lower arm oil cup front shock absorbers
# 091
MPN: BN 47122
BOLT
# 092
MPN: 101/9-GS-95145
BOLT
# 093
MPN: BNT50322
BOLT
# 094
MPN: BNT/50321
BOLT
# 095
MPN: DN 48923
NUT
# 096
MPN: RSN/59128
WASHER
# 097
MPN: DCN 48194
NUT
# 098
MPN: RN/48195
WASHER
# 099
MPN: 12124/48190
Rubber bushes for front suspension upper fulcrum
from £62.61
from £62.61
# 100
MPN: 12052 48189
WASHER
# 101
MPN: 12041/47255
Spacer for front suspension upper arm
# 102
MPN: 101-SA-59593
Upper fulcrum for front suspension
# 103
MPN: BN 48206
BOLT
# 104
MPN: 12039/48205
Spacer on the front suspension upper lever
# 105
MPN: DN/48704
NUT
# 106
MPN: DNT. 47031
NUT
# 107
MPN: DN59129
NUT
# 108
MPN: 12008/46436
Front suspension upper stroke buffer
from £61.36
from £61.36
# 109
MPN: 12037/48202
Bratella per tamponbe fino corsa sospensione anteriore
# 110
MPN: BN48208
BOLT
# 111
MPN: 12032 48192
LEVER
# 112
MPN: 1201047997
DOOR CUP SPRING
# 113
MPN: 1202247999
RING
# 114
MPN: 12024 48001
FRONT SPRING RUBBER SHEET
# 115
MPN: 12570/46435
BARRAB STABILIZZATRICE ANTERIORE
from £78.27
from £78.27
# 116
MPN: DN/48200
NUT
# 117
MPN: RN/48199
WASHER
# 118
MPN: 12126 48197
BUSH
from £64.00
from £64.00
# 119
MPN: 12042/16456
WASHER
# 120
MPN: 12122 48196
PIVOT
# 121
MPN: 12002/51717
SPRING
# 122
MPN: 12038 48198
BRACCIO INFERIORE
# 123
MPN: RNS/46672
WASHER
# 124
MPN: D N 33540
NUT
# 125
MPN: RN 48253
WASHER
# 126
MPN: BN48252
BOLT
# 127
MPN: IN/48242
Input for upper front suspension joint
# 128
MPN: 1228948240
PLATE
# 129
MPN: 12288 48239
SPRING
# 130
MPN: 12286 48237
NUT FOR UPPER FRONT SUSPENSION JOINT
# 131
MPN: 12291 48241
COPRIPOLVERE SNODO SUPERIORE SOSPENSIONE ANTERIORE
# 132
MPN: 12300/48236
Upper front suspension joint
# 133
MPN: 12787/48238
SEAT FOR UPPER FRONT SUSPENSION JOINT
# 134
MPN: 12107/48210
Spacer for front suspension upper joint seat shim
# 135
MPN: 12101 48209
SPACER FOR FRONT SUSPENSION UPPER JOINT SEAT
# 136
MPN: RN 48207
WASHER
# 137
MPN: DN 48204
NUT
# 138
MPN: 12009/46437
BUFFER UP TO THE LOWER FRONT SUSPENSION TRAVEL
from £52.60
from £52.60
# 139
MPN: 14002/48014
LEVER
# 139
MPN: 14006 48015
LEVER
# 140
MPN: RN 48244
WASHER
# 141
MPN: DN48243
NUT
# 142
MPN: 12060 49741
LOWER ARM SPRING HOLDER NECK
# 143
MPN: RN/48225
WASHER
# 144
MPN: 12097 48226
LEVER HOLDER ARM
from £500.86
from £500.86
# 145
MPN: RNT/52064
WASHER
# 146
MPN: BN 48246
BOLT
# 147
MPN: 12306/48223
Coprlsnodo in gomma
from £34.78
from £34.78
# 148
MPN: DN 48250
NUT
# 149
MPN: RNT/47084
WASHER
# 150
MPN: 1230748222
RING
from £36.52
from £36.52
# 152
MPN: 12309 48224
LAMIERINO SOSTEGNO COPRISNODO
# 153
MPN: 12117/48220
Guernizione per coperchietto braccio porta leve
from £2.18
from £2.18
# 154
MPN: 1230448219
LOWER FRONT SUSPENSION JOINT
# 155
MPN: 12119 48221
RING
# 156
MPN: 13296/48218
RING FOR LOWER FRONT SUSPENSION JOINT
# 157
MPN: BN/48214
BOLT
from £4.36
from £4.36
# 158
MPN: RDL/41815
WASHER
# 159
MPN: 1229848217
COPERCHIETTO SUL BRACCIO PORTA LEVE
from £220.00
from £220.00
# 160
MPN: IN/48216
Grease nipple for lower front suspension joint
from £19.12
from £19.12
# 161
MPN: DN/48229
NUT
# 162
MPN: RN48228
WASHER
