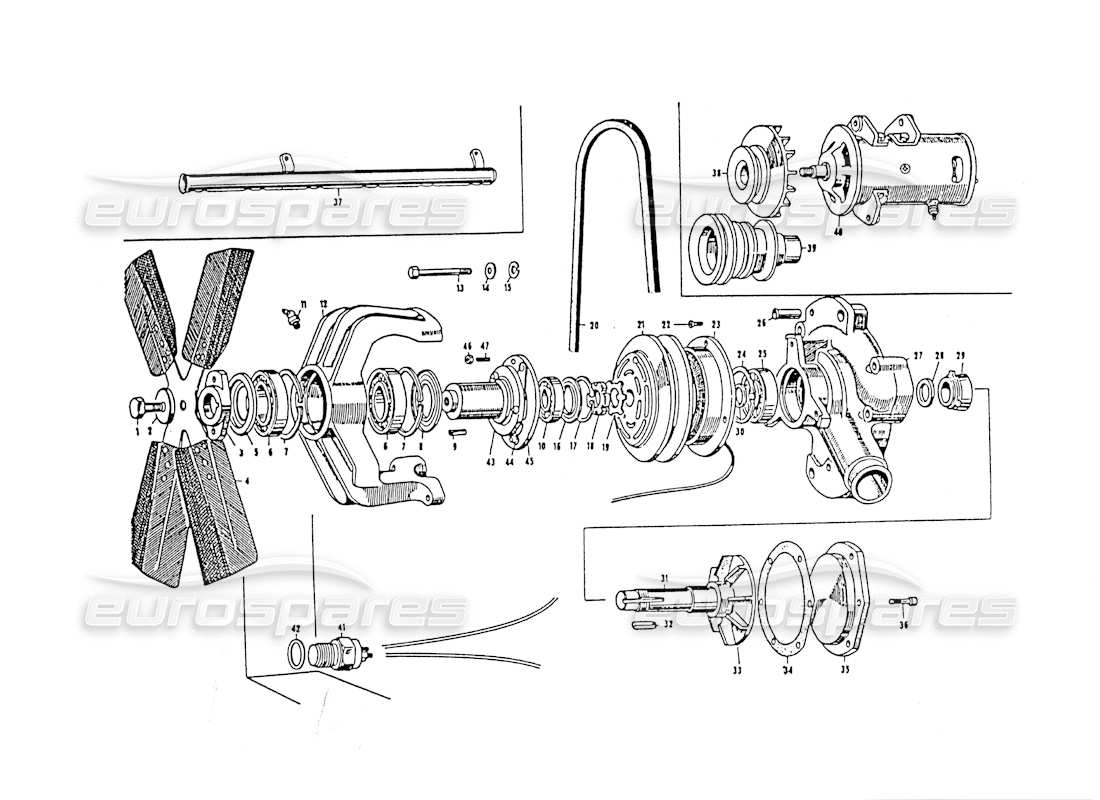

Maserati 3500 GT Water Pump and Fand Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: BN/49592
BOLT
# 002
MPN: 5048/48087
WASHER
# 003
MPN: 5004/52273
SLEEVE FOR FAN CONNECTION
# 004
MPN: 5002/51160
RADIATOR FAN
# 005
MPN: ANT/52278
SEALING RING
# 006
MPN: CSC 45702
RIV EL BEARING 35 ON THE FAN SUPPORT
# 007
MPN: ART 46754
RING
# 008
MPN: ANT/52279
SEALING RING
from £47.82
from £47.82
# 009
MPN: LN/52151
TOW TAB FAN CONNECTION SLEEVE
# 010
MPN: CSC47947
CUSCINETTO RIV EL20 SULL'ALBERINO POMPA ACQUA
# 011
MPN: IN/48722
INGRASSATORE Ø 8X1,25 SUL SUPPORTO VENTOLA
from £10.44
from £10.44
# 012
MPN: 5007/52292
SUPPORT
# 013
MPN: BN/33557
BOLT
# 014
MPN: RNT47210
WASHER
# 015
MPN: RSN 33171
WASHER
# 016
MPN: ANT/52433
SEALING RING
from £32.18
from £32.18
# 017
MPN: ART/47948
RING
from £46.95
from £46.95
# 018
MPN: GH-52430
Ghiera Ø 22X1X5 fissaggio elettromagneta sull'alberino pompa
# 019
MPN: RL/52535
WASHER
# 020
MPN: CTR/51410
Cinghia PIRELLI A 31 comando ventilatore pompa acqua e dinemo
# 020
MPN: CTR52941
CINGHIA PIRELLI 60267 COMANDO VENTILATORE POMPA ACQUA E DINEMO E ALTERNATORE
from £27.82
from £27.82
# 021
MPN: 5026/52396
FAN CONTROL PULLEY WITH ELECTROMAGNETIC FRACTION
# 022
MPN: VN/52294
SCREW
# 023
MPN: 5024/52395
MAGNET WITH COIL
# 024
MPN: ART/51654
RING
# 025
MPN: CSC/52293
RIV BLN 22 bearing on the water pump shaft
# 026
MPN: GRN 43991
GRIN Ø 10X15 WATER PUMP CENTERING WITH SUPPORT
# 027
MPN: 4502/52291
FAN BODY WATER PUMP FOR ELECTROMAGNETIC FAN
# 028
MPN: 451/52276
Spacer on the water pump shaft
# 029
MPN: ANT 47973
SEALING RING
from £434.78
from £434.78
# 030
MPN: 4554/52399
Spacer on the water pump shaft
# 031
MPN: 4544/52275
Water pump control shaft
# 032
MPN: LN 33791
Tab 23X6X5 on the water pump shaft
# 033
MPN: 4542/47989
GIRANTE POMPA ACQUA
# 034
MPN: 4523/47111
GASKET FOR REAR WATER PUMP COVER
from £2.60
from £2.60
# 035
MPN: 4522/47990
COVER
# 036
MPN: VNT 47051
SCREW
# 037
MPN: 5326/52462
COLLATORI CAVI CANDALE PER MOTORI INIEZIONE
# 038
MPN: 7110/51408
Fan with dynamo pulley 50 220 B
# 039
MPN: 5122/50627
Pulley on the belt control crankshaft
# 039
MPN: 5122-54190
COM. PULLEY DYNAMO FAN AND AIR CONDITIONER
# 039
MPN: 5122-54419
Puleggia com. ventilatore e alternatore
# 039
MPN: 5122-54420
Puleggia com. ventilatore e alternatore
# 040
MPN: 7100/51411
Dinamo completa tipo MARELLI SD 220 B
The SD dynemo 220/8 is mounted with bracket 7128/51409 and with support 7129/53061 and fixed to the head with 2 columns 1038/47475
# 041
MPN: 5022/52394
Interrutore automatico per ventilatore Jeeger 75º 84º
# 042
MPN: GN46637
GASKET OR SEAL
from £2.18
from £2.18
# 043
MPN: 5005/52274
MANICOTTO DI TRAINO VENTILLATORE
# 044
MPN: 5030/52398
SPRING
# 045
MPN: 5028/53397
CLUTCH PLATE FOR FAN DRIVE CONTROL
# 046
MPN: DN 49457
NUT
# 047
MPN: GRN 52798
GRANO Ø 8X1X16 PER TRAINO VENTILATORE
