maserati 3500 gt intake manifold gti parts diagram

025 - Intake Manifold GTI

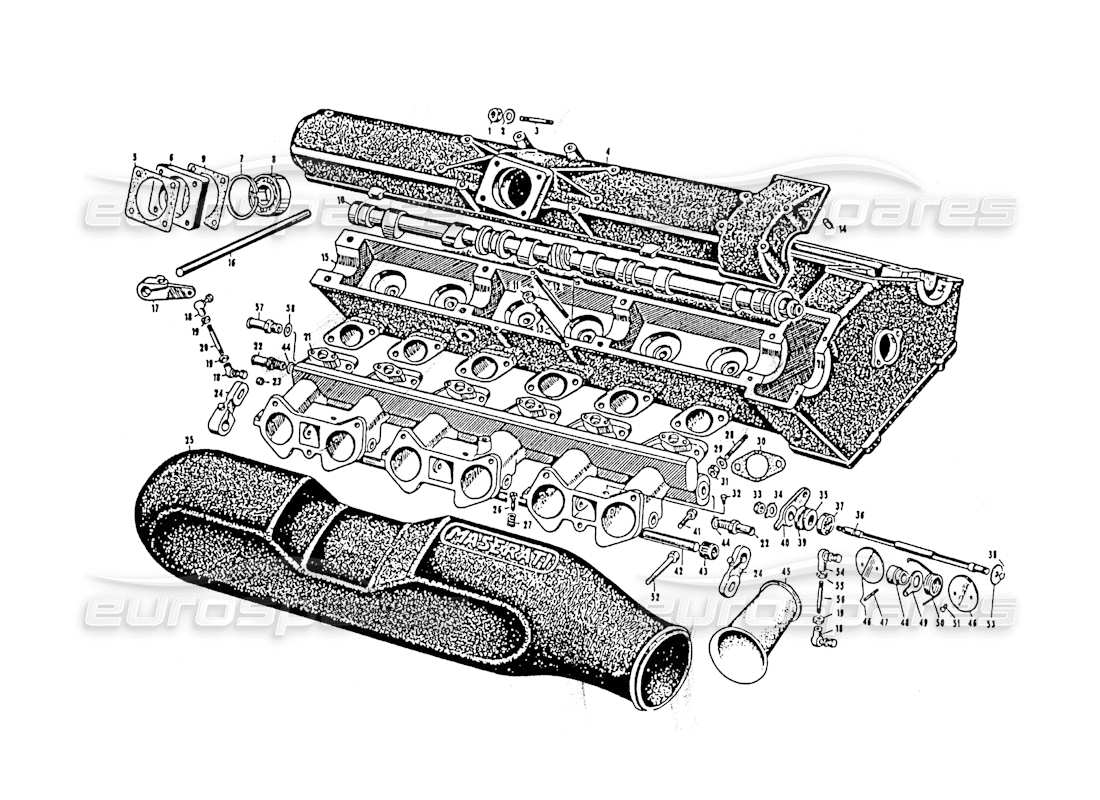

Maserati 3500 GT Intake Manifold GTI Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                      #
                                                                                                                      Part number
                                                                                                                      Description
                                                                                                                      Key
                                                                                                                      Price
                                                                                                                      # 002
                                                                                                                      MPN: RN/43855
                                                                                                                      WASHER
                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                      # 003
                                                                                                                      MPN: PN/52251
                                                                                                                      THREADED STUD
                                                                                                                      THREADED STUD Genuine Maserati Part - New (to order)
                                                                                                                      # 004
                                                                                                                      MPN: 3032/52164
                                                                                                                      COVER
                                                                                                                      COVER Genuine Maserati Part - New (to order)
                                                                                                                      # 005
                                                                                                                      MPN: 6288/52196
                                                                                                                      GASKET OR SEAL
                                                                                                                      GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                                      # 006
                                                                                                                      MPN: 6254/50396
                                                                                                                      Insulating spacer for distributor and cover (LUCAS)
                                                                                                                      Insulating spacer for distributor and cover (LUCAS) Genuine Maserati Part - New (to order)
                                                                                                                      # 007
                                                                                                                      MPN: ART. 43191
                                                                                                                      RING
                                                                                                                      RING Genuine Maserati Part - New (to order)
                                                                                                                      # 008
                                                                                                                      MPN: CSC 45316
                                                                                                                      CUSCINETTO RIV 01A PER INGRANAGGIO CONDOTTO COMANDO DIST.
                                                                                                                      Cusinetto Riv. 01 /A per detto Genuine Maserati Part - New (to order)
                                                                                                                      # 009
                                                                                                                      MPN: 6286/52195
                                                                                                                      GASKET OR SEAL
                                                                                                                      GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                                      # 010
                                                                                                                      MPN: 3002/52160
                                                                                                                      INTAKE SIDE TIMING SHAFT FOR INJECTION
                                                                                                                      INTAKE SIDE TIMING SHAFT FOR INJECTION Genuine Maserati Part - New (to order)
                                                                                                                      # 011
                                                                                                                      MPN: D N 48102
                                                                                                                      NUT
                                                                                                                      NUT Genuine Maserati Part - New (to order)
                                                                                                                      # 012
                                                                                                                      MPN: PN 52188
                                                                                                                      THREADED STUD
                                                                                                                      THREADED STUD Genuine Maserati Part - New (to order)
                                                                                                                      # 013
                                                                                                                      MPN: PN/50196
                                                                                                                      THREADED STUD
                                                                                                                      THREADED STUD Genuine Maserati Part - New (to order)
                                                                                                                      # 014
                                                                                                                      MPN: GRN 52366
                                                                                                                      SCREW Ø 5X14 CENTERING THE COVER ON THE CYLINDER HEAD
                                                                                                                      GRAIN 5x14 CENTERING THE INTAKE COVER Genuine Maserati Part - New (to order)
                                                                                                                      # 015
                                                                                                                      MPN: 1002/53354
                                                                                                                      Cylinder Head for Injection
                                                                                                                      Cylinder Head for Injection Genuine Maserati Part - New (to order)
                                                                                                                      # 016
                                                                                                                      MPN: 6024/52258
                                                                                                                      Albero di rinvio sul basamento per comando farfalla
                                                                                                                      Albero di rinvio sul basamento per comando farfalla Genuine Maserati Part - New (to order)
                                                                                                                      # 017
                                                                                                                      MPN: 6063/47167
                                                                                                                      ACCELERATOR CONTROL RETURN LEVER ON THE SHAFT
                                                                                                                      Lever on the crankcase transmission shaft Genuine Maserati Part - New (to order)
                                                                                                                      # 018
                                                                                                                      MPN: 6090/50184
                                                                                                                      Snodo angolare completo tipo Ehrenreich com. Acceleratore
                                                                                                                      Snodo angolare completo tipo Ehrenreich com. Acceleratore Genuine Maserati Part - New (to order)
                                                                                                                      # 019
                                                                                                                      MPN: DNT 47046
                                                                                                                      NUT
                                                                                                                      from £0.86
                                                                                                                      from £0.86
                                                                                                                      This part replaces part number 47046
                                                                                                                      Screw nut Genuine Maserati Part - New (to order)
                                                                                                                      # 020
                                                                                                                      MPN: 6092/52236
                                                                                                                      TIE ROD
                                                                                                                      TIE ROD Genuine Maserati Part - New (to order)
                                                                                                                      # 021
                                                                                                                      MPN: 5520/50198
                                                                                                                      COLLETTORE ASPIRAZIONE PER INIZIONE
                                                                                                                      Collettore d'aspirazione Genuine Maserati Part - New (to order)
                                                                                                                      # 022
                                                                                                                      MPN: RMN 50350
                                                                                                                      UNION
                                                                                                                      UNION Genuine Maserati Part - New (to order)
                                                                                                                      # 023
                                                                                                                      MPN: 6068/52257
                                                                                                                      Distanziale per asta sul collettora
                                                                                                                      Distanziale per asta sul collettora Genuine Maserati Part - New (to order)
                                                                                                                      # 024
                                                                                                                      MPN: 6063/52232
                                                                                                                      LAVETTE SULL'AIBERO PORTA LEVE COMANDO FARFALLA
                                                                                                                      Levetta sull'albero portaleva comando farfalla Genuine Maserati Part - New (to order)
                                                                                                                      # 025
                                                                                                                      MPN: 6145/52231
                                                                                                                      Scotola sul collettored'aspirazione
                                                                                                                      Scotola sul collettored'aspirazione Genuine Maserati Part - New (to order)
                                                                                                                      # 026
                                                                                                                      MPN: VN 50351
                                                                                                                      SCREW
                                                                                                                      SCREW Genuine Maserati Part - New (to order)
                                                                                                                      # 029
                                                                                                                      MPN: RAT/45680
                                                                                                                      RANDELLA ELASTICA ATECO Ø 8,4X0,8 PER DETTO
                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                      # 031
                                                                                                                      MPN: DN 431 18
                                                                                                                      NUT
                                                                                                                      NUT Genuine Maserati Part - New (to order)
                                                                                                                      # 032
                                                                                                                      MPN: 5513/50255
                                                                                                                      PIVOT
                                                                                                                      PIVOT Genuine Maserati Part - New (to order)
                                                                                                                      # 033
                                                                                                                      MPN: DNT 47080
                                                                                                                      NUT
                                                                                                                      NUT Genuine Maserati Part - New (to order)
                                                                                                                      # 034
                                                                                                                      MPN: 5563/52224
                                                                                                                      WASHER
                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                      # 035
                                                                                                                      MPN: 5545/50857
                                                                                                                      Dust cover for butterfly shaft bearing
                                                                                                                      Dust cover for butterfly shaft bearing Genuine Maserati Part - New (to order)
                                                                                                                      # 036
                                                                                                                      MPN: 5517/50213
                                                                                                                      Butterfly tree
                                                                                                                      Butterfly tree Genuine Maserati Part - New (to order)
                                                                                                                      # 037
                                                                                                                      MPN: CSC50855
                                                                                                                      RIV EL BEARING 7 FOR THROTTLE SHAFT
                                                                                                                      Cuscinetto a sfere 7x19x6 per detto Genuine Maserati Part - New (to order)
                                                                                                                      # 038
                                                                                                                      MPN: ART/52457
                                                                                                                      SEEGER RING
                                                                                                                      SEEGER RING Genuine Maserati Part - New (to order)
                                                                                                                      # 039
                                                                                                                      MPN: 5551/50858
                                                                                                                      COPERCHIETTO PER COPRIPOLVARE CUSCINETTI ALBERO FARFALLA
                                                                                                                      COVER Genuine Maserati Part - New (to order)
                                                                                                                      # 040
                                                                                                                      MPN: 5512/52225
                                                                                                                      LEVER
                                                                                                                      LEVER Genuine Maserati Part - New (to order)
                                                                                                                      # 041
                                                                                                                      MPN: BN/52238
                                                                                                                      BOLT
                                                                                                                      BOLT Genuine Maserati Part - New (to order)
                                                                                                                      # 042
                                                                                                                      MPN: 6022/52256
                                                                                                                      ROD ON THE MANIFOLD FOR THROTTLE CONTROL LEVERS
                                                                                                                      ROD ON THE MANIFOLD FOR THROTTLE CONTROL LEVERS Genuine Maserati Part - New (to order)
                                                                                                                      # 043
                                                                                                                      MPN: GRL/47155
                                                                                                                      BUSH
                                                                                                                      BUSH Genuine Maserati Part - New (to order)
                                                                                                                      # 044
                                                                                                                      MPN: GN/35701
                                                                                                                      GASKET OR SEAL
                                                                                                                      GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                                      # 045
                                                                                                                      MPN: 5547/52260
                                                                                                                      HORN FOR MANIFOLD
                                                                                                                      HORN FOR MANIFOLD Genuine Maserati Part - New (to order)
                                                                                                                      # 046
                                                                                                                      MPN: 5518/50214
                                                                                                                      FARFALLA
                                                                                                                      FARFALLA Genuine Maserati Part - New (to order)
                                                                                                                      # 047
                                                                                                                      MPN: SN 50258
                                                                                                                      PIN
                                                                                                                      PIN Genuine Maserati Part - New (to order)
                                                                                                                      # 049
                                                                                                                      MPN: 5553/50212
                                                                                                                      LEVER
                                                                                                                      LEVER Genuine Maserati Part - New (to order)
                                                                                                                      # 050
                                                                                                                      MPN: 5515/50209
                                                                                                                      SPRING
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      Genuine Maserati Part (no longer available to order)
                                                                                                                      # 051
                                                                                                                      MPN: VN/52157
                                                                                                                      SCREW
                                                                                                                      SCREW Genuine Maserati Part - New (to order)
                                                                                                                      # 052
                                                                                                                      MPN: BN/52239
                                                                                                                      BOLT
                                                                                                                      BOLT Genuine Maserati Part - New (to order)
                                                                                                                      # 053
                                                                                                                      MPN: RN/52390
                                                                                                                      WASHER
                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                      # 054
                                                                                                                      MPN: 6090/52233
                                                                                                                      Complete angular joint on the control lever. butterfly with left thread for butterfly adjustment
                                                                                                                      Complete angular joint on the control lever. butterfly with left thread for butterfly adjustment Genuine Maserati Part - New (to order)
                                                                                                                      # 056
                                                                                                                      MPN: 6092/52237
                                                                                                                      TIE ROD
                                                                                                                      TIE ROD Genuine Maserati Part - New (to order)
                                                                                                                      # 057
                                                                                                                      MPN: RMN/52478
                                                                                                                      UNION
                                                                                                                      UNION Genuine Maserati Part - New (to order)
                                                                                                                      # 058
                                                                                                                      MPN: GN/35701
                                                                                                                      GASKET OR SEAL
                                                                                                                      GASKET OR SEAL Genuine Maserati Part - New (to order)
