maserati 3500 gt 5 speed gear box parts diagram

029 - 5 Speed Gear Box

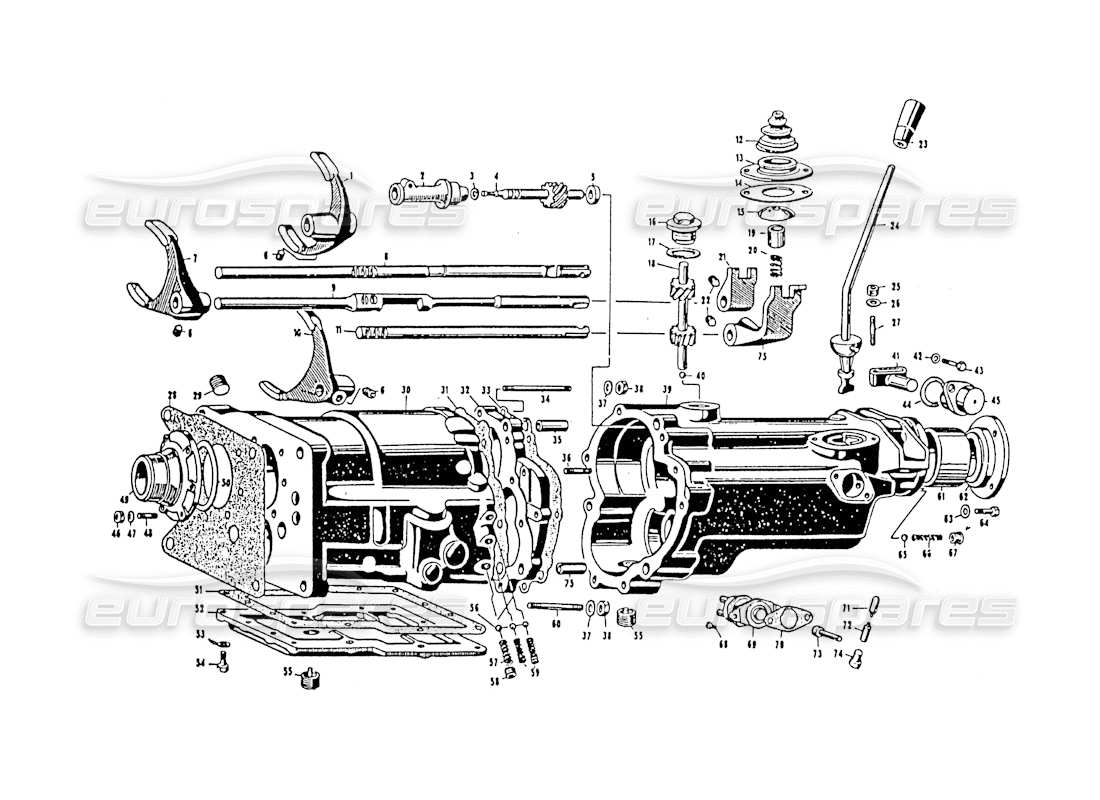

Maserati 3500 GT 5 Speed Gear Box Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                        #
                                                                                                                                                        Part number
                                                                                                                                                        Description
                                                                                                                                                        Key
                                                                                                                                                        Price
                                                                                                                                                        # 001
                                                                                                                                                        MPN: 101/9 - TC 60549
                                                                                                                                                        SELECTOR FORK 1ª AND 2ª SPEED UPTO GEARBOX NO. 1600
                                                                                                                                                        SELECTOR FORK 1' and 2 SPEED upto gearbox N° 1600 Genuine Maserati Part - New (to order)
                                                                                                                                                        # 001
                                                                                                                                                        MPN: 101/9 TC 60550
                                                                                                                                                        SELECTOR FORK 1ª and 2ª SPEED from gearbox No. 1601
                                                                                                                                                        SELECTOR FORK 1ª and 2ª SPEED from gearbox No. 1601 Genuine Maserati Part - New (to order)
                                                                                                                                                        # 002
                                                                                                                                                        MPN: 101/9 TC 60551
                                                                                                                                                        UNION
                                                                                                                                                        UNION Genuine Maserati Part - New (to order)
                                                                                                                                                        # 003
                                                                                                                                                        MPN: GOM 60654
                                                                                                                                                        Rubber Ø 6X10X2 for Km counter control shaft.
                                                                                                                                                        Rubber Ø 6X10X2 for Km counter control shaft. Genuine Maserati Part - New (to order)
                                                                                                                                                        # 004
                                                                                                                                                        MPN: 101/9 TC 60552
                                                                                                                                                        Alberina comando conta Km. .
                                                                                                                                                        Alberina comando conta Km. . Genuine Maserati Part - New (to order)
                                                                                                                                                        # 005
                                                                                                                                                        MPN: 101/9 - TC 60553
                                                                                                                                                        DISTENZIALE PER DETTO
                                                                                                                                                        SPACER FOR SAID Genuine Maserati Part - New (to order)
                                                                                                                                                        # 006
                                                                                                                                                        MPN: 101/9 - TC 60555
                                                                                                                                                        CONTROL FORK FIXING SCREW BRAND FROM GEARBOX NO. 1601
                                                                                                                                                        Gear control pawl fixing screw Genuine Maserati Part - New (to order)
                                                                                                                                                        # 006
                                                                                                                                                        MPN: 107 TC 58861
                                                                                                                                                        CONTROL FORK FIXING GRAIN BRAND
                                                                                                                                                        Grub for gear control pawls Genuine Maserati Part - New (to order)
                                                                                                                                                        # 007
                                                                                                                                                        MPN: 101/9 - TC 60556
                                                                                                                                                        SELECTOR FORK 3ª AND 4ª SPEED FROM GEARBOX NO 1601
                                                                                                                                                        SELECTOR FORK 3ª and 4ª SPEED from gearbox N° 1601 Genuine Maserati Part - New (to order)
                                                                                                                                                        # 007
                                                                                                                                                        MPN: 101/9 TC 60554
                                                                                                                                                        SELECTOR FORK 3ª and 4ª SPEED
                                                                                                                                                        SELECTOR FORK 3ª and 4ª SPEED Genuine Maserati Part - New (to order)
                                                                                                                                                        # 008
                                                                                                                                                        MPN: 101/9 - TC 60557
                                                                                                                                                        Asta comando 1ª e 2ª velocità
                                                                                                                                                        Asta comando 1ª e 2ª velocity Genuine Maserati Part - New (to order)
                                                                                                                                                        # 008
                                                                                                                                                        MPN: 101/9 TC 60558
                                                                                                                                                        Asta comando 1ª e 2ª velocità dal cambio No 1601
                                                                                                                                                        Asta comando 1ª e 2ª velocità dal cambio No 1601 Genuine Maserati Part - New (to order)
                                                                                                                                                        # 009
                                                                                                                                                        MPN: 101/9 TC 60559
                                                                                                                                                        Asta comando 3ª e 4ª velocità
                                                                                                                                                        Asta comando 3ª e 4ª velocità Genuine Maserati Part - New (to order)
                                                                                                                                                        # 010
                                                                                                                                                        MPN: 101/9 - TC 60560
                                                                                                                                                        SELECTOR FORK Rª AND 5ª SPEED
                                                                                                                                                        SELECTOR FORK R° and 5ª SPEED Genuine Maserati Part - New (to order)
                                                                                                                                                        # 011
                                                                                                                                                        MPN: 101/9 - TC 60561
                                                                                                                                                        ASTA COMANDO Rª E 5ª VELOCITÀ
                                                                                                                                                        Asta comando R e 5ª velocity Genuine Maserati Part - New (to order)
                                                                                                                                                        # 012
                                                                                                                                                        MPN: 101/9 TC 60562
                                                                                                                                                        Parapolvere leva comado cambio
                                                                                                                                                        from £51.14
                                                                                                                                                        from £51.14
                                                                                                                                                        Parapolvere leva comado cambio Genuine Maserati Part - New (to order)
                                                                                                                                                        Parapolvere leva comado cambio Eurospares Approved Part - New (to order)
                                                                                                                                                        # 013
                                                                                                                                                        MPN: 101/9 TC 60563
                                                                                                                                                        FLANGIA TENUTA PARAPOLVERE
                                                                                                                                                        FLANGIA TENUTA PARAPOLVERE Genuine Maserati Part - New (to order)
                                                                                                                                                        # 014
                                                                                                                                                        MPN: 101/9 - TC 60564
                                                                                                                                                        GASKET OR SEAL
                                                                                                                                                        GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                                                                        # 015
                                                                                                                                                        MPN: 101/9 - TC 60565
                                                                                                                                                        CALOTTO SFERICA TENUTA MOLLA LEVA COMADO CAMBIO
                                                                                                                                                        SPHERICAL CAP SEALING GEAR GEAR LEVER SPRING Genuine Maserati Part - New (to order)
                                                                                                                                                        # 016
                                                                                                                                                        MPN: 101/9 TC 60566
                                                                                                                                                        Cap on the Km control shaft box.
                                                                                                                                                        Cap on the Km control shaft box. Genuine Maserati Part - New (to order)
                                                                                                                                                        # 017
                                                                                                                                                        MPN: GN 60655
                                                                                                                                                        GASKET OR SEAL
                                                                                                                                                        GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                                                                        # 018
                                                                                                                                                        MPN: 101/9 TC 60567
                                                                                                                                                        Km counting control gear shaft assembly.
                                                                                                                                                        KM COUNTER CONTROL GEAR SHAFT ASSEMBLY Genuine Maserati Part - New (to order)
                                                                                                                                                        # 019
                                                                                                                                                        MPN: 101/9 TC 60568
                                                                                                                                                        BUSH
                                                                                                                                                        BUSH Genuine Maserati Part - New (to order)
                                                                                                                                                        # 020
                                                                                                                                                        MPN: 101/9 TC 60569
                                                                                                                                                        SPRING
                                                                                                                                                        WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                        # 021
                                                                                                                                                        MPN: 101/9 - TC 60570
                                                                                                                                                        NOTTOLINO PER ASTE COMANDO 3ª E 4ª VELOCITÀ
                                                                                                                                                        Nottolino per asta comando 3ª e 4ª velocity Genuine Maserati Part - New (to order)
                                                                                                                                                        # 022
                                                                                                                                                        MPN: 101/9 - TC 60555
                                                                                                                                                        BRAND CONTROL PATCH FIXING GRAIN
                                                                                                                                                        Gear control pawl fixing screw Genuine Maserati Part - New (to order)
                                                                                                                                                        # 023
                                                                                                                                                        MPN: 10/7 TC 54380
                                                                                                                                                        Pomello per leva comando cambio
                                                                                                                                                        Pomello per leva comando cambio Genuine Maserati Part - New (to order)
                                                                                                                                                        # 024
                                                                                                                                                        MPN: 101/9 - TC 60571
                                                                                                                                                        LEVER
                                                                                                                                                        LEVER Genuine Maserati Part - New (to order)
                                                                                                                                                        # 026
                                                                                                                                                        MPN: RAT/45680
                                                                                                                                                        WASHER
                                                                                                                                                        WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                        # 029
                                                                                                                                                        MPN: 107TC58907
                                                                                                                                                        TAPPO INTRODUZIONE OLIO
                                                                                                                                                        TAPPO SCARICO OLIO Genuine Maserati Part - New (to order)
                                                                                                                                                        # 030
                                                                                                                                                        MPN: 101/9 - TC 60573
                                                                                                                                                        SCATOLA CAMBIO
                                                                                                                                                        SCATOLA CAMBIO Genuine Maserati Part - New (to order)
                                                                                                                                                        # 031
                                                                                                                                                        MPN: 101/9 - TC 60574
                                                                                                                                                        GASKET OR SEAL
                                                                                                                                                        GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                                                                        # 032
                                                                                                                                                        MPN: 101/9 TC 60575
                                                                                                                                                        GEARBOX INTERMEDIATE FLANGE
                                                                                                                                                        GEARBOX INTERMEDIATE FLANGE Genuine Maserati Part - New (to order)
                                                                                                                                                        # 033
                                                                                                                                                        MPN: 101/9 - TC 60576
                                                                                                                                                        GASKET OR SEAL
                                                                                                                                                        GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                                                                        # 035
                                                                                                                                                        MPN: 101/9 TC 60577
                                                                                                                                                        CENTERING DUTCH FOR SAID
                                                                                                                                                        CENTERING DUTCH FOR SAID Genuine Maserati Part - New (to order)
                                                                                                                                                        # 036
                                                                                                                                                        MPN: PN 45843
                                                                                                                                                        STUD
                                                                                                                                                        from £10.44
                                                                                                                                                        from £10.44
                                                                                                                                                        THREADED STUD Genuine Maserati Part - New (to order)
                                                                                                                                                        # 037
                                                                                                                                                        MPN: RAT/45680
                                                                                                                                                        WASHER
                                                                                                                                                        WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                        # 038
                                                                                                                                                        MPN: DNT. 47031
                                                                                                                                                        NUT
                                                                                                                                                        NUT Genuine Maserati Part - New (to order)
                                                                                                                                                        # 039
                                                                                                                                                        MPN: 101/9 TC 60578
                                                                                                                                                        COVER
                                                                                                                                                        COVER Genuine Maserati Part - New (to order)
                                                                                                                                                        # 041
                                                                                                                                                        MPN: 101/9 TC 60579
                                                                                                                                                        Pawl for recalling neutral position rods
                                                                                                                                                        Pawl for recalling neutral position rods Genuine Maserati Part - New (to order)
                                                                                                                                                        # 043
                                                                                                                                                        MPN: BNT 54585
                                                                                                                                                        BOLT
                                                                                                                                                        BOLT Genuine Maserati Part - New (to order)
                                                                                                                                                        # 044
                                                                                                                                                        MPN: 101/9 - TC 60658
                                                                                                                                                        GASKET OR SEAL
                                                                                                                                                        GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                                                                        # 045
                                                                                                                                                        MPN: 101/9 TC 60580
                                                                                                                                                        BUSHING ASSEMBLY SEALING PAWL RECALL AND COM. REVERSE GEAR
                                                                                                                                                        BUSHING ASSEMBLY SEALING PAWL RECALL AND COM. REVERSE GEAR Genuine Maserati Part - New (to order)
                                                                                                                                                        # 046
                                                                                                                                                        MPN: DNT 47047
                                                                                                                                                        NUT
                                                                                                                                                        NUT Genuine Maserati Part - New (to order)
                                                                                                                                                        # 047
                                                                                                                                                        MPN: RAT/45679
                                                                                                                                                        WASHER
                                                                                                                                                        WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                        # 048
                                                                                                                                                        MPN: PN 32658
                                                                                                                                                        THREADED STUD
                                                                                                                                                        THREADED STUD Genuine Maserati Part - New (to order)
                                                                                                                                                        # 049
                                                                                                                                                        MPN: 101/9 TC 60581
                                                                                                                                                        Mozzo mper albero presa continua
                                                                                                                                                        Mozzo mper albero presa continua Genuine Maserati Part - New (to order)
                                                                                                                                                        # 050
                                                                                                                                                        MPN: 101/9 TC 60582
                                                                                                                                                        RING
                                                                                                                                                        RING Genuine Maserati Part - New (to order)
                                                                                                                                                        # 051
                                                                                                                                                        MPN: 101/9 TC 60583
                                                                                                                                                        GASKET OR SEAL
                                                                                                                                                        GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                                                                        # 052
                                                                                                                                                        MPN: 101/9 - TC 60584
                                                                                                                                                        COVER
                                                                                                                                                        COVER Genuine Maserati Part - New (to order)
                                                                                                                                                        # 055
                                                                                                                                                        MPN: 107TC58907
                                                                                                                                                        TAPPO SCARICO OLIO
                                                                                                                                                        TAPPO SCARICO OLIO Genuine Maserati Part - New (to order)
                                                                                                                                                        # 057
                                                                                                                                                        MPN: 101/9 - TC 60587
                                                                                                                                                        SPRING
                                                                                                                                                        SPRING Genuine Maserati Part - New (to order)
                                                                                                                                                        # 058
                                                                                                                                                        MPN: 101/9 TC 60586
                                                                                                                                                        SPRING SEAL CAP AND FORK ROD STOP BALL
                                                                                                                                                        Tappo tenuta tasseli per asta Genuine Maserati Part - New (to order)
                                                                                                                                                        # 059
                                                                                                                                                        MPN: 101/9 TC 60585
                                                                                                                                                        SPRING
                                                                                                                                                        SPRING Genuine Maserati Part - New (to order)
                                                                                                                                                        # 060
                                                                                                                                                        MPN: PN 56066
                                                                                                                                                        THREADED STUD
                                                                                                                                                        THREADED STUD Genuine Maserati Part - New (to order)
                                                                                                                                                        # 061
                                                                                                                                                        MPN: 101/9 - TC 60588
                                                                                                                                                        BUSH FOR SLIDING SHAFT
                                                                                                                                                        BUSH FOR SLIDING SHAFT Genuine Maserati Part - New (to order)
                                                                                                                                                        # 062
                                                                                                                                                        MPN: 101/9 - TC 60589
                                                                                                                                                        FLANGE ON THE REAR COVER
                                                                                                                                                        FLANGE ON THE REAR COVER Genuine Maserati Part - New (to order)
                                                                                                                                                        # 063
                                                                                                                                                        MPN: RAT/45679
                                                                                                                                                        WASHER
                                                                                                                                                        WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                        # 064
                                                                                                                                                        MPN: BNT 54585
                                                                                                                                                        BOLT
                                                                                                                                                        BOLT Genuine Maserati Part - New (to order)
                                                                                                                                                        # 065
                                                                                                                                                        MPN: SFN 60657
                                                                                                                                                        Ball Ø 6,5 for neutral lever return spring
                                                                                                                                                        Ball Ø 6,5 for neutral lever return spring Genuine Maserati Part - New (to order)
                                                                                                                                                        # 066
                                                                                                                                                        MPN: 101/9 TC 60590
                                                                                                                                                        SPRING
                                                                                                                                                        SPRING Genuine Maserati Part - New (to order)
                                                                                                                                                        # 067
                                                                                                                                                        MPN: 101/9 TC 60586
                                                                                                                                                        SPRING SEAL CAP AND FORK ROD STOP BALL
                                                                                                                                                        Tappo tenuta tasseli per asta Genuine Maserati Part - New (to order)
                                                                                                                                                        # 069
                                                                                                                                                        MPN: 8828 49536
                                                                                                                                                        INTERRUTTORE RETROMARCIA
                                                                                                                                                        INTERRUTTORE RETROMARCIA Genuine Maserati Part - New (to order)
                                                                                                                                                        # 070
                                                                                                                                                        MPN: 101 - TC 58848
                                                                                                                                                        GASKET OR SEAL
                                                                                                                                                        GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                                                                        # 071
                                                                                                                                                        MPN: 101/9 TC 60591
                                                                                                                                                        Brand control rod plug
                                                                                                                                                        Brand control rod plug Genuine Maserati Part - New (to order)
                                                                                                                                                        # 072
                                                                                                                                                        MPN: 101/9 - TC 60592
                                                                                                                                                        PIECE FOR SAID
                                                                                                                                                        PIECE FOR SAID Genuine Maserati Part - New (to order)
                                                                                                                                                        # 073
                                                                                                                                                        MPN: 101/9 - TC 60593
                                                                                                                                                        GRIN FOR REVERSE SWITCH CONTROL
                                                                                                                                                        GRIN FOR REVERSE SWITCH CONTROL Genuine Maserati Part - New (to order)
                                                                                                                                                        # 074
                                                                                                                                                        MPN: 101/9 TC 60586
                                                                                                                                                        Tappo tenuta tasseli per asta
                                                                                                                                                        Tappo tenuta tasseli per asta Genuine Maserati Part - New (to order)
                                                                                                                                                        # 075
                                                                                                                                                        MPN: 101/9 TC 60594
                                                                                                                                                        Nottolino comando 5ª e Retromarcia
                                                                                                                                                        Nottolino comando 5ª e Retromarcia Genuine Maserati Part - New (to order)
