maserati 3500 gt exhaust manifold and fuel tent parts diagram

032 - Exhaust Manifold and Fuel Tent

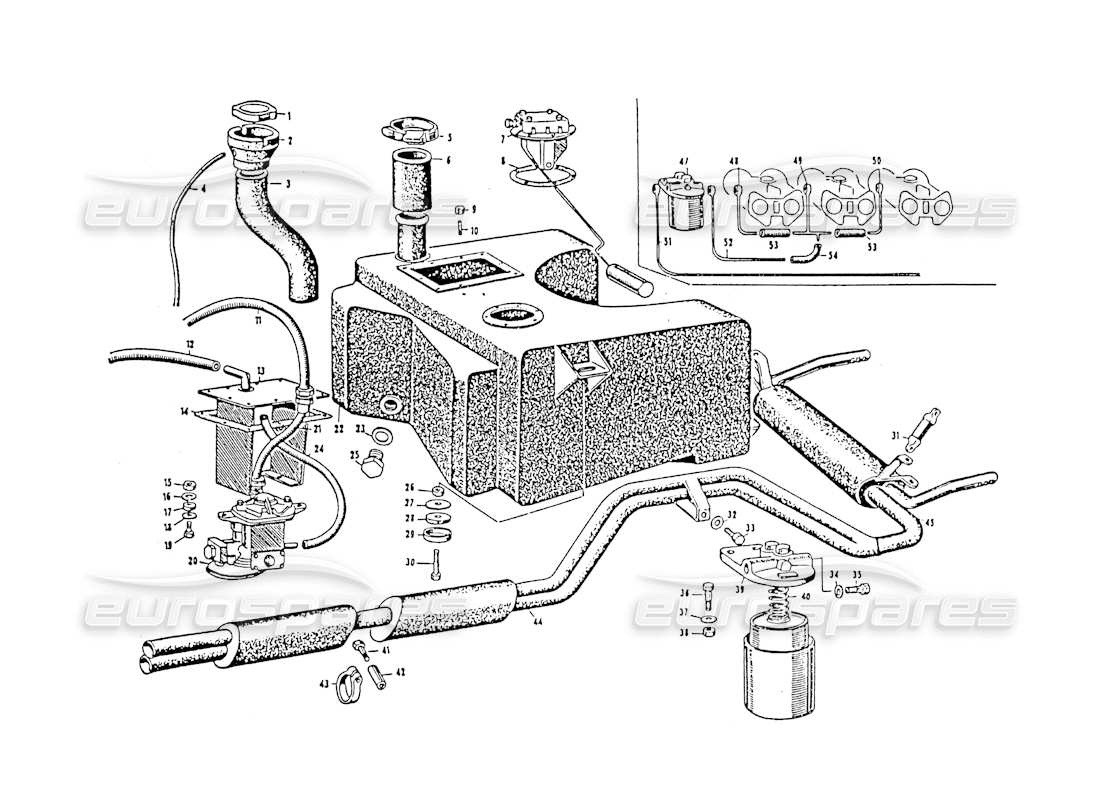

Maserati 3500 GT Exhaust Manifold and Fuel Tent Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Key
                                                                                                            Price
                                                                                                            # 001
                                                                                                            MPN: TN 47318
                                                                                                            Tappo per introduziona benzina
                                                                                                            Tappo per introduziona benzina Genuine Maserati Part - New (to order)
                                                                                                            # 002
                                                                                                            MPN: 16053/57381
                                                                                                            FUNNEL FOR FUEL FILLER AND CAP
                                                                                                            FUNNEL FOR FUEL FILLER AND CAP Genuine Maserati Part - New (to order)
                                                                                                            # 004
                                                                                                            MPN: TPN 50992
                                                                                                            Pipe Ø 10X12 on the petrol drain union
                                                                                                            Pipe Ø 10X12 on the petrol drain union Genuine Maserati Part - New (to order)
                                                                                                            # 005
                                                                                                            MPN: FRN 37832
                                                                                                            CLAMP Ø 50X70 FIXING THE SLEEVE TO THE PIPE AND THE TANK
                                                                                                            Upper hose clamp Genuine Maserati Part - New (to order)
                                                                                                            # 006
                                                                                                            MPN: MN 47319
                                                                                                            Sleeve Ø 63X55X20 connecting inlet pipe to the tank
                                                                                                            Sleeve Ø 63X55X20 connecting inlet pipe to the tank Genuine Maserati Part - New (to order)
                                                                                                            # 007
                                                                                                            MPN: 16091/48892
                                                                                                            Rheostat with float for fuel level
                                                                                                            Rheostat with float for fuel level Genuine Maserati Part - New (to order)
                                                                                                            # 008
                                                                                                            MPN: 16089/48798
                                                                                                            GASKET OR SEAL
                                                                                                            GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                            # 009
                                                                                                            MPN: DNT 47446
                                                                                                            NUT
                                                                                                            NUT Genuine Maserati Part - New (to order)
                                                                                                            # 011
                                                                                                            MPN: TVN 47034
                                                                                                            Vipla tube Ø 6 to protect submerged pump cables
                                                                                                            Vipla tube Ø 6 to protect submerged pump cables Genuine Maserati Part - New (to order)
                                                                                                            # 012
                                                                                                            MPN: MN 51283
                                                                                                            Sleeve Ø 10X16X500 from the pump support to the tube on the frame
                                                                                                            Sleeve Ø 10X16X500 from the pump support to the tube on the frame Genuine Maserati Part - New (to order)
                                                                                                            # 013
                                                                                                            MPN: 16191/51199
                                                                                                            SUPPORT
                                                                                                            SUPPORT Genuine Maserati Part - New (to order)
                                                                                                            # 014
                                                                                                            MPN: 16111/51205
                                                                                                            GASKET OR SEAL
                                                                                                            GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                            # 015
                                                                                                            MPN: DN - 45669
                                                                                                            NUT
                                                                                                            NUT Genuine Maserati Part - New (to order)
                                                                                                            # 016
                                                                                                            MPN: RSN 3 2 4 9 7
                                                                                                            WASHER
                                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                                            # 017
                                                                                                            MPN: PFN 47440
                                                                                                            GROMMET
                                                                                                            GROMMET Genuine Maserati Part - New (to order)
                                                                                                            # 018
                                                                                                            MPN: RN/50346
                                                                                                            WASHER
                                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                                            # 019
                                                                                                            MPN: BN 47370
                                                                                                            BOLT
                                                                                                            BOLT Genuine Maserati Part - New (to order)
                                                                                                            # 020
                                                                                                            MPN: 16190/51281
                                                                                                            POMPA BENZINA IMMERSA LUCAS 2 FP
                                                                                                            POMPA BENZINA IMMERSA LUCAS 2 FP Genuine Maserati Part - New (to order)
                                                                                                            # 021
                                                                                                            MPN: 16055/52096
                                                                                                            PIPE IN THE TANK TO PROTECT THE ELECTRIC CABLES OF THE PUMP
                                                                                                            PIPE IN THE TANK TO PROTECT THE ELECTRIC CABLES OF THE PUMP Genuine Maserati Part - New (to order)
                                                                                                            # 022
                                                                                                            MPN: 16000/51208
                                                                                                            Fuel tank with submerged pump
                                                                                                            Fuel tank with submerged pump Genuine Maserati Part - New (to order)
                                                                                                            # 024
                                                                                                            MPN: MN52135
                                                                                                            SLEEVE Ø 9X15X300 PETROL DELIVERY FROM THE PUMP TO THE SUPPORT
                                                                                                            Sleeve Ø 9x14x500 from the filter to the carburettors Genuine Maserati Part - New (to order)
                                                                                                            # 025
                                                                                                            MPN: 16104/37641
                                                                                                            CAP ON THE FUEL TANK FOR DRAINAGE
                                                                                                            CAP ON THE FUEL TANK FOR DRAINAGE Genuine Maserati Part - New (to order)
                                                                                                            # 026
                                                                                                            MPN: DNT. 47031
                                                                                                            NUT
                                                                                                            NUT Genuine Maserati Part - New (to order)
                                                                                                            # 027
                                                                                                            MPN: 11224/45990
                                                                                                            WASHER
                                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                                            # 029
                                                                                                            MPN: 11224/45990
                                                                                                            WASHER
                                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                                            # 030
                                                                                                            MPN: BNT 47017
                                                                                                            BOLT
                                                                                                            BOLT Genuine Maserati Part - New (to order)
                                                                                                            # 032
                                                                                                            MPN: GOM/48899
                                                                                                            RUBBER Ø 30.6 FOR EXHAUST PIPE FIXING BOLTS
                                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                                            # 033
                                                                                                            MPN: BNT 47017
                                                                                                            BOLT
                                                                                                            BOLT Genuine Maserati Part - New (to order)
                                                                                                            # 034
                                                                                                            MPN: GN 30419
                                                                                                            Guernizioni per viti raccordo
                                                                                                            Guernizioni per viti raccordo Genuine Maserati Part - New (to order)
                                                                                                            # 035
                                                                                                            MPN: VRN 48547
                                                                                                            SCREW
                                                                                                            SCREW Genuine Maserati Part - New (to order)
                                                                                                            # 036
                                                                                                            MPN: BNT/47028
                                                                                                            BOLT
                                                                                                            BOLT Genuine Maserati Part - New (to order)
                                                                                                            # 037
                                                                                                            MPN: RSN/33112
                                                                                                            WASHER
                                                                                                            from £1.74
                                                                                                            from £1.74
                                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                                            # 038
                                                                                                            MPN: DN 44352
                                                                                                            NUT
                                                                                                            NUT Genuine Maserati Part - New (to order)
                                                                                                            # 039
                                                                                                            MPN: 16181/44488
                                                                                                            FILTRO BENZINA TIPO FISPA COMPLETO
                                                                                                            FISPS TYPE FUEL FILTER WITH STAR CARTRIDGE Genuine Maserati Part - New (to order)
                                                                                                            # 041
                                                                                                            MPN: BNT/48903
                                                                                                            BOLT
                                                                                                            BOLT Genuine Maserati Part - New (to order)
                                                                                                            # 042
                                                                                                            -
                                                                                                            DISTANZIALE PER FACETTA
                                                                                                            Contact us for part number
                                                                                                            # 043
                                                                                                            MPN: 16516/48890
                                                                                                            EXHAUST PIPE FIXING CLAMP
                                                                                                            from £9.04
                                                                                                            from £9.04
                                                                                                            EXHAUST CLAMP Genuine Maserati Part - New (to order)
                                                                                                            EXHAUST CLAMP Original Equipment - New (to order)
                                                                                                            # 044
                                                                                                            MPN: 16500/47341
                                                                                                            EXHAUST PIPE COMPLETE WITH FRONT SILENCER
                                                                                                            from £1,684.34
                                                                                                            from £1,684.34
                                                                                                            CENTRE EXHAUST SILENCER Genuine Maserati Part - New (to order)
                                                                                                            CENTRE EXHAUST SILENCER Original Equipment - New (to order)
                                                                                                            CENTRE EXHAUST SILENCER Eurospares Approved Part - New (to order)
                                                                                                            # 045
                                                                                                            MPN: 16500/49964
                                                                                                            SILENZIATORE POSTERIORE
                                                                                                            from £1,639.14
                                                                                                            from £1,639.14
                                                                                                            REAR SILENCER Genuine Maserati Part - New (to order)
                                                                                                            REAR SILENCER (COUPE) Original Equipment - New (to order)
                                                                                                            # 046
                                                                                                            MPN: FRN 37824
                                                                                                            T CLAMP 00 FIXING THE FUEL PIPE SLEEVE
                                                                                                            Manifold fixing clamp Genuine Maserati Part - New (to order)
                                                                                                            # 047
                                                                                                            MPN: BN 41617
                                                                                                            BOLT
                                                                                                            BOLT Genuine Maserati Part - New (to order)
                                                                                                            # 048
                                                                                                            MPN: 16022/A 48141
                                                                                                            FUEL PIPE TO REAR CARBURETTOR
                                                                                                            FUEL PIPE TO REAR CARBURETTOR Genuine Maserati Part - New (to order)
                                                                                                            # 049
                                                                                                            MPN: 16022/B 52147
                                                                                                            FUEL PIPE TO THE CENTRAL CARBURETTOR WITH FILTER IN THE ENGINE COMPARTMENT
                                                                                                            FUEL PIPE TO THE CENTRAL CARBURETTOR WITH FILTER IN THE ENGINE COMPARTMENT Genuine Maserati Part - New (to order)
                                                                                                            # 050
                                                                                                            MPN: 16022/48180
                                                                                                            FUEL PIPE TO FRONT CARBURETTOR
                                                                                                            PETROL PIPE TO FRONT CARBURETTOR Genuine Maserati Part - New (to order)
                                                                                                            # 051
                                                                                                            MPN: 16023/47485
                                                                                                            Petrol hose from tank to filter
                                                                                                            Petrol hose from tank to filter Genuine Maserati Part - New (to order)
                                                                                                            # 052
                                                                                                            MPN: 16021/52141
                                                                                                            FUEL SUCTION PIPE FROM THE FILTER TO THE CARBURETTOR
                                                                                                            FUEL SUCTION PIPE FROM THE FILTER TO THE CARBURETTOR Genuine Maserati Part - New (to order)
                                                                                                            # 053
                                                                                                            MPN: MN/38876
                                                                                                            MANICOTTO Ø 8X15X80 PER TUBAZIONI CARBURATORI
                                                                                                            SLEEVE 8x15x80 FOR PETROL PIPE Genuine Maserati Part - New (to order)
