maserati 3500 gt water pump and fand parts diagram

045 - Water Pump and Fand

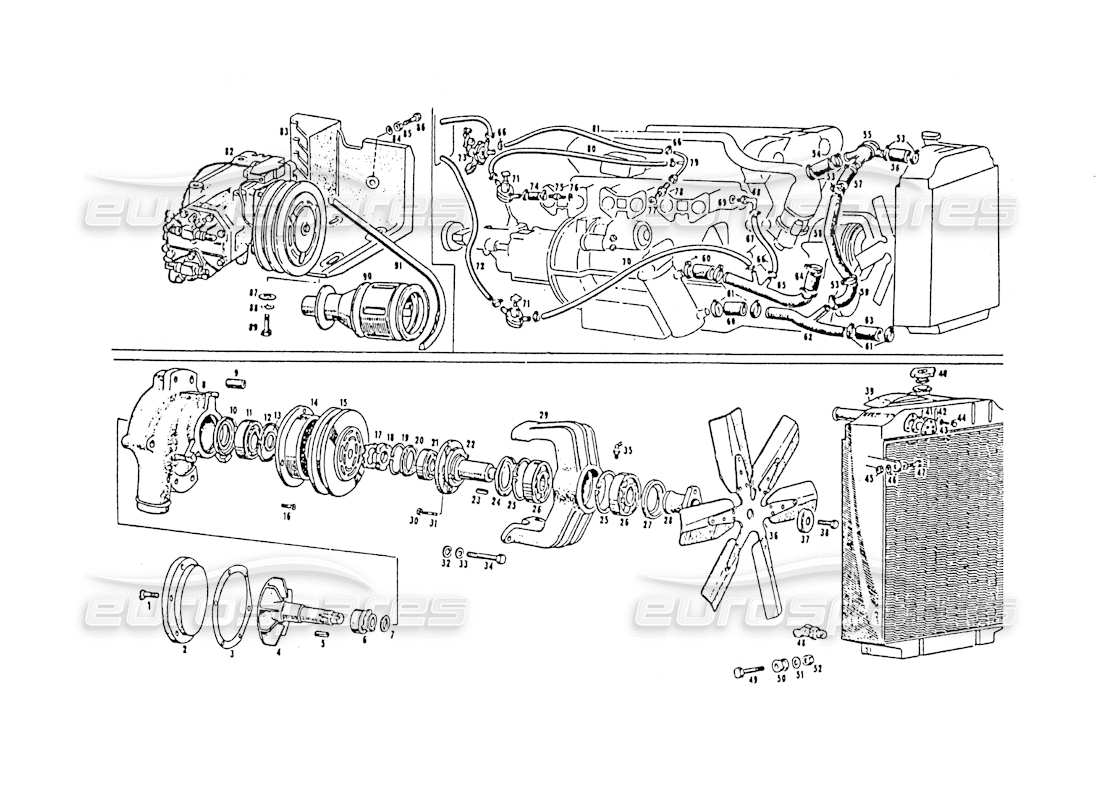

Maserati 3500 GT Water Pump and Fand Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                                      #
                                                                                                                                                                      Part number
                                                                                                                                                                      Description
                                                                                                                                                                      Key
                                                                                                                                                                      Price
                                                                                                                                                                      # 001
                                                                                                                                                                      MPN: VNT 47051
                                                                                                                                                                      SCREW
                                                                                                                                                                      SCREW Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 002
                                                                                                                                                                      MPN: 101 - 4522 47990
                                                                                                                                                                      COVER
                                                                                                                                                                      COVER Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 003
                                                                                                                                                                      MPN: 4523/47111
                                                                                                                                                                      GASKET OR SEAL
                                                                                                                                                                      from £2.60
                                                                                                                                                                      from £2.60
                                                                                                                                                                      GASKET FOR REAR WATER PUMP COVER Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 004
                                                                                                                                                                      MPN: 101/9 - MA 54614
                                                                                                                                                                      Water pump control shaft
                                                                                                                                                                      Water pump control shaft Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 005
                                                                                                                                                                      MPN: LN 33791
                                                                                                                                                                      Tab 23X6X5 on the water pump shaft
                                                                                                                                                                      Tab 23X6X5 on the water pump shaft Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 006
                                                                                                                                                                      MPN: ANT 47973
                                                                                                                                                                      SEALING RING
                                                                                                                                                                      from £434.78
                                                                                                                                                                      from £434.78
                                                                                                                                                                      SEALING RING Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 007
                                                                                                                                                                      MPN: 101/9 - MA 54616
                                                                                                                                                                      Spacer on the pump shaft
                                                                                                                                                                      Spacer on the pump shaft Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 008
                                                                                                                                                                      MPN: 4502/53351
                                                                                                                                                                      CORPO POMPA ACQUA
                                                                                                                                                                      CORPO POMPA ACQUA Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 009
                                                                                                                                                                      MPN: GRN 43991
                                                                                                                                                                      Grub screw 10X15 pump body centering with support. fan
                                                                                                                                                                      Grub screw 10X15 pump body centering with support. fan Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 010
                                                                                                                                                                      MPN: 4560/53762
                                                                                                                                                                      RING
                                                                                                                                                                      RING Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 011
                                                                                                                                                                      MPN: CSC 53747
                                                                                                                                                                      Cuscinetto RIV BLN 25 sull'albero pompa
                                                                                                                                                                      Cuscinetto RIV BLN 25 sull'albero pompa Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 012
                                                                                                                                                                      MPN: ART 46754
                                                                                                                                                                      RING
                                                                                                                                                                      RING Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 013
                                                                                                                                                                      MPN: 4554/53748
                                                                                                                                                                      Spacer on the pump shaft
                                                                                                                                                                      Spacer on the pump shaft Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 014
                                                                                                                                                                      MPN: 5024/52395
                                                                                                                                                                      MAGNET WITH COIL
                                                                                                                                                                      MAGNET WITH COIL Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 015
                                                                                                                                                                      MPN: 5026/52396
                                                                                                                                                                      Pulley with rotor
                                                                                                                                                                      Pulley with rotor Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 016
                                                                                                                                                                      MPN: VN/52294
                                                                                                                                                                      SCREW
                                                                                                                                                                      SCREW Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 018
                                                                                                                                                                      MPN: GH-52430
                                                                                                                                                                      GHIERA 22X1X5 FISSAGGIO ELETTROMAGNETA SULL'ALBERO
                                                                                                                                                                      Ghiera Ø 22x1x5 fissaggio elettromagneta sull'alberino pompa Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 019
                                                                                                                                                                      MPN: ART/47948
                                                                                                                                                                      RING
                                                                                                                                                                      from £46.95
                                                                                                                                                                      from £46.95
                                                                                                                                                                      SEEGER RING Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 020
                                                                                                                                                                      MPN: ANT/52433
                                                                                                                                                                      SEALING RING
                                                                                                                                                                      from £32.18
                                                                                                                                                                      from £32.18
                                                                                                                                                                      SEALING RING Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 021
                                                                                                                                                                      MPN: CSC47947
                                                                                                                                                                      FRONT BEARING ON THE PUMP SHAFT
                                                                                                                                                                      Rear bearing on the distributor control shaft Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 022
                                                                                                                                                                      MPN: 5005/52274
                                                                                                                                                                      Fan drive sleeve
                                                                                                                                                                      Fan drive sleeve Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 023
                                                                                                                                                                      MPN: LN/52151
                                                                                                                                                                      TAB 4X4X6 ON THE FAN DRIVE SLEEVE
                                                                                                                                                                      TOW TAB FAN CONNECTION SLEEVE Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 024
                                                                                                                                                                      MPN: ANT/52279
                                                                                                                                                                      SEALING RING
                                                                                                                                                                      from £47.82
                                                                                                                                                                      from £47.82
                                                                                                                                                                      SEALING RING Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 025
                                                                                                                                                                      MPN: ART 46754
                                                                                                                                                                      RING
                                                                                                                                                                      RING Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 026
                                                                                                                                                                      MPN: CSC 45702
                                                                                                                                                                      Bearing on fan support
                                                                                                                                                                      Bearing on fan support Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 027
                                                                                                                                                                      MPN: ANT/52278
                                                                                                                                                                      SEALING RING
                                                                                                                                                                      SEALING RING Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 028
                                                                                                                                                                      MPN: 5004/53950
                                                                                                                                                                      SLEEVE FOR FAN CONNECTION
                                                                                                                                                                      SLEEVE FOR FAN CONNECTION Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 029
                                                                                                                                                                      MPN: 5007/53423
                                                                                                                                                                      SUPPORT
                                                                                                                                                                      SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 030
                                                                                                                                                                      MPN: DN 49457
                                                                                                                                                                      NUT
                                                                                                                                                                      NUT Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 031
                                                                                                                                                                      MPN: GRN 52798
                                                                                                                                                                      Wheat 8X1X16 for said
                                                                                                                                                                      Wheat 8X1X16 for said Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 032
                                                                                                                                                                      MPN: RSN 33171
                                                                                                                                                                      WASHER
                                                                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 034
                                                                                                                                                                      MPN: BN 53049
                                                                                                                                                                      BOLT
                                                                                                                                                                      BOLT Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 035
                                                                                                                                                                      MPN: IN/48089
                                                                                                                                                                      GREASE GREASE 8X1,25 ON THE FAN SUPPORT
                                                                                                                                                                      Grease nipple on the brake and clutch pump support Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 036
                                                                                                                                                                      MPN: 5002/52787
                                                                                                                                                                      VENTOLA A 6 PALE
                                                                                                                                                                      SIX BLADE FAN Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 037
                                                                                                                                                                      MPN: 5048/48087
                                                                                                                                                                      WASHER
                                                                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 038
                                                                                                                                                                      MPN: BN 53954
                                                                                                                                                                      BOLT
                                                                                                                                                                      BOLT Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 039
                                                                                                                                                                      MPN: 101/9 CR 54656
                                                                                                                                                                      RADIATORE ACQUA
                                                                                                                                                                      RADIATORE ACQUA Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 040
                                                                                                                                                                      MPN: TN41374
                                                                                                                                                                      RADIATOR CAP
                                                                                                                                                                      from £47.25
                                                                                                                                                                      from £47.25
                                                                                                                                                                      RADIATOR CAP Genuine Maserati Part - New In stock
                                                                                                                                                                      # 042
                                                                                                                                                                      MPN: 5022 54237
                                                                                                                                                                      AUTOMATIC SWITCH ON THE RADIATOR
                                                                                                                                                                      Automatic fan switch thermostat Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 044
                                                                                                                                                                      MPN: DNT 47446
                                                                                                                                                                      NUT
                                                                                                                                                                      NUT Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 045
                                                                                                                                                                      MPN: DNT 47030
                                                                                                                                                                      NUT 8X1.25X8
                                                                                                                                                                      NUT 8X1.25X8 Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 046
                                                                                                                                                                      MPN: RSN 3 2 6 3 5
                                                                                                                                                                      WASHER
                                                                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 048
                                                                                                                                                                      MPN: 16440 47390
                                                                                                                                                                      DRAIN TAP ON THE RADIATOR
                                                                                                                                                                      Radiator tap Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 049
                                                                                                                                                                      MPN: BN 46747
                                                                                                                                                                      BOLT
                                                                                                                                                                      BOLT Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 050
                                                                                                                                                                      MPN: SLN 35572
                                                                                                                                                                      SUPPORT
                                                                                                                                                                      from £43.48
                                                                                                                                                                      from £43.48
                                                                                                                                                                      SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 051
                                                                                                                                                                      MPN: RAT. 45681
                                                                                                                                                                      WASHER
                                                                                                                                                                      This part replaces part number 45681
                                                                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 054
                                                                                                                                                                      MPN: MN 54680
                                                                                                                                                                      SLEEVE 32X40X60 FROM THE HEAD PIPE TO THE THERMOSTAT
                                                                                                                                                                      SLEEVE 32X40X60 FROM THE HEAD PIPE TO THE THERMOSTAT Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 055
                                                                                                                                                                      MPN: CR54408
                                                                                                                                                                      Termostato completo
                                                                                                                                                                      Termostato completo Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 056
                                                                                                                                                                      MPN: MN 54681
                                                                                                                                                                      HOSE 32X40X80 FROM THE THERMOSTAT TO THE RADIATOR
                                                                                                                                                                      Sleeve 35x43x70 from the exchanger to the water pump Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 057
                                                                                                                                                                      MPN: MN 50905
                                                                                                                                                                      SLEEVE 32X40X70 FROM THE THERMOSTAT TO THE EXCHANGER PIPE
                                                                                                                                                                      Sleeve Ø 32 x 40 x 600 from the thermostat to the exchanger inlet pipe Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 058
                                                                                                                                                                      MPN: 101/9 MA 54672
                                                                                                                                                                      TUBO FRA TERMOSTATO E SCAMBIATORE (SENZA CONDIZIONATORE)
                                                                                                                                                                      TUBO FRA TERMOSTATO E SCAMBIATORE (SENZA CONDIZIONATORE) Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 059
                                                                                                                                                                      MPN: MN 54682
                                                                                                                                                                      SLEEVE 32X40X130 FROM THE THERMOSTAT PIPE TO THE EXCHANGER
                                                                                                                                                                      SLEEVE 32X40X130 FROM THE THERMOSTAT PIPE TO THE EXCHANGER Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 060
                                                                                                                                                                      MPN: MN 54683
                                                                                                                                                                      SLEEVE 35X43X80 FROM THE RADIATOR TO THE EXCHANGER
                                                                                                                                                                      SLEEVE 35X43X80 FROM THE RADIATOR TO THE EXCHANGER Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 062
                                                                                                                                                                      MPN: 101/9 MA 54673
                                                                                                                                                                      PIPE BETWEEN RADIATOR AND EXCHANGER
                                                                                                                                                                      PIPE BETWEEN RADIATOR AND EXCHANGER Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 063
                                                                                                                                                                      MPN: MN 54685
                                                                                                                                                                      SLEEVE 35X43X250
                                                                                                                                                                      SLEEVE 35X43X250 Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 064
                                                                                                                                                                      MPN: MN 54681
                                                                                                                                                                      Sleeve 35x43x70 from the exchanger to the water pump
                                                                                                                                                                      Sleeve 35x43x70 from the exchanger to the water pump Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 065
                                                                                                                                                                      MPN: 101/9 MA 54674
                                                                                                                                                                      PIPE BETWEEN EXCHANGER AND WATER PUMP
                                                                                                                                                                      PIPE BETWEEN EXCHANGER AND WATER PUMP Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 066
                                                                                                                                                                      MPN: FRN/37825
                                                                                                                                                                      FASCETTA FISSAGGIO MANICOTTO Ø 14X20
                                                                                                                                                                      Fascetta TO tubazione benzina Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 067
                                                                                                                                                                      MPN: MN 54688
                                                                                                                                                                      SLEEVE 14X20X220 FROM THE MANIFOLD TO THE PIPE BETWEEN THE EXCHANGER
                                                                                                                                                                      from £84.78
                                                                                                                                                                      from £84.78
                                                                                                                                                                      PIPE (Per Metre) Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 068
                                                                                                                                                                      MPN: RMN 54669
                                                                                                                                                                      UNION
                                                                                                                                                                      UNION Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 069
                                                                                                                                                                      MPN: GN/35701
                                                                                                                                                                      GASKET OR SEAL
                                                                                                                                                                      GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 070
                                                                                                                                                                      MPN: MN 60827
                                                                                                                                                                      SLEEVE 14X20X100 FROM THE EXCHANGER PIPE TO THE AUXILIARY TAP
                                                                                                                                                                      SLEEVE 14X20X100 FROM THE EXCHANGER PIPE TO THE AUXILIARY TAP Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 071
                                                                                                                                                                      MPN: 20370/50226
                                                                                                                                                                      TAP FOR HOT WATER PASSAGE
                                                                                                                                                                      TAP FOR HOT WATER PASSAGE Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 073
                                                                                                                                                                      MPN: 20371/48884
                                                                                                                                                                      HEATING HOT WATER REGULATOR VALVE
                                                                                                                                                                      from £229.32
                                                                                                                                                                      from £229.32
                                                                                                                                                                      Hot water inlet regulating valve Genuine Maserati Part - New (to order)
                                                                                                                                                                      Alternative (#400111) HEATER VALVE Genuine Ferrari Part - New In stock
                                                                                                                                                                      # 074
                                                                                                                                                                      MPN: MN 54694
                                                                                                                                                                      SLEEVE 16X20X65 FROM THE TAP TO THE MANIFOLD
                                                                                                                                                                      SLEEVE 16X20X65 FROM THE TAP TO THE MANIFOLD Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 075
                                                                                                                                                                      MPN: RMN 50350
                                                                                                                                                                      UNION
                                                                                                                                                                      UNION Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 076
                                                                                                                                                                      MPN: GN/35701
                                                                                                                                                                      GASKET OR SEAL
                                                                                                                                                                      GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 078
                                                                                                                                                                      MPN: VRN 55774
                                                                                                                                                                      UNION
                                                                                                                                                                      UNION Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 079
                                                                                                                                                                      MPN: 101/9 MA 55779
                                                                                                                                                                      PIPE ON THE BASE CONNECTION FOR HEATING WATER INLET
                                                                                                                                                                      PIPE ON THE BASE CONNECTION FOR HEATING WATER INLET Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 080
                                                                                                                                                                      MPN: MN 54695
                                                                                                                                                                      SLEEVE 14X20X380 FROM THE CRANKCASE PIPE TO THE TAP
                                                                                                                                                                      SLEEVE 14X20X380 FROM THE CRANKCASE PIPE TO THE TAP Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 081
                                                                                                                                                                      MPN: MN 54688
                                                                                                                                                                      SLEEVE 14X20X220 FROM CRANKCASE PIPE TO VALVE#
                                                                                                                                                                      from £84.78
                                                                                                                                                                      from £84.78
                                                                                                                                                                      PIPE (Per Metre) Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 083
                                                                                                                                                                      MPN: 1503/53942
                                                                                                                                                                      SUPPORT
                                                                                                                                                                      SUPPORT Genuine Maserati Part - New (to order)
