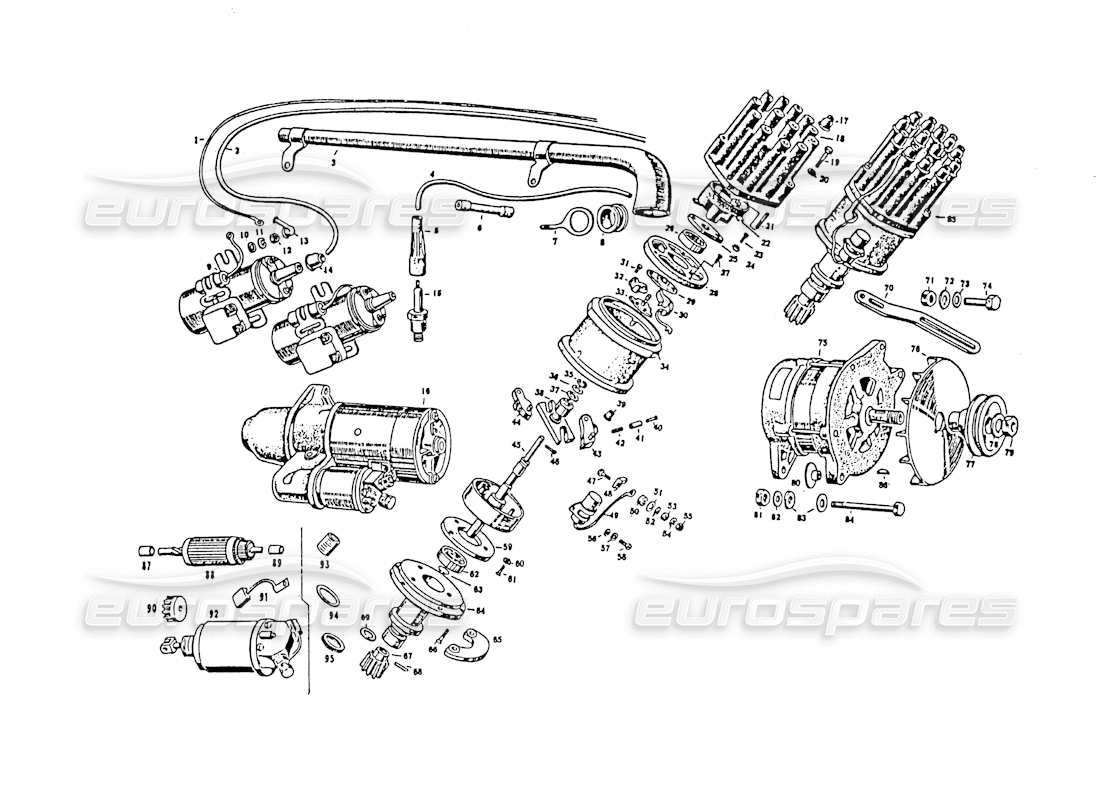

Maserati 3500 GT Electrical Equipment Engine Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
CSN 54976
LOW VOLTAGE CABLE FROM THE COIL TO THE DISTRIBUTOR MT. 2,5
#
002
MPN:
CSN 47374
CAVETTO PER COLLEGAMETO ALTA TENS. FRA SPINTEROGENO E BOBINA MT. 3
from
£99.75
from
£99.75
#
003
MPN:
106 ME 60760
MANIFOLD FOR SPARK PLUG CABLE HANK
#
004
MPN:
CSN 47374
CAVETTO PER COLLEGAMETO ALTA TENS. FRA SPINTEROGENO E CANDALE MT. 10
from
£99.75
from
£99.75
#
005
MPN:
101/7 - ME 52878
INNESTO SCHERMATO PER CANDALE D'ACCENSIONE
#
006
MPN:
101/7 ME 52879
Resistor for high voltage coil cable shielding
#
007
MPN:
54/5326/53287
Lamierino per guida cavi candale
#
008
MPN:
PFN 55212
GROMMET
#
009
MPN:
101 - 5360 48137
BOBNA D'ACCENSIONE MARELLI TIPO BZR 201 A
USE PART NUMBER BZR 201 A
#
010
MPN:
RN/49273
WASHER
#
011
MPN:
RSN 3 2 4 9 7
WASHER
#
012
MPN:
DNT 47046
NUT
This part replaces part number 47046
#
013
MPN:
CPN 32934
PROTECTIVE CAP FOR LOW VOLTAGE CABLES
#
014
MPN:
CPN32926
PROTECTIVE CAP FOR HIGH VOLTAGE COIL CABLES
#
015
MPN:
CND 62721
Spark plug for normal uses
#
015
MPN:
CND 62722
Heavy-duty spark plug
#
016
MPN:
101/9 ME 55210
MOTORINO AVVIAMENTO MARELLI TIPO MT 42C
#
016
MPN:
300/5 7000/45521
MOTORINO AVVIAMENTO MARELLI TIPO MT 23A
#
017
MPN:
CPN32926
HIGH VOLTAGE CABLE PROTECTION CAP ON THE SHELL
#
018
MPN:
ME61867
DISTRIBUTOR CAP
from
£551.72
from
£551.72
#
019
MPN:
BNT 61860
BOLT
#
020
MPN:
RSN 3 2 4 9 7
WASHER
#
021
MPN:
ME61868
ROTOR ARM
from
£336.21
from
£336.21
#
022
MPN:
101/9 ME 61869
DISPENSER COMPLETE WITH BRUSH
#
023
MPN:
VNT 61863
SCREW
#
024
MPN:
RDE 61865
WASHER
#
025
MPN:
101/9 - ME 61870
FLANGETTA SUPERIORE PER RITEGNO CRUSCINETTO
#
026
MPN:
CSC 48953
SHIELDED BEARING FOR SHAFT TOP PART
#
027
MPN:
VNT 59043
SCREW
#
028
MPN:
101/9 ME 61871
SUPPORT
#
029
MPN:
101/9 - ME 61872
FLANGETTA INFERIORE PER RITEGNO CRUSCINETTO
#
030
MPN:
101/9 ME 61873
MOBILE HAMMER COMPLETE WITH ELECTRICAL CONNECTION
#
031
MPN:
VNT 61862
SCREW
#
032
MPN:
101/9 - ME 61874
BRACKET FOR ADJUSTING POINT DISTANCES
#
033
MPN:
101/9 ME 61875
Plate with pin for needle hammer
#
034
MPN:
101/9 ME 61876
Distributor body complete with lubricating felt.
#
035
MPN:
ART. 55361
SEEGER RING
#
036
MPN:
101/9 - ME 61877
WASHER
#
037
MPN:
101/9 - ME 61878
WASHER
#
038
MPN:
101/9 ME 61879
HEX CAM COMPLETE WITH FORK
#
039
MPN:
101/9 ME 61880
Roller for pin on the advance mass
#
040
MPN:
101/9 - ME 61881
PUNTALINO PER MOLLA MASSA ANTICIPO (CORTO)
#
040
MPN:
101/9 - ME 61882
PUNTALINO PER MOLLA MASSA ANTICIPO (LUNGO)
#
041
MPN:
101/9 ME 61883
BUSH TO HOLD THE SPRING ON THE PIN
#
042
MPN:
101/9 ME 61884
SPRING
#
042
MPN:
101/9 ME 61885
SPRING
#
042
MPN:
101/9 ME 61886
SPRING
#
043
MPN:
101/9 - ME 61887
EARTH FOR IGNITION ADVANCE
#
044
MPN:
101/9 - ME 61887
EARTH FOR IGNITION ADVANCE
#
045
MPN:
101/9 - ME 61888
SHAFT WITH AUTOMATIC ADVANCE
#
046
MPN:
VNT 61861
SCREW
#
048
MPN:
101/9 ME 61889
Inferno insulating block for terminal
#
049
MPN:
101/9 ME 61890
CONDENSOR
#
050
MPN:
101/9 ME 61891
EXTERNAL INSULATING BLOCK FOR CLAMP
#
059
MPN:
101/9 ME 61892
FLANGE FOR RETAINING THE LOWER BEARING
#
062
MPN:
PartNo]
STICK BEARING FOR SHAFT LOWER PART
#
064
MPN:
101/9 - ME 61893
SUPPORT
#
065
MPN:
101/9 5296 53510
BRACKET / SUPPORT
#
067
MPN:
101/9 5294 53514
Ingranaggio sulla spinterogeno conrotazione sinistra
#
068
MPN:
SN 35724
PIN
#
068
MPN:
SN 43846
PIN
#
068
MPN:
SN 59613
PIN
#
069
MPN:
101/9 ME 54651
CLEARING SPACER BETWEEN GEAR AND DISTRIBUTOR
#
070
MPN:
106 - ME 56052
PUNTALINO FISSAGGIO ALTERNATORE PRESTOLITE
#
070
MPN:
107ME53999
PUNTALINO FISSAGGIO ALTERNATORE BOSCH
#
075
MPN:
101/9 - ME 55546
ALTERNATORE BOSCH
#
075
MPN:
101/9 ME 55535
ALTERNATORE PRESTOLITE
#
076
MPN:
101 /9 ME 55709
VENTOLA SULL'ALTERNATORE TIPO PRESTOLITE
#
076
MPN:
107 ME 58404
Ventola sull'alternatore tipo BOSCH
#
077
MPN:
101/9 - ME 55386
Puleggia sull'alternatore tipo PRESTOLITE
#
077
MPN:
107 ME 58748
BOSCH type alternator pulley complete with pin and spacer
#
080
MPN:
101/9 - ME 55377
BUSH
#
080
MPN:
PartNo]
GRANO 12,5X18 PER FISSAGGIO ALTERNATORE BOSCH
#
084
MPN:
BNT 55644
BOLT
#
084
MPN:
RN 55363
WASHER
#
085
MPN:
101/9 ME 53506
Spinterogeno per accensione tipo MARELLI
#
085
MPN:
DN 44352
NUT
#
086
MPN:
BNT 55362
BOLT
#
086
MPN:
LN49771
LINGUETTA AMERICANS 4X6 PER TRAINO ALTERNATORE
#
087
MPN:
101/9 - ME 61896
BRONZINA ANTERIORE MOT. AVVIAMENTO MT 42 C
#
087
MPN:
101/9 ME 61895
BRONZINA ANTERIORE MOT. AVVIAMENTO MT 23 A
#
087
MPN:
RNT52733
WASHER
#
088
MPN:
RSN 33165
WASHER
#
089
MPN:
BN 53959
BOLT
#
090
MPN:
5122/53951
Puleggia sull'albero manovella com. compressore - guida sinistra
#
090
MPN:
5122/55356
Puleggia sull'albero manovella com. compressore - guida destra
#
091
MPN:
CTR 55384
CINGHIA COMANDO COMPRESSORE CONDIZ. - GUIDA DESTRA
#
091
MPN:
CTR54413
CINGHIA COMANDO COMPRESSORE CONDIZ. - GUIDA SINISTRA
