maserati 4200 coupe (2002) timing - controls parts diagram

006 - timing - controls

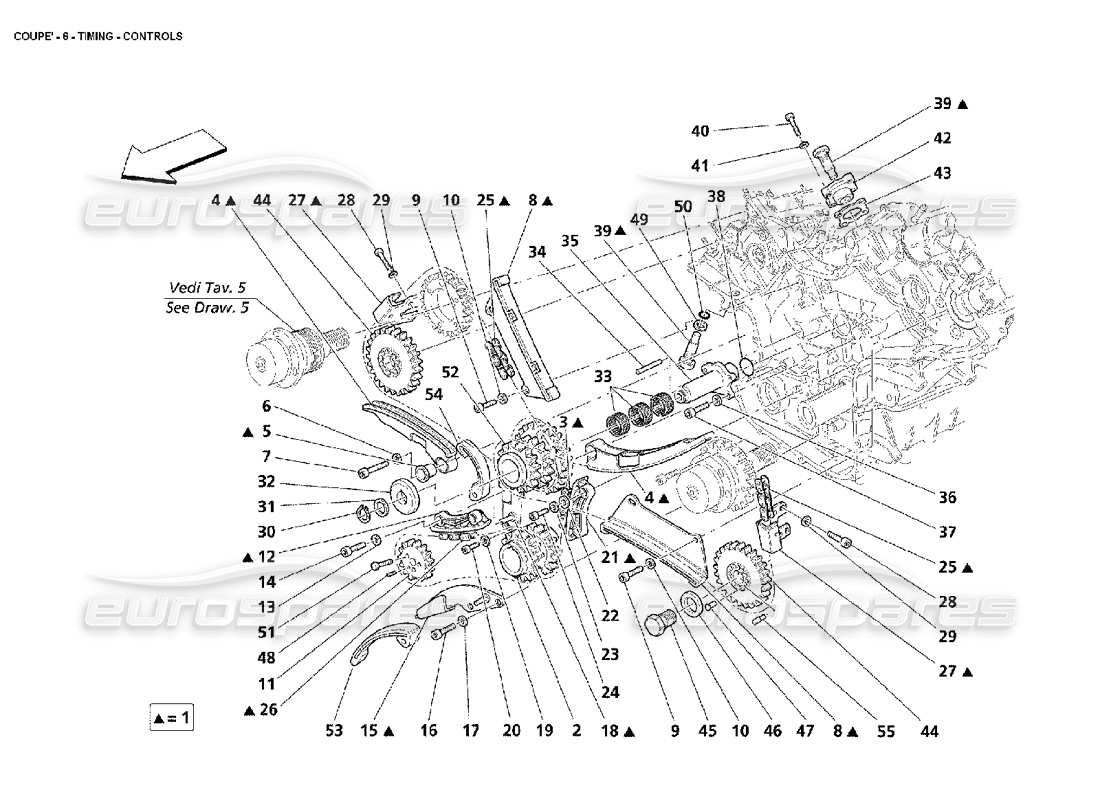

Maserati 4200 Coupe (2002) Timing - Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                      #
                                                                                                      Part number
                                                                                                      Description
                                                                                                      Price
                                                                                                      # 001
                                                                                                      MPN: 189793
                                                                                                      TIMING CONTROL ASSEMBLY
                                                                                                      - Valid till engine Nr. 72881
                                                                                                      from £417.42
                                                                                                      from £417.42
                                                                                                      # 001
                                                                                                      MPN: 196902
                                                                                                      TIMING CONTROL ASSEMBLY
                                                                                                      - Valid from engine Nr. 72882
                                                                                                      from £579.69
                                                                                                      from £579.69
                                                                                                      This part replaces part number 193716
                                                                                                      # 003
                                                                                                      MPN: 175286
                                                                                                      TRANSMISSION CHAIN
                                                                                                      from £24.10
                                                                                                      from £24.10
                                                                                                      # 004
                                                                                                      MPN: 186184
                                                                                                      MOBILE GUIDE SHOE
                                                                                                      from £69.63
                                                                                                      from £69.63
                                                                                                      # 005
                                                                                                      MPN: 175303
                                                                                                      BUSHING
                                                                                                      from £13.13
                                                                                                      from £13.13
                                                                                                      # 006
                                                                                                      MPN: 10569373
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 007
                                                                                                      MPN: 14306424
                                                                                                      SCREW
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 14306421
                                                                                                      # 008
                                                                                                      MPN: 186185
                                                                                                      FIXED TENSION
                                                                                                      from £34.09
                                                                                                      from £34.09
                                                                                                      # 009
                                                                                                      MPN: 14306224
                                                                                                      SCREW
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 010
                                                                                                      MPN: 11193874
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 011
                                                                                                      MPN: 189564
                                                                                                      PUMP CONTROM TOOTHED WHEEL
                                                                                                      from £261.54
                                                                                                      from £261.54
                                                                                                      # 012
                                                                                                      MPN: 186186
                                                                                                      FIXED TENSION
                                                                                                      from £16.10
                                                                                                      from £16.10
                                                                                                      # 013
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 014
                                                                                                      MPN: 14305424
                                                                                                      SCREW
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 015
                                                                                                      MPN: 185724
                                                                                                      GUIDE SHOE SUPPORT
                                                                                                      from £10.50
                                                                                                      from £10.50
                                                                                                      # 016
                                                                                                      MPN: 14305724
                                                                                                      SCREW
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 017
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 019
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 020
                                                                                                      MPN: 14305724
                                                                                                      SCREW
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 021
                                                                                                      MPN: 306094
                                                                                                      FIXED TENSION
                                                                                                      from £21.56
                                                                                                      from £21.56
                                                                                                      This part replaces part number 186181
                                                                                                      # 022
                                                                                                      MPN: 12647624
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 12647601
                                                                                                      # 023
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 024
                                                                                                      MPN: 14432224
                                                                                                      SCREW
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 025
                                                                                                      MPN: 189571
                                                                                                      TIMING CONTROL CHAIN
                                                                                                      - Valid till engine Nr. 72881
                                                                                                      from £45.87
                                                                                                      from £45.87
                                                                                                      # 025
                                                                                                      MPN: 193616
                                                                                                      TIMING CONTROL CHAIN
                                                                                                      - Valid from engine Nr. 72882
                                                                                                      from £53.12
                                                                                                      from £53.12
                                                                                                      # 027
                                                                                                      MPN: 189569
                                                                                                      UPPER FIXED TENSION
                                                                                                      from £20.46
                                                                                                      from £20.46
                                                                                                      # 028
                                                                                                      MPN: 14305934
                                                                                                      SCREW
                                                                                                      from £0.77
                                                                                                      from £0.77
                                                                                                      # 029
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 030
                                                                                                      MPN: 11066876
                                                                                                      SEEGER RING
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 031
                                                                                                      MPN: 180187
                                                                                                      RING
                                                                                                      from £1.08
                                                                                                      from £1.08
                                                                                                      # 032
                                                                                                      MPN: 175281
                                                                                                      SHOULDER
                                                                                                      from £17.23
                                                                                                      from £17.23
                                                                                                      # 033
                                                                                                      MPN: 175282
                                                                                                      ROLLER CAGE
                                                                                                      from £3.48
                                                                                                      from £3.48
                                                                                                      # 034
                                                                                                      MPN: 14159370
                                                                                                      FLEXIBLE PIN
                                                                                                      from £1.08
                                                                                                      from £1.08
                                                                                                      # 035
                                                                                                      MPN: 188436
                                                                                                      SUPPORT
                                                                                                      from £852.17
                                                                                                      from £852.17
                                                                                                      # 036
                                                                                                      MPN: 11181574
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 037
                                                                                                      MPN: 14304224
                                                                                                      SCREW
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 038
                                                                                                      MPN: 104212
                                                                                                      O.R. GASKET
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 039
                                                                                                      MPN: 180316
                                                                                                      HYDRAULIC TIGHTENER
                                                                                                      from £33.63
                                                                                                      from £33.63
                                                                                                      # 040
                                                                                                      MPN: 14432224
                                                                                                      SCREW
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 041
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 043
                                                                                                      MPN: 323282
                                                                                                      GASKET
                                                                                                      - Supplied also in the cylinder heads gasket revision kit (cod. 980020001)
                                                                                                      from £1.15
                                                                                                      from £1.15
                                                                                                      This part replaces part number 247147
                                                                                                      # 044
                                                                                                      MPN: 187530
                                                                                                      TOOTHED WHEEL FOR SHAFT
                                                                                                      from £25.81
                                                                                                      from £25.81
                                                                                                      # 045
                                                                                                      MPN: 193831
                                                                                                      SCREW
                                                                                                      from £7.14
                                                                                                      from £7.14
                                                                                                      # 046
                                                                                                      MPN: 175751
                                                                                                      WASHER
                                                                                                      from £3.11
                                                                                                      from £3.11
                                                                                                      # 047
                                                                                                      MPN: 176610
                                                                                                      CENTERING DOWEL
                                                                                                      from £3.24
                                                                                                      from £3.24
                                                                                                      # 048
                                                                                                      MPN: 189779
                                                                                                      DOWEL
                                                                                                      from £1.34
                                                                                                      from £1.34
                                                                                                      # 049
                                                                                                      MPN: 190171
                                                                                                      SPACER
                                                                                                      from £4.00
                                                                                                      from £4.00
                                                                                                      # 050
                                                                                                      MPN: 192069
                                                                                                      O.R. GASKET
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 051
                                                                                                      MPN: 189563
                                                                                                      SCREW
                                                                                                      from £11.01
                                                                                                      from £11.01
                                                                                                      # 052
                                                                                                      MPN: 187524
                                                                                                      TRANSMISSION TOOTHED WHEEL
                                                                                                      - Valid till engine Nr. 72881
                                                                                                      from £815.27
                                                                                                      from £815.27
                                                                                                      # 053
                                                                                                      MPN: 185725
                                                                                                      CHAIN TENSIONER
                                                                                                      from £30.14
                                                                                                      from £30.14
                                                                                                      # 054
                                                                                                      MPN: 186160
                                                                                                      CHAIN TENSIONER
                                                                                                      from £19.47
                                                                                                      from £19.47
                                                                                                      # 055
                                                                                                      MPN: 194191
                                                                                                      DOWEL
                                                                                                      from £4.17
                                                                                                      from £4.17
