maserati 4200 coupe (2002) exhaust system parts diagram

014 - Exhaust System

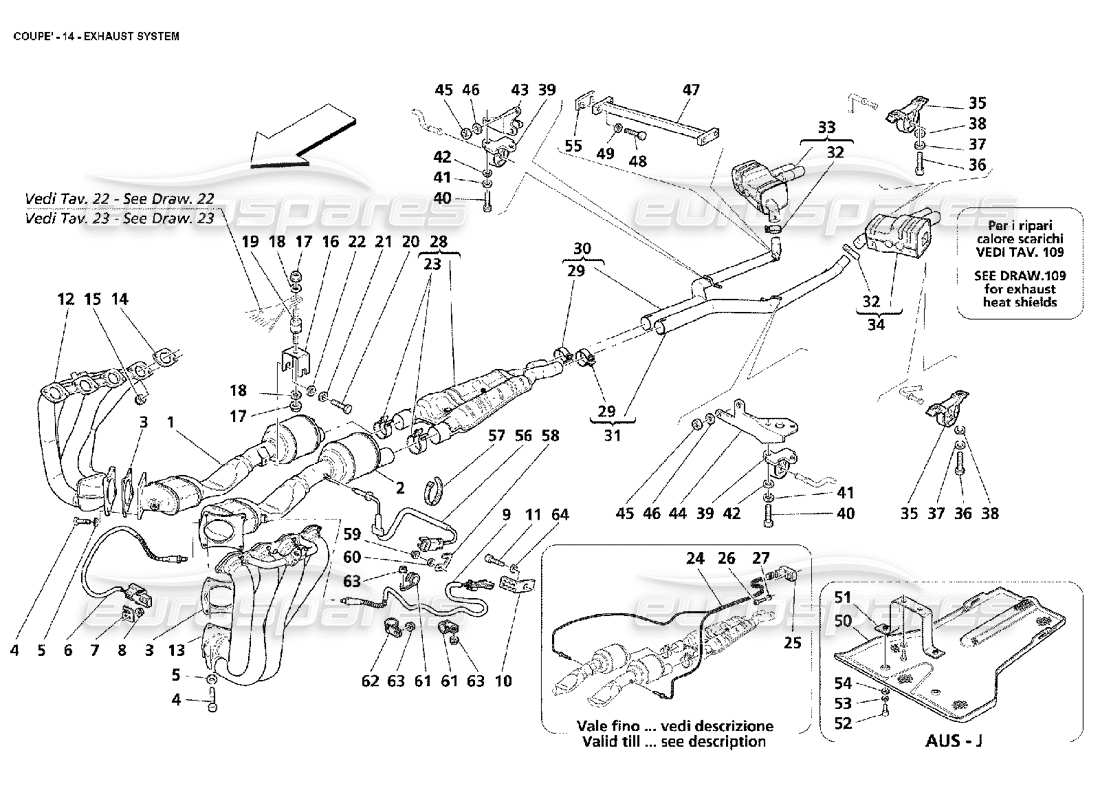

Maserati 4200 Coupe (2002) Exhaust System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Price
                                                                                              # 000
                                                                                              MPN: 980138905
                                                                                              RETROFIT TELEPHONE KIT
                                                                                              Valid for GD
                                                                                              from £1,518.32
                                                                                              from £1,518.32
                                                                                              # 001
                                                                                              MPN: 184803
                                                                                              RH CATALYST
                                                                                              - Valid for GS till car Ass. Nr. 9679 - Valid for GD till car Ass. Nr. 9695
                                                                                              from £2,720.74
                                                                                              from £2,720.74
                                                                                              # 001
                                                                                              MPN: 194714
                                                                                              RH CATALYST
                                                                                              - Valid for GS from car Ass. Nr. 9680 - Valid for GD from car Ass. Nr. 9696
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 002
                                                                                              MPN: 184804
                                                                                              LH CATALYST
                                                                                              - Valid for GS till car Ass. Nr. 9679 - Valid for GD till car Ass. Nr. 9695
                                                                                              from £2,652.12
                                                                                              from £2,652.12
                                                                                              # 002
                                                                                              MPN: 194715
                                                                                              LH CATALYST
                                                                                              - Valid for GS from car Ass. Nr. 9680 - Valid for GD from car Ass. Nr. 9696
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 003
                                                                                              MPN: 184798
                                                                                              GASKET
                                                                                              - Supplied also in the cylinder heads gasket revision kit (cod. 980020001)
                                                                                              from £18.61
                                                                                              from £18.61
                                                                                              # 004
                                                                                              MPN: 190213
                                                                                              SCREW
                                                                                              from £2.47
                                                                                              from £2.47
                                                                                              # 005
                                                                                              MPN: 11193874
                                                                                              WASHER
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 007
                                                                                              MPN: 175856
                                                                                              CONNECTORS FIXING BRACKET
                                                                                              from £1.17
                                                                                              from £1.17
                                                                                              This part replaces part number 155752
                                                                                              # 009
                                                                                              MPN: 191412
                                                                                              REAR LAMBDA FEELER
                                                                                              from £106.94
                                                                                              from £106.94
                                                                                              # 010
                                                                                              MPN: 178366
                                                                                              CONNECTORS FIXING BRACKET
                                                                                              from £2.32
                                                                                              from £2.32
                                                                                              # 011
                                                                                              MPN: 14305724
                                                                                              SCREW
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 012
                                                                                              MPN: 183795
                                                                                              RH EXHAUST MANIFOLD
                                                                                              from £1,251.41
                                                                                              from £1,251.41
                                                                                              # 013
                                                                                              MPN: 183796
                                                                                              LH EXHAUST MANIFOLD
                                                                                              from £1,251.41
                                                                                              from £1,251.41
                                                                                              # 014
                                                                                              MPN: 182868
                                                                                              GASKET
                                                                                              - Supplied also in the cylinder heads gasket revision kit (cod. 980020001)
                                                                                              from £2.85
                                                                                              from £2.85
                                                                                              # 015
                                                                                              MPN: 138392
                                                                                              NUT
                                                                                              from £0.73
                                                                                              from £0.73
                                                                                              # 016
                                                                                              MPN: 187827
                                                                                              BRACKET FOR CATALYSTS FIXING
                                                                                              from £11.44
                                                                                              from £11.44
                                                                                              # 017
                                                                                              MPN: 195273
                                                                                              NUT
                                                                                              from £1.08
                                                                                              from £1.08
                                                                                              This part replaces part number 10575215
                                                                                              # 018
                                                                                              MPN: 12625221
                                                                                              WASHER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 019
                                                                                              MPN: 184333
                                                                                              PAD
                                                                                              from £13.43
                                                                                              from £13.43
                                                                                              # 020
                                                                                              MPN: 16043324
                                                                                              SCREW
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 021
                                                                                              MPN: 11193874
                                                                                              WASHER
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              # 022
                                                                                              MPN: 12625224
                                                                                              WASHER
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              This part replaces part number 12625221
                                                                                              # 023
                                                                                              MPN: 185307
                                                                                              CLAMP
                                                                                              from £14.90
                                                                                              from £14.90
                                                                                              This part replaces part number 173896
                                                                                              # 024
                                                                                              MPN: 184926
                                                                                              THERMOCOUPLES SET
                                                                                              - Valid for GS till car Ass. Nr. 9679 - Valid for GD till car Ass. Nr. 9695
                                                                                              from £261.66
                                                                                              from £261.66
                                                                                              # 025
                                                                                              MPN: 187866
                                                                                              CATALYSTS CONTROL STATION
                                                                                              - Valid for GS till car Ass. Nr. 9679 - Valid for GD till car Ass. Nr. 9695
                                                                                              from £171.08
                                                                                              from £171.08
                                                                                              # 026
                                                                                              MPN: 15958407
                                                                                              SCREW
                                                                                              - Valid for GS till car Ass. Nr. 9679 - Valid for GD till car Ass. Nr. 9695
                                                                                              from £0.85
                                                                                              from £0.85
                                                                                              # 027
                                                                                              MPN: 10519304
                                                                                              WASHER
                                                                                              - Valid for GS till car Ass. Nr. 9679 - Valid for GD till car Ass. Nr. 9695
                                                                                              from £0.85
                                                                                              from £0.85
                                                                                              This part replaces part number 14496304
                                                                                              # 028
                                                                                              MPN: 187826
                                                                                              CENTRAL SILENCER
                                                                                              from £876.07
                                                                                              from £876.07
                                                                                              # 029
                                                                                              MPN: 185307
                                                                                              CLAMP
                                                                                              from £14.90
                                                                                              from £14.90
                                                                                              This part replaces part number 173896
                                                                                              # 030
                                                                                              MPN: 187823
                                                                                              RH EXHAUST EXTENSION
                                                                                              from £362.54
                                                                                              from £362.54
                                                                                              # 031
                                                                                              MPN: 187824
                                                                                              LH EXHAUST EXTENSION
                                                                                              from £362.54
                                                                                              from £362.54
                                                                                              # 032
                                                                                              MPN: 185307
                                                                                              CLAMP
                                                                                              from £14.90
                                                                                              from £14.90
                                                                                              This part replaces part number 173896
                                                                                              # 033
                                                                                              MPN: 184815
                                                                                              RH REAR SILENCER
                                                                                              from £939.75
                                                                                              from £939.75
                                                                                              # 034
                                                                                              MPN: 184816
                                                                                              LH REAR SILENCER
                                                                                              from £972.45
                                                                                              from £972.45
                                                                                              # 035
                                                                                              MPN: 184814
                                                                                              REAR SUPPORT
                                                                                              from £19.06
                                                                                              from £19.06
                                                                                              # 036
                                                                                              MPN: 16043224
                                                                                              SCREW
                                                                                              from £0.48
                                                                                              from £0.48
                                                                                              # 037
                                                                                              MPN: 12601374
                                                                                              WASHER
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 038
                                                                                              MPN: 12638524
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 039
                                                                                              MPN: 187861
                                                                                              ANTI-VIBRATION SUPPORT
                                                                                              from £26.99
                                                                                              from £26.99
                                                                                              # 040
                                                                                              MPN: 16043424
                                                                                              SCREW
                                                                                              from £0.51
                                                                                              from £0.51
                                                                                              # 041
                                                                                              MPN: 12601374
                                                                                              WASHER
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 042
                                                                                              MPN: 14496524
                                                                                              WASHER
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 043
                                                                                              MPN: 187775
                                                                                              RH SUPPORT
                                                                                              from £11.91
                                                                                              from £11.91
                                                                                              # 044
                                                                                              MPN: 187774
                                                                                              LH SUPPORT
                                                                                              from £16.85
                                                                                              from £16.85
                                                                                              # 045
                                                                                              MPN: 16100814
                                                                                              NUT
                                                                                              from £0.71
                                                                                              from £0.71
                                                                                              # 046
                                                                                              MPN: 14496524
                                                                                              WASHER
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 048
                                                                                              MPN: 16043124
                                                                                              SCREW
                                                                                              from £0.30
                                                                                              from £0.30
                                                                                              SCREW Genuine Ferrari Part - Used In stock
                                                                                              Removed from 458 engine 178999
                                                                                              # 049
                                                                                              MPN: 12601374
                                                                                              WASHER
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 050
                                                                                              MPN: 190270
                                                                                              UNDER EXHAUST SHIELD
                                                                                              - Valid for J and AUS and cars GB opt. japan version
                                                                                              from £222.59
                                                                                              from £222.59
                                                                                              # 051
                                                                                              MPN: 190271
                                                                                              BRACKET
                                                                                              - Valid for J and AUS and cars GB opt. japan version
                                                                                              from £31.38
                                                                                              from £31.38
                                                                                              # 052
                                                                                              MPN: 14305724
                                                                                              SCREW
                                                                                              - Valid for J and AUS and cars GB opt. japan version
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 053
                                                                                              MPN: 12639724
                                                                                              WASHER
                                                                                              - Valid for J and AUS and cars GB opt. japan version
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              # 054
                                                                                              MPN: 12601274
                                                                                              WASHER
                                                                                              - Valid for J and AUS and cars GB opt. japan version
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 12601270
                                                                                              # 055
                                                                                              MPN: 193098
                                                                                              SPACER BAR THICKNESS
                                                                                              from £2.32
                                                                                              from £2.32
                                                                                              # 056
                                                                                              MPN: 194744
                                                                                              THERMOCOUPLE
                                                                                              - Valid for GS from car Ass. Nr. 9680 - Valid for GD from car Ass. Nr. 9696
                                                                                              from £157.85
                                                                                              from £157.85
                                                                                              # 057
                                                                                              MPN: 312020382
                                                                                              CLAMP
                                                                                              - Valid for GS from car Ass. Nr. 9680 - Valid for GD from car Ass. Nr. 9696
                                                                                              from £0.69
                                                                                              from £0.69
                                                                                              # 058
                                                                                              MPN: 155751
                                                                                              CLIP
                                                                                              - Valid for GS from car Ass. Nr. 9680 - Valid for GD from car Ass. Nr. 9696
                                                                                              from £2.80
                                                                                              from £2.80
                                                                                              # 059
                                                                                              MPN: 14059111
                                                                                              NUT
                                                                                              - Valid for GS from car Ass. Nr. 9680 - Valid for GD from car Ass. Nr. 9696
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 060
                                                                                              MPN: 12644424
                                                                                              WASHER
                                                                                              - Valid for GS from car Ass. Nr. 9680 - Valid for GD from car Ass. Nr. 9696
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              This part replaces part number 13550214
                                                                                              # 061
                                                                                              MPN: 67190200
                                                                                              BRACKET WITH SHEATH
                                                                                              from £1.33
                                                                                              from £1.33
                                                                                              # 062
                                                                                              MPN: 10441290
                                                                                              BRACKET WITH SHEATH
                                                                                              from £0.51
                                                                                              from £0.51
                                                                                              # 063
                                                                                              MPN: 67190100
                                                                                              NUT
                                                                                              from £1.08
                                                                                              from £1.08
                                                                                              # 064
                                                                                              MPN: 11197774
                                                                                              WASHER
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
