maserati 4200 coupe (2002) water-oil pump parts diagram

018 - Water-Oil Pump

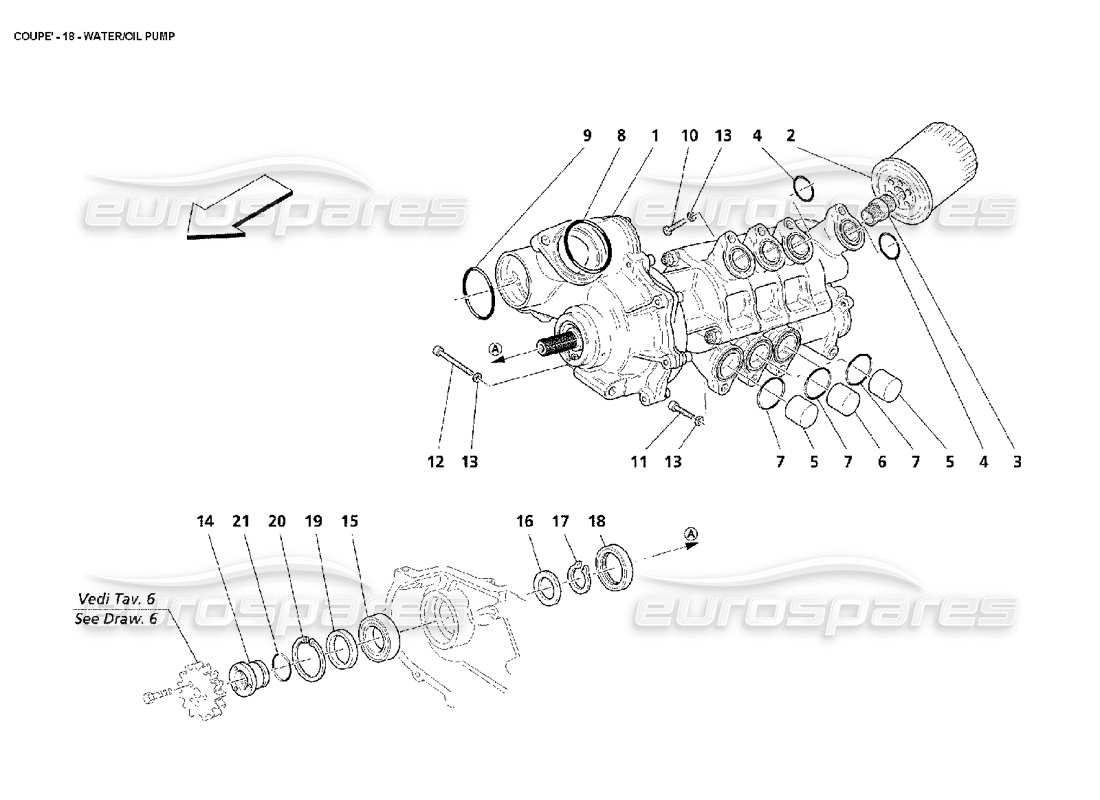

Maserati 4200 Coupe (2002) Water-Oil Pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 001
                                    MPN: 194032
                                    COMPLETE WATER AND OIL PUMP
                                    - Valid for USA and CDN - With 2 fixings for connection oil delivery tube - Valid till engine Nr. 70541
                                    from £0.47
                                    from £0.47
                                    # 001
                                    MPN: 202976
                                    COMPLETE WATER AND OIL PUMP
                                    - Valid for USA and CDN - With 3 fixings for connection oil delivery tube - Valid from engine Nr. 70542
                                    from £1,501.97
                                    from £1,501.97
                                    This part replaces part number 194460
                                    # 001
                                    MPN: 213259
                                    COMPLETE WATER AND OIL PUMP
                                    - Not for USA and CDN - With 3 fixings for connection oil delivery tube - Valid from engine Nr. 70888
                                    from £2,415.16
                                    from £2,415.16
                                    This part replaces part number 194458
                                    # 001
                                    MPN: 980138032
                                    COMPLETE WATER AND OIL PUMP
                                    - Not for USA and CDN - With 2 fixings for connection oil delivery tube - Valid till engine Nr. 70887
                                    from £1,434.04
                                    from £1,434.04
                                    This part replaces part number 188695
                                    # 002
                                    MPN: 188814
                                    OIL FILTER CARTRIDGE
                                    from £20.57
                                    from £20.57
                                    This part replaces part number 130623
                                    # 003
                                    MPN: 177604
                                    THREADED UNION
                                    from £7.44
                                    from £7.44
                                    # 004
                                    MPN: 133938
                                    O.R. GASKET
                                    - Supplied also in the crankcase gasket revision kit (cod. 980020002)
                                    from £0.68
                                    from £0.68
                                    This part replaces part number 166655
                                    # 005
                                    MPN: 187051
                                    LATERAL OIL RECOVERY FILTER
                                    from £6.99
                                    from £6.99
                                    # 006
                                    MPN: 187162
                                    CENTRAL OIL RECOVERY FILTER
                                    from £16.10
                                    from £16.10
                                    # 007
                                    MPN: 148225
                                    O.R. GASKET
                                    - Supplied also in the crankcase gasket revision kit (cod. 980020002)
                                    from £0.47
                                    from £0.47
                                    # 008
                                    MPN: 132829
                                    O.R. GASKET
                                    - Supplied also in the crankcase gasket revision kit (cod. 980020002)
                                    from £0.73
                                    from £0.73
                                    # 009
                                    MPN: 141250
                                    O.R. GASKET
                                    from £0.47
                                    from £0.47
                                    # 010
                                    MPN: 185345
                                    SCREW-M 8X25
                                    from £1.75
                                    from £1.75
                                    # 011
                                    MPN: 14306424
                                    SCREW-M 8X25
                                    from £0.47
                                    from £0.47
                                    This part replaces part number 14306421
                                    # 011
                                    MPN: 14306524
                                    SCREW-M 8X30
                                    from £0.47
                                    from £0.47
                                    This part replaces part number 14306521
                                    # 012
                                    MPN: 14359324
                                    SCREW-M 8X65
                                    from £0.47
                                    from £0.47
                                    # 013
                                    MPN: 11198074
                                    WASHER
                                    from £0.47
                                    from £0.47
                                    # 014
                                    MPN: 189778
                                    COUPLING
                                    from £18.53
                                    from £18.53
                                    # 015
                                    MPN: 155996
                                    BALL BEARING
                                    from £6.69
                                    from £6.69
                                    # 016
                                    MPN: 177597
                                    COMPENSATOR RING
                                    from £2.25
                                    from £2.25
                                    # 017
                                    MPN: 11067276
                                    SEEGER RING
                                    from £0.47
                                    from £0.47
                                    # 018
                                    MPN: 121276
                                    OIL SEAL
                                    from £10.38
                                    from £10.38
                                    # 019
                                    MPN: 177596
                                    COMPENSATOR RING
                                    from £0.60
                                    from £0.60
                                    # 020
                                    MPN: 11381076
                                    SEEGER RING
                                    from £0.99
                                    from £0.99
                                    # 021
                                    MPN: 186272
                                    O.R. GASKET
                                    from £0.47
                                    from £0.47
                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
