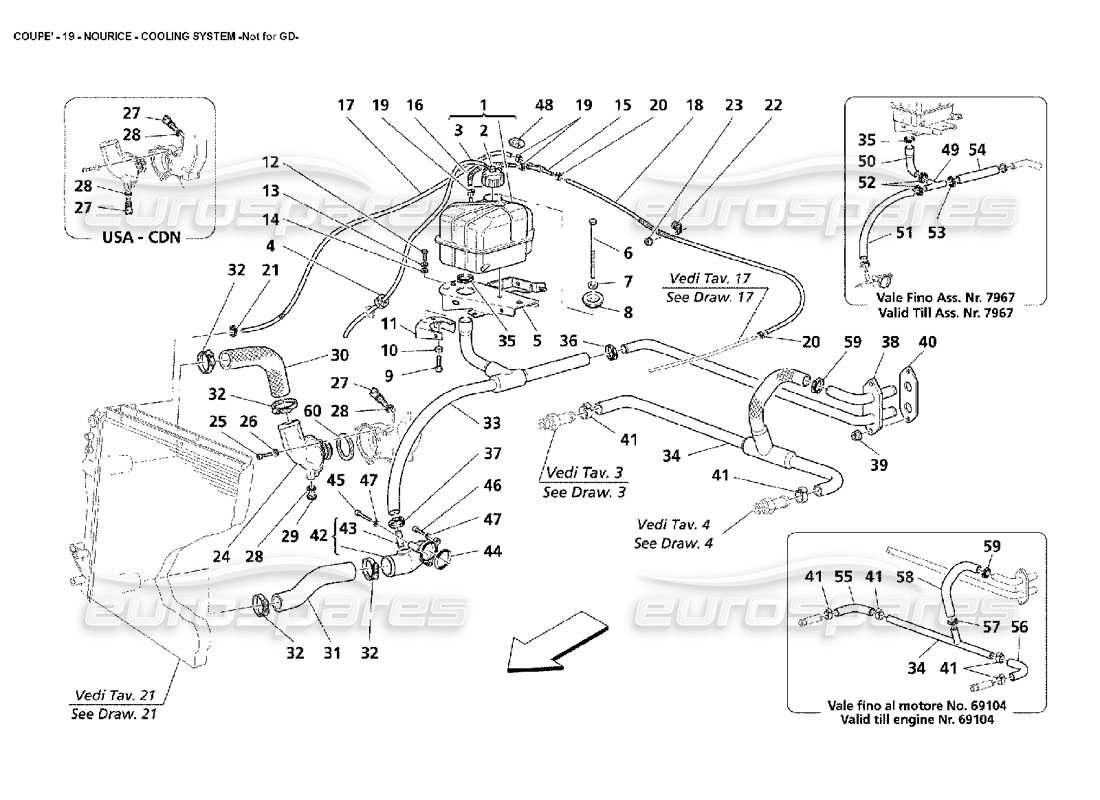

maserati 4200 coupe (2002) nourice - cooling system -not for gd parts diagram

019 - Nourice - Cooling System -Not for GD

Maserati 4200 Coupe (2002) Nourice - Cooling System -Not for GD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                    #
                                                                                    Part number
                                                                                    Description
                                                                                    Price
                                                                                    # 001
                                                                                    MPN: 384000102
                                                                                    COMPLETE EXPANSION TANK
                                                                                    WITH CAP
                                                                                    from £60.63
                                                                                    from £60.63
                                                                                    This part replaces part number 60597447
                                                                                    # 002
                                                                                    MPN: 980145477
                                                                                    TANK PLUG
                                                                                    from £12.17
                                                                                    from £12.17
                                                                                    This part replaces part number 46556738
                                                                                    # 003
                                                                                    MPN: 384001316
                                                                                    HOSE
                                                                                    from £7.48
                                                                                    from £7.48
                                                                                    # 004
                                                                                    MPN: 10461987
                                                                                    RING
                                                                                    from £1.55
                                                                                    from £1.55
                                                                                    # 005
                                                                                    MPN: 189782
                                                                                    NOURICE SUPPORTING BRACKET
                                                                                    from £22.43
                                                                                    from £22.43
                                                                                    # 006
                                                                                    MPN: 60607472
                                                                                    SPECIAL SCREW
                                                                                    from £4.85
                                                                                    from £4.85
                                                                                    # 007
                                                                                    MPN: 12601274
                                                                                    WASHER
                                                                                    from £0.54
                                                                                    from £0.54
                                                                                    This part replaces part number 12601270
                                                                                    # 008
                                                                                    MPN: 82404496
                                                                                    CUP
                                                                                    from £1.89
                                                                                    from £1.89
                                                                                    # 009
                                                                                    MPN: 10979421
                                                                                    SCREW
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 010
                                                                                    MPN: 12620474
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 011
                                                                                    MPN: 384000135
                                                                                    SUPPORT FOR BRACKET
                                                                                    from £14.70
                                                                                    from £14.70
                                                                                    # 012
                                                                                    MPN: 14305521
                                                                                    SCREW
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    # 013
                                                                                    MPN: 12620474
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 014
                                                                                    MPN: 12646601
                                                                                    WASHER
                                                                                    from £0.71
                                                                                    from £0.71
                                                                                    # 015
                                                                                    MPN: 189345
                                                                                    3-WAY UNION
                                                                                    from £13.78
                                                                                    from £13.78
                                                                                    # 016
                                                                                    MPN: 192621
                                                                                    RUBBER HOSE
                                                                                    from £19.45
                                                                                    from £19.45
                                                                                    # 017
                                                                                    MPN: 192614
                                                                                    RUBBER HOSE
                                                                                    from £161.90
                                                                                    from £161.90
                                                                                    # 018
                                                                                    MPN: 192615
                                                                                    RUBBER HOSE
                                                                                    from £9.93
                                                                                    from £9.93
                                                                                    # 019
                                                                                    MPN: 13125470
                                                                                    STRAP COLLAR
                                                                                    from £0.52
                                                                                    from £0.52
                                                                                    # 020
                                                                                    MPN: 183919
                                                                                    STRAP COLLAR
                                                                                    from £0.71
                                                                                    from £0.71
                                                                                    # 021
                                                                                    MPN: 13000190
                                                                                    SCREW COLLAR
                                                                                    from £0.54
                                                                                    from £0.54
                                                                                    # 022
                                                                                    MPN: 10441390
                                                                                    BRACKET WITH SHEATH
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    # 023
                                                                                    MPN: 14058411
                                                                                    NUT
                                                                                    from £0.54
                                                                                    from £0.54
                                                                                    # 024
                                                                                    MPN: 230889
                                                                                    THERMOSTAT WITH COVER
                                                                                    (assy n. 0-10263)
                                                                                    from £79.37
                                                                                    from £79.37
                                                                                    This part replaces part number 224624
                                                                                    # 024
                                                                                    MPN: 230890
                                                                                    COVER WITH THERMOSTAT
                                                                                    from £87.22
                                                                                    from £87.22
                                                                                    This part replaces part number 224623
                                                                                    # 025
                                                                                    MPN: 14305324
                                                                                    SCREW
                                                                                    from £0.52
                                                                                    from £0.52
                                                                                    This part replaces part number 14305321
                                                                                    # 026
                                                                                    MPN: 11197774
                                                                                    WASHER
                                                                                    from £0.54
                                                                                    from £0.54
                                                                                    # 027
                                                                                    MPN: 180137
                                                                                    WATER TEMPERATURE SENSOR
                                                                                    - (Quantity 2 for cars USA and CDN)
                                                                                    from £9.88
                                                                                    from £9.88
                                                                                    # 028
                                                                                    MPN: 10298460
                                                                                    GASKET
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 029
                                                                                    MPN: 10300540
                                                                                    THREADED PLUG
                                                                                    - Not for USA and CDN
                                                                                    from £2.85
                                                                                    from £2.85
                                                                                    # 030
                                                                                    MPN: 190354
                                                                                    DELIVERY PIPE FROM ENGINE TO RADIATOR
                                                                                    from £77.31
                                                                                    from £77.31
                                                                                    This part replaces part number 181747 - and 1 more. Click to view details
                                                                                    # 031
                                                                                    MPN: 181748
                                                                                    RETURN PIPE FROM RADIATOR TO ENGINE
                                                                                    from £28.54
                                                                                    from £28.54
                                                                                    # 032
                                                                                    MPN: 13000790
                                                                                    SCREW COLLAR
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 312420106
                                                                                    # 033
                                                                                    MPN: 187080
                                                                                    RUBBER HOSE
                                                                                    - Valid from car Ass. Nr. 7968
                                                                                    from £8.88
                                                                                    from £8.88
                                                                                    This part replaces part number 186586 which we have in stock - and 3 more. Click to view details
                                                                                    # 034
                                                                                    MPN: 183115
                                                                                    WATER OUTLET PIPE
                                                                                    - Valid till engine Nr. 69104
                                                                                    from £16.20
                                                                                    from £16.20
                                                                                    # 034
                                                                                    MPN: 187082
                                                                                    WATER OUTLET PIPE
                                                                                    - Valid from engine Nr. 69105
                                                                                    from £99.10
                                                                                    from £99.10
                                                                                    # 035
                                                                                    MPN: 13000590
                                                                                    SCREW COLLAR
                                                                                    - Valid from car Ass. Nr. 7968
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 035
                                                                                    MPN: 186680
                                                                                    CLAMP
                                                                                    - Valid till car Ass. Nr. 7967
                                                                                    from £0.86
                                                                                    from £0.86
                                                                                    # 036
                                                                                    MPN: 186680
                                                                                    CLAMP
                                                                                    from £0.86
                                                                                    from £0.86
                                                                                    # 037
                                                                                    MPN: 183126
                                                                                    CLAMP
                                                                                    from £0.87
                                                                                    from £0.87
                                                                                    # 038
                                                                                    MPN: 66069000
                                                                                    COMPLETE RIGID PIPE TO HEATER
                                                                                    from £29.39
                                                                                    from £29.39
                                                                                    # 039
                                                                                    MPN: 12575421
                                                                                    NUT
                                                                                    Supersession
                                                                                    Supersession
                                                                                    This part replaces part number 12575411
                                                                                    # 040
                                                                                    MPN: 385500371
                                                                                    GASKET
                                                                                    from £1.08
                                                                                    from £1.08
                                                                                    # 041
                                                                                    MPN: 178053
                                                                                    CLAMP
                                                                                    - (Quantity 4 for cars with engine till Nr. 69104)
                                                                                    from £0.97
                                                                                    from £0.97
                                                                                    # 042
                                                                                    MPN: 188067
                                                                                    WATER ENTRY COVER
                                                                                    from £199.32
                                                                                    from £199.32
                                                                                    # 043
                                                                                    MPN: 111628
                                                                                    THREADED UNION
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 044
                                                                                    MPN: 154191
                                                                                    GASKET
                                                                                    from £0.79
                                                                                    from £0.79
                                                                                    # 045
                                                                                    MPN: 14306024
                                                                                    SCREW
                                                                                    from £1.31
                                                                                    from £1.31
                                                                                    This part replaces part number 14306034 which we have in stock
                                                                                    # 046
                                                                                    MPN: 14432224
                                                                                    SCREW
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    # 047
                                                                                    MPN: 11197774
                                                                                    WASHER
                                                                                    from £0.54
                                                                                    from £0.54
                                                                                    # 048
                                                                                    MPN: 192650
                                                                                    CLIP
                                                                                    from £1.08
                                                                                    from £1.08
                                                                                    # 049
                                                                                    MPN: 107394
                                                                                    3-WAY UNION
                                                                                    - Valid till car Ass. Nr. 7967
                                                                                    from £20.45
                                                                                    from £20.45
                                                                                    # 050
                                                                                    MPN: 186586
                                                                                    SLEEVE
                                                                                    - Valid till car Ass. Nr. 7967
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 051
                                                                                    MPN: 186653
                                                                                    RUBBER HOSE
                                                                                    - Valid till car Ass. Nr. 7967
                                                                                    from £12.74
                                                                                    from £12.74
                                                                                    # 052
                                                                                    MPN: 183126
                                                                                    CLAMP
                                                                                    - Valid till car Ass. Nr. 7967
                                                                                    from £0.86
                                                                                    from £0.86
                                                                                    # 053
                                                                                    MPN: 186680
                                                                                    CLAMP
                                                                                    - Valid till car Ass. Nr. 7967
                                                                                    from £0.86
                                                                                    from £0.86
                                                                                    # 054
                                                                                    MPN: 186654
                                                                                    RUBBER HOSE
                                                                                    - Valid till car Ass. Nr. 7967
                                                                                    from £15.67
                                                                                    from £15.67
                                                                                    # 055
                                                                                    MPN: 185579
                                                                                    RUBBER HOSE
                                                                                    - Valid till engine Nr. 69104
                                                                                    from £6.74
                                                                                    from £6.74
                                                                                    # 056
                                                                                    MPN: 185578
                                                                                    RUBBER HOSE
                                                                                    - Valid till engine Nr. 69104
                                                                                    from £12.94
                                                                                    from £12.94
                                                                                    # 057
                                                                                    MPN: 13000490
                                                                                    SCREW COLLAR
                                                                                    - Valid till engine Nr. 69104
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 13127870 - and 1 more. Click to view details
                                                                                    # 058
                                                                                    MPN: 185582
                                                                                    SLEEVE
                                                                                    - Valid till engine Nr. 69104
                                                                                    from £7.55
                                                                                    from £7.55
                                                                                    # 059
                                                                                    MPN: 183126
                                                                                    CLAMP
                                                                                    - Valid till engine Nr. 69104
                                                                                    from £0.87
                                                                                    from £0.87
                                                                                    # 059
                                                                                    MPN: 186680
                                                                                    CLAMP
                                                                                    - Valid from engine Nr. 69105
                                                                                    from £0.86
                                                                                    from £0.86
                                                                                    # 060
                                                                                    MPN: 137873
                                                                                    GASKET
                                                                                    from £2.95
                                                                                    from £2.95
