![maserati 4200 coupe (2002) clutch and controls -valid for f1 parts diagram](/img/ixAAAETdFtt3_lItZcgZiKColiEahQaJzse59Osi0XhU8EgbWwM%3D/maserati-4200-coupe-(2002)-part-diagram-023.webp)

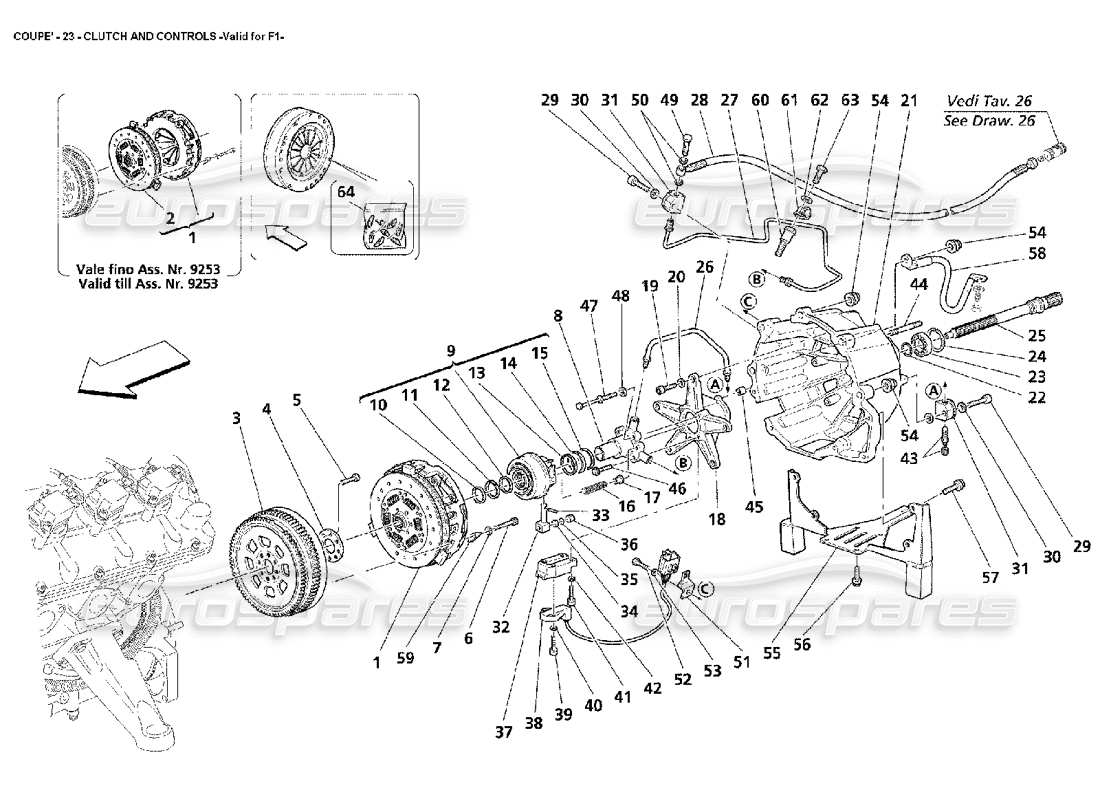

023 - Clutch and Controls -Valid for F1
Maserati 4200 Coupe (2002) Clutch and Controls -Valid for F1 Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 196335
COMPLETE CLUTCH
from £1,097.54
from £1,097.54
# 002
MPN: 191998
CLUTCH DOUBLE DISC
- Valid till car Ass. Nr. 9253
from £785.43
from £785.43
# 003
MPN: 230426
FLYWHEEL
from £408.30
from £408.30
This part replaces part number 185983
# 004
MPN: 103876
FLYWHEEL FIXING WASHER
from £2.82
from £2.82
# 005
MPN: 103875
SCREW
Supersession
Supersession
# 006
MPN: 185206
SCREW
from £1.17
from £1.17
# 007
MPN: 11194377
WASHER
from £0.71
from £0.71
# 008
MPN: 182952
BEARING SUPPORTING FLANGE
from £360.75
from £360.75
# 009
MPN: 234953
CLUTCH BEARING WITH SEALS
Valid for F1 Cars only
from £495.00
from £495.00
This part replaces part number 190771 - and 2 more. Click to view details
# 010
MPN: 181837
SCRAPER RING
from £13.14
from £13.14
# 011
MPN: 170416
RING
(replaces: 181839)
from £1.23
from £1.23
This part replaces part number 181839
# 011
MPN: 181839
RING
not as spare part - use part number: 170416
Supersession
Supersession
# 012
MPN: 181838
SEAL RING
from £12.32
from £12.32
# 013
MPN: 181828
SEAL RING
from £15.35
from £15.35
# 014
MPN: 154507
RING
(replaces: 181829)
from £2.01
from £2.01
This part replaces part number 170419 which we have in stock - and 1 more. Click to view details
# 014
MPN: 181829
RING
not as spare part - use part number 154507
from £4.08
from £4.08
THROW OUT BEARING SEALS F Genuine Maserati Part - New (other) In stock
not as spare part - use part number 154507
not as spare part - use part number 154507
# 015
MPN: 181836
SCRAPER RING
from £14.44
from £14.44
# 016
MPN: 155207
PRELOAD SPRING
from £2.27
from £2.27
# 017
MPN: 155206
SPACER FOR SPRING
from £1.75
from £1.75
# 018
MPN: 184970
CLUTCH CONTROL FLANGE SUPPORT
from £311.44
from £311.44
# 019
MPN: 14305334
SCREW
from £0.47
from £0.47
# 020
MPN: 12604274
WASHER
from £0.47
from £0.47
# 021
MPN: 184763
CLUTCH HOUSING
from £1,044.75
from £1,044.75
# 022
MPN: 144511
STOP RING
from £1.56
from £1.56
# 023
MPN: 174470
BEARING
from £28.82
from £28.82
# 024
MPN: 182963
STOP RING
from £1.74
from £1.74
# 025
MPN: 182587
CLUTCH SHAFT
from £217.69
from £217.69
# 026
MPN: 182584
CLUTCH OIL BLEED PIPE
from £16.40
from £16.40
# 027
MPN: 182583
CLUTCH OIL DELIVERY TUBE
from £29.28
from £29.28
# 028
MPN: 186355
CLUTCH OIL PIPE
from £326.86
from £326.86
# 029
MPN: 14305434
SCREW
from £0.47
from £0.47
# 030
MPN: 12604274
WASHER
from £0.47
from £0.47
# 031
MPN: 139471
TWO-WAY UNION
from £12.68
from £12.68
# 032
MPN: 166676
PIN
from £18.40
from £18.40
# 033
MPN: 14158570
FLEXIBLE PIN
from £0.47
from £0.47
# 034
MPN: 165676
MAGNET
from £34.37
from £34.37
# 035
MPN: 165658
O.R. GASKET
from £4.13
from £4.13
# 036
MPN: 167802
PLUG
from £22.08
from £22.08
# 037
MPN: 184900
F1 SENSOR SUPPORT
from £154.21
from £154.21
# 038
MPN: 179658
COMPLETE F1 SENSORS KIT
from £177.97
from £177.97
This part replaces part number 179782
# 039
MPN: 14303324
SCREW
from £0.53
from £0.53
# 040
MPN: 10519224
WASHER
from £0.47
from £0.47
# 041
MPN: 14304424
SCREW
from £0.53
from £0.53
# 042
MPN: 10519378
WASHER
from £0.47
from £0.47
# 043
MPN: 121699
BLEEDER SCREW
from £11.76
from £11.76
# 044
MPN: 13546334
STUD
from £0.62
from £0.62
# 045
MPN: 102725
CENTERING DOWEL
from £0.66
from £0.66
# 046
MPN: 16286224
SCREW
from £1.33
from £1.33
# 047
MPN: 182955
STUD FOR END OF STROKE
from £16.33
from £16.33
# 048
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601270
# 049
MPN: 171454
UNION
from £27.04
from £27.04
# 050
MPN: 10261060
GASKET
from £0.53
from £0.53
This part replaces part number 274036
# 051
MPN: 170925
CONNECTOR FIXING BRACKET
from £1.83
from £1.83
# 052
MPN: 10979414
SCREW
from £0.47
from £0.47
# 053
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601270
# 054
MPN: 156462
NUT
Supersession
Supersession
# 055
MPN: 187799
EXHAUST FRONT SUPPORT
- Not for USA, CDN, J, AUS and cars GB opt. japan version
from £79.85
from £79.85
# 055
MPN: 191399
EXHAUST FRONT SUPPORT
- Valid for USA, CDN, J, AUS and cars GB opt. japan version
from £78.48
from £78.48
# 056
MPN: 11730624
SCREW
from £0.47
from £0.47
# 057
MPN: 16288121
SCREW
from £2.50
from £2.50
# 057
MPN: 16297721
SCREW
from £1.87
from £1.87
# 058
MPN: 182225
CABLE FOR ENGINE-FRAME EARTH
from £12.15
from £12.15
# 059
MPN: 191329
BALANCING MASS
- Grams 1 - As necessary
from £25.43
from £25.43
# 059
MPN: 191330
BALANCING MASS
- Grams 2 - As necessary
from £23.10
from £23.10
# 059
MPN: 191331
BALANCING MASS
- Grams 4 - As necessary
from £30.40
from £30.40
# 059
MPN: 191333
BALANCING MASS
- Grams 5 - As necessary
from £8.10
from £8.10
# 059
MPN: 191334
BALANCING MASS
- Grams 6 - As necessary
from £16.01
from £16.01
# 059
MPN: 191335
BALANCING MASS
- Grams 7 - As necessary
from £19.97
from £19.97
# 059
MPN: 191336
BALANCING MASS
- Grams 8 - As necessary
from £46.90
from £46.90
# 059
MPN: 191337
BALANCING MASS
- Grams 9 - As necessary
from £37.08
from £37.08
# 059
MPN: 191338
BALANCING MASS
- Grams 10 - As necessary
from £41.58
from £41.58
# 059
MPN: 191339
BALANCING MASS
- Grams 11 - As necessary
from £8.95
from £8.95
# 059
MPN: 191340
BALANCING MASS
- Grams 12 - As necessary
from £41.58
from £41.58
# 059
MPN: 191341
BALANCING MASS
- Grams 13 - As necessary
from £9.37
from £9.37
# 059
MPN: 191342
BALANCING MASS
- Grams 14 - As necessary
from £97.56
from £97.56
# 059
MPN: 191343
BALANCING MASS
- Grams 15 - As necessary
from £9.37
from £9.37
# 059
MPN: 191344
BALANCING MASS
- Grams 16 - As necessary
from £91.23
from £91.23
# 059
MPN: 191345
BALANCING MASS
- Grams 17 - As necessary
from £10.93
from £10.93
# 059
MPN: 191346
BALANCING MASS
- Grams 18 - As necessary
from £10.93
from £10.93
# 059
MPN: 191347
BALANCING MASS
- Grams 19 - As necessary
from £8.95
from £8.95
# 059
MPN: 191395
BALANCING MASS
- Grams 20 - As necessary
from £91.23
from £91.23
# 060
MPN: 190876
STUD
from £14.31
from £14.31
This part replaces part number 585412900
# 061
MPN: 10441190
BRACKET WITH SHEATH
from £0.47
from £0.47
# 062
MPN: 127494
WASHER
from £0.54
from £0.54
# 063
MPN: 10979414
SCREW
from £0.47
from £0.47
# 064
MPN: 980001166
CLUTCH BALANCING KIT
from £966.00
from £966.00
