024 - Pedals and Electronic Accelerator Control -Not for GD

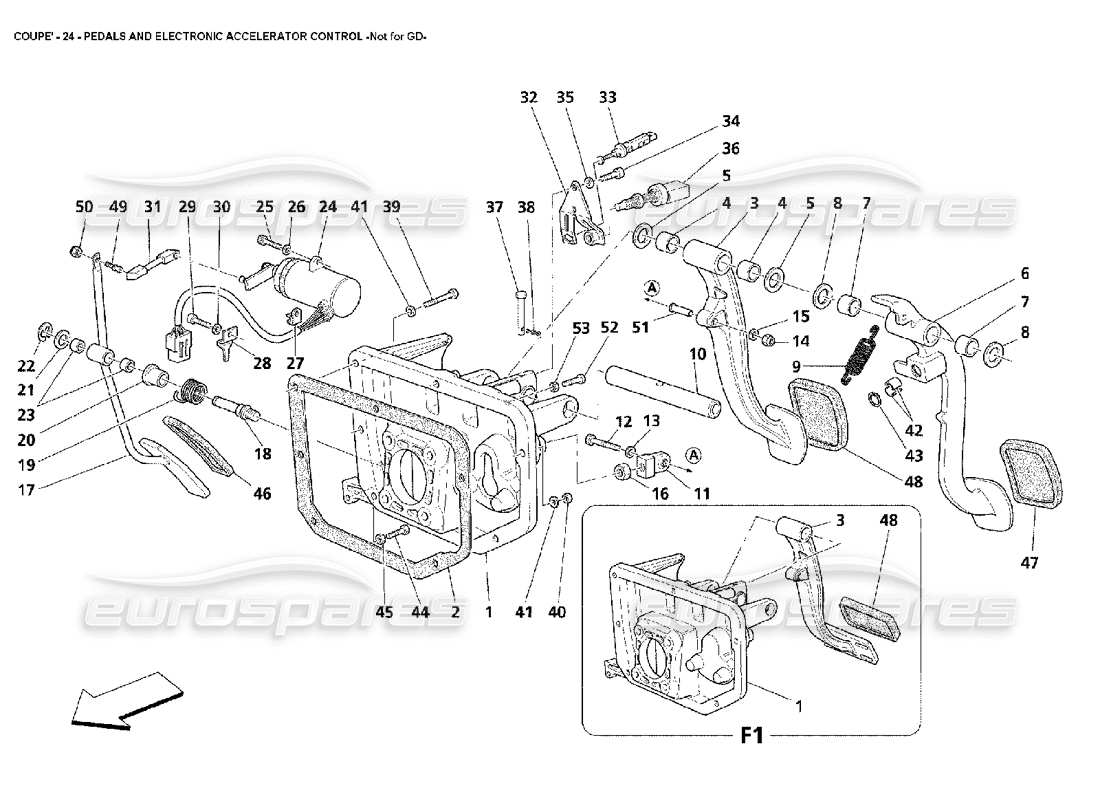

Maserati 4200 Coupe (2002) Pedals and Electronic Accelerator Control -Not for GD Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 183743
PEDAL SUPPORT
- Not for F1
from £1,864.34
from £1,864.34
# 001
MPN: 185180
PEDAL SUPPORT
- Valid for F1
from £114.48
from £114.48
# 002
MPN: 378400348
SUPPORT GASKET
from £9.74
from £9.74
# 003
MPN: 186859
BRAKE PEDAL
- Not for F1
from £144.89
from £144.89
# 003
MPN: 186861
BRAKE PEDAL
- Valid for F1
from £79.69
from £79.69
# 004
MPN: 318420320
BUSHING
from £9.74
from £9.74
# 005
MPN: 368402321
SPACER WASHER
from £1.09
from £1.09
# 006
MPN: 186862
CLUTCH PEDAL
- Not for F1
from £156.51
from £156.51
# 007
MPN: 318420320
BUSHING
- Not for F1
from £9.74
from £9.74
# 008
MPN: 368402321
SPACER WASHER
- Not for F1
from £1.09
from £1.09
# 009
MPN: 101305
RETUTN SPRING FOR PEDAL
- Not for F1
from £8.21
from £8.21
# 010
MPN: 388400329
PEDALS SUPPORT PIN
from £38.41
from £38.41
# 011
MPN: 184749
SERVOBRAKE PIN
from £50.97
from £50.97
# 012
MPN: 16044421
SCREW
from £1.32
from £1.32
# 013
MPN: 12654421
WASHER
from £1.09
from £1.09
# 014
MPN: 147985
NUT
from £0.47
from £0.47
# 015
MPN: 14499401
WASHER
from £0.47
from £0.47
# 016
MPN: 16102324
NUT
from £1.64
from £1.64
This part replaces part number 16102311 which we have in stock
# 017
MPN: 192592
Accelerator Pedal
from £400.37
from £400.37
This part replaces part number 186863
# 018
MPN: 186666
ACCELERATOR PEDAL PIN
from £51.05
from £51.05
# 019
MPN: 388400364
RETUTN SPRING FOR PEDAL
from £32.86
from £32.86
# 020
MPN: 388400407
BUSHING
from £26.32
from £26.32
# 021
MPN: 388400346
WASHER
from £3.19
from £3.19
# 022
MPN: 11088076
FLEXIBLE RING
from £0.47
from £0.47
# 023
MPN: 318420334
BUSHING
from £1.56
from £1.56
# 024
MPN: 183656
ACCELERATOR PEDAL POTENTIOMETER
from £87.17
from £87.17
# 025
MPN: 14432221
SCREW
- Not for F1
from £0.47
from £0.47
# 025
MPN: 14433121
SCREW
- Valid for F1
from £1.19
from £1.19
# 026
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601270
# 027
MPN: 383000318
Retaining Clip
from £1.09
from £1.09
# 028
MPN: 383000315
PLATE
from £4.59
from £4.59
# 029
MPN: 14305121
SCREW
from £0.47
from £0.47
# 030
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601270
# 031
MPN: 82476740
ACCELERATOR PEDALTIE ROD
from £34.08
from £34.08
# 032
MPN: 194452
SWITCH SUPPORT BRACKET
from £36.27
from £36.27
This part replaces part number 186667 - and 1 more. Click to view details
# 033
MPN: 334064
BRAKE PEDAL SWITCH
from £15.86
from £15.86
This part replaces part number 183433
# 034
MPN: 14305121
SCREW
from £0.47
from £0.47
# 035
MPN: 127494
WASHER
from £0.53
from £0.53
# 036
MPN: 133555
BRAKE PEDAL SWITCH
- Not for F1
from £18.92
from £18.92
# 037
MPN: 186665
PEDALS FIXING PIN
from £63.74
from £63.74
# 038
MPN: 58841309
SAFETY CLIP
from £2.02
from £2.02
This part replaces part number 670000498 - and 2 more. Click to view details
# 039
MPN: 16044124
SCREW
from £0.47
from £0.47
# 040
MPN: 16104421
NUT
from £0.81
from £0.81
# 041
MPN: 14496521
WASHER
from £0.49
from £0.49
# 042
MPN: 186664
BUSHING FOR PIN FIXING
- Not for F1
from £131.78
from £131.78
# 043
MPN: 11057876
SEEGER RING
- Not for F1
from £0.47
from £0.47
# 044
MPN: 10902224
SCREW FOR END OF STROKE
- Valid for F1
from £0.53
from £0.53
# 044
MPN: 10902624
SCREW FOR END OF STROKE
- Not for F1
from £0.47
from £0.47
This part replaces part number 10902621
# 045
MPN: 15896221
NUT
from £0.71
from £0.71
# 046
MPN: 318420301
ACCELERATOR PEDAL COVER
from £1.53
from £1.53
# 047
MPN: 191496
CLUTCH PEDAL COVER
- Not for F1
Supersession
Supersession
# 048
MPN: 191496
BRAKE PEDAL COVER
- Not for F1
Supersession
Supersession
# 048
MPN: 318432300
BRAKE PEDAL COVER
- Valid for F1
from £2.43
from £2.43
# 049
MPN: 318420305
BALL PIN
Supersession
Supersession
# 050
MPN: 14075611
NUT
from £1.32
from £1.32
# 051
MPN: 189472
BUSHING
from £81.44
from £81.44
# 052
MPN: 187014
CLUTCH PEDAL ADJUSTEMENT PIN
- Not for F1
from £24.01
from £24.01
# 053
MPN: 16102314
NUT
- Not for F1
from £0.47
from £0.47
