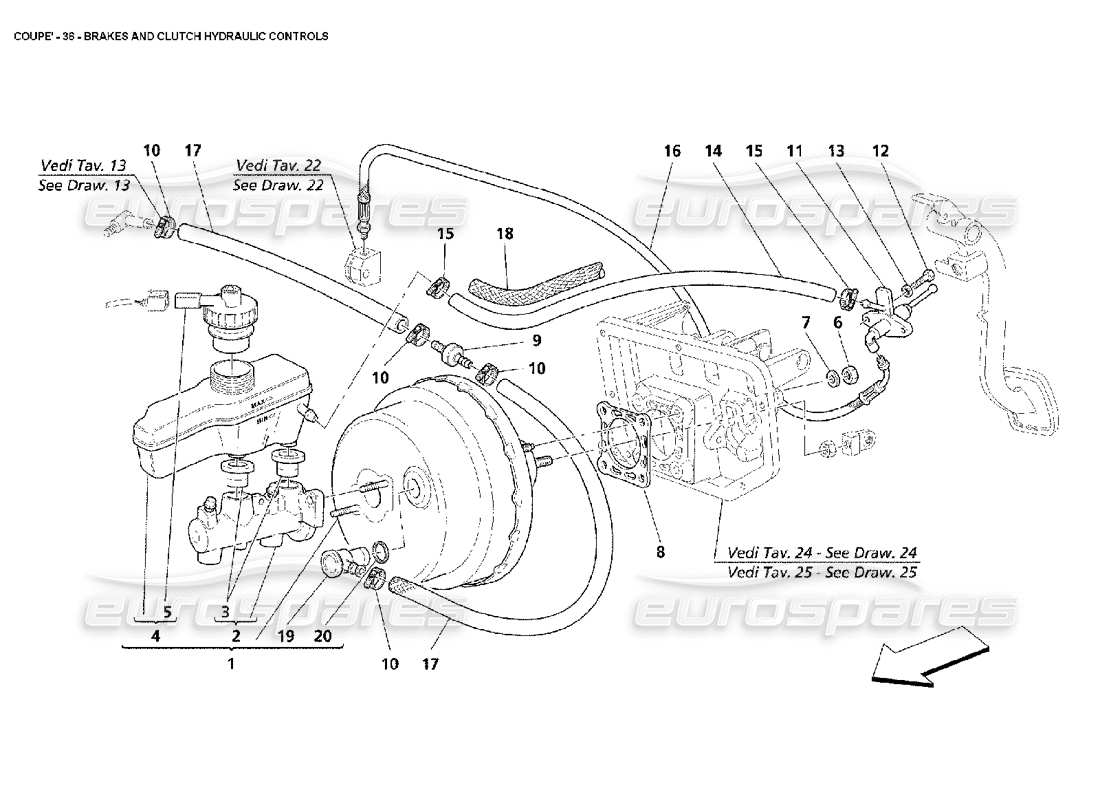

036 - Brakes and Clutch Hydraulic Controls
Maserati 4200 Coupe (2002) Brakes and Clutch Hydraulic Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 184744
COMPLETE BRAKE BOOSTER
from £336.95
from £336.95
This part replaces part number 185156
# 002
MPN: 171782
BRAKE PUMP
from £338.98
from £338.98
# 003
MPN: 171784
RUBBER BUSHING
from £5.08
from £5.08
# 004
MPN: 171783
OIL BRAKE TANK
from £50.45
from £50.45
# 005
MPN: 153592
PLUG
from £25.10
from £25.10
# 006
MPN: 16104421
NUT
from £0.81
from £0.81
# 007
MPN: 12601374
WASHER
from £0.54
from £0.54
# 008
MPN: 367402309
GASKET
from £1.55
from £1.55
# 009
MPN: 193186
DEPRESSION VALVE
from £6.99
from £6.99
# 010
MPN: 13000390
SCREW COLLAR
from £0.51
from £0.51
This part replaces part number 13121170 - and 1 more. Click to view details
# 011
MPN: 184753
Clutch Pump
- Not for F1
from £237.50
from £237.50
# 012
MPN: 16043621
SCREW
- Not for F1
from £1.08
from £1.08
# 013
MPN: 12601374
WASHER
- Not for F1
from £0.54
from £0.54
# 014
MPN: 19073289
BRAKE LIQUID PIPE
- Not for F1 - Valid for GD
from £66.72
from £66.72
# 014
MPN: 19073389
BRAKE LIQUID PIPE
- Not for F1 - Not for GD
from £2.59
from £2.59
# 015
MPN: 13000190
SCREW COLLAR
- Not for F1
from £0.53
from £0.53
# 016
MPN: 181769
CLUTCH CONTROL TUBE
- Not for F1 - Not for GD
from £259.82
from £259.82
# 016
MPN: 189061
CLUTCH CONTROL TUBE
- Not for F1 - Valid for GD
from £44.47
from £44.47
# 017
MPN: 302220611
RUBBER HOSE
- Supplied in meters - (Minimum quantity 1m. or multiples)
from £21.75
from £21.75
This part replaces part number 192978
# 018
MPN: 191839
PIPE PROTECTION
- Not for F1
Supersession
Supersession
# 019
MPN: 387401170
UNION
from £3.71
from £3.71
# 020
MPN: 387400304
RUBBER
from £2.31
from £2.31
