038 - Braking System -Valid for GD

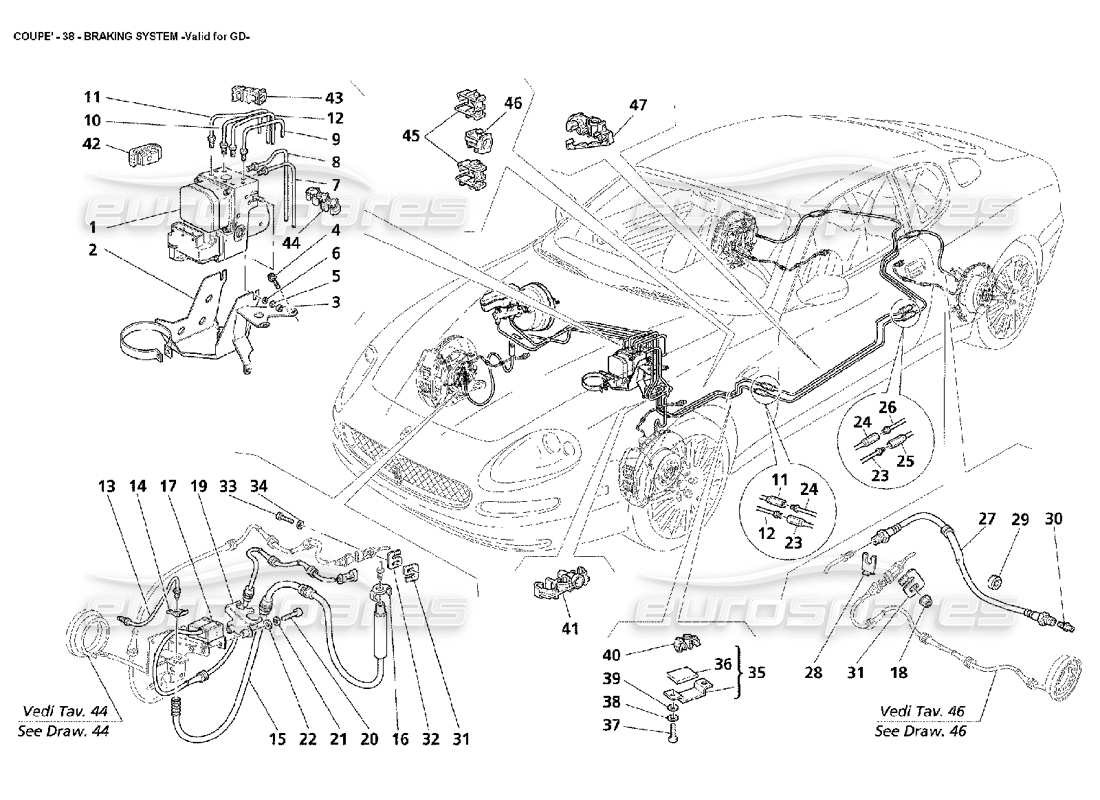

Maserati 4200 Coupe (2002) Braking System -Valid for GD Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 184827
hydraulic unit
Supersession
Supersession
# 002
MPN: 186860
CONTROL UNIT FIXING BRACKET
from £27.52
from £27.52
# 003
MPN: 16100814
NUT
from £0.71
from £0.71
# 004
MPN: 11730624
SCREW
from £0.47
from £0.47
# 005
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 384600330
# 006
MPN: 12638524
WASHER
from £0.47
from £0.47
# 007
MPN: 387400143
BRAKE PIPE FROM ABS CENTER UNIT TO LH FRONT FLEXIBLE PIPE
from £4.05
from £4.05
# 008
MPN: 190155
RH FRONT BRAKE PIPE
from £9.45
from £9.45
# 009
MPN: 189060
FRONT BRAKE PIPE FROM PUMP TO UNIT
from £30.77
from £30.77
# 010
MPN: 189059
REAR BRAKE PIPE FROM PUMP TO UNIT
from £32.25
from £32.25
# 011
MPN: 184180
RH REAR BRAKE PIPE
from £10.16
from £10.16
# 012
MPN: 184178
LH REAR BRAKE PIPE
from £9.94
from £9.94
# 013
MPN: 185954
RH FRONT CALIPER RIGID PIPE
from £14.85
from £14.85
# 013
MPN: 185955
LH FRONT CALIPER RIGID PIPE
from £16.77
from £16.77
# 014
MPN: 181897
CLIP
from £1.09
from £1.09
This part replaces part number 252814
# 015
MPN: 185956
BRAKE FLEXIBLE PIPE TO FRONT CALIPERS
from £99.83
from £99.83
# 016
MPN: 228185
CLIP
from £2.88
from £2.88
This part replaces part number 387400301
# 017
MPN: 232160
VERTICAL ACCELERATION SENSOR
- Optional - Sport version
from £125.61
from £125.61
This part replaces part number 183580
# 018
MPN: 14084111
NUT
from £0.47
from £0.47
# 019
MPN: 185792
RH BRAKE PIPE SUPPORT BRACKET
from £6.46
from £6.46
# 019
MPN: 185793
LH BRAKE PIPE SUPPORT BRACKET
from £6.86
from £6.86
# 020
MPN: 14305324
SCREW
from £0.47
from £0.47
This part replaces part number 14305321
# 021
MPN: 12604274
WASHER
from £0.47
from £0.47
# 022
MPN: 14496424
WASHER
Supersession
Supersession
This part replaces part number 14496421
# 023
MPN: 187477
LH REAR CALIPER INTERMEDIATE BRAKE PIPE
Supersession
Supersession
# 024
MPN: 187478
RH REAR CALIPER INTERMEDIATE BRAKE PIPE
Supersession
Supersession
# 025
MPN: 190512
LH REAR CALIPER RIGID PIPE
Supersession
Supersession
# 026
MPN: 190513
RH REAR CALIPER RIGID PIPE
Supersession
Supersession
# 027
MPN: 387401155
BRAKE FLEXIBLE PIPE TO REAR CALIPERS
from £153.83
from £153.83
This part replaces part number 387400155
# 028
MPN: 181897
CLIP
from £1.09
from £1.09
This part replaces part number 252814
# 029
MPN: 327456313
SPACER RING
from £1.09
from £1.09
# 030
MPN: 387400330
UNION
from £17.29
from £17.29
This part replaces part number 387400333
# 031
MPN: 162606
CLIP
from £0.76
from £0.76
# 032
MPN: 156198
CLIP
from £8.53
from £8.53
# 033
MPN: 10977687
SCREW
from £0.47
from £0.47
# 034
MPN: 12638177
WASHER
from £1.09
from £1.09
# 035
MPN: 187464
PIPES PROTECTION BRACKET
- Not for USA and CDN
from £8.27
from £8.27
This part replaces part number 387400102
# 035
MPN: 193617
PIPES PROTECTION BRACKET
- Valid for USA and CDN
from £127.58
from £127.58
# 036
MPN: 387400402
GASKET
from £1.56
from £1.56
# 037
MPN: 10977824
SCREW
from £1.03
from £1.03
This part replaces part number 16130321 which we have in stock
# 038
MPN: 11181574
WASHER
from £0.54
from £0.54
# 039
MPN: 14447025
WASHER
from £1.40
from £1.40
# 040
MPN: 379200408
CLIP
from £1.09
from £1.09
# 041
MPN: 188335
CLIP
from £0.83
from £0.83
# 042
MPN: 169476
CLIP
- (Quantity defined during at assembly)
from £1.51
from £1.51
# 043
MPN: 377430340
BLOCK
- (Quantity defined during at assembly)
from £0.70
from £0.70
# 044
MPN: 377419334
CLIP
- (Quantity defined during at assembly)
from £1.56
from £1.56
# 045
MPN: 377400341
BLOCK
- (Quantity defined during at assembly)
from £1.09
from £1.09
# 046
MPN: 155781
ANCHORAGE FOR CLIP
- (Quantity defined during at assembly)
from £0.47
from £0.47
# 047
MPN: 190409
CLIP
- (Quantity defined during at assembly)
from £3.27
from £3.27
