maserati 4200 coupe (2002) hand-brake control parts diagram

040 - Hand-Brake Control

Maserati 4200 Coupe (2002) Hand-Brake Control Parts Diagram

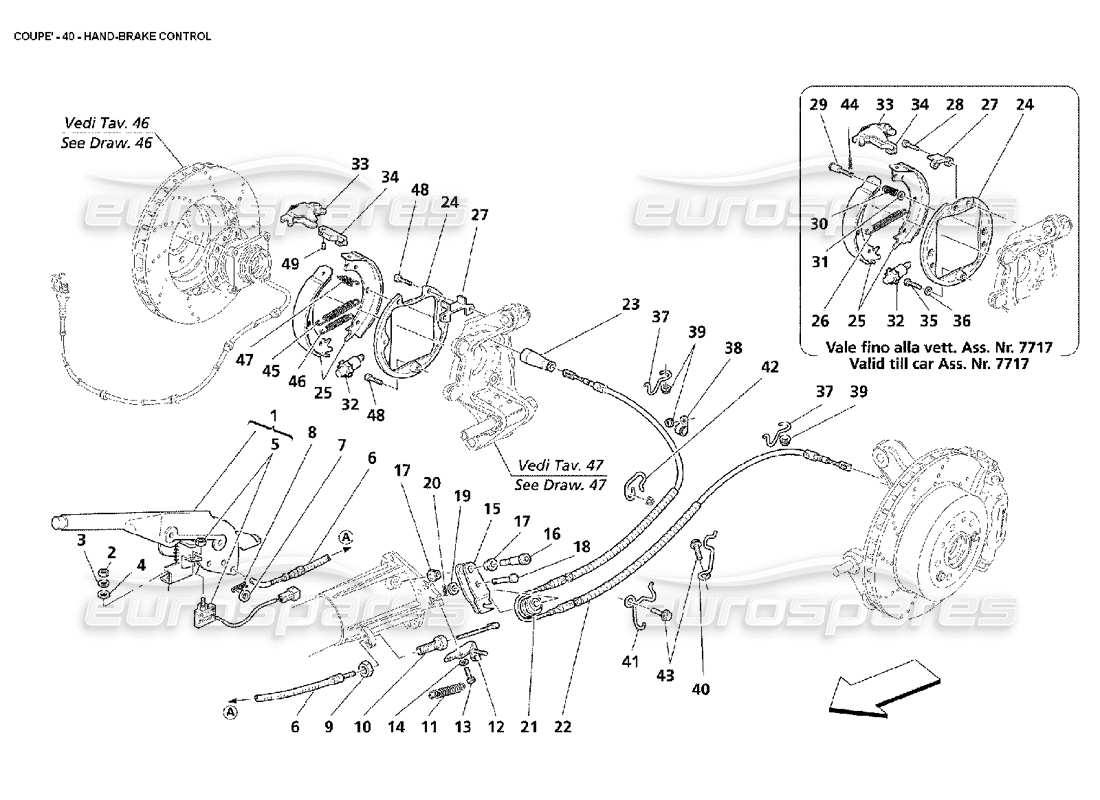

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 188591
                                                      HAND BRAKE LEVER
                                                      from £118.43
                                                      from £118.43
                                                      # 002
                                                      MPN: 16104421
                                                      NUT
                                                      from £0.81
                                                      from £0.81
                                                      # 003
                                                      MPN: 14496521
                                                      WASHER
                                                      from £0.53
                                                      from £0.53
                                                      # 004
                                                      MPN: 12628924
                                                      WASHER
                                                      from £1.85
                                                      from £1.85
                                                      # 005
                                                      MPN: 383300157
                                                      MICRO-SWITCH
                                                      from £24.66
                                                      from £24.66
                                                      This part replaces part number 980000944
                                                      # 006
                                                      MPN: 185279
                                                      FRONT CABLE
                                                      - Not for USA and CDN - Valid till car Ass. Nr. 7463 - Valid till stock exhaustion - After stock exhaustion replaced by 193301
                                                      Supersession
                                                      Supersession
                                                      # 006
                                                      MPN: 193301
                                                      FRONT CABLE
                                                      - Valid for USA and CDN - From car Ass. Nr. 7464 valid for all versions
                                                      from £59.54
                                                      from £59.54
                                                      This part replaces part number 185279
                                                      # 007
                                                      MPN: 12642701
                                                      WASHER
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 12642724
                                                      # 008
                                                      MPN: 10766301
                                                      SPLIT PIN
                                                      from £0.47
                                                      from £0.47
                                                      # 009
                                                      MPN: 10726824
                                                      NUT
                                                      from £3.16
                                                      from £3.16
                                                      # 010
                                                      MPN: 185282
                                                      CABLE TIGHTENER
                                                      from £11.81
                                                      from £11.81
                                                      # 012
                                                      MPN: 186208
                                                      BRACKET FOR SPRING
                                                      from £8.16
                                                      from £8.16
                                                      # 013
                                                      MPN: 10902024
                                                      SCREW
                                                      from £0.47
                                                      from £0.47
                                                      # 014
                                                      MPN: 11199674
                                                      WASHER
                                                      from £0.53
                                                      from £0.53
                                                      # 015
                                                      MPN: 188588
                                                      BRAKE TRANSMISSION LEVER
                                                      from £14.69
                                                      from £14.69
                                                      # 016
                                                      MPN: 185278
                                                      TRANSMISSION LEVER PIN
                                                      from £14.69
                                                      from £14.69
                                                      # 020
                                                      MPN: 10734301
                                                      SPLIT PIN
                                                      from £0.47
                                                      from £0.47
                                                      # 021
                                                      MPN: 188587
                                                      CABLE TRANSMISSION PULLEY
                                                      from £10.92
                                                      from £10.92
                                                      # 022
                                                      MPN: 186867
                                                      REAR CABLE
                                                      - Not for USA and CDN - Valid till car Ass. Nr. 7463 - Valid till stock exhaustion - After stock exhaustion replaced by 194875
                                                      Supersession
                                                      Supersession
                                                      # 022
                                                      MPN: 193303
                                                      REAR CABLE
                                                      - Valid for USA and CDN - From car Ass. Nr. 7464 valid for all versions - Valid till car Ass. Nr. 7717 - Valid till stock exhaustion - After stock exhaustion replaced by 194875
                                                      from £72.40
                                                      from £72.40
                                                      # 022
                                                      MPN: 194875
                                                      REAR CABLE
                                                      from £69.15
                                                      from £69.15
                                                      This part replaces part number 186867
                                                      # 023
                                                      MPN: 143938
                                                      CABLE SHEATH
                                                      from £16.23
                                                      from £16.23
                                                      This part replaces part number 388000341
                                                      # 024
                                                      MPN: 186574
                                                      SHOES SUPPORT SPACER
                                                      - Valid from car Ass. Nr. 7718
                                                      from £43.14
                                                      from £43.14
                                                      # 024
                                                      MPN: 388000348
                                                      SHOES SUPPORT SPACER
                                                      - Valid till car Ass. Nr. 7717
                                                      from £26.86
                                                      from £26.86
                                                      # 025
                                                      -
                                                      COMPLETE BRAKE SHOE SET
                                                      # 025
                                                      MPN: 248418
                                                      HAND BRAKE SHOE
                                                      from £95.89
                                                      from £95.89
                                                      This part replaces part number 235894
                                                      # 025
                                                      MPN: 388000111
                                                      HAND BRAKE SHOE (1 PIECE) 4 PIECES REQUIRED
                                                      - Valid till car Ass. Nr. 7717 - USE PART NUMBER 170701
                                                      from £47.70
                                                      from £47.70
                                                      # 026
                                                      MPN: 388001334
                                                      RETUTN SPRING FOR BRAKE SHOES
                                                      - Valid till car Ass. Nr. 7717
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 388000334
                                                      # 027
                                                      MPN: 190814
                                                      SMALL BLOCK
                                                      - Valid from car Ass. Nr. 7718
                                                      from £37.66
                                                      from £37.66
                                                      # 027
                                                      MPN: 388000340
                                                      SMALL BLOCK
                                                      - Valid till car Ass. Nr. 7717
                                                      from £19.77
                                                      from £19.77
                                                      # 028
                                                      MPN: 388000342
                                                      SCREW
                                                      - Valid till car Ass. Nr. 7717
                                                      from £7.70
                                                      from £7.70
                                                      # 029
                                                      MPN: 193312
                                                      PIN FOR SHOES
                                                      - Valid till car Ass. Nr. 7717
                                                      from £25.31
                                                      from £25.31
                                                      # 030
                                                      MPN: 318020337
                                                      SPRING
                                                      - Valid till car Ass. Nr. 7717
                                                      from £0.57
                                                      from £0.57
                                                      # 031
                                                      MPN: 14496521
                                                      WASHER
                                                      - Valid till car Ass. Nr. 7717
                                                      from £0.51
                                                      from £0.51
                                                      # 032
                                                      MPN: 186572
                                                      REGISTER FOR HAND BRAKE
                                                      from £22.61
                                                      from £22.61
                                                      This part replaces part number 388000113
                                                      # 032
                                                      MPN: 186572
                                                      REGISTER FOR HAND BRAKE
                                                      - Valid from car Ass. Nr. 7718
                                                      from £22.61
                                                      from £22.61
                                                      This part replaces part number 388000113
                                                      # 033
                                                      MPN: 190782
                                                      HAND BRAKE CONTROL DEVICE
                                                      - Valid from car Ass. Nr. 7718
                                                      from £24.24
                                                      from £24.24
                                                      This part replaces part number 388001155
                                                      # 033
                                                      MPN: 388001155
                                                      HAND BRAKE CONTROL DEVICE
                                                      - Valid till car Ass. Nr. 7717
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 388000155
                                                      # 034
                                                      MPN: 105270
                                                      FORK
                                                      - Valid from car Ass. Nr. 7718
                                                      from £14.77
                                                      from £14.77
                                                      This part replaces part number 388000364
                                                      # 034
                                                      MPN: 388000364
                                                      FORK
                                                      - Valid till car Ass. Nr. 7717
                                                      Supersession
                                                      Supersession
                                                      # 035
                                                      MPN: 14305121
                                                      SCREW
                                                      - Valid till car Ass. Nr. 7717
                                                      from £0.47
                                                      from £0.47
                                                      # 036
                                                      MPN: 10569279
                                                      WASHER
                                                      - Valid till car Ass. Nr. 7717
                                                      from £0.71
                                                      from £0.71
                                                      # 037
                                                      MPN: 186933
                                                      LH AND RH BRAKE CABLE SPRING
                                                      from £1.40
                                                      from £1.40
                                                      # 038
                                                      MPN: 10441190
                                                      BRACKET WITH SHEATH
                                                      from £0.47
                                                      from £0.47
                                                      # 039
                                                      MPN: 14058411
                                                      NUT
                                                      from £0.47
                                                      from £0.47
                                                      # 040
                                                      MPN: 186934
                                                      BRAKE CABLE SPRING
                                                      from £1.76
                                                      from £1.76
                                                      # 041
                                                      MPN: 186935
                                                      BRAKE CABLE FRONT SPRING
                                                      - Valid for F1
                                                      from £2.18
                                                      from £2.18
                                                      # 042
                                                      MPN: 186936
                                                      BRAKE CABLE REAR SPRING
                                                      - Valid for F1
                                                      from £2.18
                                                      from £2.18
                                                      # 043
                                                      MPN: 11730624
                                                      SCREW
                                                      from £0.53
                                                      from £0.53
                                                      # 044
                                                      MPN: 58841309
                                                      SAFETY CLIP
                                                      - Valid till car Ass. Nr. 7717
                                                      from £1.83
                                                      from £1.83
                                                      This part replaces part number 670000498 - and 2 more. Click to view details
                                                      # 045
                                                      MPN: 190776
                                                      RETUTN SPRING FOR BRAKE SHOES
                                                      - Valid from car Ass. Nr. 7718
                                                      from £9.57
                                                      from £9.57
                                                      # 046
                                                      MPN: 190779
                                                      RETUTN SPRING FOR BRAKE SHOES
                                                      - Valid from car Ass. Nr. 7718
                                                      from £1.86
                                                      from £1.86
                                                      # 047
                                                      MPN: 190780
                                                      SPRING FOR SHOES
                                                      - Valid from car Ass. Nr. 7718
                                                      from £1.71
                                                      from £1.71
                                                      # 048
                                                      MPN: 190870
                                                      SCREW
                                                      - Valid from car Ass. Nr. 7718
                                                      from £1.15
                                                      from £1.15
                                                      This part replaces part number 193737 - and 1 more. Click to view details
                                                      # 049
                                                      MPN: 101282
                                                      PIN
                                                      - Valid from car Ass. Nr. 7718
                                                      from £8.04
                                                      from £8.04
