041 - Front Under Frame and Undermotor Shields

Maserati 4200 Coupe (2002) Front Under Frame and Undermotor Shields Parts Diagram

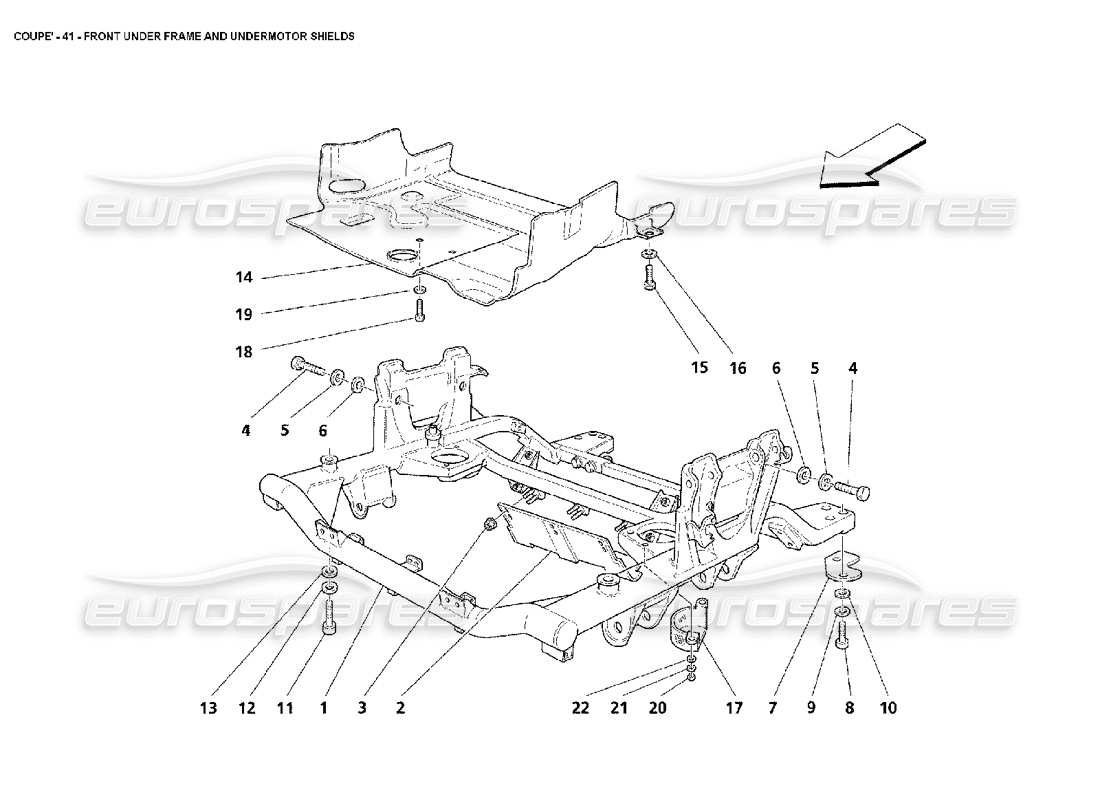

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 001
                                MPN: 67650500
                                FRONT UNDER FRAME
                                from £1,270.92
                                from £1,270.92
                                This part replaces part number 66069200
                                # 002
                                MPN: 184141
                                ANTI-HEAT SHIELD
                                from £22.24
                                from £22.24
                                # 003
                                MPN: 14039614
                                NUT
                                from £0.52
                                from £0.52
                                # 004
                                MPN: 11306924
                                SCREW
                                from £1.31
                                from £1.31
                                # 005
                                MPN: 12620774
                                WASHER
                                from £1.39
                                from £1.39
                                # 006
                                MPN: 12626224
                                WASHER
                                from £0.53
                                from £0.53
                                # 007
                                MPN: 66318700
                                REAR PLATE
                                from £2.01
                                from £2.01
                                # 008
                                MPN: 14422574
                                SCREW
                                from £1.85
                                from £1.85
                                # 009
                                MPN: 11198674
                                WASHER
                                from £1.39
                                from £1.39
                                # 010
                                MPN: 10732531
                                WASHER
                                from £0.47
                                from £0.47
                                # 011
                                MPN: 14422574
                                SCREW
                                from £1.85
                                from £1.85
                                # 012
                                MPN: 10569574
                                WASHER
                                from £0.47
                                from £0.47
                                # 013
                                MPN: 10732531
                                WASHER
                                from £0.47
                                from £0.47
                                # 014
                                MPN: 184842
                                UNDERMOTOR SHIELD
                                - Not for USA and CDN
                                from £63.09
                                from £63.09
                                # 015
                                MPN: 16043324
                                SCREW
                                - Not for USA and CDN
                                from £0.47
                                from £0.47
                                # 016
                                MPN: 14496524
                                WASHER
                                - Not for USA and CDN
                                from £0.47
                                from £0.47
                                # 017
                                MPN: 191790
                                PAD LOWER SHIELD
                                - Valid for USA and CDN
                                from £7.80
                                from £7.80
                                # 018
                                MPN: 16043224
                                SCREW
                                from £0.53
                                from £0.53
                                # 019
                                MPN: 14496524
                                WASHER
                                from £0.47
                                from £0.47
                                # 020
                                MPN: 15896214
                                NUT
                                - Valid for USA and CDN
                                from £0.53
                                from £0.53
                                This part replaces part number 15896211
                                # 021
                                MPN: 13579224
                                WASHER
                                - Valid for USA and CDN
                                from £0.47
                                from £0.47
                                # 022
                                MPN: 12601274
                                WASHER
                                - Valid for USA and CDN
                                from £0.47
                                from £0.47
                                This part replaces part number 12601270
