maserati 4200 coupe (2002) steering box parts diagram

042 - Steering box

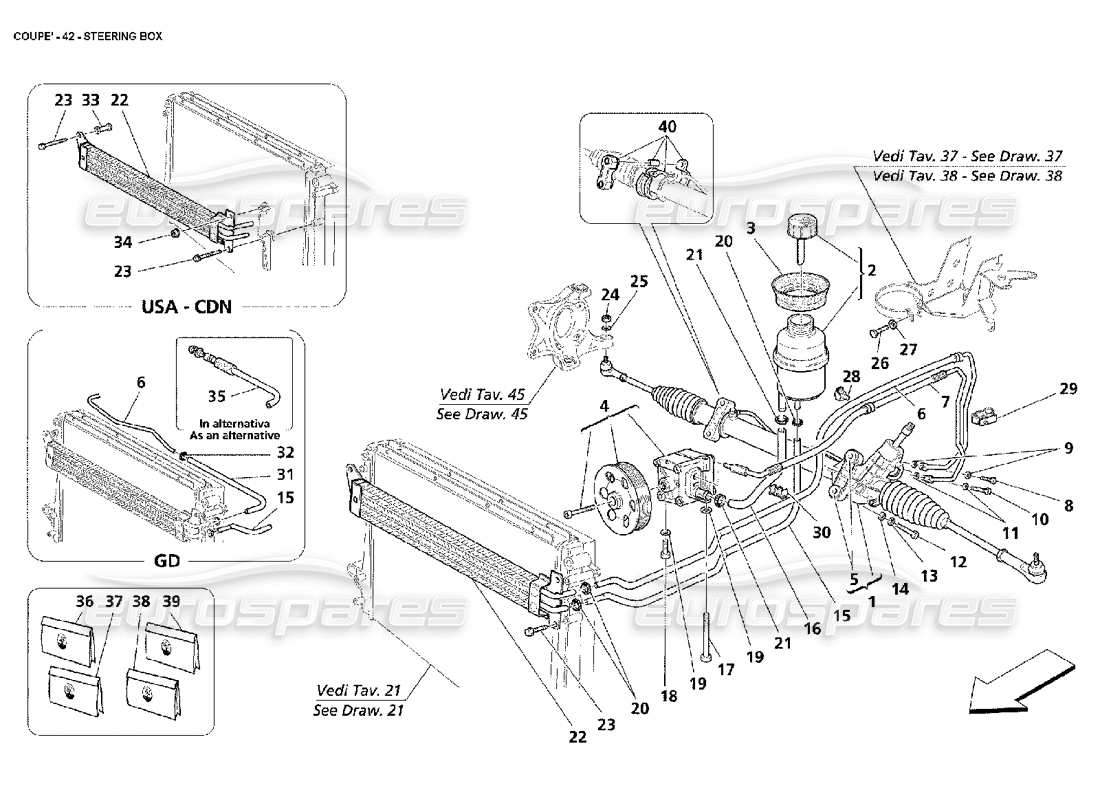

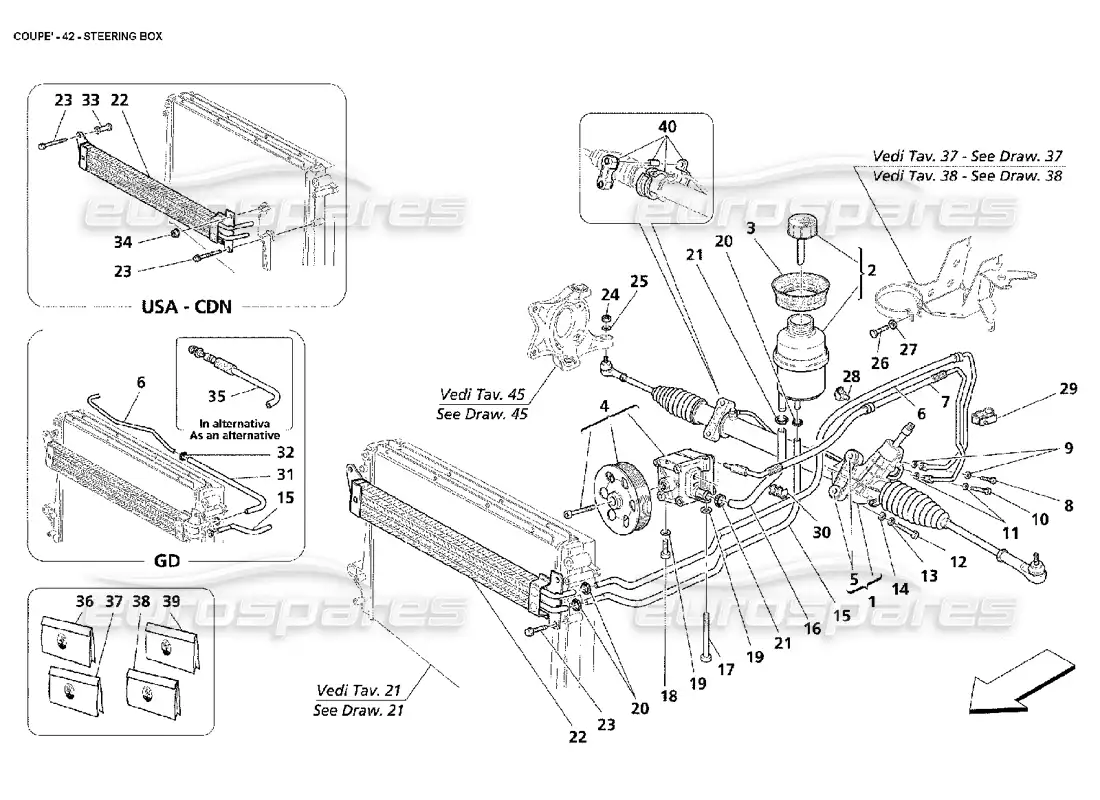

Maserati 4200 Coupe (2002) Steering Box Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 183766
                                                        STEERING BOX WITH POWER STEERING
                                                        - Not for GD
                                                        from £1,021.34
                                                        from £1,021.34
                                                        # 001
                                                        MPN: 183767
                                                        STEERING BOX WITH POWER STEERING
                                                        - Valid for GD
                                                        from £566.03
                                                        from £566.03
                                                        # 002
                                                        MPN: 185820
                                                        COMPLETE OIL TANK FOR SERVOSTEERING
                                                        from £10.45
                                                        from £10.45
                                                        # 004
                                                        MPN: 187920
                                                        COMPLETE HYDRAULIC SERVO-CONTROL PUMP
                                                        from £215.04
                                                        from £215.04
                                                        # 005
                                                        MPN: 980138228
                                                        SILENTBLOCK
                                                        from £13.52
                                                        from £13.52
                                                        # 006
                                                        MPN: 188970
                                                        PIPE FROM HYDRODRIVE TO EXCHANGER
                                                        - Not for GD
                                                        from £40.07
                                                        from £40.07
                                                        # 006
                                                        MPN: 192192
                                                        PIPE FROM HYDRODRIVE TO EXCHANGER
                                                        - Valid for GD - Valid till stock exhaustion
                                                        from £44.31
                                                        from £44.31
                                                        # 006
                                                        MPN: 193191
                                                        PIPE FROM HYDRODRIVE TO EXCHANGER
                                                        - Valid for GD - Valid after stock exhaustion of 192192
                                                        from £147.16
                                                        from £147.16
                                                        # 007
                                                        MPN: 191070
                                                        PIPE FROM PUMP TO DRIVING BOX
                                                        - Not for GD
                                                        from £51.45
                                                        from £51.45
                                                        # 007
                                                        MPN: 192191
                                                        PIPE FROM PUMP TO DRIVING BOX
                                                        - Valid for GD - Valid till stock exhaustion
                                                        from £123.70
                                                        from £123.70
                                                        # 007
                                                        MPN: 193190
                                                        PIPE FROM PUMP TO DRIVING BOX
                                                        - Valid for GD - Valid after stock exhaustion of 192191
                                                        from £88.03
                                                        from £88.03
                                                        # 008
                                                        MPN: 193264
                                                        UNION
                                                        from £38.17
                                                        from £38.17
                                                        # 009
                                                        MPN: 10298460
                                                        GASKET
                                                        from £0.47
                                                        from £0.47
                                                        # 010
                                                        MPN: 193018
                                                        UNION
                                                        - Valid for USA and CDN - From car Ass. Nr. 8489 valid for all versions
                                                        from £41.95
                                                        from £41.95
                                                        # 010
                                                        MPN: 193695
                                                        UNION
                                                        - Not for USA and CDN - Valid till car Ass. Nr. 8488
                                                        Supersession
                                                        Supersession
                                                        # 011
                                                        MPN: 10280060
                                                        GASKET
                                                        from £0.47
                                                        from £0.47
                                                        # 012
                                                        MPN: 11343821
                                                        SCREW
                                                        from £0.57
                                                        from £0.57
                                                        # 013
                                                        MPN: 11190574
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        # 014
                                                        MPN: 12641021
                                                        WASHER
                                                        from £1.39
                                                        from £1.39
                                                        # 015
                                                        MPN: 188969
                                                        PIPE FROM EXCHANGER TO TANK
                                                        from £15.19
                                                        from £15.19
                                                        # 016
                                                        MPN: 192205
                                                        PIPE FROM TANK TO HYDRODRIVE
                                                        from £47.54
                                                        from £47.54
                                                        This part replaces part number 188968 - and 1 more. Click to view details
                                                        # 017
                                                        MPN: 160531
                                                        SCREW
                                                        from £5.48
                                                        from £5.48
                                                        This part replaces part number 180604
                                                        # 018
                                                        MPN: 14306624
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        # 019
                                                        MPN: 11193874
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        # 020
                                                        MPN: 13000390
                                                        SCREW COLLAR
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 13121170 - and 1 more. Click to view details
                                                        # 021
                                                        MPN: 13000490
                                                        SCREW COLLAR
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 13127870 - and 1 more. Click to view details
                                                        # 022
                                                        MPN: 231013
                                                        POWER STEERING EXCHANGER
                                                        - Not for USA and CDN
                                                        from £1,461.69
                                                        from £1,461.69
                                                        This part replaces part number 199892 - and 1 more. Click to view details
                                                        # 023
                                                        MPN: 15698504
                                                        SCREW
                                                        - Valid for USA and CDN
                                                        from £6.03
                                                        from £6.03
                                                        # 023
                                                        MPN: 15699804
                                                        SCREW
                                                        - Not for USA and CDN
                                                        from £0.54
                                                        from £0.54
                                                        This part replaces part number 15534501
                                                        # 024
                                                        MPN: 14047421
                                                        NUT
                                                        from £1.31
                                                        from £1.31
                                                        # 026
                                                        MPN: 10902621
                                                        SCREW
                                                        Supersession
                                                        Supersession
                                                        # 027
                                                        MPN: 10523401
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        # 029
                                                        MPN: 177805
                                                        CLIP
                                                        from £0.94
                                                        from £0.94
                                                        This part replaces part number 377890660
                                                        # 030
                                                        MPN: 190953
                                                        CLIP
                                                        from £2.85
                                                        from £2.85
                                                        # 031
                                                        MPN: 190317
                                                        SLEEVE FROM HYDRODRIVE TO EXCHANGER
                                                        - Valid for GD - Valid till stock exhaustion
                                                        from £17.34
                                                        from £17.34
                                                        # 031
                                                        MPN: 193192
                                                        SLEEVE FROM HYDRODRIVE TO EXCHANGER
                                                        - Valid for GD - Valid after stock exhaustion of 190317
                                                        from £21.14
                                                        from £21.14
                                                        # 032
                                                        MPN: 13000390
                                                        SCREW COLLAR
                                                        - Valid for GD
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 13121170 - and 1 more. Click to view details
                                                        # 033
                                                        MPN: 193719
                                                        SPACER
                                                        - Valid for USA and CDN
                                                        from £5.95
                                                        from £5.95
                                                        # 034
                                                        MPN: 14040614
                                                        NUT
                                                        - Valid for USA and CDN
                                                        from £0.47
                                                        from £0.47
                                                        # 035
                                                        MPN: 198458
                                                        SLEEVE FROM HYDRODRIVE TO EXCHANGER
                                                        - Valid for GD - As an alternative - Solution with rapid connection
                                                        from £15.71
                                                        from £15.71
                                                        # 036
                                                        MPN: 980001701
                                                        PIPES REPLACEMENT KIT FOR STEERING BOX
                                                        - Not for GD
                                                        Supersession
                                                        Supersession
                                                        # 036
                                                        MPN: 980001702
                                                        PIPES REPLACEMENT KIT FOR STEERING BOX
                                                        Supersession
                                                        Supersession
                                                        # 037
                                                        MPN: 980001705
                                                        STEERING ARM
                                                        from £235.90
                                                        from £235.90
                                                        This part replaces part number 980000967
                                                        # 038
                                                        MPN: 980001706
                                                        TRACK ROD END
                                                        from £89.73
                                                        from £89.73
                                                        This part replaces part number 980000968
                                                        # 039
                                                        MPN: 980001707
                                                        STEERING RACK BOOTS KIT
                                                        Pair
                                                        from £90.48
                                                        from £90.48
                                                        This part replaces part number 980000969
                                                        # 040
                                                        MPN: 980138275
                                                        STEERING BOX FIXING KIT
                                                        from £117.37
                                                        from £117.37
