maserati 4200 coupe (2002) rear suspension - shock absorber and brake disk parts diagram

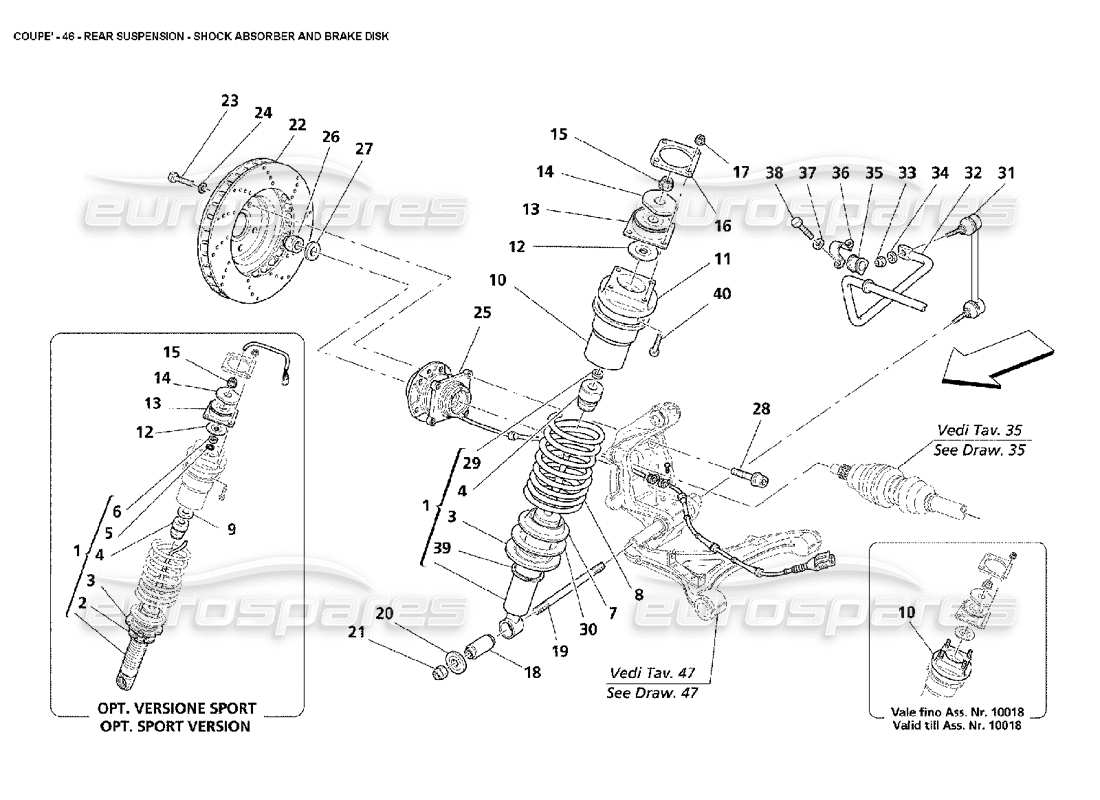

046 - Rear Suspension - Shock Absorber and Brake Disk

Maserati 4200 Coupe (2002) Rear Suspension - Shock Absorber and Brake Disk Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 182778
                                              REAR SHOCK ABSORBER
                                              - Optional - Version sport
                                              from £1,007.06
                                              from £1,007.06
                                              # 001
                                              MPN: 191391
                                              REAR SHOCK ABSORBER
                                              - Standard
                                              from £292.72
                                              from £292.72
                                              # 001
                                              MPN: 220939
                                              REAR SHOCK ABSORBER
                                              Optional - Version sport
                                              from £986.53
                                              from £986.53
                                              # 001
                                              MPN: 246271
                                              REAR SHOCK ABSORBER
                                              from £978.29
                                              from £978.29
                                              # 002
                                              MPN: 174726
                                              RING NUT
                                              - Optional - Version sport
                                              from £38.49
                                              from £38.49
                                              # 003
                                              MPN: 183020
                                              LOWER SPACER
                                              - Optional - Version sport
                                              from £381.48
                                              from £381.48
                                              # 003
                                              MPN: 386601380
                                              LOWER SPACER
                                              - Standard
                                              from £63.46
                                              from £63.46
                                              # 004
                                              MPN: 189997
                                              SHOCK ABSORBER PAD
                                              - Optional - Version sport
                                              from £21.14
                                              from £21.14
                                              # 004
                                              MPN: 387000327
                                              SHOCK ABSORBER PAD
                                              - Standard
                                              from £21.30
                                              from £21.30
                                              # 005
                                              MPN: 183594
                                              FLEXIBLE RING
                                              - Optional - Version sport
                                              from £21.56
                                              from £21.56
                                              # 006
                                              MPN: 183595
                                              BUSHING
                                              - Optional - Version sport
                                              from £32.38
                                              from £32.38
                                              # 008
                                              MPN: 163653
                                              SUSPENSION SPRING
                                              from £244.87
                                              from £244.87
                                              This part replaces part number 387000336
                                              # 009
                                              MPN: 189507
                                              SPACER
                                              - Optional - Version sport
                                              from £13.52
                                              from £13.52
                                              # 010
                                              MPN: 188995
                                              UPPER SPACER
                                              from £7.73
                                              from £7.73
                                              # 011
                                              MPN: 191056
                                              SPRING SUPPORT SPACER
                                              - Valid till car Ass. Nr. 10018
                                              from £39.53
                                              from £39.53
                                              # 011
                                              MPN: 192645
                                              SPRING SUPPORT SPACER
                                              - Valid from car Ass. Nr. 10019
                                              from £9.66
                                              from £9.66
                                              # 012
                                              MPN: 183016
                                              WASHER
                                              - Optional - Version sport
                                              from £15.54
                                              from £15.54
                                              # 012
                                              MPN: 193235
                                              WASHER
                                              - Standard
                                              from £3.16
                                              from £3.16
                                              # 013
                                              MPN: 183015
                                              HYPERBLOCK
                                              - Optional - Version sport
                                              from £42.96
                                              from £42.96
                                              # 013
                                              MPN: 386600109
                                              HYPERBLOCK
                                              - Standard
                                              from £83.87
                                              from £83.87
                                              This part replaces part number 114812 which we have in stock
                                              # 014
                                              MPN: 189110
                                              WASHER
                                              - Optional - Version sport
                                              from £3.86
                                              from £3.86
                                              # 014
                                              MPN: 387000340
                                              WASHER
                                              - Standard
                                              from £3.16
                                              from £3.16
                                              # 015
                                              MPN: 137826
                                              NUT
                                              - Standard
                                              from £2.31
                                              from £2.31
                                              # 015
                                              MPN: 183417
                                              NUT
                                              - Optional - Version sport
                                              Supersession
                                              Supersession
                                              # 016
                                              MPN: 191055
                                              SPACER FOR SHOCK ABSORBER
                                              from £25.51
                                              from £25.51
                                              # 017
                                              MPN: 14058521
                                              NUT
                                              from £0.97
                                              from £0.97
                                              # 018
                                              MPN: 163918
                                              LOWER SHOCK ABSORBER BUSH
                                              from £77.62
                                              from £77.62
                                              This part replaces part number 387000375
                                              # 019
                                              MPN: 13531734
                                              STUD
                                              from £17.16
                                              from £17.16
                                              This part replaces part number 13531634
                                              # 020
                                              MPN: 387000329
                                              CUP
                                              from £3.63
                                              from £3.63
                                              # 021
                                              MPN: 14048825
                                              NUT
                                              from £4.57
                                              from £4.57
                                              # 022
                                              MPN: 192996
                                              REAR BRAKE DISC
                                              from £166.31
                                              from £166.31
                                              This part replaces part number 387210351
                                              # 022
                                              MPN: 387210351
                                              REAR BRAKE DISC
                                              - Valid till stock exhaustion - on exhaustion use 192996
                                              Supersession
                                              Supersession
                                              # 023
                                              MPN: 16043421
                                              SCREW
                                              from £2.54
                                              from £2.54
                                              This part replaces part number 16043411
                                              # 024
                                              MPN: 10571779
                                              WASHER
                                              from £0.47
                                              from £0.47
                                              # 025
                                              MPN: 185564
                                              BEARING FOR WHEEL
                                              (early 2002 model only)
                                              from £773.59
                                              from £773.59
                                              # 026
                                              MPN: 183320
                                              NUT
                                              from £5.09
                                              from £5.09
                                              # 027
                                              MPN: 183321
                                              WASHER
                                              Supersession
                                              Supersession
                                              # 028
                                              MPN: 190723
                                              SCREW
                                              from £5.26
                                              from £5.26
                                              This part replaces part number 14834021 - and 1 more. Click to view details
                                              # 029
                                              MPN: 386600329
                                              SPACER FOR PAD SUPPORT
                                              - Standard
                                              from £17.78
                                              from £17.78
                                              # 030
                                              MPN: 386601382
                                              THICKNESS-MM. 2
                                              - Standard
                                              from £2.32
                                              from £2.32
                                              # 030
                                              MPN: 386601397
                                              THICKNESS-MM. 4
                                              - Standard
                                              from £4.09
                                              from £4.09
                                              # 031
                                              MPN: 193729

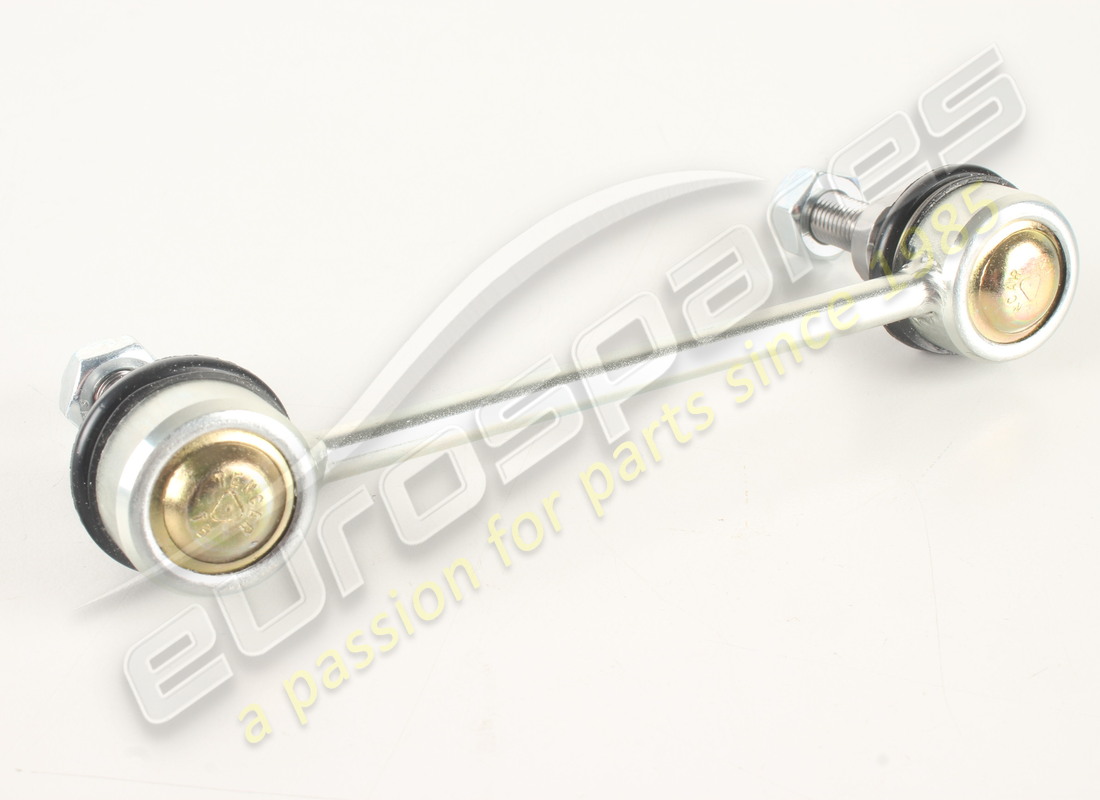

                                              TIE-RODS
                                              from £57.42
                                              from £57.42
                                              This part replaces part number 387000126
                                              # 031
                                              MPN: 193729
                                              TIE-RODS
                                              from £57.42
                                              from £57.42
                                              This part replaces part number 387000126
                                              # 032
                                              MPN: 188654
                                              Rear Anti-Roll Bar
                                              from £54.44
                                              from £54.44
                                              # 033
                                              MPN: 12575621
                                              NUT
                                              from £1.41
                                              from £1.41
                                              This part replaces part number 98095 which we have in stock
                                              # 034
                                              MPN: 13550421
                                              WASHER
                                              from £0.47
                                              from £0.47
                                              # 035
                                              MPN: 193662
                                              RUBBER PAD
                                              from £9.09
                                              from £9.09
                                              # 036
                                              MPN: 397050368
                                              RETAINER
                                              from £2.85
                                              from £2.85
                                              # 037
                                              MPN: 10571779
                                              WASHER
                                              from £0.47
                                              from £0.47
                                              # 038
                                              MPN: 16043321
                                              SCREW
                                              from £1.08
                                              from £1.08
                                              # 039
                                              MPN: 386601381
                                              SPACER STOP RING
                                              - Standard
                                              from £4.17
                                              from £4.17
                                              # 040
                                              MPN: 16044224
                                              SCREW
                                              - Valid from car Ass. Nr. 10019
                                              from £0.51
                                              from £0.51
