maserati 4200 coupe (2002) body central outer trims parts diagram

101 - Body Central Outer Trims

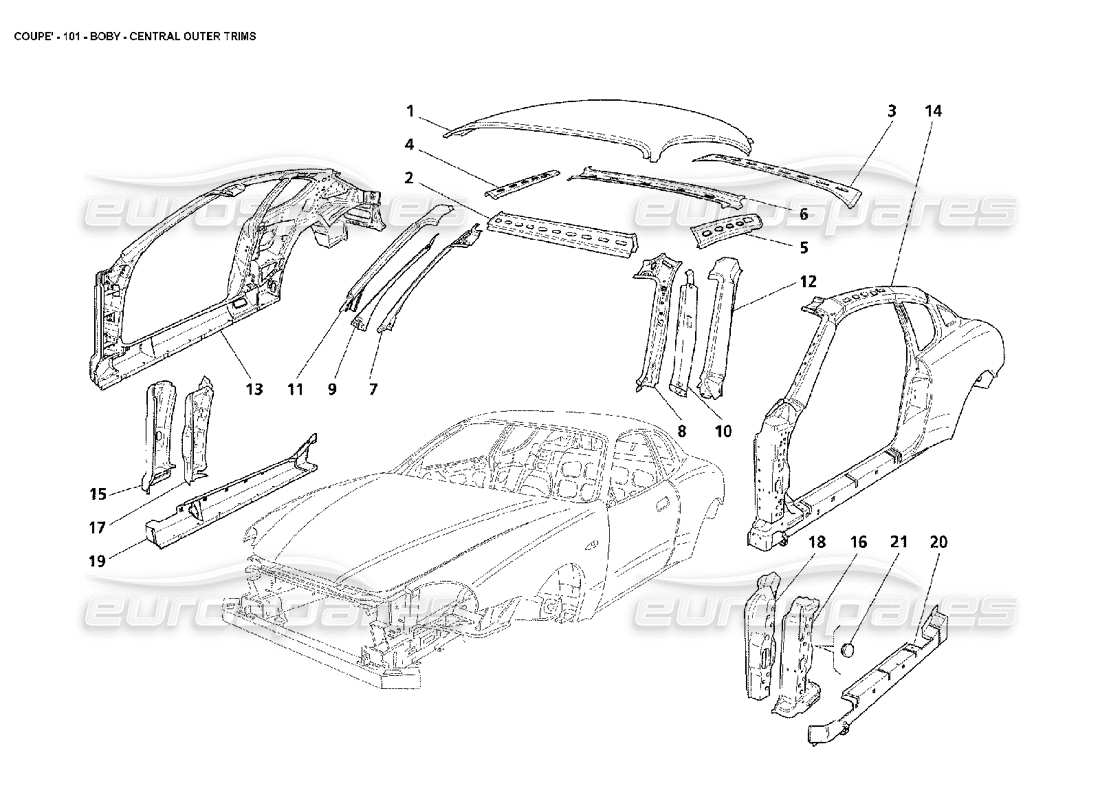

Maserati 4200 Coupe (2002) Body Central Outer Trims Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 001
                                        MPN: 382500465
                                        ROOF EXTERNAL TRIM
                                        from £1,764.41
                                        from £1,764.41
                                        # 002
                                        MPN: 980138009
                                        COMPLETE ROOF LINING FRONT CROSS MEMBER
                                        from £53.57
                                        from £53.57
                                        # 003
                                        MPN: 980138010
                                        COMPLETE ROOF LINING REAR CROSS MEMBER
                                        from £53.57
                                        from £53.57
                                        # 004
                                        MPN: 980138012
                                        COMPLETE RH SIDE RAIL
                                        from £79.59
                                        from £79.59
                                        # 005
                                        MPN: 980138011
                                        COMPLETE LH SIDE RAIL
                                        from £79.59
                                        from £79.59
                                        # 006
                                        MPN: 382500434
                                        INNER FRAME FOR ROOF LINING
                                        Supersession
                                        Supersession
                                        # 007
                                        MPN: 66736700
                                        RH FRAME FOR WINDSHIELD VERTICAL ROD
                                        from £196.17
                                        from £196.17
                                        This part replaces part number 66364800
                                        # 008
                                        MPN: 66736800
                                        LH FRAME FOR WINDSHIELD VERTICAL ROD
                                        from £196.17
                                        from £196.17
                                        This part replaces part number 66364900
                                        # 009
                                        MPN: 66055500
                                        RH DIAPHRAGM FOR WINDSHIELD VERTICAL ROD
                                        from £173.37
                                        from £173.37
                                        This part replaces part number 382500314
                                        # 010
                                        MPN: 66055600
                                        LH DIAPHRAGM FOR WINDSHIELD VERTICAL ROD
                                        from £173.37
                                        from £173.37
                                        This part replaces part number 382500313
                                        # 011
                                        MPN: 66058800
                                        RH OUTER TRIM FOR WINDSHIELD VERTICAL ROD
                                        from £251.77
                                        from £251.77
                                        # 012
                                        MPN: 66058900
                                        LH OUTER TRIM FOR WINDSHIELD VERTICAL ROD
                                        from £251.77
                                        from £251.77
                                        # 013
                                        MPN: 980138006
                                        COMPLETE RH SIDE
                                        from £6,584.46
                                        from £6,584.46
                                        # 014
                                        MPN: 980138005
                                        COMPLETE LH SIDE
                                        from £5,515.30
                                        from £5,515.30
                                        # 015
                                        MPN: 382500310
                                        RH FRONT ROD
                                        - Valid till car Nr. 7450
                                        from £137.63
                                        from £137.63
                                        # 015
                                        MPN: 67236400
                                        RH FRONT ROD
                                        - Valid from car Nr. 7451
                                        from £130.01
                                        from £130.01
                                        # 016
                                        MPN: 382500309
                                        LH FRONT ROD
                                        - Valid till car Nr. 7450
                                        from £137.63
                                        from £137.63
                                        # 016
                                        MPN: 67236500
                                        LH FRONT ROD
                                        - Valid from car Nr. 7451
                                        from £130.01
                                        from £130.01
                                        # 017
                                        MPN: 65825300
                                        RH FRONT INNER ROD REINFORCEMENT
                                        from £153.58
                                        from £153.58
                                        # 018
                                        MPN: 65825400
                                        LH FRONT INNER ROD REINFORCEMENT
                                        from £153.58
                                        from £153.58
                                        # 019
                                        MPN: 980138008
                                        COMPLETE RH SPAR
                                        from £451.57
                                        from £451.57
                                        # 020
                                        MPN: 980138007
                                        COMPLETE LH SPAR
                                        from £451.57
                                        from £451.57
                                        # 021
                                        MPN: 14507687
                                        PLUG
                                        from £0.58
                                        from £0.58
