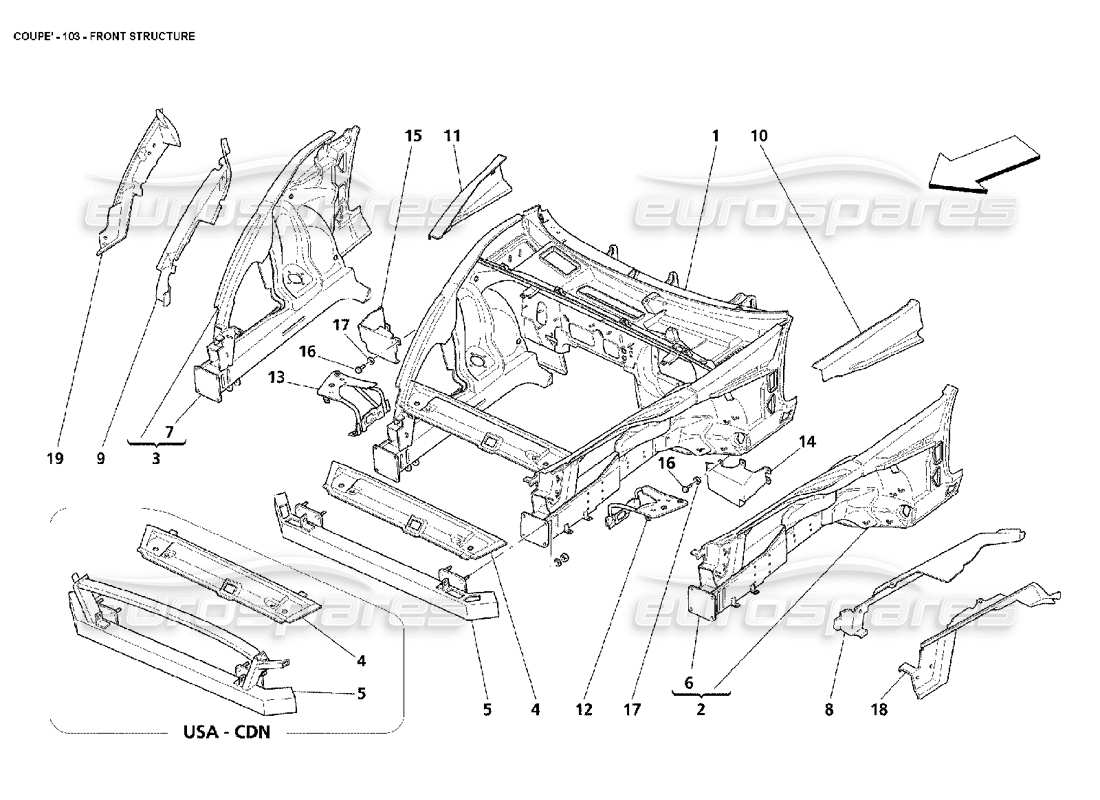

103 - front structure
Maserati 4200 Coupe (2002) Front Structure Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 980001050
COMPLETE FRONT FRAME
- Not for USA, CDN and GD
from £3,315.86
from £3,315.86
# 001
MPN: 980001153
COMPLETE FRONT FRAME
- Valid for GD
from £3,767.66
from £3,767.66
# 001
MPN: 980001169
COMPLETE FRONT FRAME
- Valid for USA and CDN
from £3,469.06
from £3,469.06
# 002
MPN: 980001051
LH FRONT INNER LATERAL FRAME
from £1,462.72
from £1,462.72
# 003
MPN: 980001052
RH FRONT INNER LATERAL FRAME
from £1,187.01
from £1,187.01
# 004
MPN: 980001049
COMPLETE FRONT CROSS MEMBER
- Not for USA and CDN
from £104.78
from £104.78
# 004
MPN: 980001170
COMPLETE FRONT CROSS MEMBER
- Valid for USA and CDN
from £118.02
from £118.02
# 005
MPN: 66244400
FRONT BULL BAR
- Not for USA and CDN
from £326.31
from £326.31
# 005
MPN: 66244500
FRONT BULL BAR
- Valid for USA
from £299.92
from £299.92
# 005
MPN: 67015200
FRONT BULL BAR
- Valid for CDN
from £537.63
from £537.63
# 006
MPN: 980001053
LH FRONT SPAR
from £289.59
from £289.59
# 007
MPN: 980001054
RH FRONT SPAR
from £289.59
from £289.59
# 008
MPN: 980001055
LH FRONT LATERAL FRAME
from £278.05
from £278.05
This part replaces part number 66305200
# 009
MPN: 980001056
RH FRONT LATERAL FRAME
from £258.09
from £258.09
This part replaces part number 66305100
# 010
MPN: 66305400
LH REAR LATERAL FRAME
from £61.74
from £61.74
# 011
MPN: 66305300
RH REAR LATERAL FRAME
from £61.74
from £61.74
# 012
MPN: 65965000
LH HEADLIGHT SUPPORTING BRAKET
from £280.38
from £280.38
# 013
MPN: 65964900
RH HEADLIGHT SUPPORTING BRAKET
from £278.77
from £278.77
# 014
MPN: 66248200
LH LONGITUDINAL MEMBER FRONT REINFORCEMENT
from £17.24
from £17.24
# 015
MPN: 66248100
RH LONGITUDINAL MEMBER FRONT REINFORCEMENT
from £17.24
from £17.24
# 016
MPN: 10902087
SCREW
from £0.49
from £0.49
# 017
MPN: 12644477
WASHER
from £0.71
from £0.71
# 018
MPN: 66305200
LH FRONT LATERAL FRAME
Supersession
Supersession
# 019
MPN: 66305100
RH FRONT LATERAL FRAME
Supersession
Supersession
