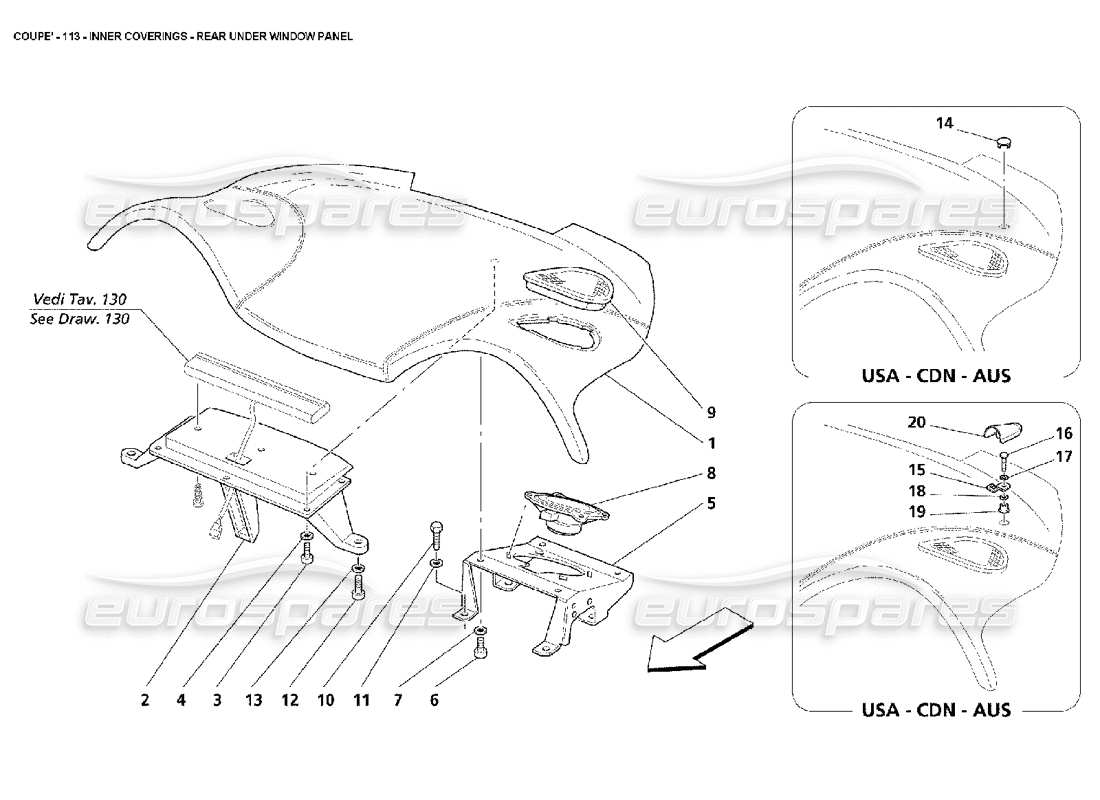

113 - Inner Coverings - Rear Under Window Panel
Maserati 4200 Coupe (2002) Inner Coverings - Rear Under Window Panel Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 9810083..
Rear Under Window Panel
- Not for USA, CDN and AUS
Supersession
Supersession
# 001
MPN: 9810084..
Rear Under Window Panel
- Valid for USA, CDN and AUS
Supersession
Supersession
# 002
MPN: 9810085..
CENTRAL REAR LAMP SUPPORTING BRACKET
Supersession
Supersession
# 003
MPN: 13273911
SCREW
from £0.51
from £0.51
# 004
MPN: 12638121
WASHER
Supersession
Supersession
# 005
MPN: 388300288
LOUD SPEAKER FIXING BRACKET
from £84.21
from £84.21
# 006
MPN: 13273824
SCREW
from £1.11
from £1.11
# 007
MPN: 12601174
WASHER
from £0.53
from £0.53
This part replaces part number 675000100
# 008
MPN: 184106
LOUD SPEAKER WOOFER
- Standard
from £55.90
from £55.90
This part replaces part number 185973 - and 1 more. Click to view details
# 008
MPN: 184605
LOUD SPEAKER WOOFER
- Optional - HI FI system
from £55.98
from £55.98
# 009
MPN: 388300272
RH LOUD-SPEAKER PLATE
from £11.58
from £11.58
This part replaces part number 388300184 - and 2 more. Click to view details
# 009
MPN: 388300273
LH LOUD-SPEAKER PLATE
from £11.58
from £11.58
This part replaces part number 388300185 - and 1 more. Click to view details
# 010
MPN: 10902024
SCREW
from £0.48
from £0.48
This part replaces part number 010902024
# 011
MPN: 12620474
WASHER
from £0.47
from £0.47
# 012
MPN: 10977521
SCREW
from £0.53
from £0.53
# 012
MPN: 13274011
SCREW
from £1.08
from £1.08
# 013
MPN: 12624101
WASHER
from £0.53
from £0.53
# 014
MPN: 9810086..
UNDER REAR WINDOW PLUG
- Valid for USA, CDN and AUS - Not for cars with belt connection bracket (pos. 15)
Supersession
Supersession
# 015
MPN: 66154400
BELT CONNECTION BRACKET
- Valid for USA, CDN and AUS
from £3.50
from £3.50
# 016
MPN: 66535800
SCREW
- Valid for USA, CDN and AUS
from £1.55
from £1.55
# 017
MPN: 12601374
WASHER
- Valid for USA, CDN and AUS
from £0.54
from £0.54
# 018
MPN: 14496527
WASHER
- Valid for USA, CDN and AUS
from £0.66
from £0.66
# 019
MPN: 66485200
SPACER
- Tickness mm. 4,5 - Valid for USA, CDN and AUS
from £3.35
from £3.35
# 019
MPN: 67363400
SPACER
- Tickness mm. 2,5 - Valid for USA, CDN and AUS
from £5.26
from £5.26
# 020
MPN: 67235400
UPPER COVER
- Valid for USA, CDN and AUS
from £6.81
from £6.81

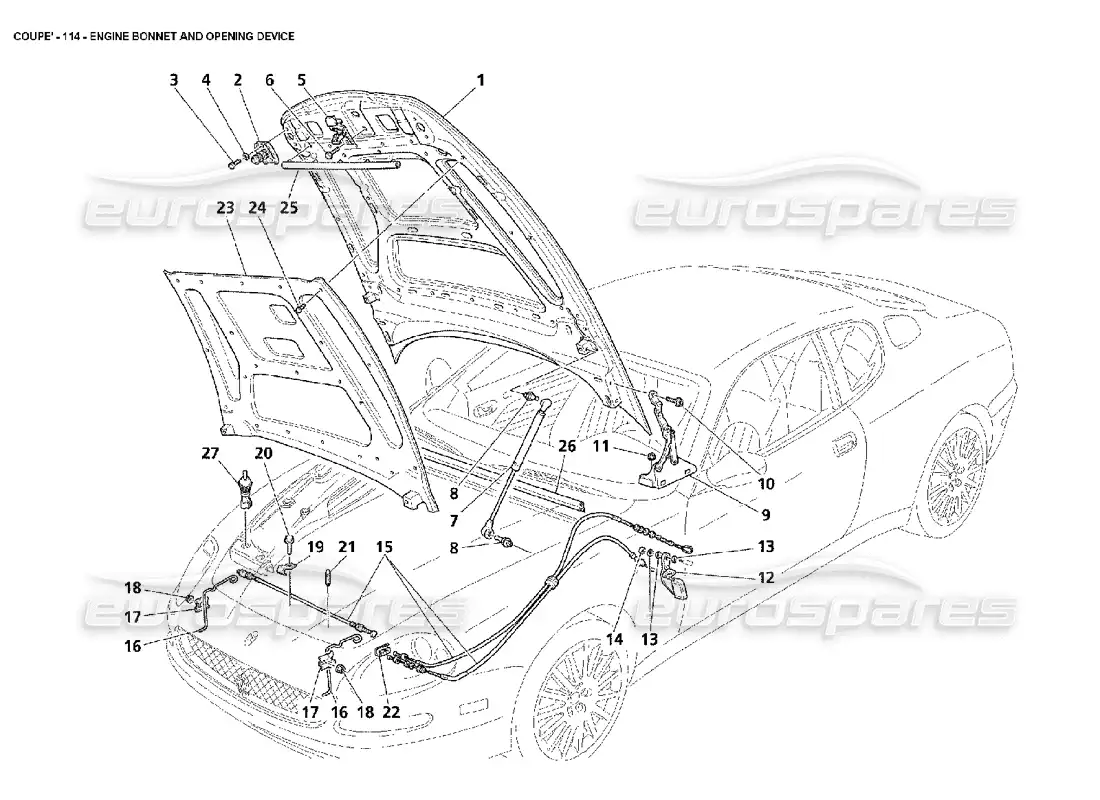

-part-diagram-114.webp "MASERATI 4200 COUPE (2002) ENGINE BONNET AND OPENING DEVICE PARTS DIAGRAM")

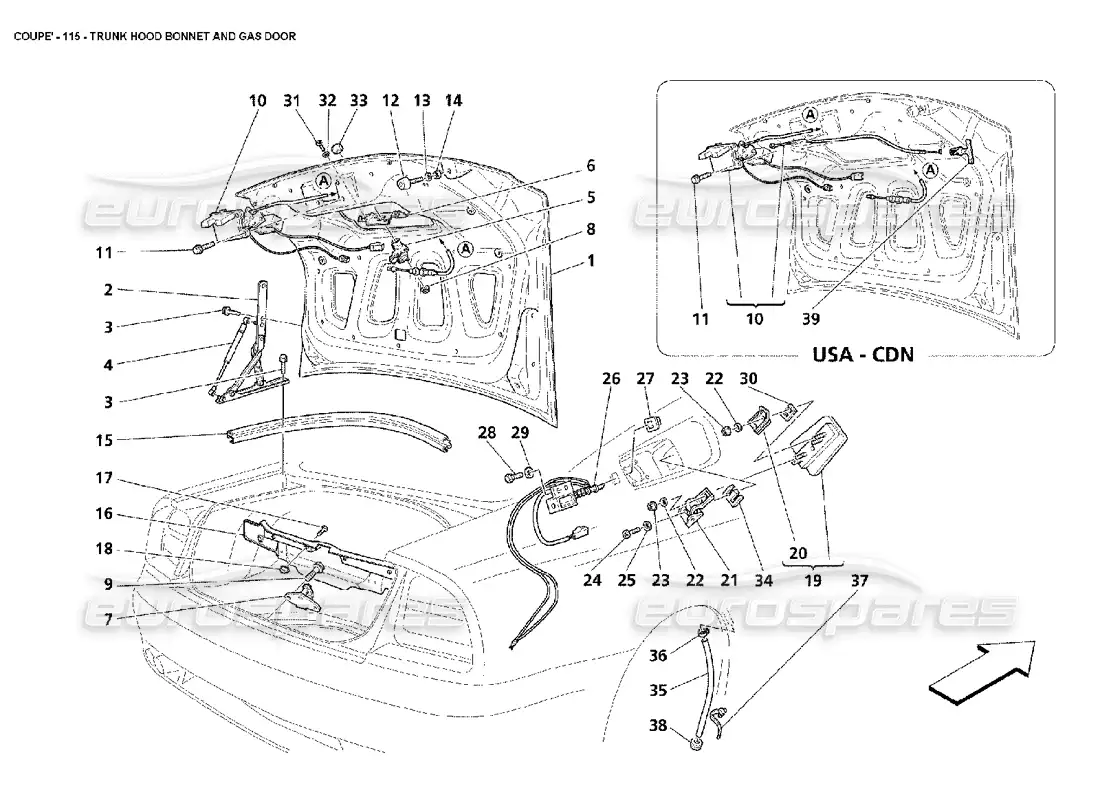

-part-diagram-115.webp "MASERATI 4200 COUPE (2002) TRUNK HOOD BONNET AND GAS DOOR PARTS DIAGRAM")

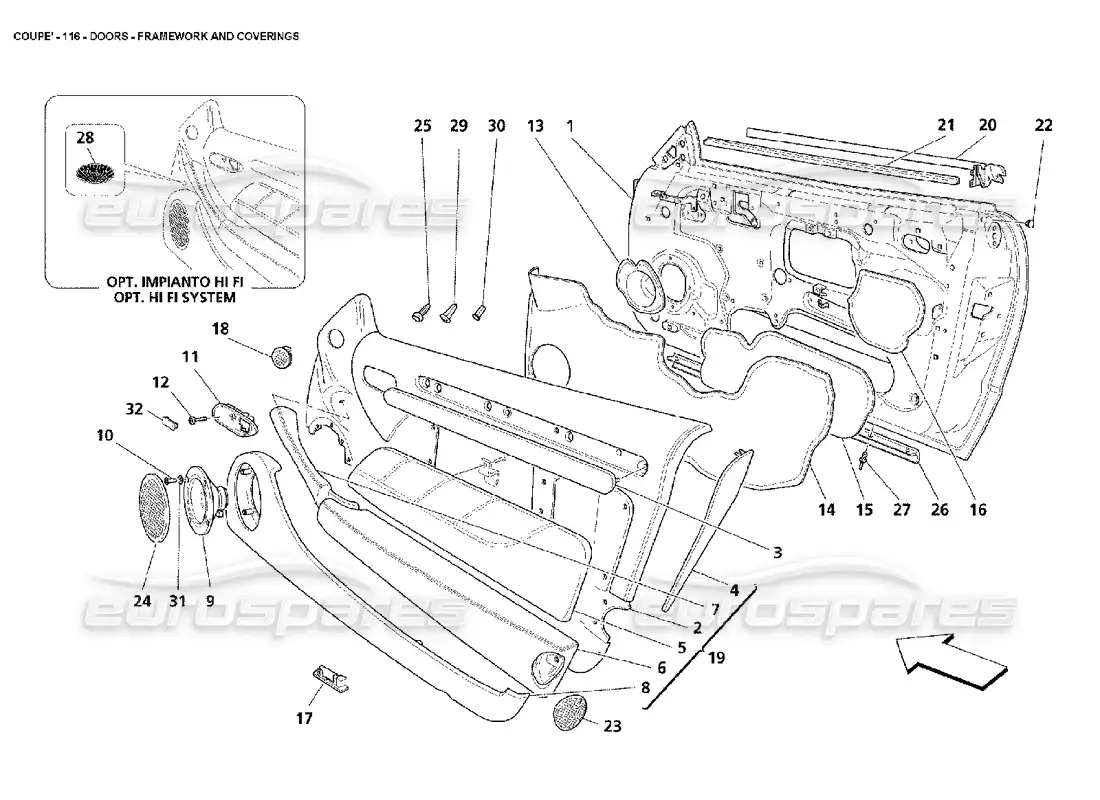

-part-diagram-116.webp "MASERATI 4200 COUPE (2002) DOORS - FRAMEWORK AND COVERINGS PARTS DIAGRAM")

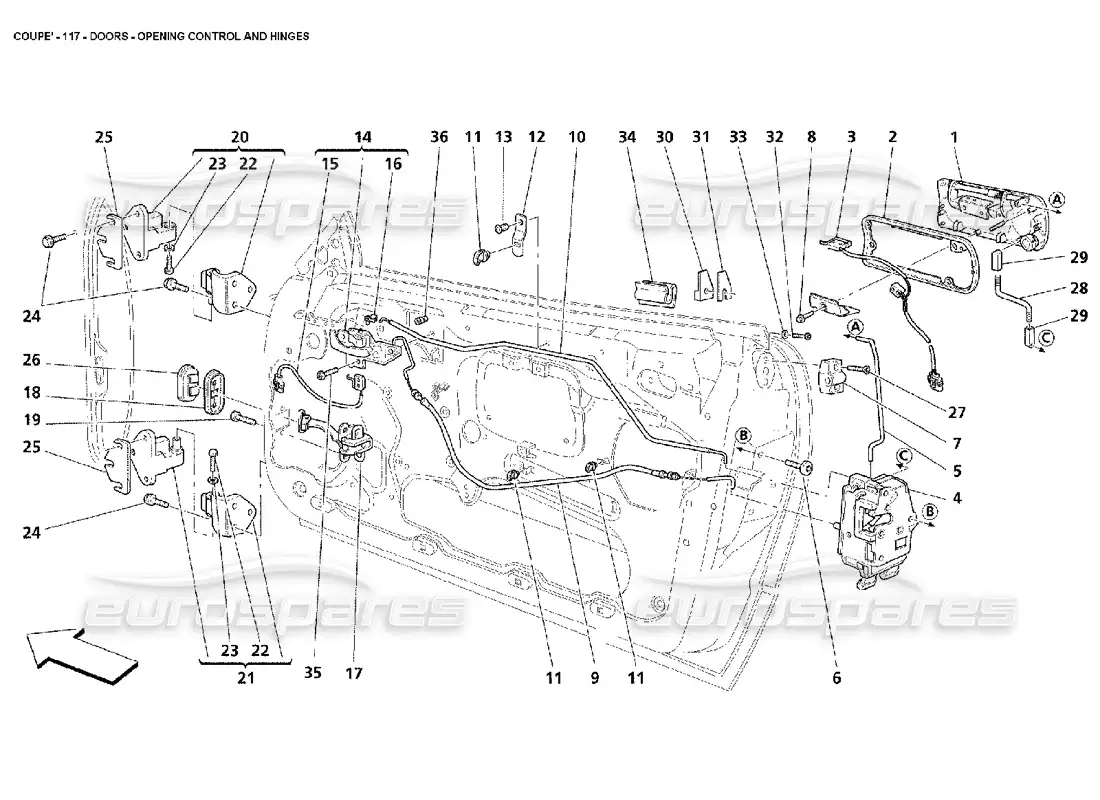

-part-diagram-117.webp "MASERATI 4200 COUPE (2002) DOORS - OPENING CONTROL AND HINGES PARTS DIAGRAM")
-part-diagram-118.webp "MASERATI 4200 COUPE (2002) DOORS - POWER WINDOW AND REARWIEW MIRROR PARTS DIAGRAM")
-part-diagram-119.webp "MASERATI 4200 COUPE (2002) GLASSES - GASKETS AND INNER REARWIEW MIRROR PARTS DIAGRAM")
-part-diagram-120.webp "MASERATI 4200 COUPE (2002) FRONT SEAT AND SEAT BELTS PARTS DIAGRAM")
-part-diagram-121.webp "MASERATI 4200 COUPE (2002) FRONT SEAT - GUIDE AND MOVEMENT PARTS DIAGRAM")
-part-diagram-122.webp "MASERATI 4200 COUPE (2002) REAR SEAT AND SEAT BELT PARTS DIAGRAM")
-part-diagram-123.webp "MASERATI 4200 COUPE (2002) DASHBOARD -NOT FOR GD PARTS DIAGRAM")
-part-diagram-124.webp "MASERATI 4200 COUPE (2002) DASHBOARD -VALID FOR GD PARTS DIAGRAM")
-part-diagram-125.webp "MASERATI 4200 COUPE (2002) DASHBOARD DRAWER PARTS DIAGRAM")
-part-diagram-126.webp "MASERATI 4200 COUPE (2002) TUNNEL - FRAMEWORK AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-127.webp "MASERATI 4200 COUPE (2002) AIR-BAGS PARTS DIAGRAM")
-part-diagram-128.webp "MASERATI 4200 COUPE (2002) DASHBOARD INSTRUMENTS PARTS DIAGRAM")
-part-diagram-129.webp "MASERATI 4200 COUPE (2002) TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-130.webp "MASERATI 4200 COUPE (2002) FRONT AND REAR LIGHTS PARTS DIAGRAM")
-part-diagram-131.webp "MASERATI 4200 COUPE (2002) XENON HEADLIGHTS AND WASHER -OPTIONAL PARTS DIAGRAM")
-part-diagram-132.webp "MASERATI 4200 COUPE (2002) SHIELDS AND OUTSIDE FINISHING PARTS DIAGRAM")
-part-diagram-133.webp "MASERATI 4200 COUPE (2002) WINDSHIELD - GLASS WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-134.webp "MASERATI 4200 COUPE (2002) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-135.webp "MASERATI 4200 COUPE (2002) ENGINE BONNET SENSOR AND CONTROL STATIONS PARTS DIAGRAM")
-part-diagram-136.webp "MASERATI 4200 COUPE (2002) FRONT PASSENGERS COMPARTMENT CONTROL STATION PARTS DIAGRAM")
-part-diagram-137.webp "MASERATI 4200 COUPE (2002) PASSENGERS SIDE CONTROL UNITS PARTS DIAGRAM")
-part-diagram-138.webp "MASERATI 4200 COUPE (2002) RH SIDE TRUNK BONNET SENSOR AND CONTROL UNITS PARTS DIAGRAM")
-part-diagram-139.webp "MASERATI 4200 COUPE (2002) LH SIDE TRUNK BONNET CONTROL UNIT PARTS DIAGRAM")
-part-diagram-140.webp "MASERATI 4200 COUPE (2002) ANTI THEFT ELECTRICAL BOARDS AND DEVICES PARTS DIAGRAM")
-part-diagram-141.webp "MASERATI 4200 COUPE (2002) IMMOBILIZER KIT PARTS DIAGRAM")
-part-diagram-142.webp "MASERATI 4200 COUPE (2002) EVAPORATOR GROUP PARTS DIAGRAM")
-part-diagram-143.webp "MASERATI 4200 COUPE (2002) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-144.webp "MASERATI 4200 COUPE (2002) CAR STEREO SYSTEM PARTS DIAGRAM")
-part-diagram-145.webp "MASERATI 4200 COUPE (2002) STEREO EQUIPMENT - ACCESORIES PARTS DIAGRAM")
-part-diagram-146.webp "MASERATI 4200 COUPE (2002) PLATES PARTS DIAGRAM")
-part-diagram-000.webp "MASERATI 4200 COUPE (2002) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-001.webp "MASERATI 4200 COUPE (2002) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "MASERATI 4200 COUPE (2002) CRANKSHAFT CONRODS AND PISTONS PARTS DIAGRAM")
-part-diagram-003.webp "MASERATI 4200 COUPE (2002) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-004.webp "MASERATI 4200 COUPE (2002) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-005.webp "MASERATI 4200 COUPE (2002) TIMING - TAPPETS PARTS DIAGRAM")
-part-diagram-006.webp "MASERATI 4200 COUPE (2002) TIMING - CONTROLS PARTS DIAGRAM")
-part-diagram-007.webp "MASERATI 4200 COUPE (2002) INJECTION DEVICE - IGNITION PARTS DIAGRAM")
-part-diagram-008.webp "MASERATI 4200 COUPE (2002) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-009.webp "MASERATI 4200 COUPE (2002) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-010.webp "MASERATI 4200 COUPE (2002) FUEL TANKS AND UNION PARTS DIAGRAM")
-part-diagram-011.webp "MASERATI 4200 COUPE (2002) ANTIEVAPORATION DEVICE -NOT FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-012.webp "MASERATI 4200 COUPE (2002) ANTIEVAPORATION DEVICE -VALID FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-013.webp "MASERATI 4200 COUPE (2002) AIR INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-014.webp "MASERATI 4200 COUPE (2002) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-015.webp "MASERATI 4200 COUPE (2002) EXHAUST SYSTEM -VARIATIONS FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-016.webp "MASERATI 4200 COUPE (2002) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-017.webp "MASERATI 4200 COUPE (2002) LUBRICATION SYSTEM - TANK - HEATER EXCHANGER PARTS DIAGRAM")
-part-diagram-018.webp "MASERATI 4200 COUPE (2002) WATER-OIL PUMP PARTS DIAGRAM")
-part-diagram-019.webp "MASERATI 4200 COUPE (2002) NOURICE - COOLING SYSTEM -NOT FOR GD PARTS DIAGRAM")
-part-diagram-020.webp "MASERATI 4200 COUPE (2002) NOURICE - COOLING SYSTEM -VALID FOR GD PARTS DIAGRAM")
-part-diagram-021.webp "MASERATI 4200 COUPE (2002) COOLING SYSTEM RADIATOR PARTS DIAGRAM")
-part-diagram-022.webp "MASERATI 4200 COUPE (2002) CLUTCH AND CONTROLS -NOT FOR F1 PARTS DIAGRAM")
-part-diagram-023.webp "MASERATI 4200 COUPE (2002) CLUTCH AND CONTROLS -VALID FOR F1 PARTS DIAGRAM")
-part-diagram-024.webp "MASERATI 4200 COUPE (2002) PEDALS AND ELECTRONIC ACCELERATOR CONTROL -NOT FOR GD PARTS DIAGRAM")
-part-diagram-025.webp "MASERATI 4200 COUPE (2002) PEDALS AND ELECTRONIC ACCELERATOR CONTROL -VALID FOR GD PARTS DIAGRAM")
-part-diagram-026.webp "MASERATI 4200 COUPE (2002) F1 CLUTCH HYDRAULIC CONTROLS -VALID FOR F1 PARTS DIAGRAM")
-part-diagram-027.webp "MASERATI 4200 COUPE (2002) POWER UNIT AND TANK -VALID FOR F1 PARTS DIAGRAM")
-part-diagram-028.webp "MASERATI 4200 COUPE (2002) GEARBOX - COVER - GEARBOX OIL RADIATOR PARTS DIAGRAM")
-part-diagram-029.webp "MASERATI 4200 COUPE (2002) DIFFERENTIAL BOX - REAR UNDERBODY PARTS DIAGRAM")
-part-diagram-030.webp "MASERATI 4200 COUPE (2002) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "MASERATI 4200 COUPE (2002) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-032.webp "MASERATI 4200 COUPE (2002) INNER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "MASERATI 4200 COUPE (2002) OUTER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-034.webp "MASERATI 4200 COUPE (2002) ENGINE-TRANSMISSION CONNECTION TUBE AND INSULATIONS PARTS DIAGRAM")
-part-diagram-035.webp "MASERATI 4200 COUPE (2002) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-036.webp "MASERATI 4200 COUPE (2002) BRAKES AND CLUTCH HYDRAULIC CONTROLS PARTS DIAGRAM")
-part-diagram-037.webp "MASERATI 4200 COUPE (2002) BRAKING SYSTEM -NOT FOR GD PARTS DIAGRAM")
-part-diagram-038.webp "MASERATI 4200 COUPE (2002) BRAKING SYSTEM -VALID FOR GD PARTS DIAGRAM")
-part-diagram-039.webp "MASERATI 4200 COUPE (2002) BRAKE CALIPERS PARTS DIAGRAM")
-part-diagram-040.webp "MASERATI 4200 COUPE (2002) HAND-BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-041.webp "MASERATI 4200 COUPE (2002) FRONT UNDER FRAME AND UNDERMOTOR SHIELDS PARTS DIAGRAM")
-part-diagram-042.webp "MASERATI 4200 COUPE (2002) STEERING BOX PARTS DIAGRAM")
-part-diagram-043.webp "MASERATI 4200 COUPE (2002) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-044.webp "MASERATI 4200 COUPE (2002) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-045.webp "MASERATI 4200 COUPE (2002) FRONT SUSPENSION - WISHBONES AND STABILIZER BAR PARTS DIAGRAM")
-part-diagram-046.webp "MASERATI 4200 COUPE (2002) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISK PARTS DIAGRAM")
-part-diagram-047.webp "MASERATI 4200 COUPE (2002) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-048.webp "MASERATI 4200 COUPE (2002) WHEELS PARTS DIAGRAM")
-part-diagram-049.webp "MASERATI 4200 COUPE (2002) SPARE WHEEL AND EQUIPMENT -OPTIONAL PARTS DIAGRAM")
-part-diagram-050.webp "MASERATI 4200 COUPE (2002) BATTERY PARTS DIAGRAM")
-part-diagram-051.webp "MASERATI 4200 COUPE (2002) CURRENT GENERATOR-STARTING MOTOR PARTS DIAGRAM")
-part-diagram-052.webp "MASERATI 4200 COUPE (2002) TOOLS EQUIPMENT AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-100.webp "MASERATI 4200 COUPE (2002) BODY - FRONT OUTER TRIMS PARTS DIAGRAM")
-part-diagram-101.webp "MASERATI 4200 COUPE (2002) BODY CENTRAL OUTER TRIMS PARTS DIAGRAM")
-part-diagram-102.webp "MASERATI 4200 COUPE (2002) BODY REAR OUTER TRIMS PARTS DIAGRAM")
-part-diagram-103.webp "MASERATI 4200 COUPE (2002) FRONT STRUCTURE PARTS DIAGRAM")
-part-diagram-104.webp "MASERATI 4200 COUPE (2002) CENTRAL STRUCTURE PARTS DIAGRAM")
-part-diagram-105.webp "MASERATI 4200 COUPE (2002) REAR STRUCTURE PARTS DIAGRAM")
-part-diagram-106.webp "MASERATI 4200 COUPE (2002) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-107.webp "MASERATI 4200 COUPE (2002) REAR BUMPER PARTS DIAGRAM")

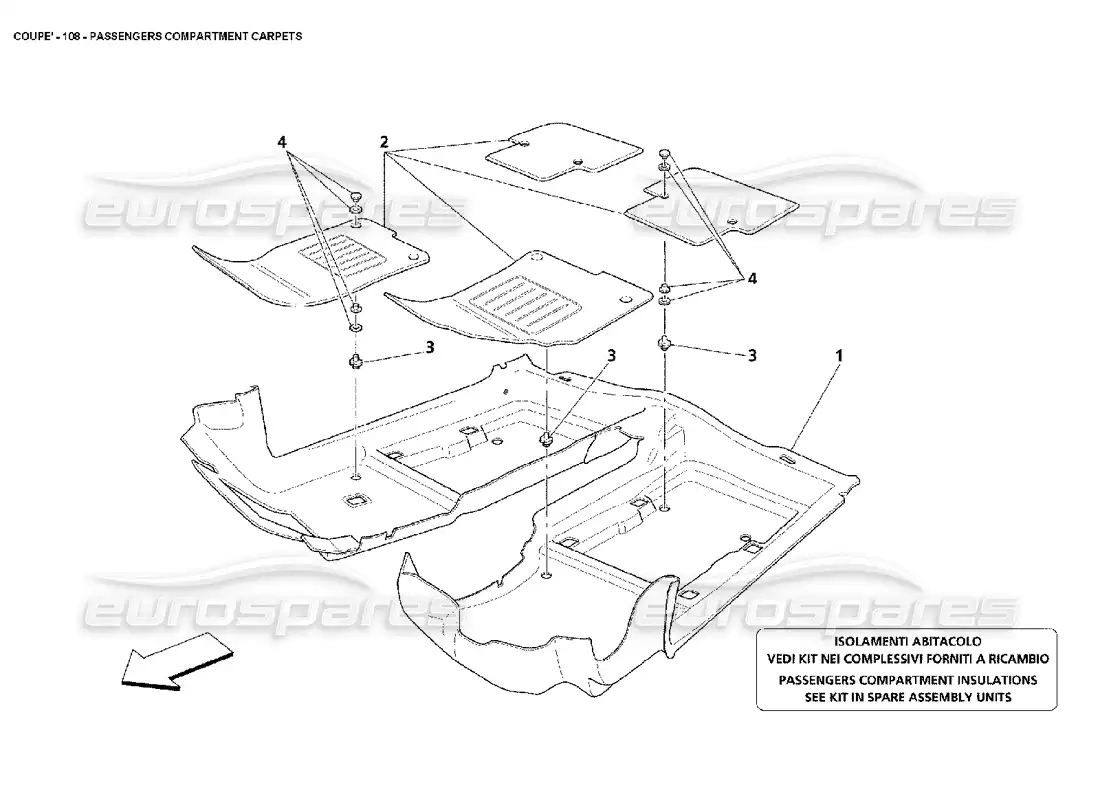

-part-diagram-108.webp "MASERATI 4200 COUPE (2002) PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")

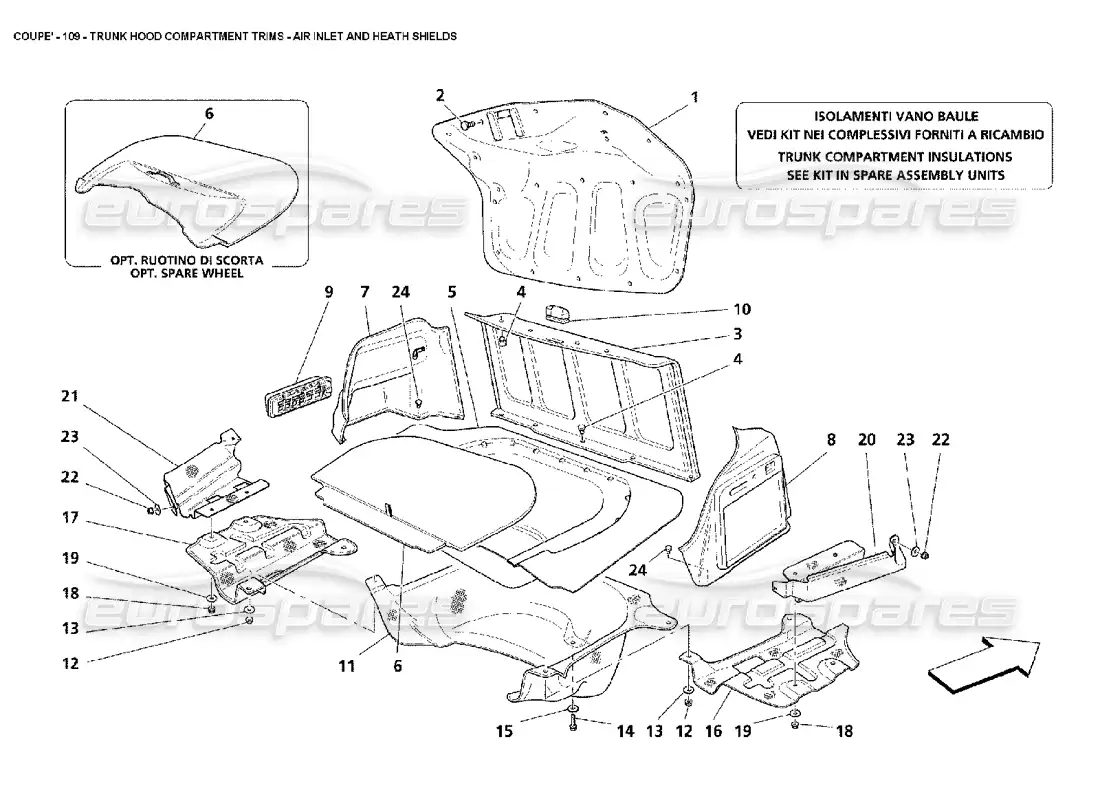

-part-diagram-109.webp "MASERATI 4200 COUPE (2002) TRUNK HOOD COMPARTMENT TRIMS - AIR INLET AND HEATH SHIELDS PARTS DIAGRAM")

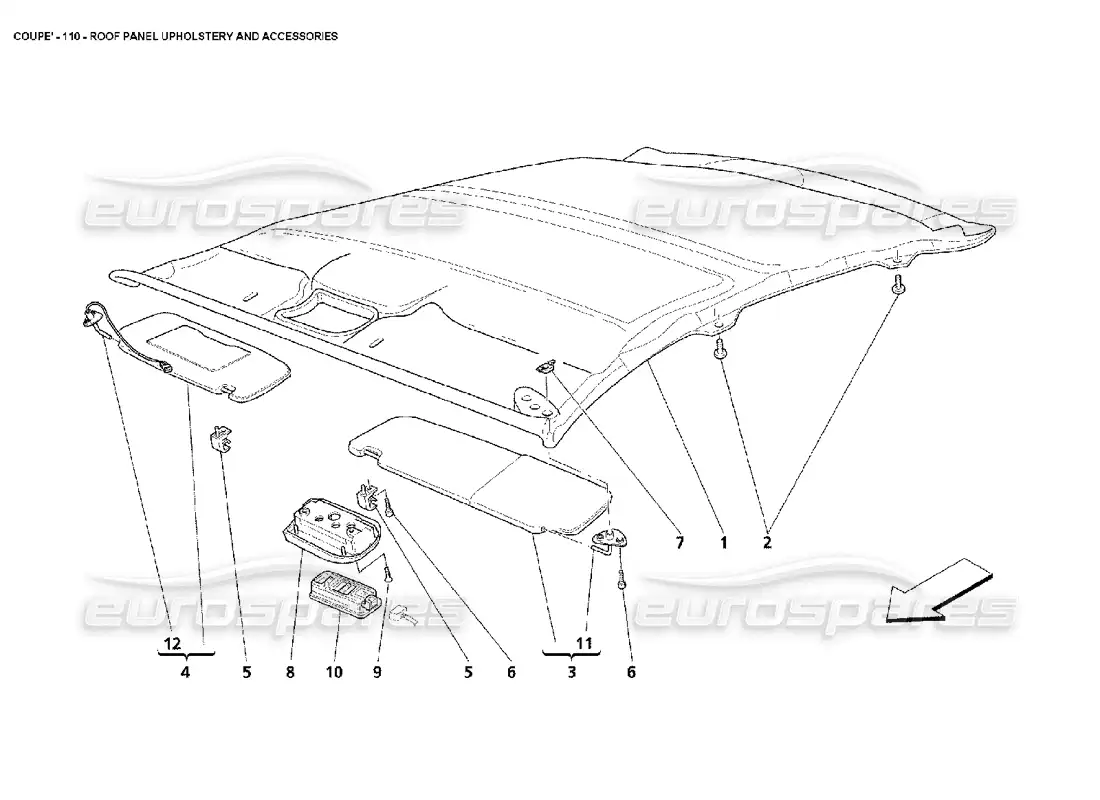

-part-diagram-110.webp "MASERATI 4200 COUPE (2002) ROOF PANEL UPHOLSTERY AND ACCESSORIES PARTS DIAGRAM")

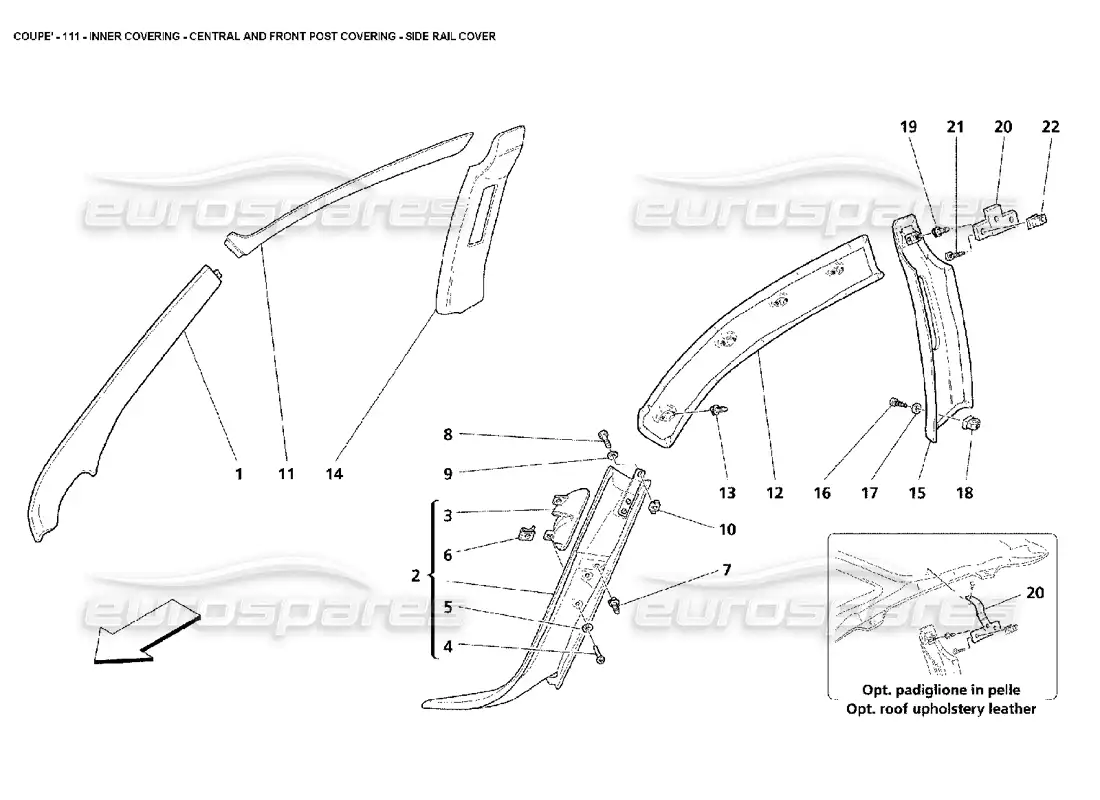

-part-diagram-111.webp "MASERATI 4200 COUPE (2002) INNER COVERING - CENTRAL AND FRONT POST COVERING - SIDE RAIL COVER PARTS DIAGRAM")

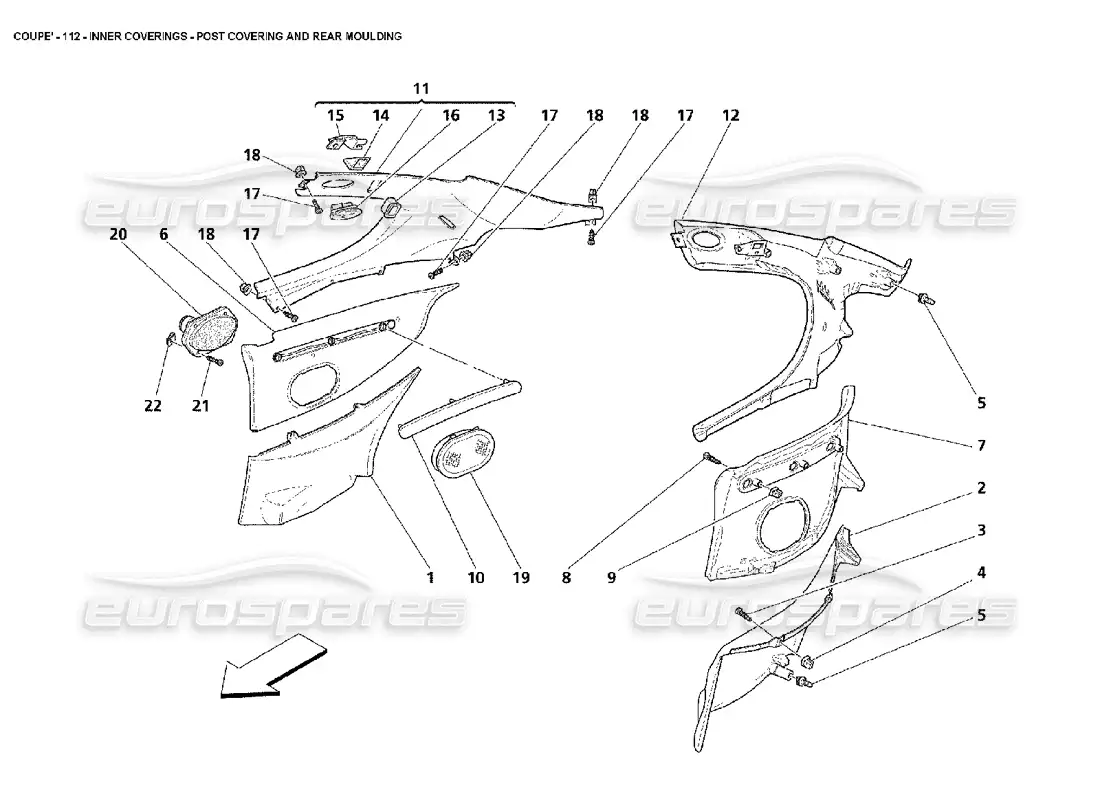

-part-diagram-112.webp "MASERATI 4200 COUPE (2002) INNER COVERINGS - POST COVERING AND REAR MOULDING PARTS DIAGRAM")
