maserati 4200 coupe (2002) doors - opening control and hinges parts diagram

117 - Doors - Opening Control and Hinges

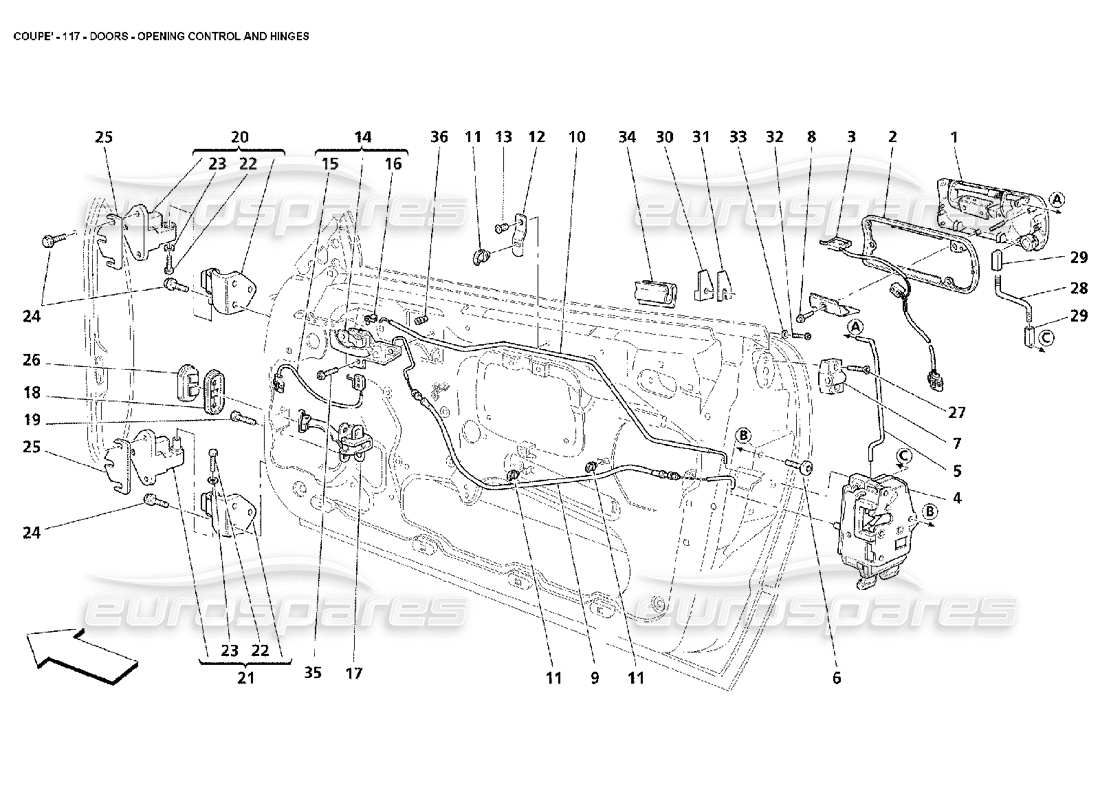

Maserati 4200 Coupe (2002) Doors - Opening Control and Hinges Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 980000917
                                                                      LH DOOR OUTSIDE HANDLE
                                                                      from £125.74
                                                                      from £125.74
                                                                      This part replaces part number 384500015 - and 1 more. Click to view details
                                                                      # 001
                                                                      MPN: 980000918
                                                                      RH DOOR OUTSIDE HANDLE
                                                                      from £125.74
                                                                      from £125.74
                                                                      This part replaces part number 384500016 - and 1 more. Click to view details
                                                                      # 002
                                                                      MPN: 980000965
                                                                      LH HANDLE GASKET
                                                                      from £38.70
                                                                      from £38.70
                                                                      # 002
                                                                      MPN: 980000966
                                                                      RH HANDLE GASKET
                                                                      from £29.82
                                                                      from £29.82
                                                                      # 003
                                                                      MPN: 980000963
                                                                      LH MICROSWITCH AND CABLE
                                                                      from £85.33
                                                                      from £85.33
                                                                      # 003
                                                                      MPN: 980000964
                                                                      RH MICROSWITCH AND CABLE
                                                                      from £115.08
                                                                      from £115.08
                                                                      # 004
                                                                      MPN: 67294800
                                                                      RH DOOR LOCK
                                                                      from £96.00
                                                                      from £96.00
                                                                      This part replaces part number 82487456
                                                                      # 004
                                                                      MPN: 67294900
                                                                      LH DOOR LOCK
                                                                      from £96.00
                                                                      from £96.00
                                                                      This part replaces part number 82487457
                                                                      # 005
                                                                      MPN: 384500395
                                                                      LH DOOR HANDLE LOCK TIE ROD
                                                                      from £3.14
                                                                      from £3.14
                                                                      # 005
                                                                      MPN: 384500396
                                                                      RH DOOR HANDLE LOCK TIE ROD
                                                                      from £5.86
                                                                      from £5.86
                                                                      # 006
                                                                      MPN: 46401658
                                                                      SCREW
                                                                      from £1.59
                                                                      from £1.59
                                                                      # 007
                                                                      MPN: 60594692
                                                                      FLEXIBLE BLOCK
                                                                      from £10.42
                                                                      from £10.42
                                                                      # 008
                                                                      MPN: 16284914
                                                                      SCREW
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 16284911
                                                                      # 009
                                                                      MPN: 66132300
                                                                      RH DOOR INSIDE RELEASE BOWDEN
                                                                      - Valid till car Ass. Nr. 8466
                                                                      from £19.51
                                                                      from £19.51
                                                                      # 009
                                                                      MPN: 66424300
                                                                      LH DOOR INSIDE RELEASE BOWDEN
                                                                      - Valid till car Ass. Nr. 8466
                                                                      from £19.51
                                                                      from £19.51
                                                                      # 009
                                                                      MPN: 67237000
                                                                      RH DOOR INSIDE RELEASE BOWDEN
                                                                      - Valid from car Ass. Nr. 8467
                                                                      from £23.47
                                                                      from £23.47
                                                                      # 009
                                                                      MPN: 67237100
                                                                      LH DOOR INSIDE RELEASE BOWDEN
                                                                      - Valid from car Ass. Nr. 8467
                                                                      from £19.76
                                                                      from £19.76
                                                                      # 010
                                                                      MPN: 66132400
                                                                      RH DOOR SAFETY TIE ROD
                                                                      from £8.24
                                                                      from £8.24
                                                                      # 010
                                                                      MPN: 66132500
                                                                      LH DOOR SAFETY TIE ROD
                                                                      from £8.24
                                                                      from £8.24
                                                                      # 011
                                                                      MPN: 14572587
                                                                      CABLES RETAINING CLIP
                                                                      from £1.11
                                                                      from £1.11
                                                                      # 012
                                                                      MPN: 66061400
                                                                      BRACKET
                                                                      from £1.59
                                                                      from £1.59
                                                                      # 013
                                                                      MPN: 15624311
                                                                      RIVET
                                                                      from £1.90
                                                                      from £1.90
                                                                      # 014
                                                                      MPN: 388300274
                                                                      COMPLETE RH DOOR INSIDE HANDLE
                                                                      - Valid till car Ass. Nr. 8466
                                                                      from £34.15
                                                                      from £34.15
                                                                      This part replaces part number 388300202 - and 1 more. Click to view details
                                                                      # 014
                                                                      MPN: 388300275
                                                                      COMPLETE LH DOOR INSIDE HANDLE
                                                                      - Valid till car Ass. Nr. 8466
                                                                      from £34.15
                                                                      from £34.15
                                                                      This part replaces part number 388300201 - and 1 more. Click to view details
                                                                      # 014
                                                                      MPN: 67236800
                                                                      COMPLETE RH DOOR INSIDE HANDLE
                                                                      - Valid from car Ass. Nr. 8467
                                                                      from £353.22
                                                                      from £353.22
                                                                      # 014
                                                                      MPN: 67236900
                                                                      COMPLETE LH DOOR INSIDE HANDLE
                                                                      - Valid from car Ass. Nr. 8467
                                                                      from £353.22
                                                                      from £353.22
                                                                      # 015
                                                                      MPN: 388300615
                                                                      SWITCH
                                                                      from £41.41
                                                                      from £41.41
                                                                      # 016
                                                                      MPN: 82377992
                                                                      CABLES RETAINING CLIP
                                                                      from £0.71
                                                                      from £0.71
                                                                      # 017
                                                                      MPN: 60624357
                                                                      STOP TIE ROD
                                                                      from £112.06
                                                                      from £112.06
                                                                      This part replaces part number 46420413
                                                                      # 018
                                                                      MPN: 60624899
                                                                      LH GASKET FOR STOP TIE ROD
                                                                      from £1.59
                                                                      from £1.59
                                                                      # 019
                                                                      MPN: 11620021
                                                                      SCREW
                                                                      from £1.59
                                                                      from £1.59
                                                                      # 020
                                                                      MPN: 384500114
                                                                      COMPLETE RH UPPER HINGE
                                                                      from £34.65
                                                                      from £34.65
                                                                      # 020
                                                                      MPN: 67358300
                                                                      LH UPPER HINGE
                                                                      from £189.24
                                                                      from £189.24
                                                                      This part replaces part number 384500113 - and 3 more. Click to view details
                                                                      # 021
                                                                      MPN: 384500117
                                                                      COMPLETE LH LOWER HINGE
                                                                      Supersession
                                                                      Supersession
                                                                      # 021
                                                                      MPN: 384500118
                                                                      COMPLETE RH LOWER HINGE
                                                                      from £55.00
                                                                      from £55.00
                                                                      # 022
                                                                      MPN: 60584861
                                                                      SCREW
                                                                      from £2.54
                                                                      from £2.54
                                                                      # 023
                                                                      MPN: 82489367
                                                                      WASHER
                                                                      from £1.43
                                                                      from £1.43
                                                                      # 024
                                                                      MPN: 11586024
                                                                      SCREW
                                                                      from £3.74
                                                                      from £3.74
                                                                      # 025
                                                                      MPN: 382500536
                                                                      SHIMMING PLATE
                                                                      from £37.81
                                                                      from £37.81
                                                                      This part replaces part number 314520402 - and 1 more. Click to view details
                                                                      # 026
                                                                      MPN: 60624898
                                                                      RH GASKET FOR STOP TIE ROD
                                                                      from £1.59
                                                                      from £1.59
                                                                      # 027
                                                                      MPN: 67420200
                                                                      SCREW
                                                                      from £1.35
                                                                      from £1.35
                                                                      This part replaces part number 67048300
                                                                      # 028
                                                                      MPN: 384500390
                                                                      TIE ROD
                                                                      from £3.98
                                                                      from £3.98
                                                                      # 029
                                                                      MPN: 53451352
                                                                      ELASTIC CONNECTION
                                                                      from £0.71
                                                                      from £0.71
                                                                      # 030
                                                                      MPN: 387700404
                                                                      RH REAR GUIDE SHOE
                                                                      from £5.23
                                                                      from £5.23
                                                                      # 030
                                                                      MPN: 387700405
                                                                      LH REAR GUIDE SHOE
                                                                      from £6.11
                                                                      from £6.11
                                                                      # 031
                                                                      MPN: 387700406
                                                                      THICKNESS
                                                                      from £13.24
                                                                      from £13.24
                                                                      # 032
                                                                      MPN: 13271617
                                                                      SCREW
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 033
                                                                      MPN: 14496207
                                                                      WASHER
                                                                      Supersession
                                                                      Supersession
                                                                      # 034
                                                                      MPN: 66133300
                                                                      CLIP
                                                                      from £2.38
                                                                      from £2.38
                                                                      # 035
                                                                      MPN: 15689907
                                                                      SCREW
                                                                      from £1.11
                                                                      from £1.11
                                                                      # 036
                                                                      MPN: 60585246
                                                                      NUT SCREW
                                                                      from £0.71
                                                                      from £0.71
