maserati 4200 coupe (2002) front and rear lights parts diagram

130 - Front and Rear Lights

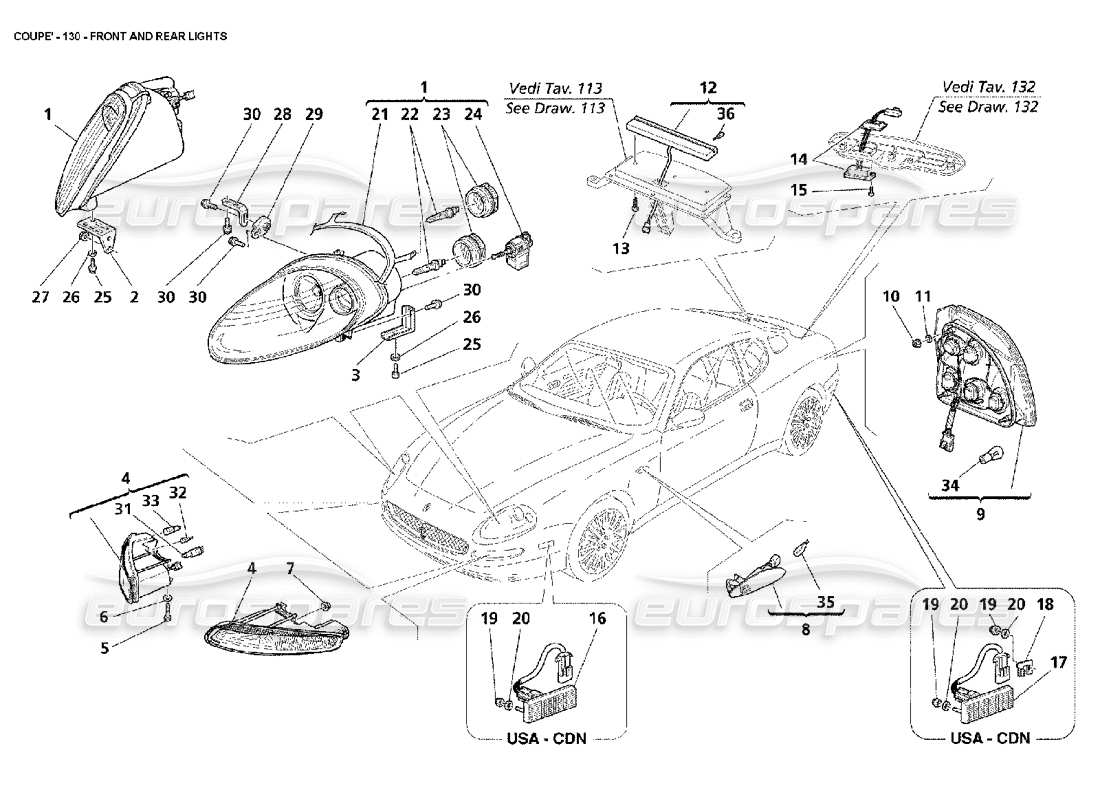

Maserati 4200 Coupe (2002) Front and Rear Lights Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 184922007
                                                    RH HEADLIGHT
                                                    Valid for RHD and J - ARGENTINA BLUE
                                                    from £1,438.49
                                                    from £1,438.49
                                                    # 001
                                                    MPN: 184922015
                                                    RH HEADLIGHT
                                                    Valid for RHD and J - BOLOGNA RED
                                                    from £1,438.49
                                                    from £1,438.49
                                                    # 001
                                                    MPN: 980000930
                                                    RH FRONT HEADLIGHT
                                                    - Valid for GD (blue Nettuno)
                                                    from £338.39
                                                    from £338.39
                                                    # 001
                                                    MPN: 980001939
                                                    LH FRONT HEADLIGHT
                                                    - Valid for GD (blue Nettuno)
                                                    # 002
                                                    MPN: 383100312
                                                    FRONT BRACKET
                                                    from £9.20
                                                    from £9.20
                                                    # 003
                                                    MPN: 383100161
                                                    REAR BRACKET
                                                    from £16.70
                                                    from £16.70
                                                    # 004
                                                    MPN: 188041
                                                    FOG LAMP/POSITION/RH INDICATOR SET
                                                    - Not for USA and CDN
                                                    from £697.34
                                                    from £697.34
                                                    # 004
                                                    MPN: 188042
                                                    FOG LAMP/POSITION/LH INDICATOR SET
                                                    - Not for USA and CDN
                                                    from £336.19
                                                    from £336.19
                                                    # 004
                                                    MPN: 190714
                                                    FOG LAMP/POSITION/RH INDICATOR SET
                                                    - Valid for USA and CDN
                                                    from £593.22
                                                    from £593.22
                                                    # 004
                                                    MPN: 190715
                                                    FOG LAMP/POSITION/LH INDICATOR SET
                                                    - Valid for USA and CDN
                                                    from £233.48
                                                    from £233.48
                                                    # 005
                                                    MPN: 11730924
                                                    SCREW
                                                    from £1.55
                                                    from £1.55
                                                    # 006
                                                    MPN: 12620474
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    # 007
                                                    MPN: 13046114
                                                    NUT
                                                    from £0.53
                                                    from £0.53
                                                    # 008
                                                    MPN: 383100127
                                                    SIDE DIRECTION SMALL LAMP
                                                    from £46.95
                                                    from £46.95
                                                    # 009
                                                    MPN: 189797
                                                    LH REAR LAMP
                                                    Supersession
                                                    Supersession
                                                    # 009
                                                    MPN: 980138900
                                                    Rear Lights
                                                    (pair supplied)
                                                    from £435.26
                                                    from £435.26
                                                    This part replaces part number 189797 - and 1 more. Click to view details
                                                    # 010
                                                    MPN: 13046011
                                                    NUT
                                                    from £0.50
                                                    from £0.50
                                                    # 011
                                                    MPN: 12638101
                                                    WASHER
                                                    from £0.71
                                                    from £0.71
                                                    This part replaces part number 12638121
                                                    # 012
                                                    MPN: 191832
                                                    CENTRAL REAR LAMP
                                                    from £36.27
                                                    from £36.27
                                                    This part replaces part number 383100132
                                                    # 013
                                                    MPN: 15782601
                                                    SCREW
                                                    from £0.71
                                                    from £0.71
                                                    # 014
                                                    MPN: 383100111
                                                    NUMBER PLATE LIGHT ASSY
                                                    from £49.59
                                                    from £49.59
                                                    This part replaces part number 386100364
                                                    # 015
                                                    MPN: 15901501
                                                    SCREW
                                                    from £0.53
                                                    from £0.53
                                                    # 016
                                                    MPN: 147563
                                                    FRONT SIDE-MARKER LAMP
                                                    - Valid for USA and CDN
                                                    from £16.33
                                                    from £16.33
                                                    # 017
                                                    MPN: 140594
                                                    REAR SIDE-MARKER LIGHT
                                                    - Valid for USA and CDN
                                                    from £22.89
                                                    from £22.89
                                                    # 018
                                                    MPN: 156198
                                                    CLIP
                                                    - Valid for USA and CDN
                                                    from £10.41
                                                    from £10.41
                                                    # 019
                                                    MPN: 14084111
                                                    NUT
                                                    - Valid for USA and CDN
                                                    from £0.51
                                                    from £0.51
                                                    # 020
                                                    MPN: 12638124
                                                    WASHER
                                                    - Valid for USA and CDN
                                                    from £0.53
                                                    from £0.53
                                                    # 021
                                                    MPN: 980000951
                                                    LH HEADLAMP EXTERNAL GASKET
                                                    from £35.97
                                                    from £35.97
                                                    This part replaces part number 94074245
                                                    # 021
                                                    MPN: 980000952
                                                    RH HEADLAMP EXTERNAL GASKET
                                                    from £22.80
                                                    from £22.80
                                                    This part replaces part number 94074244
                                                    # 022
                                                    MPN: 980000953
                                                    HEADLIGHT BULB
                                                    from £20.22
                                                    from £20.22
                                                    # 023
                                                    MPN: 980001141
                                                    CAP
                                                    from £21.56
                                                    from £21.56
                                                    # 024
                                                    MPN: 980000950
                                                    HEADLAMP ACTUATOR
                                                    from £40.11
                                                    from £40.11
                                                    # 025
                                                    MPN: 11730924
                                                    SCREW
                                                    from £1.55
                                                    from £1.55
                                                    # 026
                                                    MPN: 12644424
                                                    WASHER
                                                    from £0.53
                                                    from £0.53
                                                    This part replaces part number 13550214
                                                    # 027
                                                    MPN: 13046114
                                                    NUT
                                                    from £0.53
                                                    from £0.53
                                                    # 028
                                                    MPN: 66379100
                                                    LAMP FIXING UPPER BRACKET
                                                    from £5.57
                                                    from £5.57
                                                    # 029
                                                    MPN: 66320000
                                                    LH BRACKET
                                                    from £11.82
                                                    from £11.82
                                                    # 029
                                                    MPN: 66379200
                                                    RH BRACKET
                                                    from £54.96
                                                    from £54.96
                                                    # 030
                                                    MPN: 11730624
                                                    SCREW
                                                    from £0.51
                                                    from £0.51
                                                    # 031
                                                    MPN: 980000953
                                                    FOG LAMP HEADLIGHT BULB
                                                    - Not for USA and CDN
                                                    from £20.22
                                                    from £20.22
                                                    # 031
                                                    MPN: 980001167
                                                    HEADLIGHT BULB
                                                    - Not for USA and CDN
                                                    from £3.23
                                                    from £3.23
                                                    # 032
                                                    MPN: 980000955
                                                    LIGHT POSITION BULB
                                                    - Not for USA and CDN
                                                    from £1.24
                                                    from £1.24
                                                    # 032
                                                    MPN: 980001160
                                                    LIGHT POSITION BULB
                                                    - Valid for USA and CDN
                                                    from £4.58
                                                    from £4.58
                                                    # 033
                                                    MPN: 980000954
                                                    DIRECTION LIGHT BULB
                                                    - Not for USA and CDN
                                                    from £2.29
                                                    from £2.29
                                                    # 033
                                                    MPN: 980001167
                                                    DIRECTION LIGHT BULB
                                                    - Valid for USA and CDN
                                                    from £3.23
                                                    from £3.23
                                                    # 034
                                                    MPN: 87720021
                                                    BULB 21 W.
                                                    from £1.00
                                                    from £1.00
                                                    # 034
                                                    MPN: 87720521
                                                    TWO LIGHT BULB 5/21 W.
                                                    from £3.06
                                                    from £3.06
                                                    # 035
                                                    MPN: 980001160
                                                    BULB
                                                    from £4.58
                                                    from £4.58
                                                    # 036
                                                    MPN: 383100502
                                                    STOP LAMP BULB
                                                    from £3.12
                                                    from £3.12
