maserati 4200 coupe (2002) xenon headlights and washer -optional parts diagram

131 - Xenon Headlights and Washer -Optional

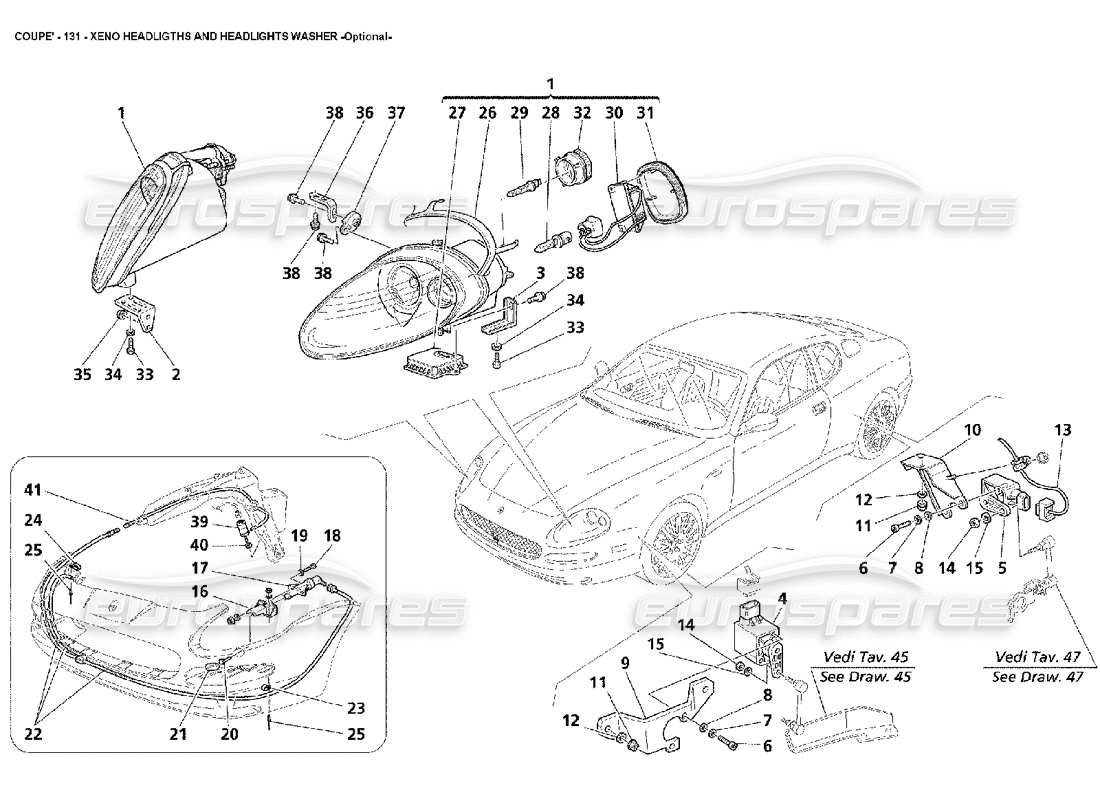

Maserati 4200 Coupe (2002) Xenon Headlights and Washer -Optional Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 184922...
                                                        RH FRONT HEADLIGHT
                                                        - Valid for GD and J
                                                        # 001
                                                        MPN: 184923015
                                                        LH FRONT HEADLIGHT
                                                        - Valid for GD and J (Bloogna Red)
                                                        from £1,472.30
                                                        from £1,472.30
                                                        # 001
                                                        MPN: 20967937
                                                        RH FRONT HEADLIGHT
                                                        Valid for GD (Xenon)
                                                        # 001
                                                        MPN: 20968124
                                                        LH FRONT HEADLIGHT
                                                        - Valid for GD (Xenon)
                                                        # 002
                                                        MPN: 383100312
                                                        FRONT BRACKET
                                                        from £9.17
                                                        from £9.17
                                                        # 003
                                                        MPN: 383100161
                                                        REAR BRACKET
                                                        from £16.64
                                                        from £16.64
                                                        # 004
                                                        MPN: 188659
                                                        LIGHT ATTITUDE FRONT POTENTIOMETER
                                                        - Not for USA and CDN
                                                        from £259.34
                                                        from £259.34
                                                        # 005
                                                        MPN: 184943
                                                        LIGHT ATTITUDE REAR POTENTIOMETER
                                                        - Not for USA and CDN
                                                        from £101.93
                                                        from £101.93
                                                        # 006
                                                        MPN: 14304024
                                                        SCREW
                                                        - Not for USA and CDN
                                                        from £0.53
                                                        from £0.53
                                                        # 007
                                                        MPN: 10519301
                                                        WASHER
                                                        - Not for USA and CDN
                                                        from £13.02
                                                        from £13.02
                                                        # 008
                                                        MPN: 11199274
                                                        WASHER
                                                        - Not for USA and CDN
                                                        from £0.53
                                                        from £0.53
                                                        # 009
                                                        MPN: 190218
                                                        FRONT BRACKET
                                                        - Not for USA and CDN
                                                        from £13.95
                                                        from £13.95
                                                        # 010
                                                        MPN: 188406
                                                        REAR BRACKET
                                                        - Not for USA and CDN
                                                        from £6.27
                                                        from £6.27
                                                        # 011
                                                        MPN: 13832101
                                                        NUT
                                                        - Not for USA and CDN
                                                        from £0.53
                                                        from £0.53
                                                        # 012
                                                        MPN: 12644401
                                                        WASHER
                                                        - Not for USA and CDN
                                                        from £0.47
                                                        from £0.47
                                                        # 013
                                                        MPN: 186407
                                                        BRIDLE FOR POTENTIOMETER
                                                        - Not for USA and CDN
                                                        Supersession
                                                        Supersession
                                                        # 014
                                                        MPN: 12575415
                                                        NUT
                                                        - Not for USA and CDN
                                                        from £1.08
                                                        from £1.08
                                                        # 015
                                                        MPN: 14498805
                                                        WASHER
                                                        - Not for USA and CDN
                                                        from £0.54
                                                        from £0.54
                                                        # 016
                                                        MPN: 66372000
                                                        RH HEADLIGHTS WASHER SUPPORT BRACKET
                                                        from £20.19
                                                        from £20.19
                                                        # 016
                                                        MPN: 66372100
                                                        LH HEADLIGHTS WASHER SUPPORT BRACKET
                                                        from £20.19
                                                        from £20.19
                                                        # 017
                                                        MPN: 980002001
                                                        COMPLETE PUMP FOR COUPLING
                                                        from £70.08
                                                        from £70.08
                                                        # 018
                                                        MPN: 14305324
                                                        SCREW
                                                        from £0.51
                                                        from £0.51
                                                        This part replaces part number 14305321
                                                        # 019
                                                        MPN: 11188079
                                                        WASHER
                                                        from £0.71
                                                        from £0.71
                                                        # 020
                                                        MPN: 900028018
                                                        LH COUPLING FOR PLUG
                                                        from £78.34
                                                        from £78.34
                                                        This part replaces part number 66371600
                                                        # 020
                                                        MPN: 900028019
                                                        RH COUPLING FOR PLUG
                                                        from £146.30
                                                        from £146.30
                                                        This part replaces part number 66371500
                                                        # 021
                                                        MPN: 66371700
                                                        RH PLUG
                                                        from £92.74
                                                        from £92.74
                                                        # 021
                                                        MPN: 66371800
                                                        LH PLUG
                                                        from £46.37
                                                        from £46.37
                                                        # 022
                                                        MPN: 66371900
                                                        HEADLIGHT WASHER PIPES (ASSEM.)
                                                        from £89.73
                                                        from £89.73
                                                        # 023
                                                        MPN: 10441590
                                                        BRACKET WITH SHEATH
                                                        from £0.50
                                                        from £0.50
                                                        # 025
                                                        MPN: 14642893
                                                        RIVET
                                                        # 026
                                                        MPN: 980000951
                                                        LH HEADLAMP EXTERNAL GASKET
                                                        from £18.95
                                                        from £18.95
                                                        This part replaces part number 94074245
                                                        # 026
                                                        MPN: 980000952
                                                        RH HEADLAMP EXTERNAL GASKET
                                                        from £18.95
                                                        from £18.95
                                                        This part replaces part number 94074244
                                                        # 027
                                                        MPN: 980001133
                                                        XENO LIGHT CONTROL STATION
                                                        from £334.15
                                                        from £334.15
                                                        # 028
                                                        MPN: 980001138
                                                        LOW BEAM BULB
                                                        from £133.00
                                                        from £133.00
                                                        # 029
                                                        MPN: 980000953
                                                        HIGH BEAM BULB
                                                        - Valid for USA and CDN
                                                        from £20.70
                                                        from £20.70
                                                        # 029
                                                        MPN: 980001139
                                                        HIGH BEAM BULB
                                                        - Not for USA and CDN
                                                        from £16.71
                                                        from £16.71
                                                        # 030
                                                        MPN: 980001134
                                                        XENO LIGHT IGNITOR
                                                        from £123.46
                                                        from £123.46
                                                        # 031
                                                        MPN: 980001136
                                                        LOW BEAM BULB CAP
                                                        from £20.19
                                                        from £20.19
                                                        This part replaces part number 980001135
                                                        # 032
                                                        MPN: 980001141
                                                        HIGH BEAM BULB CAP
                                                        from £21.49
                                                        from £21.49
                                                        # 033
                                                        MPN: 11730924
                                                        SCREW
                                                        from £1.55
                                                        from £1.55
                                                        # 034
                                                        MPN: 12644424
                                                        WASHER
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 13550214
                                                        # 035
                                                        MPN: 13046114
                                                        NUT
                                                        from £0.53
                                                        from £0.53
                                                        # 036
                                                        MPN: 66379100
                                                        LAMP FIXING UPPET BRACKET
                                                        from £5.54
                                                        from £5.54
                                                        # 037
                                                        MPN: 66320000
                                                        LH BRACKET
                                                        from £11.79
                                                        from £11.79
                                                        # 037
                                                        MPN: 66379200
                                                        RH BRACKET
                                                        from £28.96
                                                        from £28.96
                                                        # 038
                                                        MPN: 11730624
                                                        SCREW
                                                        from £0.51
                                                        from £0.51
                                                        # 039
                                                        MPN: 65164700
                                                        HEADLIGHTS WASHER PUMP
                                                        from £41.17
                                                        from £41.17
                                                        # 040
                                                        MPN: 65511700
                                                        GASKET
                                                        from £3.24
                                                        from £3.24
                                                        # 041
                                                        MPN: 66421700
                                                        HEADLIGHT WASHER PIPE
                                                        from £32.12
                                                        from £32.12
