maserati 4200 coupe (2002) electrical system parts diagram

134 - electrical system

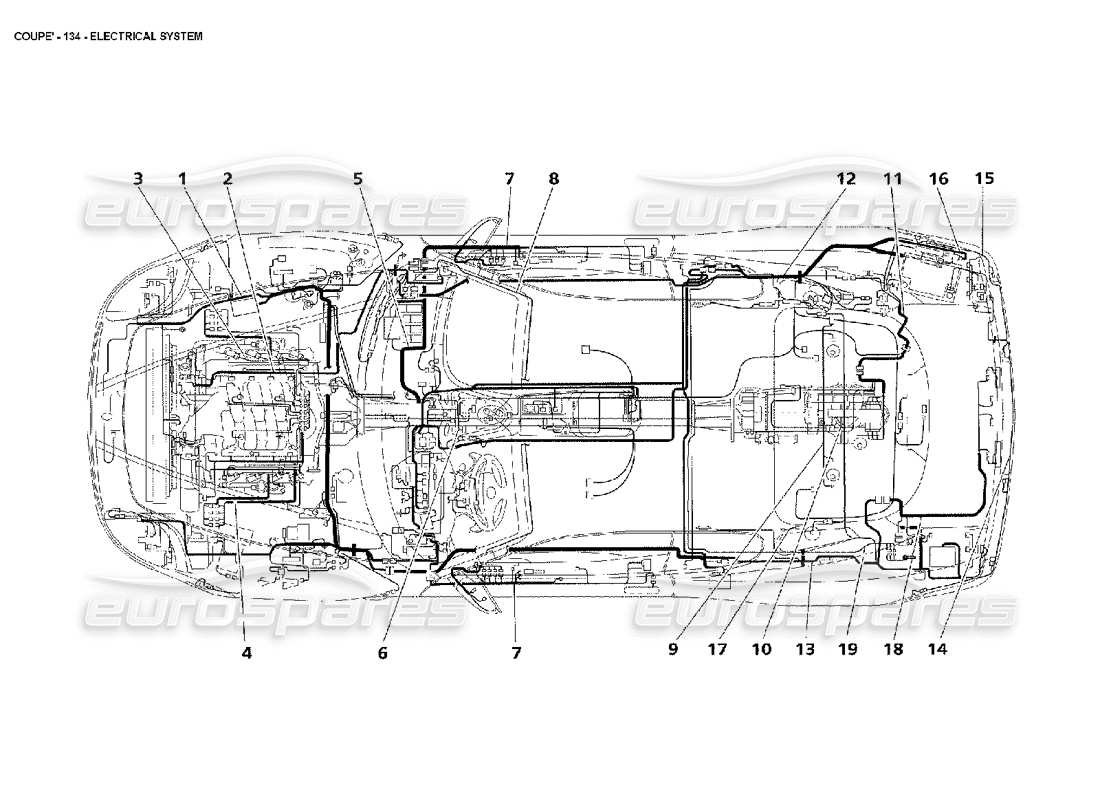

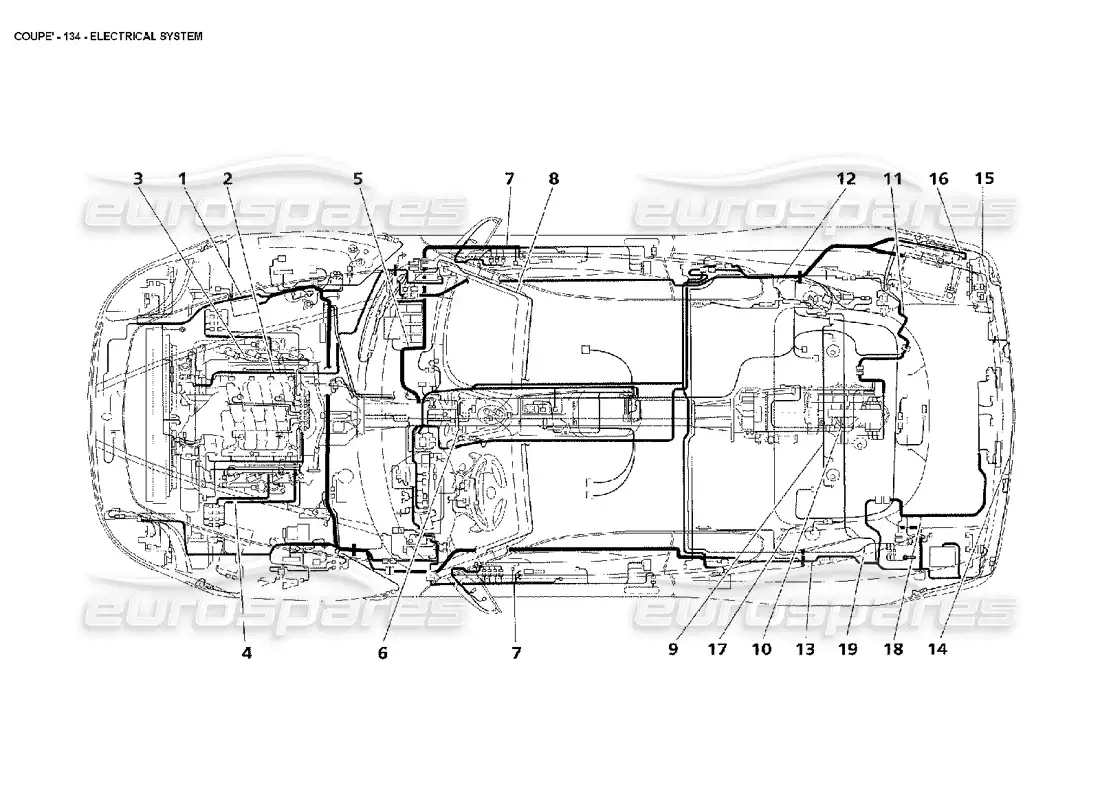

Maserati 4200 Coupe (2002) Electrical System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001
          MPN: 184932
          ENGINE COMPARTMENT CABLES
          - Not for USA, CDN and GD
          from £491.45
          from £491.45
          # 001
          MPN: 191304
          ENGINE COMPARTMENT CABLES
          - Valid for GD
          from £548.77
          from £548.77
          # 001
          MPN: 191311
          ENGINE COMPARTMENT CABLES
          - Valid for USA and CDN
          from £541.36
          from £541.36
          # 002
          MPN: 190041
          IGNITION DEVICE CABLES
          - Valid for USA and CDN
          from £661.83
          from £661.83
          # 002
          MPN: 191271
          INJECTION DEVICE CABLES
          - Not for USA, CDN and GD - Valid till car Ass. Nr. 9679
          from £653.07
          from £653.07
          This part replaces part number 187684
          # 002
          MPN: 191275
          INJECTION DEVICE CABLES
          - Valid for GD - Valid till car Ass. Nr. 9695
          from £604.59
          from £604.59
          # 002
          MPN: 195032
          INJECTION DEVICE CABLES
          - Not for USA, CDN and GD - Valid from car Ass. Nr. 9680
          from £2,335.71
          from £2,335.71
          # 002
          MPN: 195034
          INJECTION DEVICE CABLES
          - Valid for GD - Valid from car Ass. Nr. 9696
          from £694.90
          from £694.90
          # 003
          MPN: 189549
          RH HEAD SIDE CABLE
          - Valid till engine Nr. 66289 - See also table 7
          from £75.97
          from £75.97
          # 004
          MPN: 189550
          LH HEAD SIDE CABLE
          - Valid till engine Nr. 66289 - See also table 7
          from £75.97
          from £75.97
          # 005
          MPN: 191303
          DASHBOARD CABLE
          - Valid for GD - Valid till car Ass. Nr. 7895 - Valid till stock exhaustion - After stock exhaustion replaced by 195545
          from £656.25
          from £656.25
          # 005
          MPN: 195544
          DASHBOARD CABLE
          - Not for GD
          from £1,182.56
          from £1,182.56
          This part replaces part number 184933 - and 1 more. Click to view details
          # 005
          MPN: 195545
          DASHBOARD CABLE
          - Valid for GD - Valid from car Ass. Nr. 7896
          from £1,329.51
          from £1,329.51
          This part replaces part number 191303 which we have in stock
          # 006
          MPN: 184940
          NAVIGATION SYSTEM CABLES
          from £68.31
          from £68.31
          # 007
          MPN: 182221
          DOOR CABLE
          Supersession
          Supersession
          # 008
          MPN: 182217
          ROOF LIGHT CABLE
          - Not for GD
          Supersession
          Supersession
          # 008
          MPN: 191306
          ROOF LIGHT CABLE
          - Valid for GD
          Supersession
          Supersession
          # 009
          MPN: 193166
          TANK CABLE
          - Not for USA and CDN
          Supersession
          Supersession
          This part replaces part number 189166
          # 009
          MPN: 193167
          TANK CABLE
          - Valid for USA and CDN
          Supersession
          Supersession
          # 010
          MPN: 184916
          F1 GEAR CABLE ON GEARBOX
          - Valid for F1
          from £169.31
          from £169.31
          # 011
          MPN: 184915
          F1 GEAR CABLE ON BODYWORK
          - Valid for F1
          Supersession
          Supersession
          # 012
          MPN: 191305
          RH LONGITUDINAL CABLE
          - Valid for GD
          from £313.95
          from £313.95
          # 012
          MPN: 192409
          RH LONGITUDINAL CABLE
          - Not for GD
          Supersession
          Supersession
          # 013
          MPN: 184936
          LH LONGITUDINAL CABLE
          - Optional - Version sport
          from £85.29
          from £85.29
          # 014
          MPN: 186662
          BUMPER PARKING SENSOR CABLE
          - Optional - Parking sensor - Not for USA and CDN
          Supersession
          Supersession
          # 014
          MPN: 186663
          SIDE MARKERS AND PARKING SENSOR CABLE
          - Optional - Parking sensor - Valid for USA and CDN
          from £290.93
          from £290.93
          # 015
          MPN: 186674
          SIDE MARKER CABLE
          - Valid for USA and CDN
          from £24.92
          from £24.92
          # 016
          MPN: 192417
          AMPLIFIER CABLES
          - Optional - HI FI system - WINDOW GROUND CABLE
          Supersession
          Supersession
          This part replaces part number 186265
          # 017
          MPN: 182227
          rear
          Supersession
          Supersession
          # 018
          MPN: 200492
          TRUNK CABLE
          from £29.73
          from £29.73
          This part replaces part number 190152 - and 1 more. Click to view details
          # 019
          MPN: 195533
          LH LONGITUDINAL CABLE FOR ANTENNA OUTER
          - Standard - With arrangement for opt. telephone - Valid for cars GB with outer outer antenna radio (draw 144 pos. 14) - See also draw 145
          from £130.04
          from £130.04
          # 019
          MPN: 195534
          LH LONGITUDINAL CABLE FOR ANTENNA OUTER
          - Standard - Valid for cars USA and CDN with outer antenna radio (draw 144 pos. 14) - See also draw 145
          from £51.27
          from £51.27
          # 019
          MPN: 195535
          LH LONGITUDINAL CABLE FOR ANTENNA OUTER
          - Optional - CD charger - With arrangement for opt. telephone - Valid for cars GB with outer outer antenna radio (draw 144 pos. 14) - See also draw 145
          from £195.44
          from £195.44
          # 019
          MPN: 195536
          LH LONGITUDINAL CABLE FOR ANTENNA OUTER
          - Optional - CD charger - Valid for cars USA and CDN with outer antenna radio (draw 144 pos. 14) - See also draw 145
          from £118.30
          from £118.30
