maserati 4200 coupe (2002) car stereo system parts diagram

144 - Car Stereo System

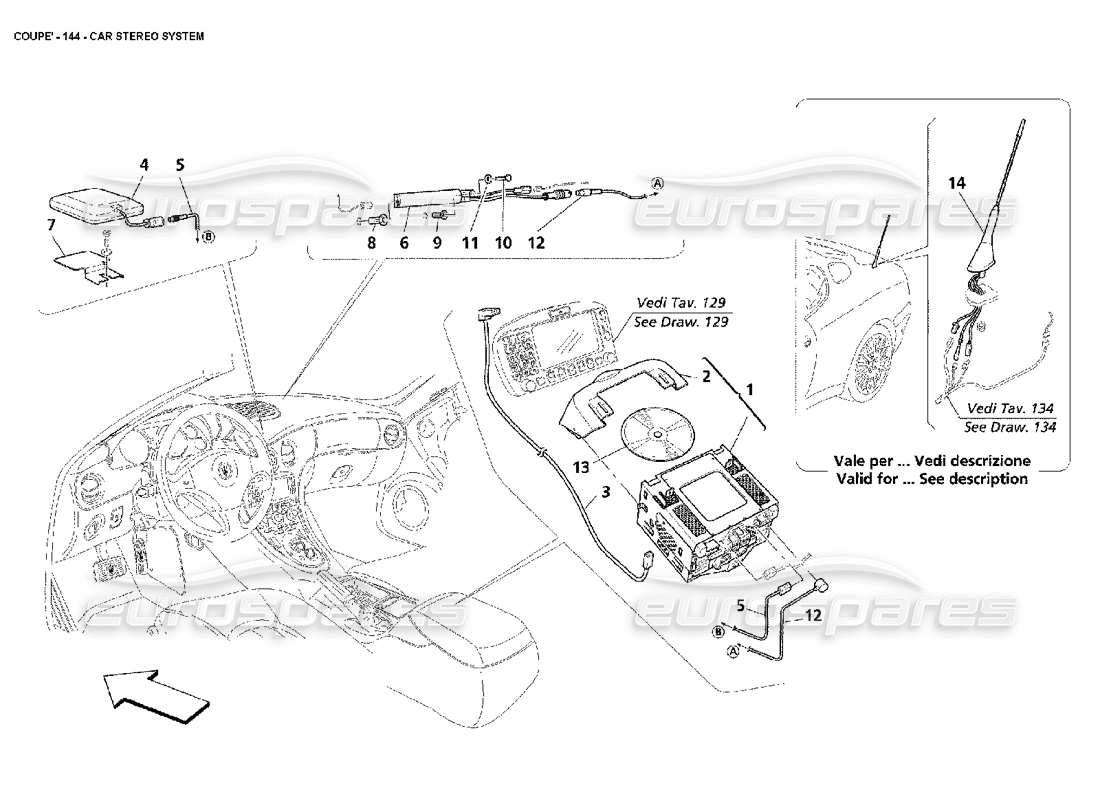

Maserati 4200 Coupe (2002) Car Stereo System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 183665
COMPLETE NIT MODULE
- Standard - Not for USA, CDN, J and cars GB opt. japan version
from £1,076.25
from £1,076.25
This part replaces part number 196195 - and 1 more. Click to view details
# 001
MPN: 191630
COMPLETE NIT MODULE
- Optional - Telephone - Not for USA, CDN and J
This part replaces part number 196196
# 001
MPN: 191631
COMPLETE NIT MODULE
- Valid for USA and CDN
This part replaces part number 196197
# 001
MPN: 191632
COMPLETE NIT MODULE
- Valid for J and cars GB opt. japan version
This part replaces part number 196198

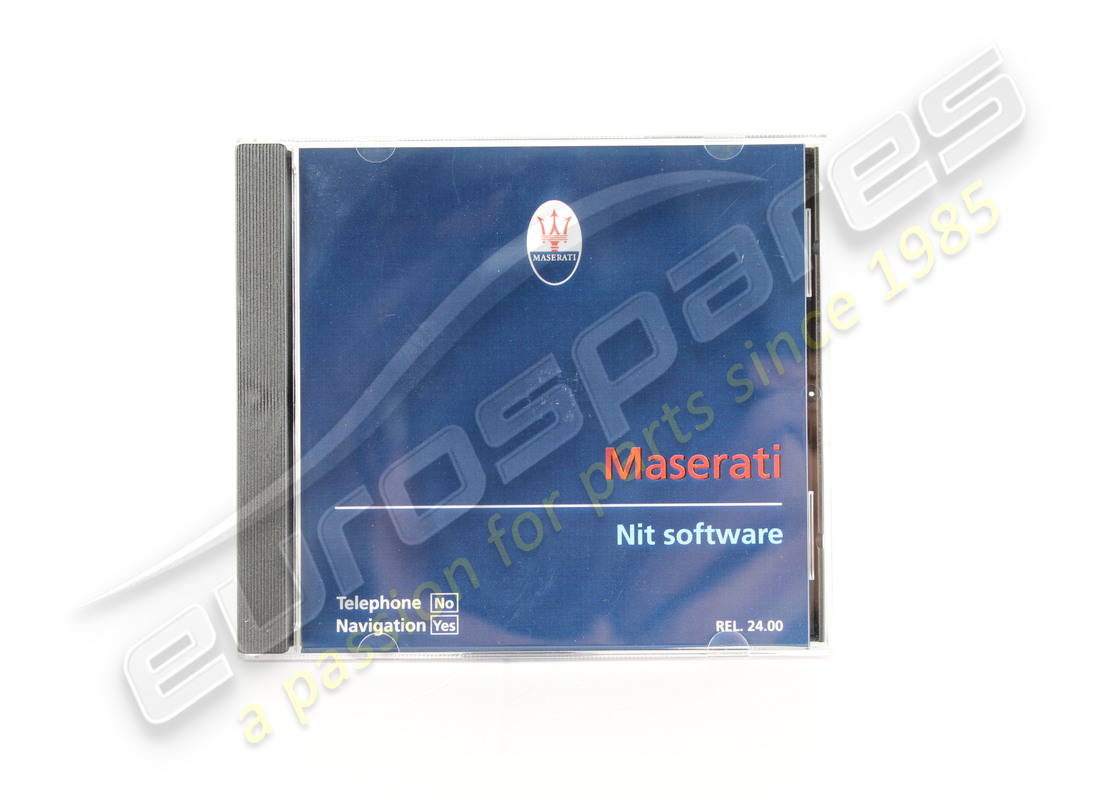

# 001
MPN: 920000871
Maserati NIT SOFTWARE
Telephone-No/ Navigation-Yes
from £12.29
from £12.29

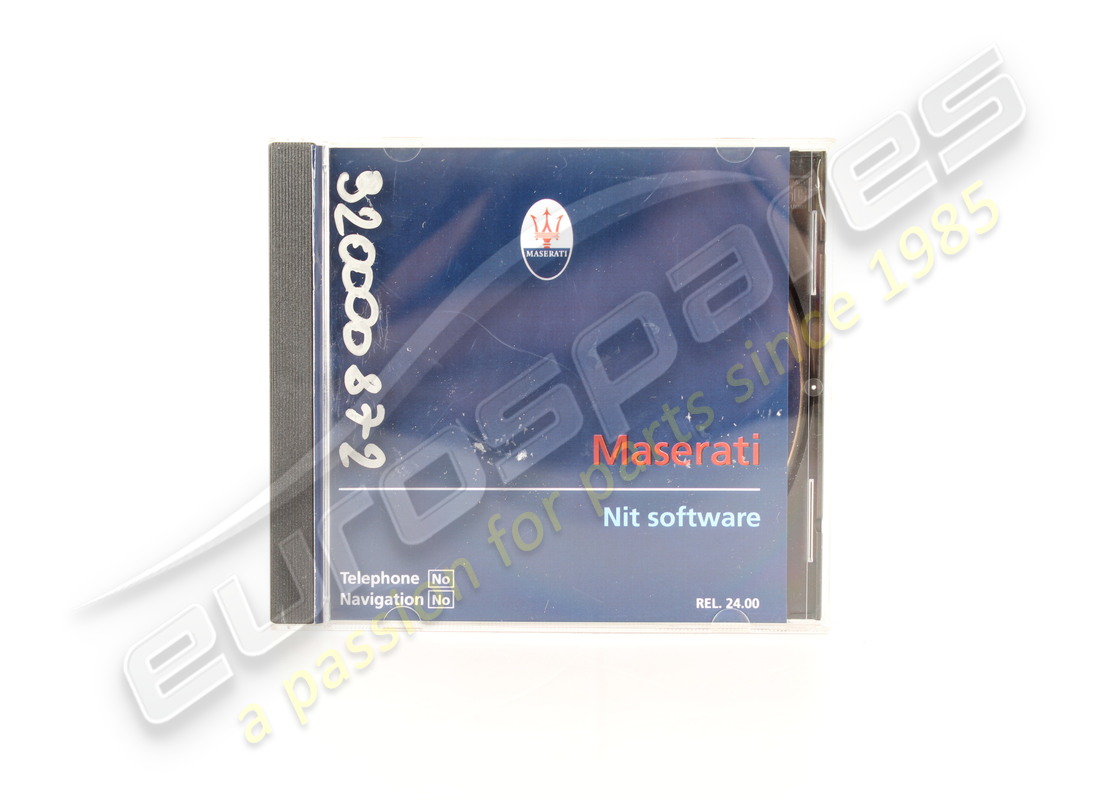

# 001
MPN: 920000872
Maserati NIT SOFTWARE
Telephone-No / Navigation-No
from £52.50
from £52.50

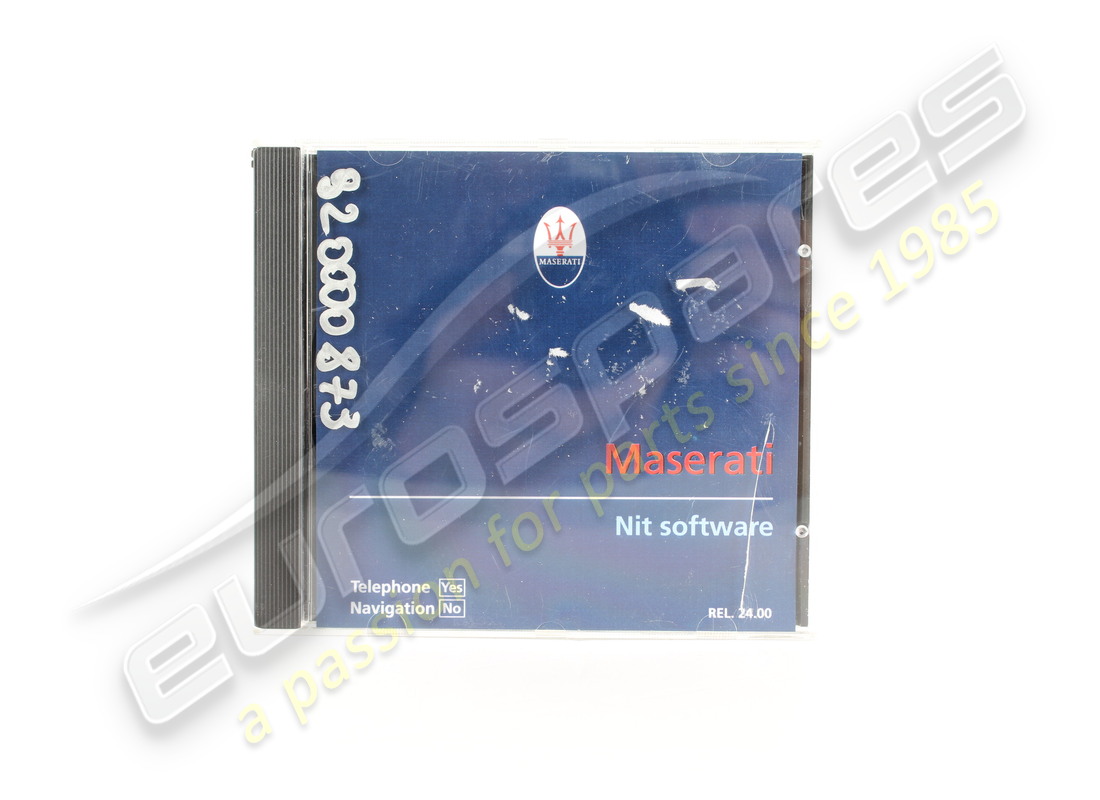

# 001
MPN: 920000873
Maserati NIT SOFTWARE
Telephone-Yes / Navigation-No
from £52.50
from £52.50

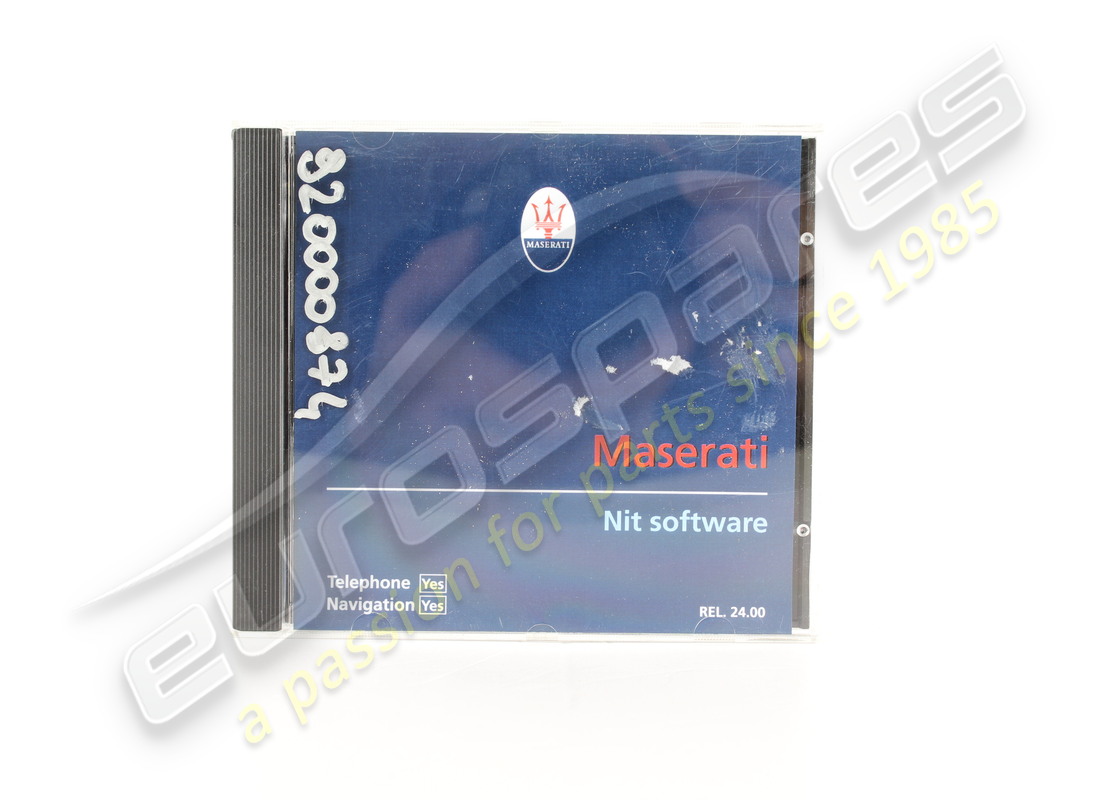

# 001
MPN: 920000874
Maserati NIT SOFTWARE
Telephone-Yes / Navigation-Yes
from £12.29
from £12.29

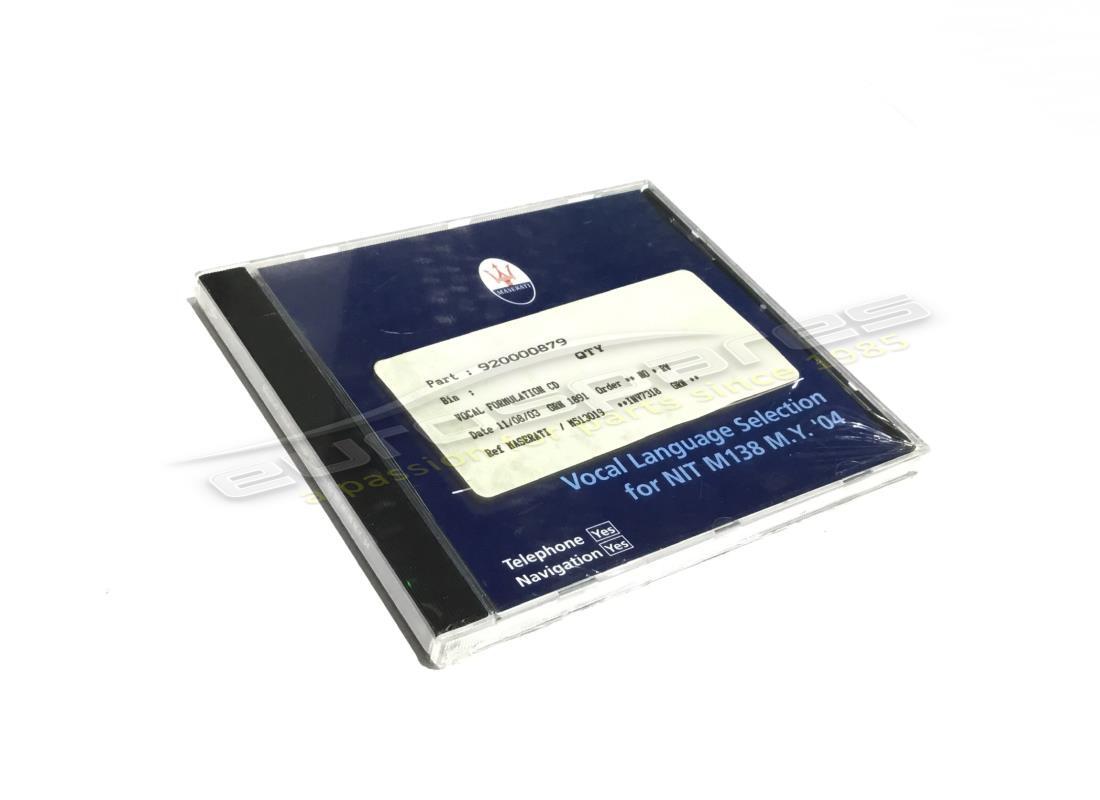

# 001
MPN: 920000879
Maserati VOCAL LANGUAGE SELECTION FOR NIT
Telephone-Yes / Navigation-Yes
from £52.50
from £52.50
# 001
MPN: 980001171
Maserati SOFTWARE NAVIGATOR APPLICATION PACKAGE
from £65.62
from £65.62

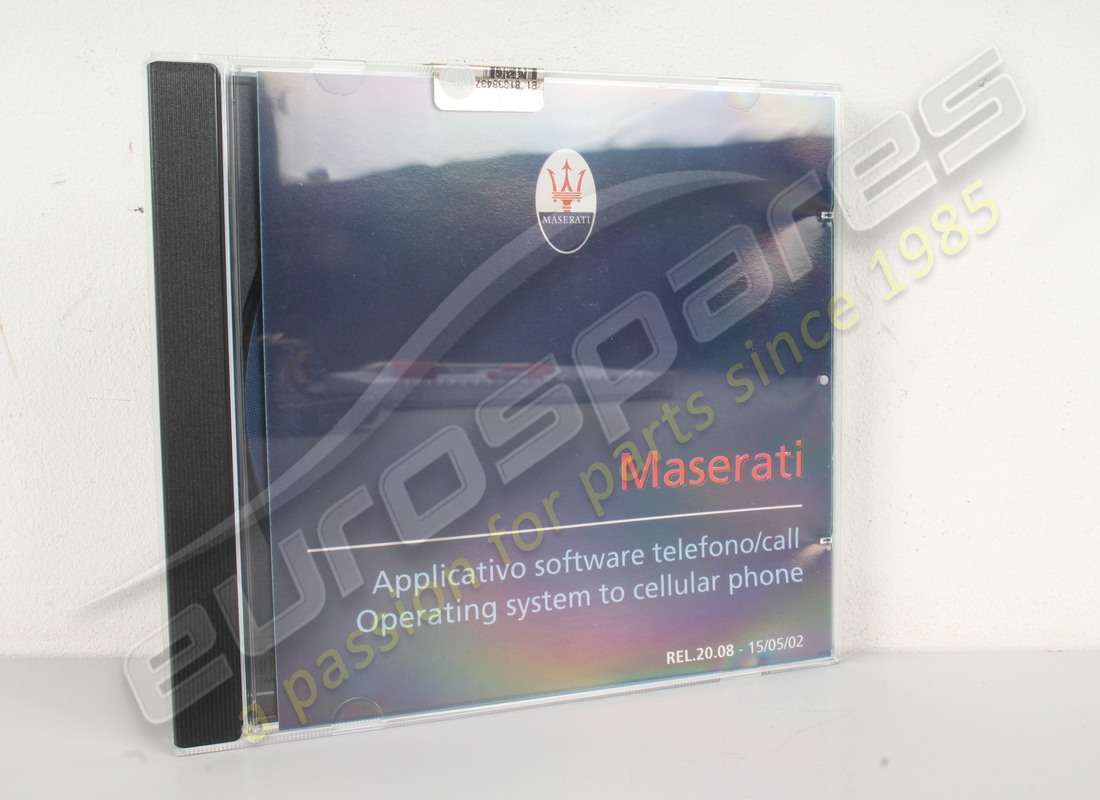

# 001
MPN: 980001172
Maserati OPERATING SYSTEM TO CELLULAR PHONE
from £10.50
from £10.50
# 001
MPN: 980138207
STERIO CD PLAYER
from £1,260.00
from £1,260.00
This part replaces part number 980138202 - and 2 more. Click to view details
# 002
MPN: 66191800
COMPLETE SILVER BOX
- Optional - Telephone - Not for USA, CDN and J
from £257.60
from £257.60
This part replaces part number 66733700
# 002
MPN: 66733700
COMPLETE SILVERBOX
- Standard - BOX - Optional - Telephone - Not for USA, CDN and J
Supersession
Supersession
# 003
MPN: 183669
NIT CONNECTION CABLES
from £243.03
from £243.03
# 005
MPN: 200652
GPS ANTENNA CABLE
from £50.75
from £50.75
This part replaces part number 199143
# 006
MPN: 176238
ANTENNA PRE
- AMPLIFIER - Not for cars USA, CDN and GB with outer radio antenna (pos. 14) - See also draw 134 and 145
from £131.17
from £131.17
# 007
MPN: 382300605
ANTENNA FIXING PLATE
from £53.93
from £53.93
# 008
MPN: 15624411
THREADED RIVET
- Not for cars USA, CDN and GB with outer radio antenna (pos. 14) - See also draw 134 and 145
from £0.84
from £0.84
# 009
MPN: 15180311
THREADED RIVET
- Not for cars USA, CDN and GB with outer radio antenna (pos. 14) - See also draw 134 and 145
from £1.85
from £1.85
# 010
MPN: 13283214
SCREW
- Not for cars USA, CDN and GB with outer radio antenna (pos. 14) - See also draw 134 and 145
from £1.08
from £1.08
# 011
MPN: 10519304
WASHER
- Not for cars USA, CDN and GB with outer radio antenna (pos. 14) - See also draw 134 and 145
from £0.84
from £0.84
This part replaces part number 14496304
# 012
MPN: 383500121
RADIO ANTENNA CABLE
- Not for cars USA, CDN and GB with outer radio antenna (pos. 14) - See also draw 134 and 145
from £11.91
from £11.91
This part replaces part number 383500120
# 013
MPN: 191762
CD ROM FOR ITALY
Supersession
Supersession
This part replaces part number 8191762
# 013
MPN: 191763
CD ROM FOR GERMANY
from £609.14
from £609.14
This part replaces part number 8191763 - and 1 more. Click to view details
# 013
MPN: 191764
CD ROM FOR FRENCH
Supersession
Supersession
This part replaces part number 8191764
# 013
MPN: 191765
CD FOR BENELUX
use : 940000044 (Europe NAV. CD)
Supersession
Supersession
# 013
MPN: 191766
CD ROM FOR CENTER EUROPE
- (Austria, Switzerland, north Italy, south Germany)
Supersession
Supersession
This part replaces part number 8191766
# 013
MPN: 191767
CD ROM FOR SWEDEN AND DENMARK
Supersession
Supersession
This part replaces part number 8191767
# 013
MPN: 191769
CD ROM FOR SPAIN AND PORTUGAL
from £160.97
from £160.97
This part replaces part number 8191769
# 013
MPN: 208086
CD ROM FOR ITALY
from £347.89
from £347.89
# 013
MPN: 383500167
CD ROM FOR GREAT BRITAIN
from £340.70
from £340.70
# 014
MPN: 195193
OUTER RADIO ANTENNA
- Valid for USA and CDN - See also draw 134 and 145
from £53.98
from £53.98
# 014
MPN: 195194
OUTER RADIO ANTENNA
- With arrangement for opt. telephone - Valid for GB - See also draw 134 and 145
from £120.08
from £120.08
# 014
MPN: 980138905
RETROFIT TELEPHONE KIT
Valid for GD
from £1,517.98
from £1,517.98
