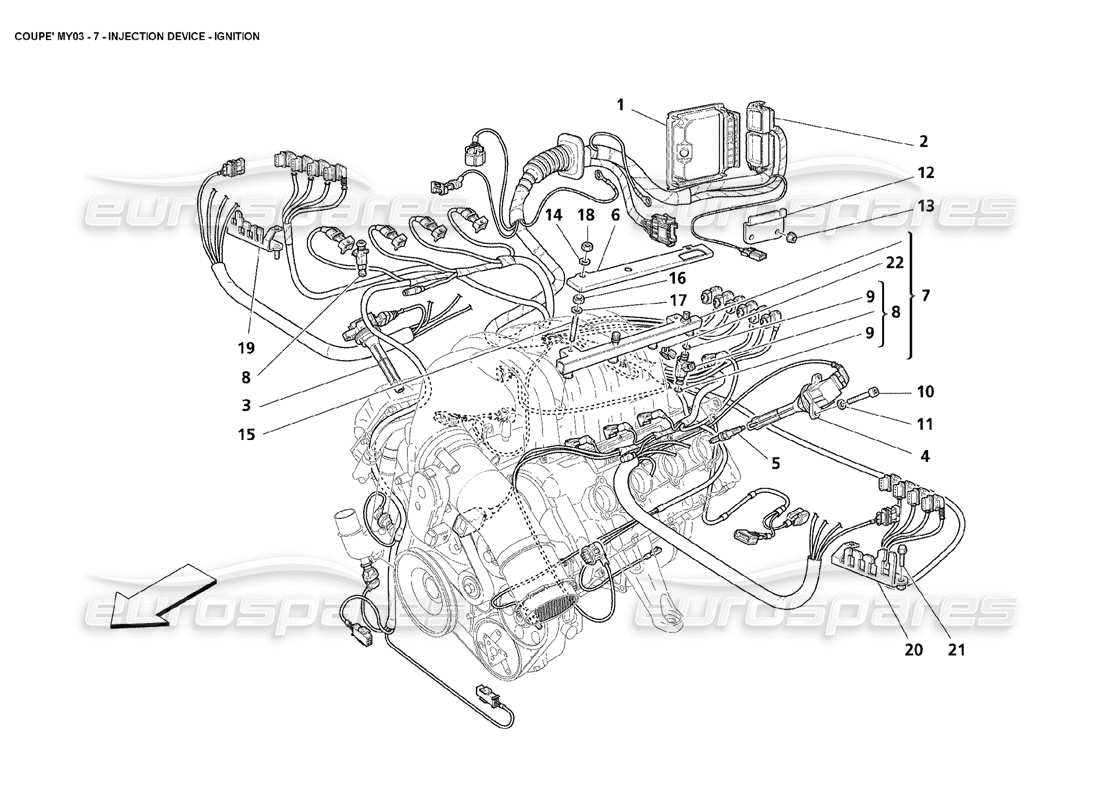

007 - injection device - ignition
Maserati 4200 Coupe (2003) Injection Device - Ignition Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 180251

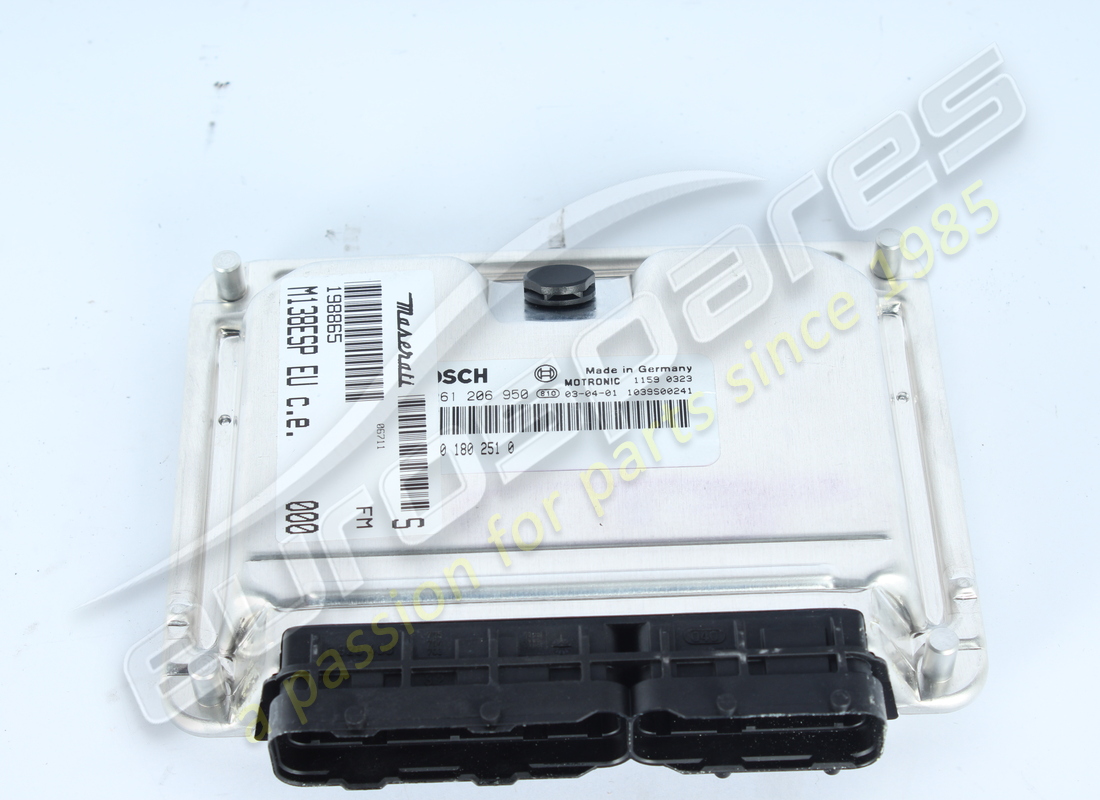

CONTROL UNIT IGNITION
- Programmable
from £866.33
from £866.33
This part replaces part number 192657 which we have in stock - and 29 more. Click to view details
# 001
MPN: 188634

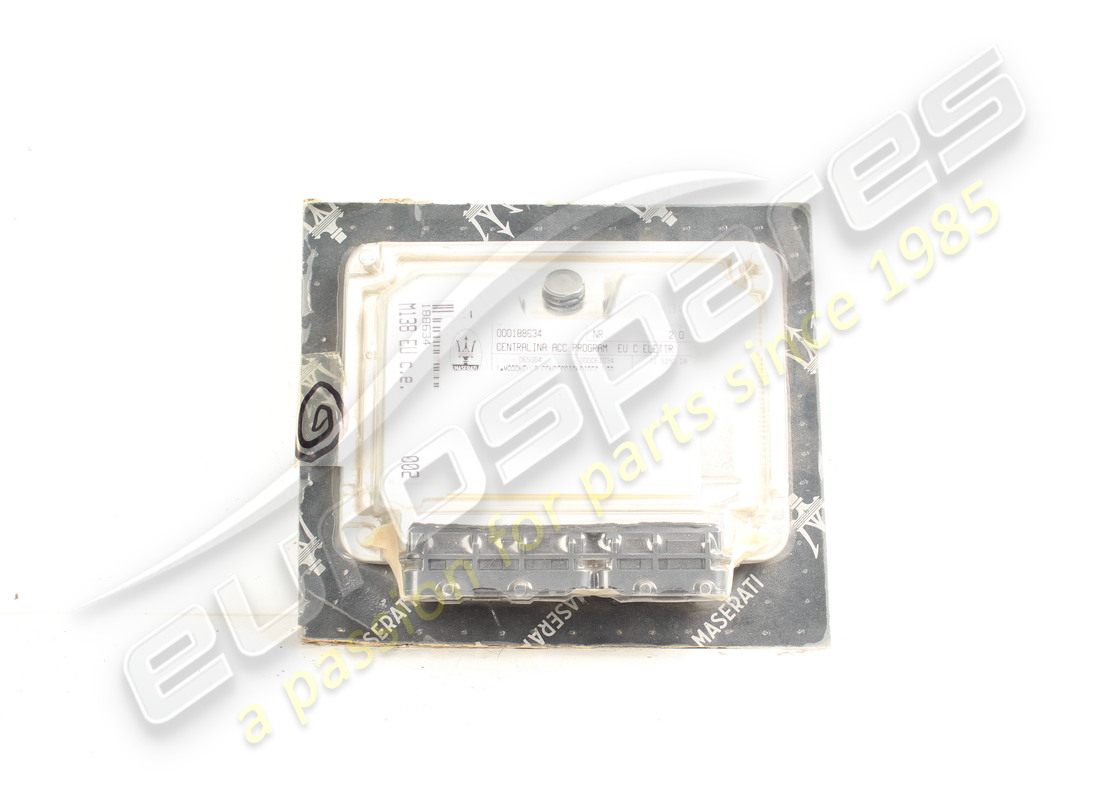

IGNITION CONTROL ECU
from £746.20
from £746.20
# 001
MPN: 198865

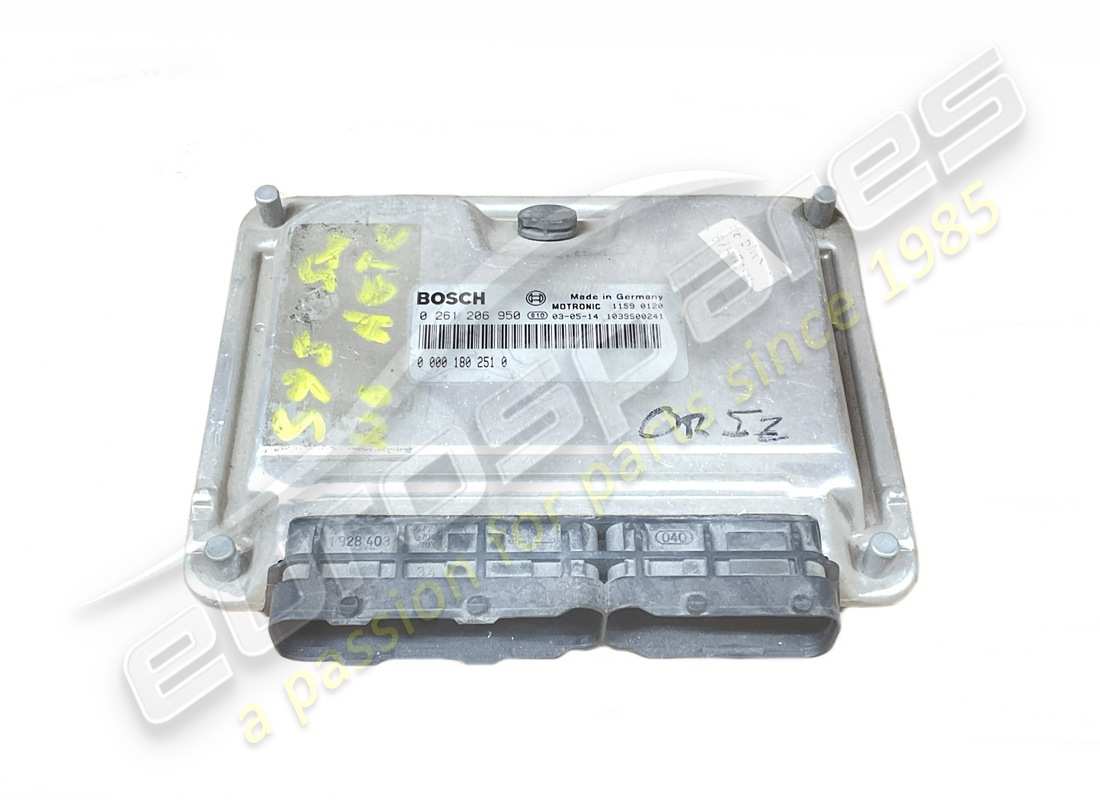

CONTROL UNIT IGNITION
from £861.00
from £861.00
# 001
MPN: 198866
CONTROL UNIT IGNITION
- Not for F1
from £1,139.25
from £1,139.25
# 002
MPN: 190041
IGNITION DEVICE CABLES
- Valid for USA and CDN - Valid till engine Nr. 73454
from £709.67
from £709.67
# 002
MPN: 195032
INJECTION DEVICE CABLES
- Not for USA, CDN and GD
from £2,504.49
from £2,504.49
# 002
MPN: 195034
INJECTION DEVICE CABLES
- Valid for GD
from £745.12
from £745.12
# 002
MPN: 196332
IGNITION DEVICE CABLES
- Valid for USA and CDN - Valid from engine Nr. 73455
from £1,433.38
from £1,433.38
# 003
MPN: 188504
FRONT IGNITION COIL
- Complete of cable
from £62.84
from £62.84
# 004
MPN: 186914
REAR IGNITION COIL
- Complete of cable
from £62.84
from £62.84
# 005
MPN: 192637
SPARK PLUG
NGK
from £14.95
from £14.95
This part replaces part number 168325 which we have in stock - and 1 more. Click to view details
# 006
MPN: 189123
RH FLAUTES FUEL COVER
from £12.42
from £12.42
This part replaces part number 187172 - and 1 more. Click to view details
# 006
MPN: 189124
LH FLAUTES FUEL COVER
from £12.42
from £12.42
This part replaces part number 187171 - and 1 more. Click to view details
# 007
MPN: 197845
COMPLETE LH INJECTORS PIPE
Supersession
Supersession
# 007
MPN: 197846
COMPLETE RH INJECTORS PIPE
Supersession
Supersession
# 008
MPN: 197808
ELECTRO INJECTOR
from £156.91
from £156.91
This part replaces part number 171723 which we have in stock
# 009
MPN: 133902
O.R. GASKET
from £3.29
from £3.29
# 010
MPN: 14305324
SCREW
from £0.48
from £0.48
This part replaces part number 14305321
# 011
MPN: 11197774
WASHER
from £0.52
from £0.52
# 012
MPN: 66313100
MOTRONIC BRACKET
from £3.90
from £3.90
# 013
MPN: 14084211
NUT
from £0.71
from £0.71
This part replaces part number 14084217
# 014
MPN: 11193874
WASHER
from £0.53
from £0.53
# 015
MPN: 13516924
STUD
from £1.31
from £1.31
# 016
MPN: 16102314
NUT
from £0.53
from £0.53
# 017
MPN: 12604474
WASHER
from £0.53
from £0.53
This part replaces part number 12604479
# 018
MPN: 14042321
CAP NUT
from £1.42
from £1.42
This part replaces part number 14042311
# 019
MPN: 190009
RH BRACKET FOR COIL CABLES
from £6.99
from £6.99
# 020
MPN: 190010
LH BRACKET FOR COIL CABLES
from £6.99
from £6.99
# 021
MPN: 18750121
SCREW
from £0.47
from £0.47
# 022
MPN: 144730
INJECTORS RETAINING CLIP
from £2.24
from £2.24
