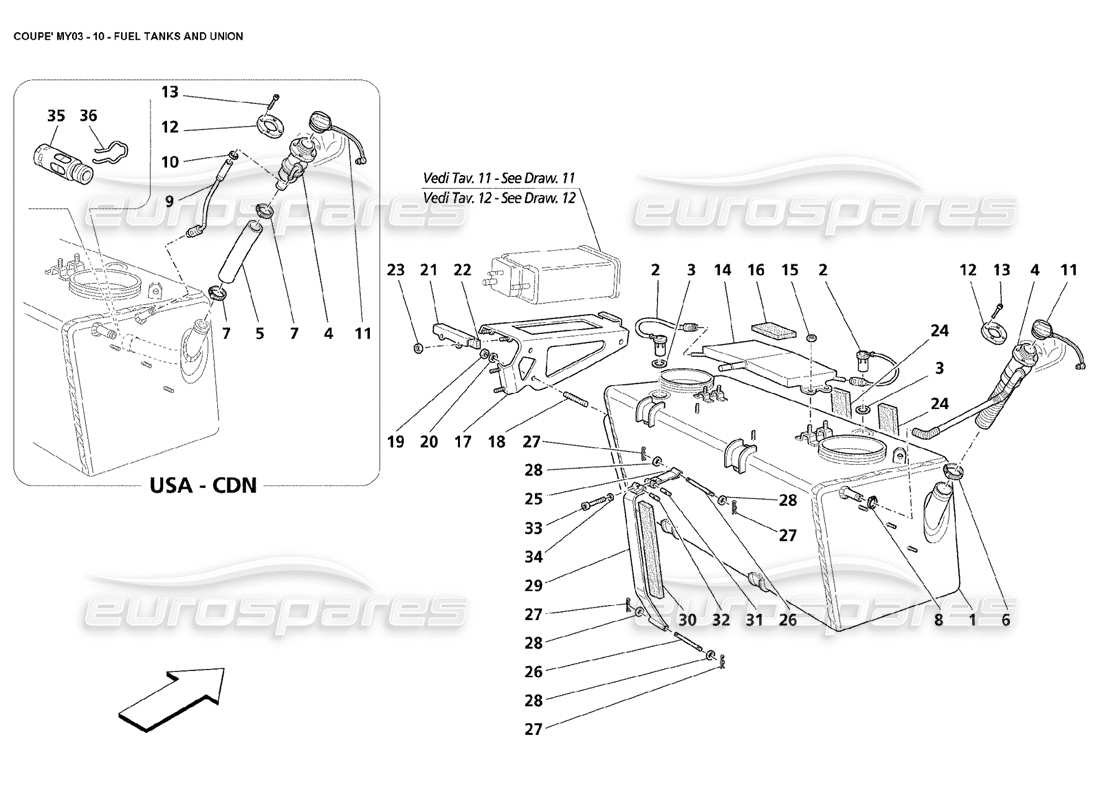

010 - Fuel Tanks and Union
Maserati 4200 Coupe (2003) Fuel Tanks and Union Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 181194
FUEL TANK
- Not for USA and CDN
from £275.28
from £275.28
# 001
MPN: 182603

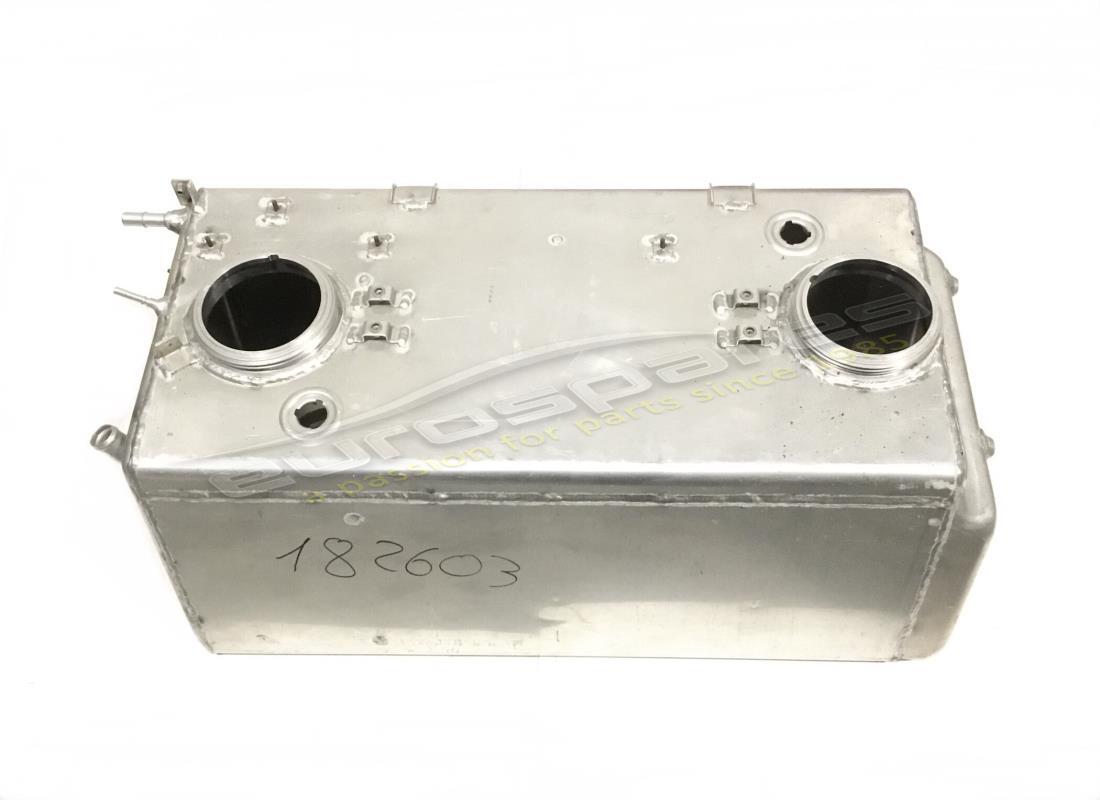

FUEL TANK
- Valid for USA and CDN - Valid till car Ass. Nr. 11185
from £715.06
from £715.06
# 001
MPN: 193835
FUEL TANK
- Valid for USA and CDN - Valid from car Ass. Nr. 11186
from £947.66
from £947.66
# 002
MPN: 181206
COMPLETE FLOAT VALVE
from £191.30
from £191.30
# 003
MPN: 169938
GASKET FOR VALVE
- Valid till stock exhaustion
Supersession
Supersession
# 003
MPN: 195049
GASKET FOR VALVE
- Valid after stock exhaustion of 169938
from £2.54
from £2.54
This part replaces part number 169938
# 004
MPN: 183430/A
FUEL INTAKE TUBE
- Not for USA and CDN
# 004
MPN: 183431
FUEL UNION
- Valid for USA and CDN - TANK CONNECTING PIPE - Valid for USA and CDN
from £18.68
from £18.68
# 005
MPN: 182637
UNION
from £24.59
from £24.59
# 006
MPN: 13000790
SCREW COLLAR
- Not for USA and CDN
from £0.54
from £0.54
This part replaces part number 312420106
# 007
MPN: 13000590
SCREW COLLAR
- Valid for USA and CDN
from £0.47
from £0.47
# 008
MPN: 13000390
SCREW COLLAR
- Not for USA and CDN
from £0.53
from £0.53
This part replaces part number 13121170 - and 1 more. Click to view details
# 009
MPN: 182586
VAPOR RECYCLING PIPE
- Valid for USA and CDN
from £201.36
from £201.36
# 010
MPN: 13432070
SCREW COLLAR
- Valid for USA and CDN
from £0.53
from £0.53
This part replaces part number 13434670
# 011
MPN: 190154
FUEL TANK PLUG
from £255.96
from £255.96
This part replaces part number 186866 which we have in stock
# 012
MPN: 980139787
GASKET
from £1.08
from £1.08
# 013
MPN: 13289277
SCREW
from £1.85
from £1.85
# 014
MPN: 181209
DISAREATOR
- Not for USA and CDN
from £49.07
from £49.07
# 014
MPN: 183011
DISAREATOR
- Valid for USA and CDN
from £119.92
from £119.92
# 015
MPN: 12574211
NUT
from £0.71
from £0.71
This part replaces part number 128300060
# 016
MPN: 127403
RUBBER THICKNESS
from £0.79
from £0.79
# 017
MPN: 186510
VAPOR FILTER SUPPORTING BRACKET
from £563.72
from £563.72
# 018
MPN: 11500024
STUD
from £1.55
from £1.55
# 019
MPN: 12574211
NUT
from £0.71
from £0.71
This part replaces part number 128300060
# 020
MPN: 10523424
WASHER
from £0.53
from £0.53
# 021
MPN: 186512
BRACKET FOR VAPOR FILTER FIXING
from £18.09
from £18.09
# 022
MPN: 184766
RUBBER THICKNESS
from £7.73
from £7.73
# 023
MPN: 12574211
NUT
from £0.71
from £0.71
This part replaces part number 128300060
# 024
MPN: 379200397
ADHESIVE GASKET
from £3.09
from £3.09
# 025
MPN: 184208
FUEL TANK FASTENER
from £3.75
from £3.75
# 026
MPN: 389200520
PIN
from £3.32
from £3.32
# 027
MPN: 58841309
SAFETY CLIP
from £1.83
from £1.83
This part replaces part number 670000498 - and 2 more. Click to view details
# 028
MPN: 12648206
WASHER
from £0.48
from £0.48
# 029
MPN: 184209
FUEL TANK FASTENER
from £4.76
from £4.76
# 030
MPN: 379200397
ADHESIVE GASKET
from £3.09
from £3.09
# 031
MPN: 670000413
ROD
from £1.28
from £1.28
# 032
MPN: 670000412
ROD
from £1.28
from £1.28
# 033
MPN: 14306921
SCREW
from £0.71
from £0.71
# 034
MPN: 10519624
WASHER
from £0.54
from £0.54
# 035
MPN: 181929
FUEL INTERCEPTION VALVE
- Valid for USA and CDN
from £159.04
from £159.04
# 036
MPN: 181930
CLIP
- Valid for USA and CDN
from £10.05
from £10.05
