014 - Exhaust System

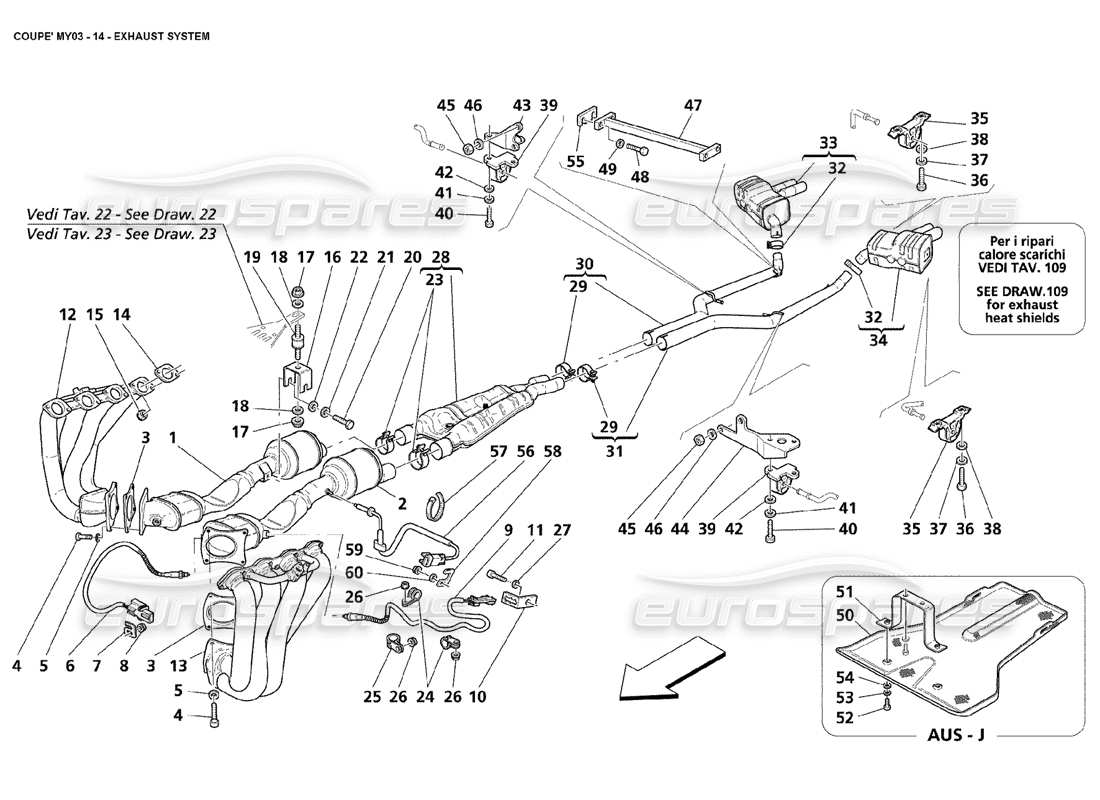

Maserati 4200 Coupe (2003) Exhaust System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Price
                                                                                                            # 001
                                                                                                            MPN: 194714
                                                                                                            RH CATALYST
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 002
                                                                                                            MPN: 194715
                                                                                                            LH CATALYST
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 003
                                                                                                            MPN: 184798
                                                                                                            GASKET
                                                                                                            - Supplied also in the cylinder heads - gasket revision kit (cod. 980020001)
                                                                                                            from £18.61
                                                                                                            from £18.61
                                                                                                            # 004
                                                                                                            MPN: 190213
                                                                                                            SCREW
                                                                                                            from £2.47
                                                                                                            from £2.47
                                                                                                            # 005
                                                                                                            MPN: 11193874
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 007
                                                                                                            MPN: 175856
                                                                                                            CONNECTORS FIXING BRACKET
                                                                                                            from £1.19
                                                                                                            from £1.19
                                                                                                            This part replaces part number 155752
                                                                                                            # 010
                                                                                                            MPN: 178366
                                                                                                            CONNECTORS FIXING BRACKET
                                                                                                            from £2.31
                                                                                                            from £2.31
                                                                                                            # 011
                                                                                                            MPN: 14305724
                                                                                                            SCREW
                                                                                                            from £0.53
                                                                                                            from £0.53
                                                                                                            # 012
                                                                                                            MPN: 183795
                                                                                                            RH EXHAUST MANIFOLD
                                                                                                            from £1,251.13
                                                                                                            from £1,251.13
                                                                                                            # 013
                                                                                                            MPN: 183796
                                                                                                            LH EXHAUST MANIFOLD
                                                                                                            from £1,251.13
                                                                                                            from £1,251.13
                                                                                                            # 014
                                                                                                            MPN: 182868
                                                                                                            GASKET
                                                                                                            - Supplied also in the cylinder heads - gasket revision kit (cod. 980020001)
                                                                                                            from £2.85
                                                                                                            from £2.85
                                                                                                            # 015
                                                                                                            MPN: 138392
                                                                                                            NUT
                                                                                                            from £0.58
                                                                                                            from £0.58
                                                                                                            # 016
                                                                                                            MPN: 187827
                                                                                                            BRACKET FOR CATALYSTS FIXING
                                                                                                            from £11.43
                                                                                                            from £11.43
                                                                                                            # 017
                                                                                                            MPN: 14048215
                                                                                                            NUT
                                                                                                            from £3.56
                                                                                                            from £3.56
                                                                                                            # 018
                                                                                                            MPN: 12625221
                                                                                                            WASHER
                                                                                                            from £0.54
                                                                                                            from £0.54
                                                                                                            # 019
                                                                                                            MPN: 184333
                                                                                                            PAD
                                                                                                            from £20.15
                                                                                                            from £20.15
                                                                                                            # 020
                                                                                                            MPN: 16043324
                                                                                                            SCREW
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 021
                                                                                                            MPN: 11193874
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 022
                                                                                                            MPN: 12625224
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 12625221
                                                                                                            # 023
                                                                                                            MPN: 185307
                                                                                                            CLAMP
                                                                                                            from £15.25
                                                                                                            from £15.25
                                                                                                            This part replaces part number 173896
                                                                                                            # 024
                                                                                                            MPN: 67190200
                                                                                                            BRACKET WITH SHEATH
                                                                                                            from £1.34
                                                                                                            from £1.34
                                                                                                            # 025
                                                                                                            MPN: 10441290
                                                                                                            BRACKET WITH SHEATH
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 026
                                                                                                            MPN: 67190100
                                                                                                            NUT
                                                                                                            from £1.08
                                                                                                            from £1.08
                                                                                                            # 027
                                                                                                            MPN: 11197774
                                                                                                            WASHER
                                                                                                            from £0.54
                                                                                                            from £0.54
                                                                                                            # 028
                                                                                                            MPN: 187826
                                                                                                            CENTRAL SILENCER
                                                                                                            from £875.88
                                                                                                            from £875.88
                                                                                                            # 029
                                                                                                            MPN: 185307
                                                                                                            CLAMP
                                                                                                            from £15.25
                                                                                                            from £15.25
                                                                                                            This part replaces part number 173896
                                                                                                            # 030
                                                                                                            MPN: 187823
                                                                                                            RH EXHAUST EXTENSION
                                                                                                            from £362.46
                                                                                                            from £362.46
                                                                                                            # 031
                                                                                                            MPN: 187824
                                                                                                            LH EXHAUST EXTENSION
                                                                                                            from £362.46
                                                                                                            from £362.46
                                                                                                            # 032
                                                                                                            MPN: 185307
                                                                                                            CLAMP
                                                                                                            from £15.25
                                                                                                            from £15.25
                                                                                                            This part replaces part number 173896
                                                                                                            # 033
                                                                                                            MPN: 184815
                                                                                                            RH REAR SILENCER
                                                                                                            from £939.75
                                                                                                            from £939.75
                                                                                                            # 034
                                                                                                            MPN: 184816
                                                                                                            LH REAR SILENCER
                                                                                                            from £972.24
                                                                                                            from £972.24
                                                                                                            # 035
                                                                                                            MPN: 184814
                                                                                                            REAR SUPPORT
                                                                                                            from £19.06
                                                                                                            from £19.06
                                                                                                            # 036
                                                                                                            MPN: 16043424
                                                                                                            SCREW
                                                                                                            from £0.48
                                                                                                            from £0.48
                                                                                                            # 037
                                                                                                            MPN: 12601374
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 038
                                                                                                            MPN: 12638524
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 039
                                                                                                            MPN: 187861
                                                                                                            ANTI VIBRATION SUPPORT
                                                                                                            from £26.98
                                                                                                            from £26.98
                                                                                                            # 040
                                                                                                            MPN: 16043424
                                                                                                            SCREW
                                                                                                            from £0.51
                                                                                                            from £0.51
                                                                                                            # 041
                                                                                                            MPN: 12601374
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 042
                                                                                                            MPN: 14496524
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 043
                                                                                                            MPN: 187775
                                                                                                            RH SUPPORT
                                                                                                            from £11.91
                                                                                                            from £11.91
                                                                                                            # 044
                                                                                                            MPN: 187774
                                                                                                            LH SUPPORT
                                                                                                            from £16.85
                                                                                                            from £16.85
                                                                                                            # 045
                                                                                                            MPN: 16100814
                                                                                                            NUT
                                                                                                            from £0.71
                                                                                                            from £0.71
                                                                                                            # 046
                                                                                                            MPN: 14496524
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 048
                                                                                                            MPN: 16043124
                                                                                                            SCREW
                                                                                                            from £0.26
                                                                                                            from £0.26
                                                                                                            # 049
                                                                                                            MPN: 12601374
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 050
                                                                                                            MPN: 190270
                                                                                                            UNDER EXHAUST SHIELD
                                                                                                            - Valid for J and AUS and - cars GB opt. japan version
                                                                                                            from £222.54
                                                                                                            from £222.54
                                                                                                            # 051
                                                                                                            MPN: 190271
                                                                                                            BRACKET
                                                                                                            - Valid for J and AUS and - cars GB opt. japan version
                                                                                                            from £31.37
                                                                                                            from £31.37
                                                                                                            # 052
                                                                                                            MPN: 14305724
                                                                                                            SCREW
                                                                                                            - Valid for J and AUS and - cars GB opt. japan version
                                                                                                            from £0.53
                                                                                                            from £0.53
                                                                                                            # 053
                                                                                                            MPN: 12639724
                                                                                                            WASHER
                                                                                                            - Valid for J and AUS and - cars GB opt. japan version
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 054
                                                                                                            MPN: 12601274
                                                                                                            WASHER
                                                                                                            - Valid for J and AUS and - cars GB opt. japan version
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 12601270
                                                                                                            # 055
                                                                                                            MPN: 193098
                                                                                                            SPACER BAR THICKNESS
                                                                                                            from £2.31
                                                                                                            from £2.31
                                                                                                            # 056
                                                                                                            MPN: 194744
                                                                                                            THERMOCOUPLE
                                                                                                            from £236.73
                                                                                                            from £236.73
                                                                                                            # 057
                                                                                                            MPN: 312020382
                                                                                                            CLAMP
                                                                                                            from £0.70
                                                                                                            from £0.70
                                                                                                            # 058
                                                                                                            MPN: 155751
                                                                                                            CLIP
                                                                                                            from £2.29
                                                                                                            from £2.29
                                                                                                            # 059
                                                                                                            MPN: 14059111
                                                                                                            NUT
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 060
                                                                                                            MPN: 12644424
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 13550214
