maserati 4200 coupe (2003) nourice - cooling system - valid for gd parts diagram

020 - Nourice - Cooling System - Valid for GD

Maserati 4200 Coupe (2003) Nourice - Cooling System - Valid for GD Parts Diagram

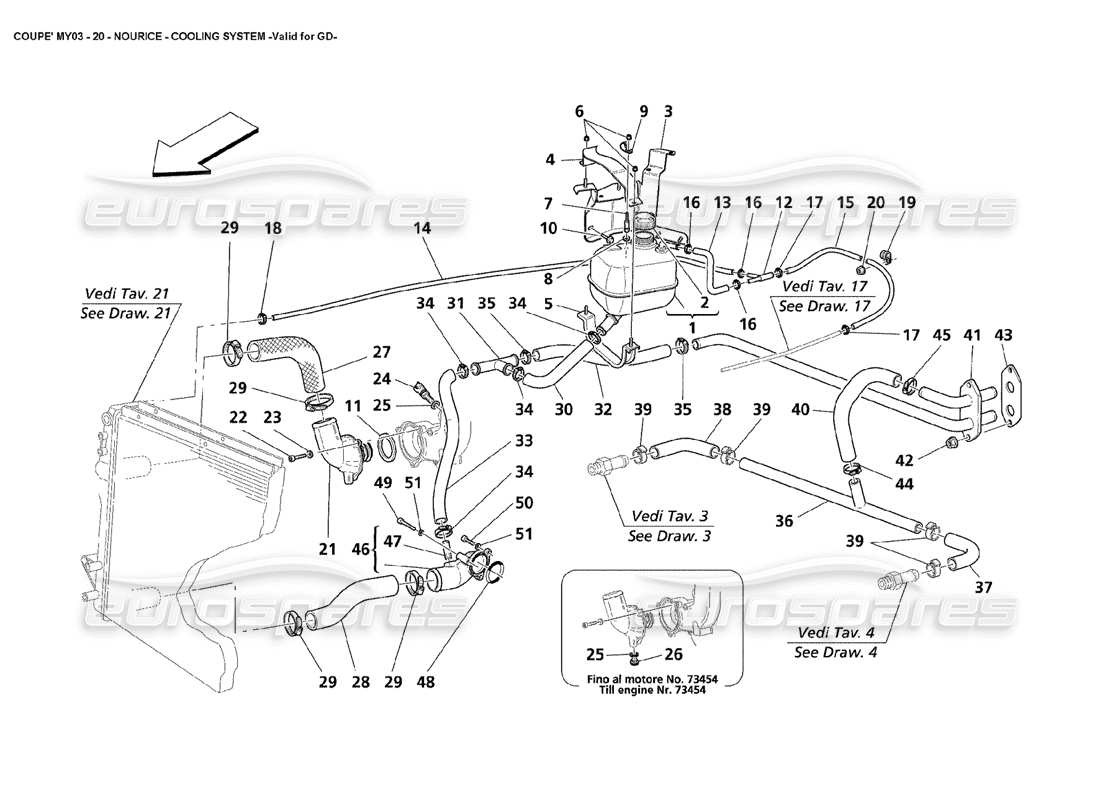

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                  #
                                                                                                  Part number
                                                                                                  Description
                                                                                                  Price
                                                                                                  # 001
                                                                                                  MPN: 192411
                                                                                                  COMPLETE EXPANSION TANK
                                                                                                  Valid to assy n. 10263
                                                                                                  from £50.24
                                                                                                  from £50.24
                                                                                                  # 002
                                                                                                  MPN: 192412
                                                                                                  TANK PLUG
                                                                                                  from £5.96
                                                                                                  from £5.96
                                                                                                  # 003
                                                                                                  MPN: 192933
                                                                                                  NOURICE SUPPORTING BRACKET
                                                                                                  from £17.51
                                                                                                  from £17.51
                                                                                                  # 004
                                                                                                  MPN: 192936
                                                                                                  NOURICE UPPER SUPPORT
                                                                                                  from £6.62
                                                                                                  from £6.62
                                                                                                  # 005
                                                                                                  MPN: 192935
                                                                                                  NOURICE LOWER SUPPORT
                                                                                                  from £10.84
                                                                                                  from £10.84
                                                                                                  # 006
                                                                                                  MPN: 14058411
                                                                                                  NUT
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 007
                                                                                                  MPN: 192953
                                                                                                  STUD
                                                                                                  from £8.20
                                                                                                  from £8.20
                                                                                                  # 008
                                                                                                  MPN: 12601274
                                                                                                  WASHER
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  This part replaces part number 12601270
                                                                                                  # 009
                                                                                                  MPN: 10441590
                                                                                                  BRACKET WITH SHEATH
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 010
                                                                                                  MPN: 11730624
                                                                                                  SCREW
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 011
                                                                                                  MPN: 137873
                                                                                                  GASKET
                                                                                                  from £2.95
                                                                                                  from £2.95
                                                                                                  # 012
                                                                                                  MPN: 189345
                                                                                                  3 WAY UNION
                                                                                                  from £13.88
                                                                                                  from £13.88
                                                                                                  # 013
                                                                                                  MPN: 192613
                                                                                                  RUBBER HOSE
                                                                                                  from £6.35
                                                                                                  from £6.35
                                                                                                  # 014
                                                                                                  MPN: 192614
                                                                                                  RUBBER HOSE
                                                                                                  from £163.12
                                                                                                  from £163.12
                                                                                                  # 015
                                                                                                  MPN: 192615
                                                                                                  RUBBER HOSE
                                                                                                  from £10.01
                                                                                                  from £10.01
                                                                                                  # 016
                                                                                                  MPN: 13125470
                                                                                                  STRAP COLLAR
                                                                                                  from £0.52
                                                                                                  from £0.52
                                                                                                  # 017
                                                                                                  MPN: 183919
                                                                                                  STRAP COLLAR
                                                                                                  from £0.71
                                                                                                  from £0.71
                                                                                                  # 018
                                                                                                  MPN: 13000190
                                                                                                  SCREW COLLAR
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  # 019
                                                                                                  MPN: 10441390
                                                                                                  BRACKET WITH SHEATH
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 020
                                                                                                  MPN: 14058411
                                                                                                  NUT
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  # 021
                                                                                                  MPN: 230890
                                                                                                  COVER WITH THERMOSTAT
                                                                                                  from £87.22
                                                                                                  from £87.22
                                                                                                  This part replaces part number 224623
                                                                                                  # 022
                                                                                                  MPN: 14305324
                                                                                                  SCREW
                                                                                                  from £0.52
                                                                                                  from £0.52
                                                                                                  This part replaces part number 14305321
                                                                                                  # 023
                                                                                                  MPN: 11197774
                                                                                                  WASHER
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  # 025
                                                                                                  MPN: 10298460
                                                                                                  GASKET
                                                                                                  - (Quantity 2 for cars - with engine till Nr. 73454)
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 026
                                                                                                  MPN: 10300540
                                                                                                  THREADED PLUG
                                                                                                  - Valid till engine Nr. 73454
                                                                                                  from £2.85
                                                                                                  from £2.85
                                                                                                  # 027
                                                                                                  MPN: 190354
                                                                                                  DELIVERY PIPE FROM ENGINE TO RADIATOR
                                                                                                  from £77.89
                                                                                                  from £77.89
                                                                                                  This part replaces part number 181747 - and 1 more. Click to view details
                                                                                                  # 028
                                                                                                  MPN: 181748
                                                                                                  RETURN PIPE FROM RADIATOR TO ENGINE
                                                                                                  from £28.75
                                                                                                  from £28.75
                                                                                                  # 029
                                                                                                  MPN: 13000790
                                                                                                  SCREW COLLAR
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 312420106
                                                                                                  # 030
                                                                                                  MPN: 192400
                                                                                                  SLEEVE
                                                                                                  from £45.87
                                                                                                  from £45.87
                                                                                                  # 032
                                                                                                  MPN: 186653
                                                                                                  RUBBER HOSE
                                                                                                  from £12.74
                                                                                                  from £12.74
                                                                                                  # 033
                                                                                                  MPN: 192401
                                                                                                  RUBBER HOSE
                                                                                                  from £47.70
                                                                                                  from £47.70
                                                                                                  # 034
                                                                                                  MPN: 183126
                                                                                                  CLAMP
                                                                                                  from £0.84
                                                                                                  from £0.84
                                                                                                  # 035
                                                                                                  MPN: 186680
                                                                                                  CLAMP
                                                                                                  from £0.85
                                                                                                  from £0.85
                                                                                                  # 036
                                                                                                  MPN: 183115
                                                                                                  WATER OUTER PIPE FROM HEADS
                                                                                                  from £16.32
                                                                                                  from £16.32
                                                                                                  # 037
                                                                                                  MPN: 185578
                                                                                                  RUBBER HOSE
                                                                                                  from £13.04
                                                                                                  from £13.04
                                                                                                  # 039
                                                                                                  MPN: 178053
                                                                                                  CLAMP
                                                                                                  from £0.95
                                                                                                  from £0.95
                                                                                                  # 040
                                                                                                  MPN: 190279
                                                                                                  SLEEVE
                                                                                                  from £11.24
                                                                                                  from £11.24
                                                                                                  # 041
                                                                                                  MPN: 66722300
                                                                                                  COMPLETE RIGID PIPE TO HEATER
                                                                                                  from £77.24
                                                                                                  from £77.24
                                                                                                  # 042
                                                                                                  MPN: 12575421
                                                                                                  NUT
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  This part replaces part number 12575411
                                                                                                  # 043
                                                                                                  MPN: 385500371
                                                                                                  GASKET
                                                                                                  from £1.08
                                                                                                  from £1.08
                                                                                                  # 044
                                                                                                  MPN: 13000490
                                                                                                  SCREW COLLAR
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 13127870 - and 1 more. Click to view details
                                                                                                  # 045
                                                                                                  MPN: 183126
                                                                                                  CLAMP
                                                                                                  from £0.87
                                                                                                  from £0.87
                                                                                                  # 046
                                                                                                  MPN: 188067
                                                                                                  WATER ENTRY COVER
                                                                                                  from £200.82
                                                                                                  from £200.82
                                                                                                  # 047
                                                                                                  MPN: 111628
                                                                                                  THREADED UNION
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 048
                                                                                                  MPN: 154191
                                                                                                  GASKET
                                                                                                  from £0.79
                                                                                                  from £0.79
                                                                                                  # 049
                                                                                                  MPN: 14306024
                                                                                                  SCREW
                                                                                                  from £1.31
                                                                                                  from £1.31
                                                                                                  This part replaces part number 14306034 which we have in stock
                                                                                                  # 050
                                                                                                  MPN: 14432224
                                                                                                  SCREW
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 051
                                                                                                  MPN: 11197774
                                                                                                  WASHER
                                                                                                  from £0.54
                                                                                                  from £0.54
