maserati 4200 coupe (2003) cooling system - radiator parts diagram

021 - Cooling System - Radiator

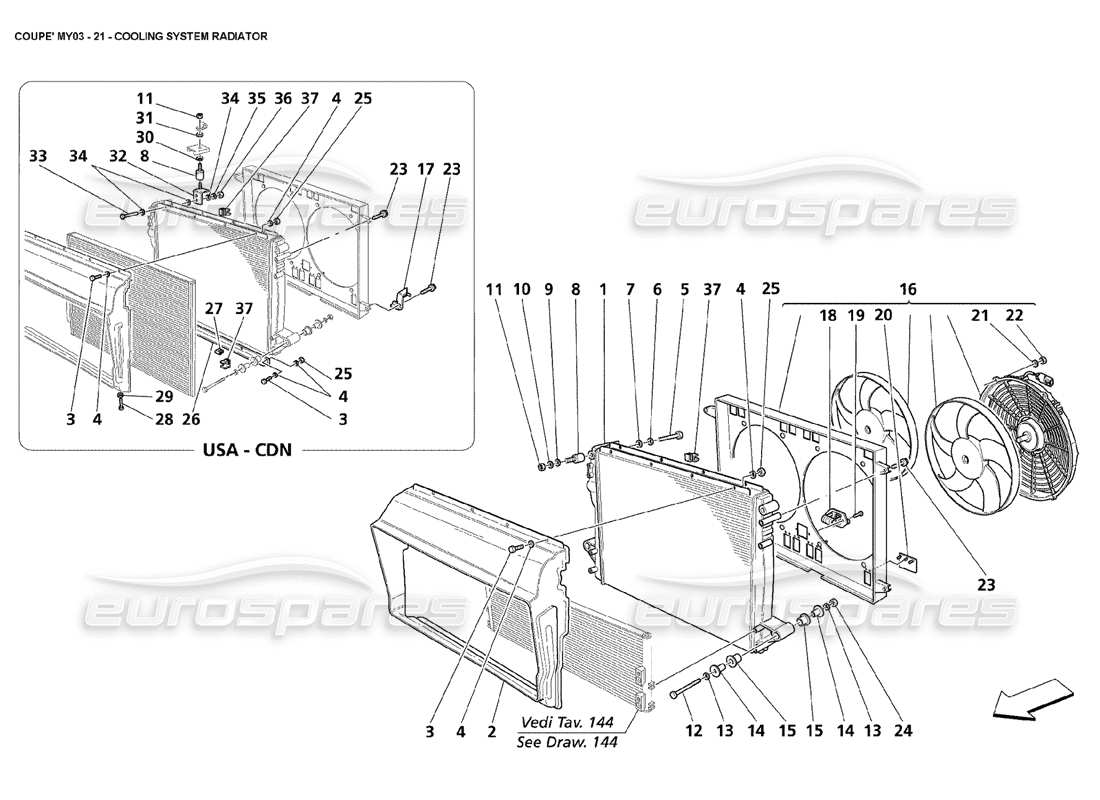

Maserati 4200 Coupe (2003) Cooling System - Radiator Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 181097
                                  WATER RADIATOR
                                  from £357.11
                                  from £357.11
                                  # 002
                                  MPN: 199893
                                  AIR CONVEYOR
                                  from £128.39
                                  from £128.39
                                  This part replaces part number 193549
                                  # 002
                                  MPN: 199893
                                  AIR CONVEYOR
                                  from £128.39
                                  from £128.39
                                  This part replaces part number 193549
                                  # 002
                                  MPN: 199897
                                  AIR CONVEYOR
                                  - Not for USA and CDN - Valid after stock exhaustion of 66247300
                                  from £138.87
                                  from £138.87
                                  This part replaces part number 66247300
                                  # 002
                                  MPN: 66247300
                                  AIR CONVEYOR
                                  - Not for USA and CDN - Valid till stock exhaustion
                                  Supersession
                                  Supersession
                                  # 003
                                  MPN: 10977724
                                  SCREW
                                  from £0.47
                                  from £0.47
                                  # 004
                                  MPN: 13579101
                                  WASHER
                                  from £0.47
                                  from £0.47
                                  # 005
                                  MPN: 14308921
                                  SCREW
                                  - Not for USA and CDN
                                  from £0.47
                                  from £0.47
                                  # 006
                                  MPN: 12601379
                                  WASHER
                                  - Not for USA and CDN
                                  from £0.47
                                  from £0.47
                                  # 007
                                  MPN: 12646724
                                  WASHER
                                  - Not for USA and CDN
                                  from £0.47
                                  from £0.47
                                  # 008
                                  MPN: 181114
                                  PAD
                                  from £7.73
                                  from £7.73
                                  # 009
                                  MPN: 12647024
                                  WASHER
                                  - Not for USA and CDN
                                  Supersession
                                  Supersession
                                  # 010
                                  MPN: 127496
                                  WASHER
                                  - Not for USA and CDN
                                  from £0.47
                                  from £0.47
                                  This part replaces part number 384600330
                                  # 011
                                  MPN: 16100814
                                  NUT
                                  from £0.47
                                  from £0.47
                                  # 012
                                  MPN: 16044824
                                  SCREW
                                  from £0.47
                                  from £0.47
                                  # 013
                                  MPN: 12646724
                                  WASHER
                                  from £0.47
                                  from £0.47
                                  # 014
                                  MPN: 181111
                                  BUSHING
                                  from £5.57
                                  from £5.57
                                  # 015
                                  MPN: 181110
                                  RUBBER BUSHING
                                  from £1.55
                                  from £1.55
                                  # 016
                                  MPN: 221254
                                  COMPLETE ELECTROFAN SET
                                  from £294.26
                                  from £294.26
                                  This part replaces part number 219451 - and 1 more. Click to view details
                                  # 016
                                  MPN: 221254
                                  COMPLETE ELECTROFAN SET
                                  from £294.26
                                  from £294.26
                                  This part replaces part number 219451 - and 1 more. Click to view details
                                  # 016
                                  MPN: 221254/A
                                  FAN + MOTOR ASSY
                                  # 017
                                  MPN: 193555
                                  BRACKET
                                  - Valid for USA and CDN
                                  from £10.97
                                  from £10.97
                                  # 018
                                  MPN: 263140
                                  RESISTOR
                                  (replaces: 383300176)
                                  from £58.39
                                  from £58.39
                                  This part replaces part number 219453
                                  # 018
                                  MPN: 263140
                                  RESISTOR
                                  from £58.39
                                  from £58.39
                                  This part replaces part number 219453
                                  # 019
                                  MPN: 15688070
                                  SCREW
                                  from £0.47
                                  from £0.47
                                  # 020
                                  MPN: 373330320
                                  STRAP
                                  from £3.94
                                  from £3.94
                                  # 021
                                  MPN: 10519401
                                  WASHER
                                  from £0.71
                                  from £0.71
                                  # 022
                                  MPN: 14048115
                                  NUT
                                  from £0.47
                                  from £0.47
                                  # 023
                                  MPN: 15699804
                                  screw - M6X20
                                  - Valid for cars with electrofan set - (Pos. 16) cod. 181737 - (Quantity 3 for cars USA and CDN)
                                  from £0.47
                                  from £0.47
                                  This part replaces part number 15534501
                                  # 023
                                  MPN: 15699904
                                  screw - M6X30
                                  - Valid for cars with electrofan set - (Pos. 16) cod. 197694 - (Quantity 3 for cars USA and CDN)
                                  from £1.47
                                  from £1.47
                                  # 024
                                  MPN: 14058511
                                  NUT
                                  from £0.47
                                  from £0.47
                                  # 025
                                  MPN: 14048615
                                  NUT
                                  from £0.47
                                  from £0.47
                                  # 026
                                  MPN: 193538
                                  AIR CONVEYOR SUPPORT BRACKET
                                  - Valid for USA and CDN
                                  from £14.38
                                  from £14.38
                                  # 027
                                  MPN: 67257100
                                  BRACKET
                                  - Valid for USA and CDN
                                  from £1.08
                                  from £1.08
                                  This part replaces part number 14370774
                                  # 028
                                  MPN: 10977724
                                  SCREW
                                  - Valid for USA and CDN
                                  from £0.47
                                  from £0.47
                                  # 029
                                  MPN: 13579101
                                  WASHER
                                  - Valid for USA and CDN
                                  from £0.47
                                  from £0.47
                                  # 030
                                  MPN: 12647024
                                  WASHER
                                  - Valid for USA and CDN
                                  Supersession
                                  Supersession
                                  # 031
                                  MPN: 12601374
                                  WASHER
                                  - Valid for USA and CDN
                                  from £0.47
                                  from £0.47
                                  # 032
                                  MPN: 193550
                                  RH BRACKET RADIATOR SUPPORTING
                                  - Valid for USA and CDN
                                  from £31.38
                                  from £31.38
                                  # 032
                                  MPN: 193611
                                  RH BRACKET RADIATOR SUPPORTING
                                  - Valid for USA and CDN
                                  from £6.81
                                  from £6.81
                                  # 033
                                  MPN: 16044524
                                  SCREW
                                  - Valid for USA and CDN
                                  from £0.50
                                  from £0.50
                                  # 034
                                  MPN: 12646724
                                  WASHER
                                  - Valid for USA and CDN
                                  from £0.47
                                  from £0.47
                                  # 035
                                  MPN: 12601374
                                  WASHER
                                  - Valid for USA and CDN
                                  from £0.47
                                  from £0.47
                                  # 036
                                  MPN: 16100814
                                  NUT
                                  - Valid for USA and CDN
                                  from £0.47
                                  from £0.47
                                  # 037
                                  MPN: 379290721
                                  CLIP
                                  - (Quantity 8 for cars USA and CDN)
                                  from £1.08
                                  from £1.08
