maserati 4200 coupe (2003) rear structure parts diagram

105 - rear structure

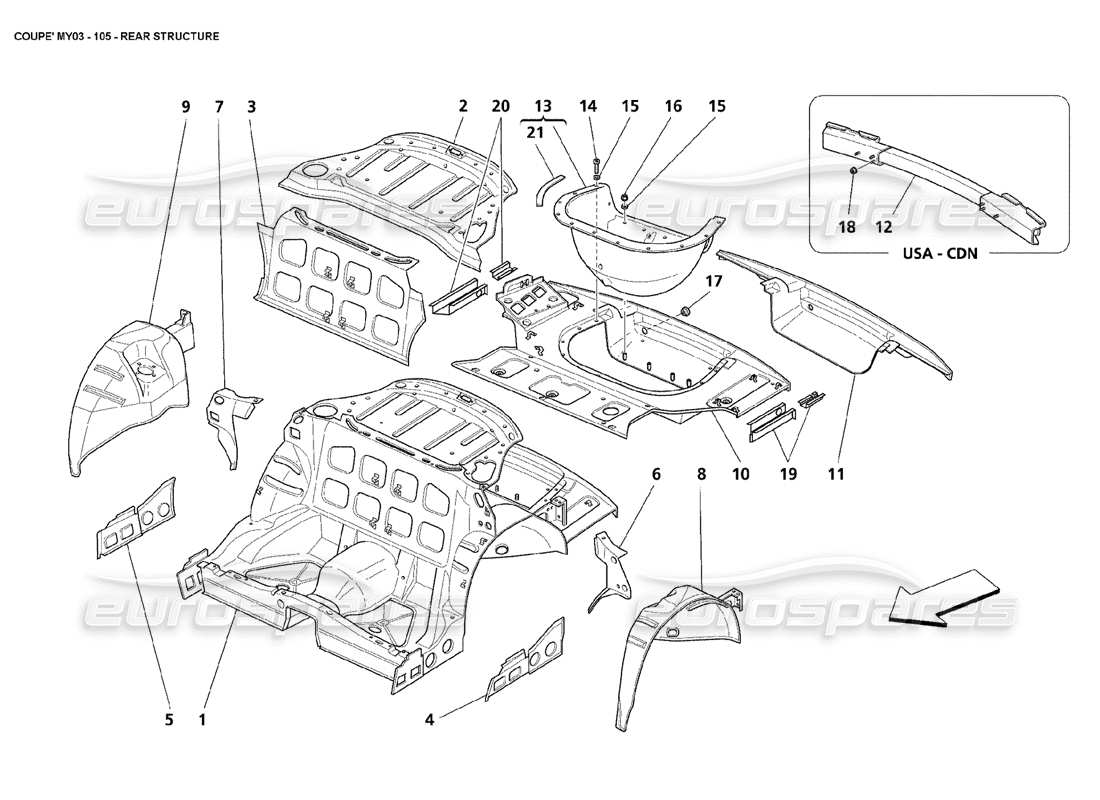

Maserati 4200 Coupe (2003) Rear Structure Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 001
                                    MPN: 980138004
                                    COMPLETE REAR FLOOR
                                    - Not for USA, CDN and AUS
                                    from £4,525.76
                                    from £4,525.76
                                    # 001
                                    MPN: 980138020
                                    COMPLETE REAR FLOOR
                                    - Valid for USA, CDN and AUS
                                    from £4,657.16
                                    from £4,657.16
                                    # 002
                                    MPN: 980138002
                                    COMPLETE REAR UNDER WINDOW PANEL
                                    - Not for USA, CDN and AUS
                                    from £119.96
                                    from £119.96
                                    # 002
                                    MPN: 980138019
                                    COMPLETE REAR UNDER WINDOW PANEL
                                    - Valid for USA, CDN and AUS
                                    from £164.29
                                    from £164.29
                                    # 003
                                    MPN: 66313400
                                    COMPLETE REAR PANEL
                                    from £131.41
                                    from £131.41
                                    # 004
                                    MPN: 66608400
                                    LH SPAR REAR DIAPHRAGM
                                    from £19.09
                                    from £19.09
                                    # 005
                                    MPN: 66608300
                                    RH SPAR REAR DIAPHRAGM
                                    from £19.09
                                    from £19.09
                                    # 006
                                    MPN: 66413300
                                    LH LATERAL INSERT FOR REAR PANEL
                                    from £22.49
                                    from £22.49
                                    # 007
                                    MPN: 66245600
                                    RH LATERAL INSERT FOR REAR PANEL
                                    from £22.49
                                    from £22.49
                                    # 008
                                    MPN: 980138017
                                    COMPLETE LH INNER REAR WHEEL HOUSE
                                    from £355.99
                                    from £355.99
                                    # 009
                                    MPN: 980138018
                                    COMPLETE RH INNER REAR WHEEL HOUSE
                                    from £355.99
                                    from £355.99
                                    # 010
                                    MPN: 980138003
                                    COMPLETE TRUNK FLOOR
                                    from £665.34
                                    from £665.34
                                    # 011
                                    MPN: 980001060
                                    COMPLETE REAR WALL
                                    from £132.18
                                    from £132.18
                                    # 012
                                    MPN: 66300700
                                    REAR BULL BAR
                                    - Valid for USA
                                    from £447.29
                                    from £447.29
                                    # 012
                                    MPN: 67021800
                                    REAR BULL BAR
                                    - Valid for CDN
                                    from £461.04
                                    from £461.04
                                    # 013
                                    MPN: 67245900
                                    COMPLETE WHEEL HOUSING
                                    from £276.85
                                    from £276.85
                                    This part replaces part number 66491000
                                    # 014
                                    MPN: 13274611
                                    SCREW
                                    from £0.47
                                    from £0.47
                                    This part replaces part number 13274517
                                    # 015
                                    MPN: 12638170
                                    WASHER
                                    from £1.08
                                    from £1.08
                                    # 016
                                    MPN: 14058311
                                    NUT
                                    from £0.47
                                    from £0.47
                                    # 017
                                    MPN: 14506987
                                    PLUG
                                    from £1.93
                                    from £1.93
                                    # 018
                                    MPN: 14040715
                                    NUT
                                    - Valid for USA and CDN
                                    from £0.47
                                    from £0.47
                                    # 019
                                    MPN: 980138023
                                    COMPLETE LH SIDE RAIL
                                    from £82.58
                                    from £82.58
                                    # 020
                                    MPN: 980138024
                                    COMPLETE RH SIDE RAIL
                                    from £78.99
                                    from £78.99
                                    # 021
                                    MPN: 66134100
                                    WHEEL HOUSING GASKET
                                    from £119.01
                                    from £119.01
